Description

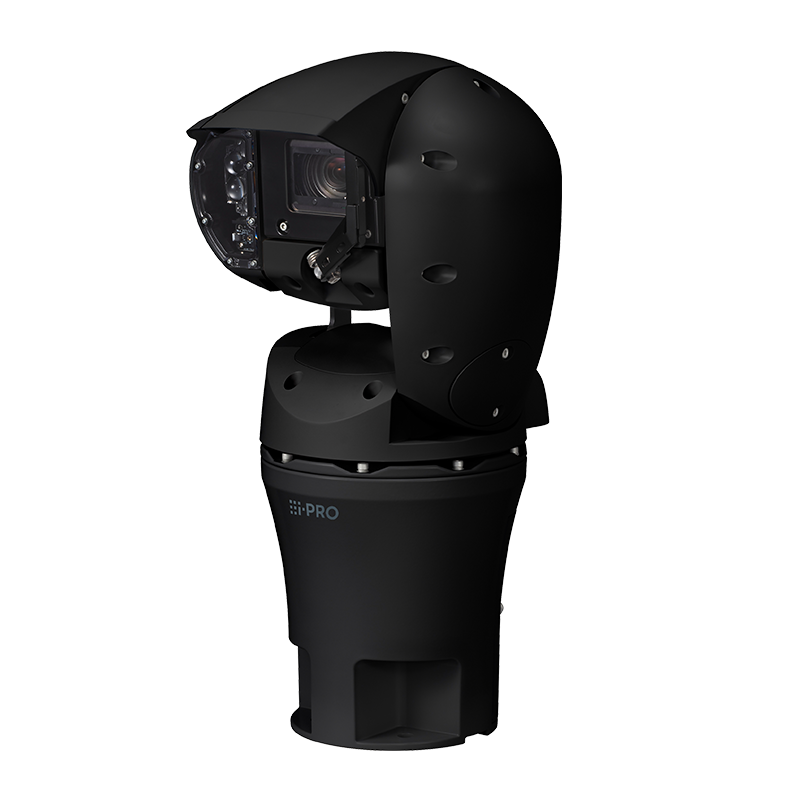

The i-PRO WV-X67310-Z4L1 is a 2MP AI-powered rugged PTZ camera engineered for superior surveillance performance in extreme environments. With an optical 40x zoom lens, AI auto tracking, and a built-in IR-LED effective up to 560 meters, it delivers exceptional visibility in total darkness. Designed to withstand wind speeds up to 270 km/h, the WV-X67310-Z4L1 is IP66, IP68, and IK10-rated for durability against water, dust, and impact.
This camera supports two edge AI analytic applications for advanced detection — including AI People, Vehicle, Face, and Sound Detection — enabling intelligent event-based monitoring. Equipped with the Ambarella CV25M SoC and FIPS 140-2 Level 3 SecureElement, it ensures robust cybersecurity and NDAA compliance.
Ideal for airports, seaports, highways, and critical infrastructure, the WV-X67310-Z4L1 offers stable performance from -50°C to +60°C, dual power options (24V AC/DC or PoE++), and a tamper-resistant enclosure for long-term reliability.
| Category | Specification |
|---|---|
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Effective Resolution | 2 Megapixels (1920 × 1080) |
| Minimum Illumination | Color: 0.011 lx (F1.6, 1/30s, AGC:11) / B&W: 0 lx with IR LED On |
| Dynamic Range | Max. 144 dB (Super Dynamic: On, Level: 31) |
| Lens Type | 40x optical zoom (4.25–170 mm, F1.6–4.95) |
| Digital Zoom | Up to 640x |
| Horizontal Viewing Angle | 1.9° (Tele) to 66° (Wide) |
| Pan/Tilt Range | 360° endless pan, -90° to +90° tilt |
| Pan/Tilt Speed | Manual: 0.065°/s–100°/s, Preset: Up to 200°/s |
| AI Analytics | AI Face, People, Vehicle, Sound, and Occupancy Detection; AI Privacy Guard; AI Motion Detection |
| AI Applications | Up to 2 edge AI analytic apps |
| Infrared Illumination | Built-in IR-LED, up to 560 m (1837 ft) range |
| Image Stabilization | Built-in gyro sensor, available in 30/25 fps mode |
| Intelligent Features | AI Auto Tracking, Super Dynamic, Fog Compensation, Backlight & Highlight Compensation |
| Network Interface | 10BASE-T/100BASE-TX RJ-45 |
| Video Compression | H.265, H.264, JPEG |
| Max Streams | 4 simultaneous streams |
| Smart Coding | GOP, VIQS, and P-picture control (for bandwidth optimization) |
| Audio Support | 2-way audio, AAC-LC / G.711 / G.726 |
| Secure Element | FIPS 140-2 Level 3 (EdgeLock® SE050F, NXP® Semiconductors) |
| Cybersecurity | HTTPS, 802.1X, device certificate, signed firmware, brute-force protection |
| ONVIF Compliance | Profile M / S / T |
| Operating Temperature | -50°C to +60°C (-58°F to +140°F) |
| Operating Humidity | 10% to 100% (no condensation) |
| Power Supply | 24V AC/DC or PoE++ (IEEE802.3bt Type4/Class8, Type3/Class6) |
| Power Consumption | Up to 79.2 W (24V DC), 70.2 W (PoE++ Class 8) |
| Environmental Ratings | IP66/IP68, NEMA 4X/6P, IK10, MIL-STD-810H |
| Wind Resistance | Operable up to 270 km/h (167 mph), non-destructive up to 90 m/s (201 mph) |
| Construction | High-strength salt-resistant resin and die-cast body (Black, Munsell N1 semi-gloss) |
| Dimensions (W×H×D) | 226 × 450 × 266 mm (8.9 × 17.7 × 10.5 in) |
| Weight | Approx. 8.1 kg (17.9 lbs) |
| Certifications | UL62368-1, CE, FCC Class A, ICES-003 Class A |
| Accessories (Optional) | WV-QWL503-B, WV-QWL503S-B, WV-QCN500-B, WV-QCA502 |
