Description

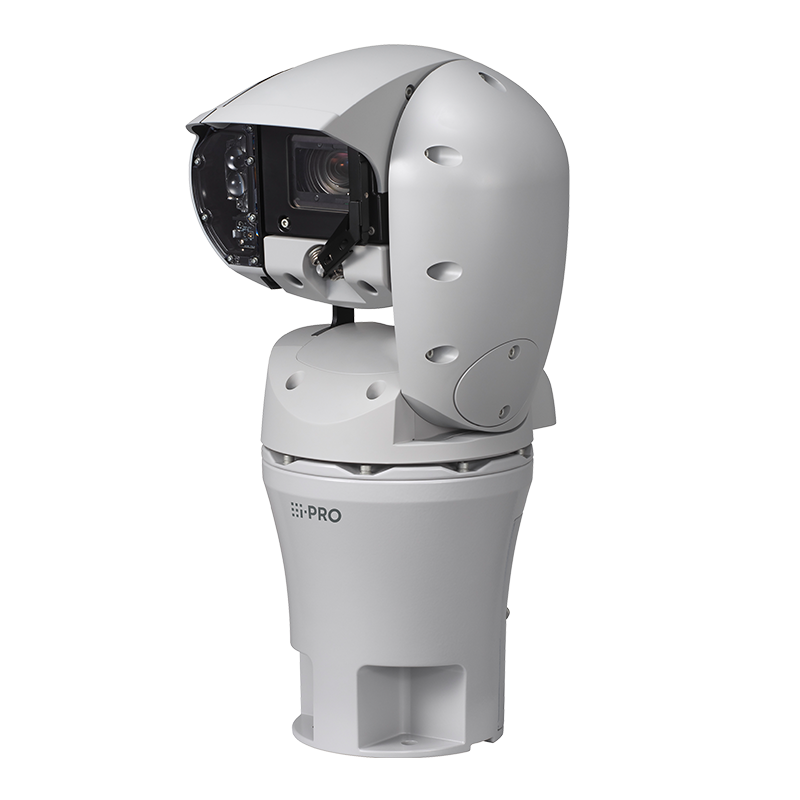

The i-PRO WV-X67311-Z4L3 is a high-performance 2MP AI-powered Rugged PTZ Camera designed for critical outdoor surveillance in harsh environments. Engineered with 40x optical zoom, built-in white LED illumination (up to 280m/918ft), and advanced AI analytics, this camera ensures exceptional image clarity and intelligent monitoring capabilities day or night.
It supports two Edge AI applications, AI Auto Tracking, and AI-based sound and object detection—making it ideal for perimeter protection, city surveillance, and industrial monitoring. Built with a FIPS 140-2 Level 3 Certified Secure Element, it guarantees top-tier data security and NDAA compliance.
Encased in a rugged IP66/IP68, IK10-rated housing, the WV-X67311-Z4L3 withstands extreme conditions from -50°C to +65°C (-58°F to +149°F) and winds up to 270 km/h (167 mph). Powered by 24V AC/DC or PoE++, this camera delivers reliability, intelligence, and durability for mission-critical applications.
| Category | Specification |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Resolution | 1920×1080 (Full HD), 1280×720, 640×360 |
| Minimum Illumination | 0 lx (with White LED On), 0.011 lx (Color), 0.0004 lx (B/W) |
| Dynamic Range | Max. 144 dB (Super Dynamic On) |
| Optical Zoom | 40x |
| Digital Zoom | Up to 640x |
| Focal Length | 4.25 mm – 170 mm |
| Field of View (H/V) | 66°–1.9° (H), 39°–1.1° (V) |
| AI Analytics | AI Video Motion Detection, Face, People, Vehicle, and Occupancy Detection |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| AI Applications | Supports up to 2 Edge AI Analytic Apps |
| Auto Tracking | AI Auto Tracking |
| White LED Illumination | Up to 280 m (918 ft) |
| System on Chip (SoC) | Ambarella CV25M |
| Pan/Tilt Range | Pan: 360° Endless / Tilt: -90° to +90° |
| Pan/Tilt Speed | Manual: 0.065°/s–100°/s, Preset: up to 200°/s |
| Preset Positions | 256 |
| Network Interface | 10BASE-T/100BASE-TX, RJ45 |
| Video Compression | H.265/H.264, MJPEG |
| Smart Coding | Variable GOP, Smart VIQS, Smart P-picture Control |
| Audio Compression | G.726, G.711, AAC-LC |
| Protocols Supported | IPv4/IPv6, HTTPS, SSL/TLS, SNMPv3, SRTP, MQTT, and more |
| Users | Up to 14 simultaneous users |
| Storage | SDXC/SDHC/SD (optional) |
| Security | FIPS 140-2 Level 3, GlobalSign® Certificate, IEEE802.1X, HTTPS |
| Operating Temperature | -50°C to +65°C (-58°F to +149°F) |
| Humidity | 10% to 100% (no condensation) |
| Power Source | 24V AC/DC, PoE++ (Type 4 Class 8) |
| Power Consumption | Max. 79W (24V AC/DC), 70W (PoE++ Type 4) |
| Certifications | UL, CE, FCC, EN55032, IK10, IP66/IP68, NEMA 4X/6P |
| Wind Resistance | Operable up to 270 km/h (167 mph) |
| Material / Finish | High-strength salt-resistant resin, gray semi-gloss |
| Dimensions (W×H×D) | 226 × 450 × 266 mm |
| Weight | Approx. 8.1 kg (17.9 lbs) |
| Compliance | NDAA Compliant |
| Optional Accessories | WV-QWL503S-G, WV-QWL503-G, WV-QCN500S-G, WV-QCA502 I/O Cable |
