Description

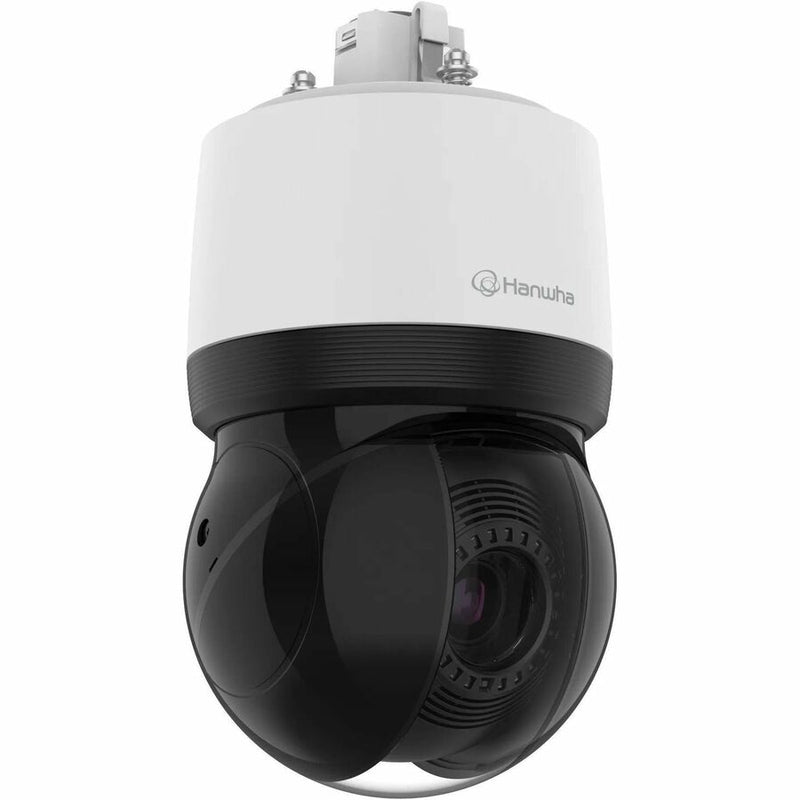

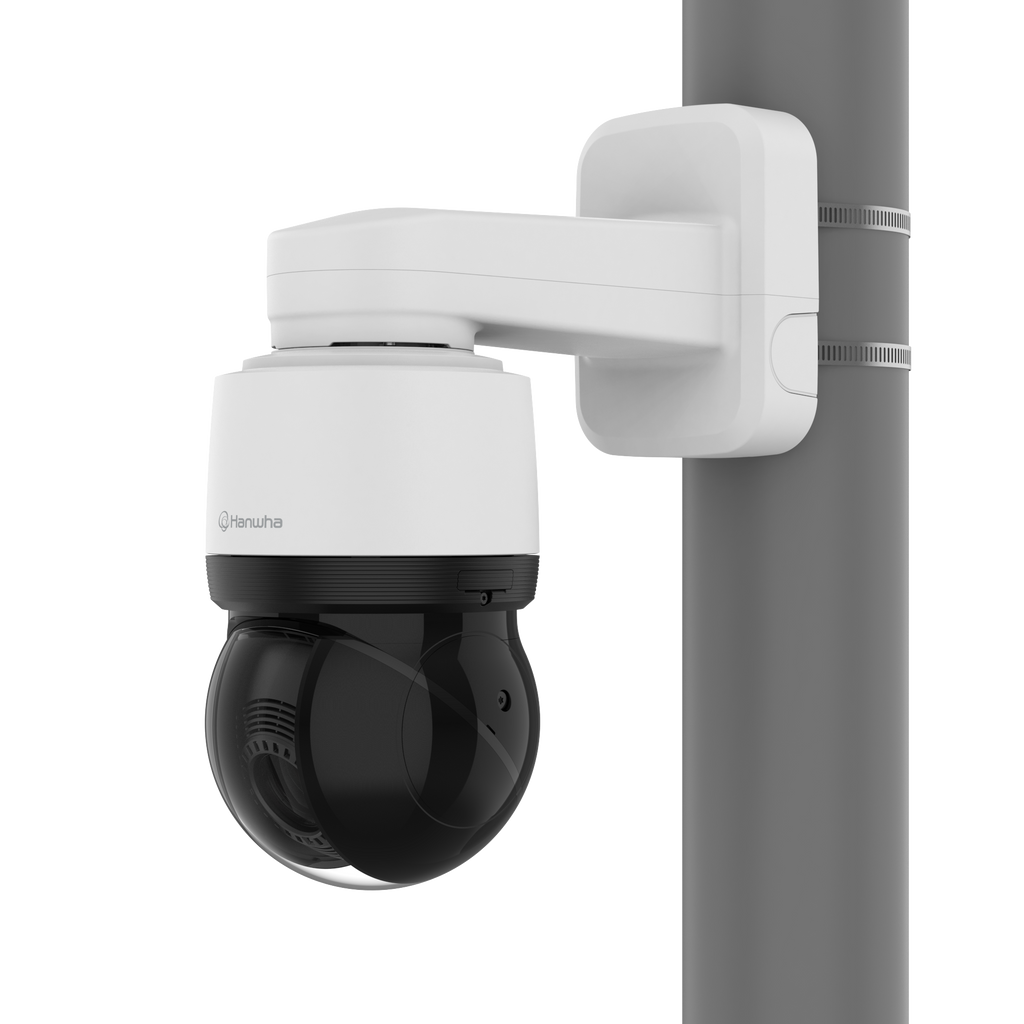

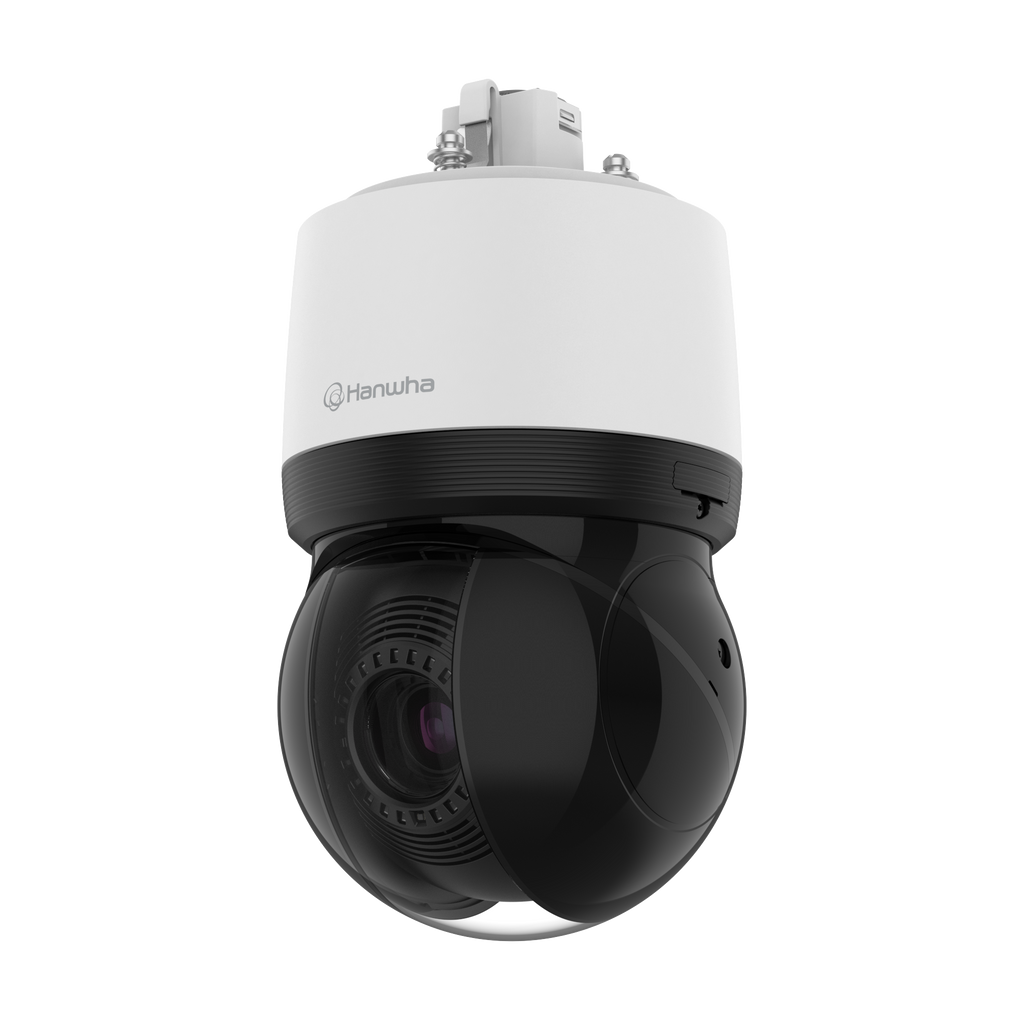

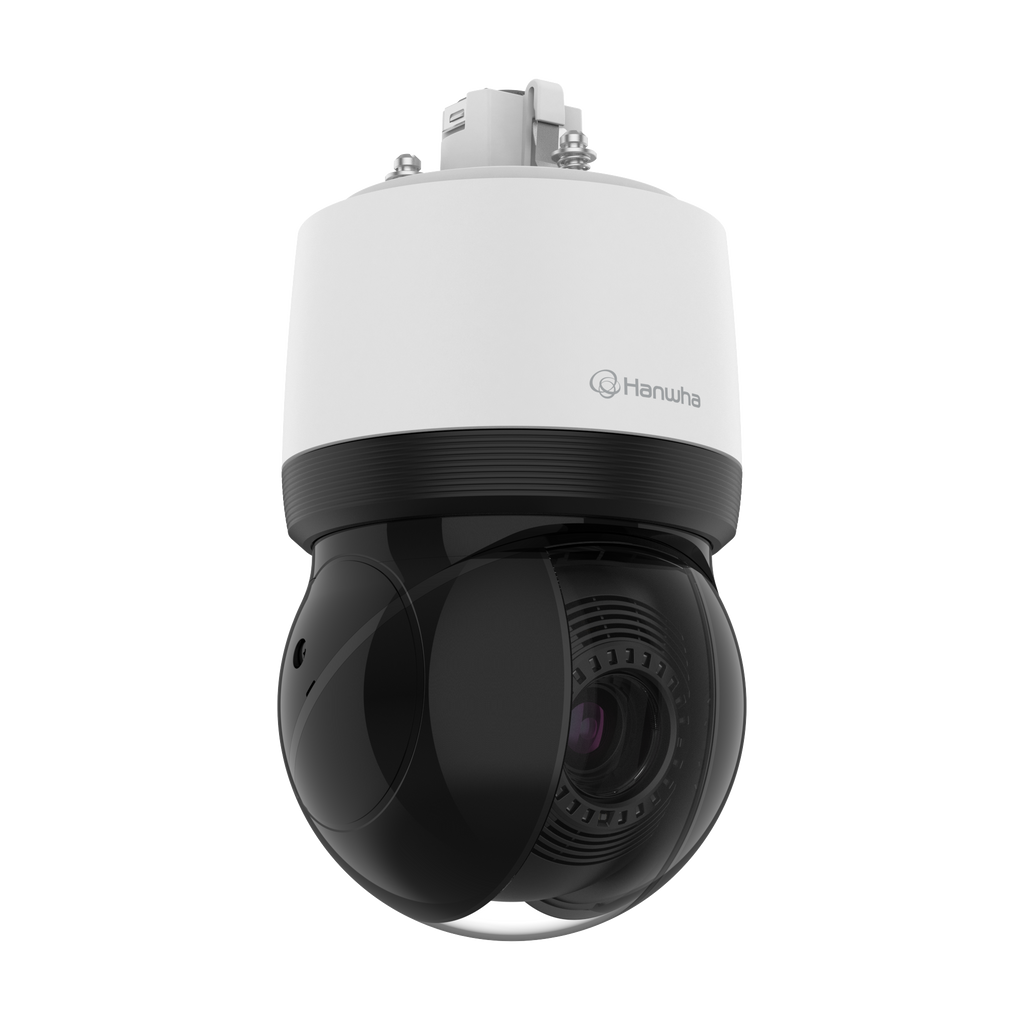

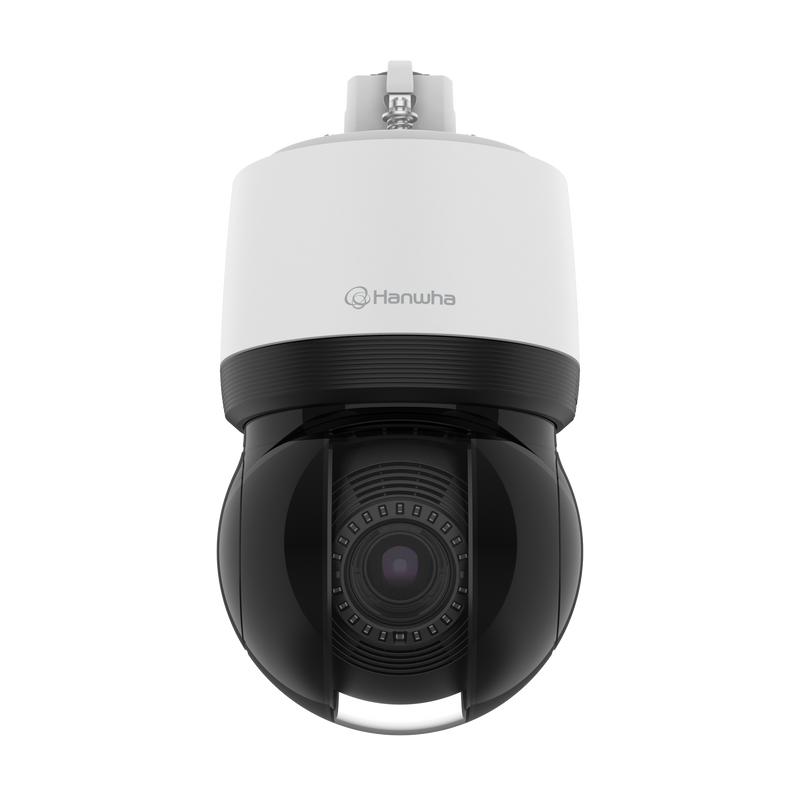

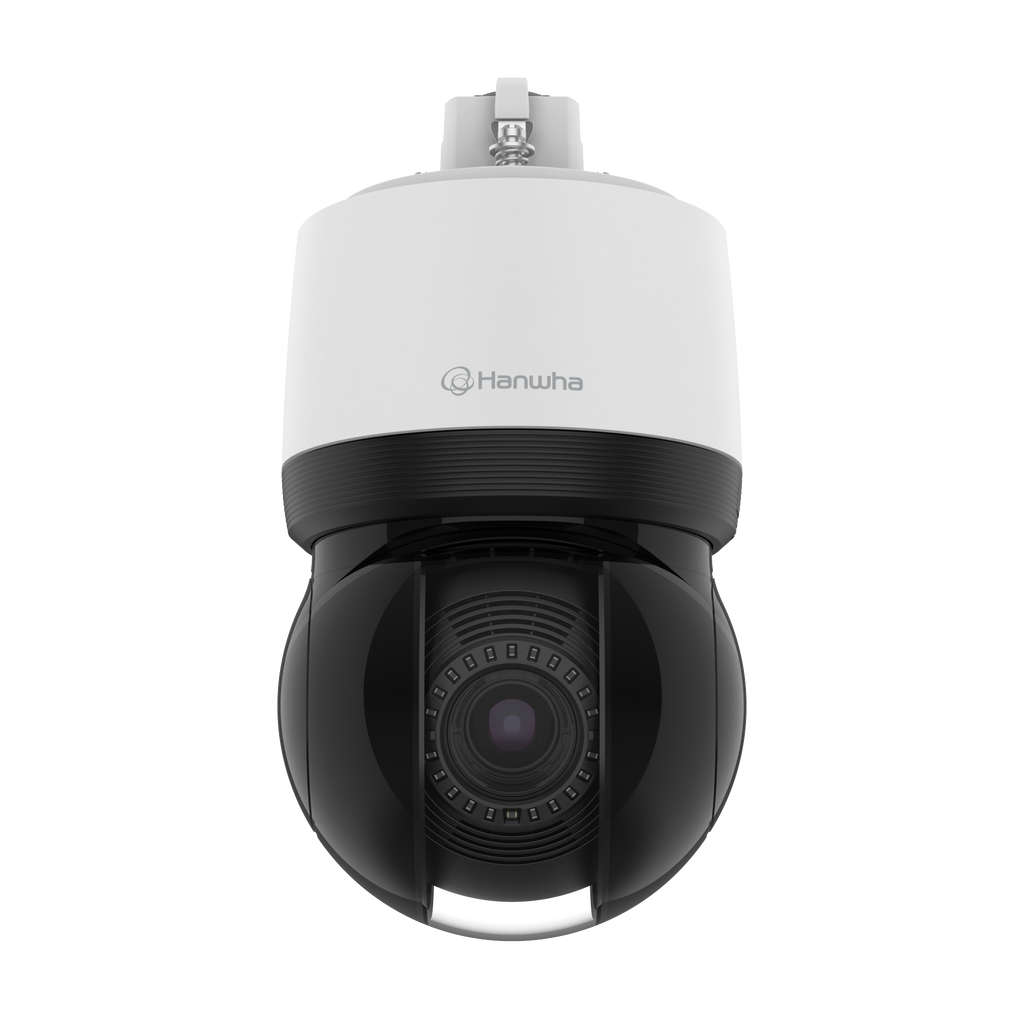

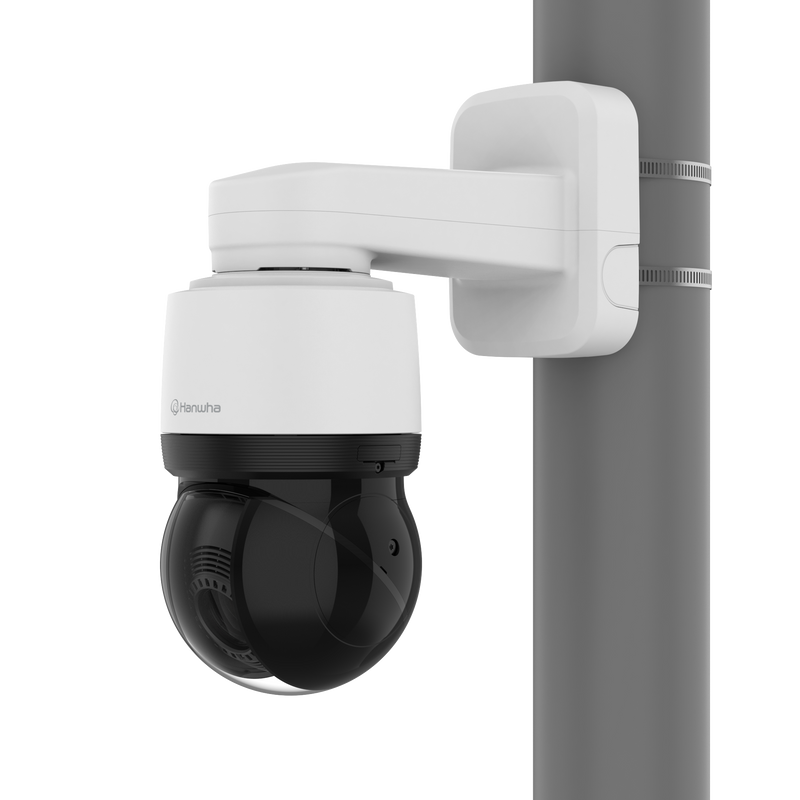

The Hanwha Vision XNP-C6403R is a high-performance 2MP PTZ PLUS camera engineered for long-range visibility, advanced AI analytics, and reliable operation in demanding outdoor environments. Featuring a powerful 40x optical zoom, 200m IR illumination, AI-based object detection, and target-lock auto tracking, it delivers exceptional situational awareness for critical security applications.
Designed with a compact and simplified PTZ PLUS form factor, the XNP-C6403R integrates extreme WDR (150 dB), a built-in gyro sensor for enhanced stabilization, defog technology, and rugged durability with IP66, IK10, and NEMA 4X ratings. Ideal for perimeter protection, highways, urban surveillance, and large-area monitoring, this camera provides superior clarity, responsiveness, and intelligent control.
| Category | Details |
|---|---|
| Imaging | 1/2.8" CMOS; Max 2MP (1920×1080); 60fps (H.265/H.264); Min Illumination: Color 0.05 Lux, B/W 0.005 Lux |
| Lens & Zoom | 4.25–170mm motorized lens; 40x optical zoom; 32x digital zoom; F1.6 (W)–F4.95 (T) |
| Field of View | Horizontal 65.66°–1.88°; Vertical 39.4°–1.09° |
| Pan/Tilt | 360° endless pan; Tilt −20° to 90°; Preset speeds: Pan 700°/s, Tilt 500°/s |
| Video Features | Day/Night (ICR), extremeWDR 150 dB, WiseNR II, SSNR V, DIS (gyro-based), Defog |
| Analytics (AI-Based) | Object detection (Person/Face/Vehicle/License Plate), Virtual Line, Intrusion, Loitering, Motion; Auto tracking, Target lock tracking |
| IR Performance | WiseIR up to 200m; 850nm |
| Audio/Alarm | Audio in/out via optional I/O box; Alarm input/output supported |
| Network | RJ-45 10/100; H.265/H.264/MJPEG; WiseStream III; Up to 10 streams; ONVIF S/G/T/M |
| Security | Secure boot, TPM 2.0, FIPS 140-2 L2, HTTPS, SRTP, IEEE 802.1X |
| Edge Storage | Dual microSD slots (max 512GB ×2 = 1TB) |
| Environmental | Operating: −40°C to +50°C; IP66, IK10, NEMA TS-2, NEMA 4X; Wind load 150 mph |
| Power | PoE++ (IEEE 802.3bt Type 3, Class 6); Max 40W |
| Construction | Aluminum + PC; Colors: White/Black; Dimensions: Ø158 × 293.3mm; Weight: 3.2kg |
