Description

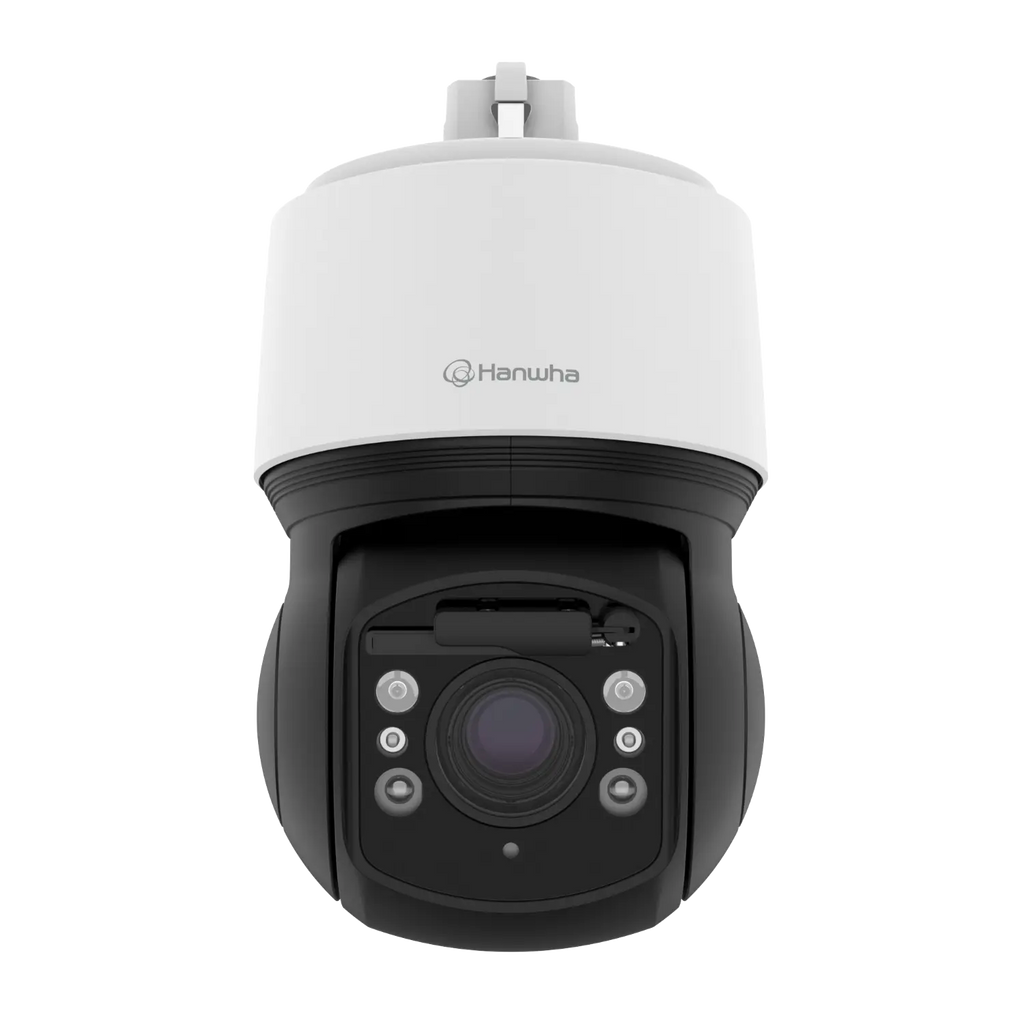

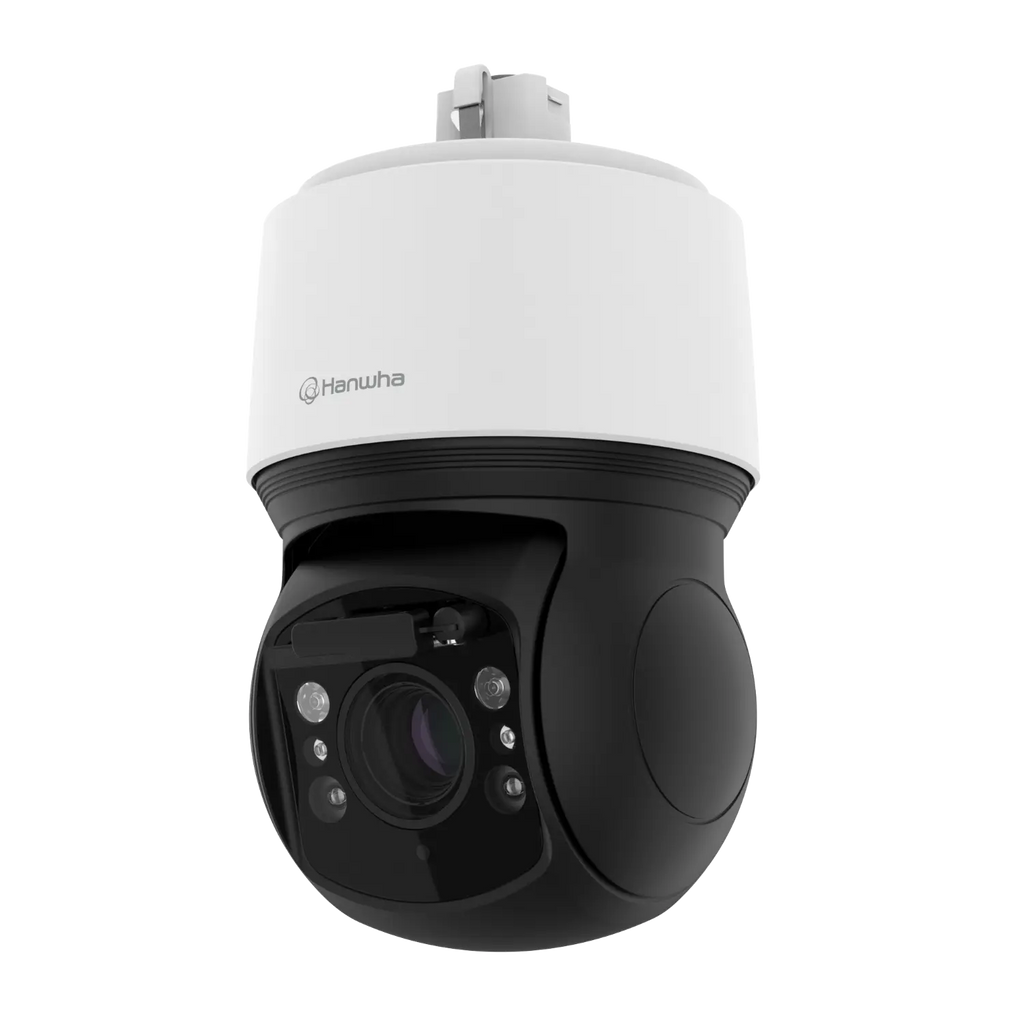

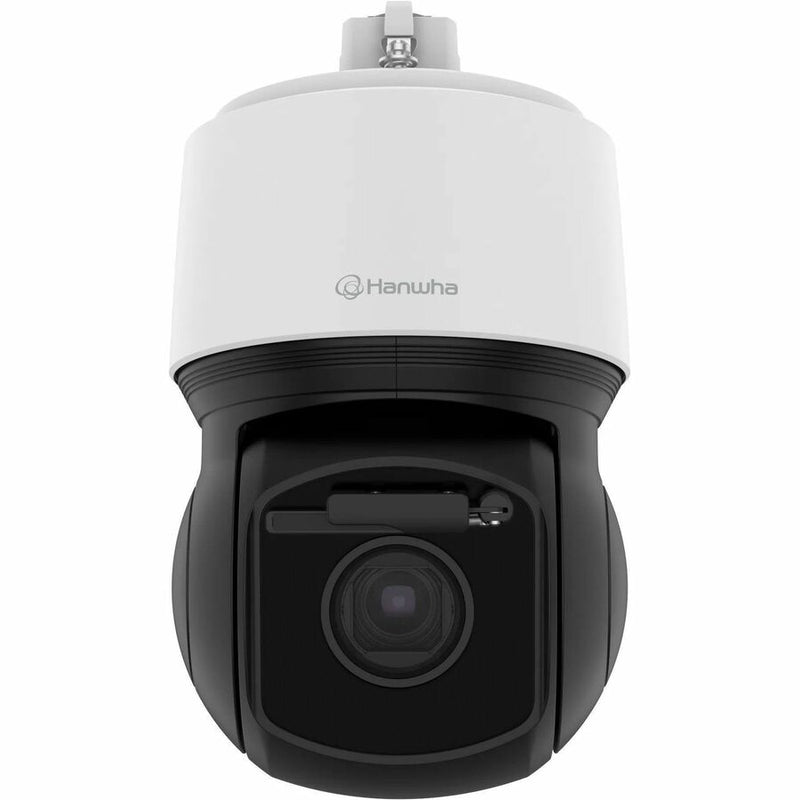

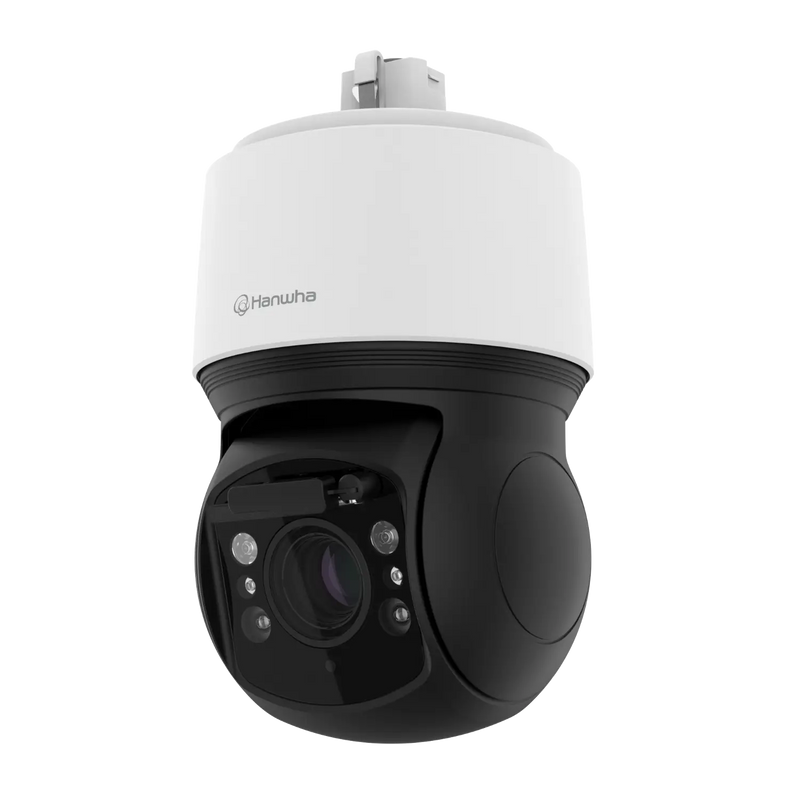

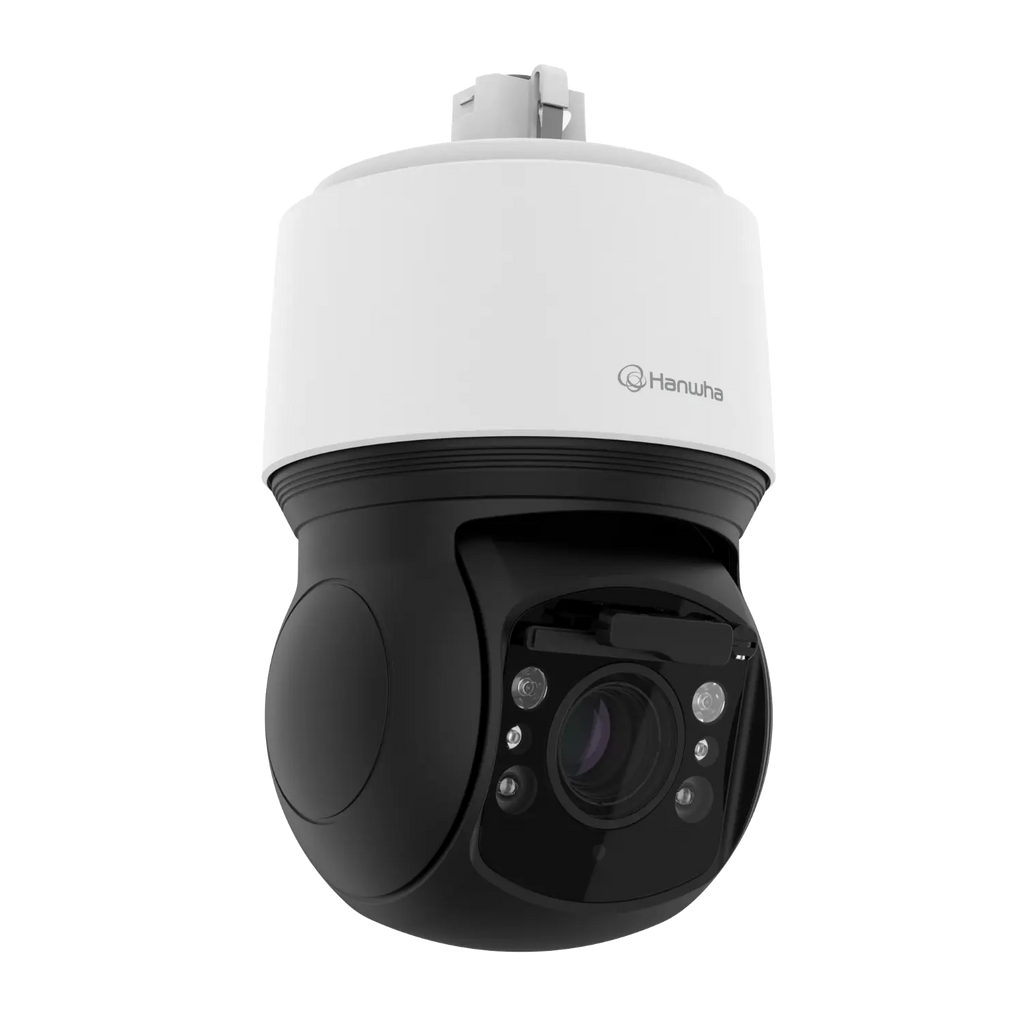

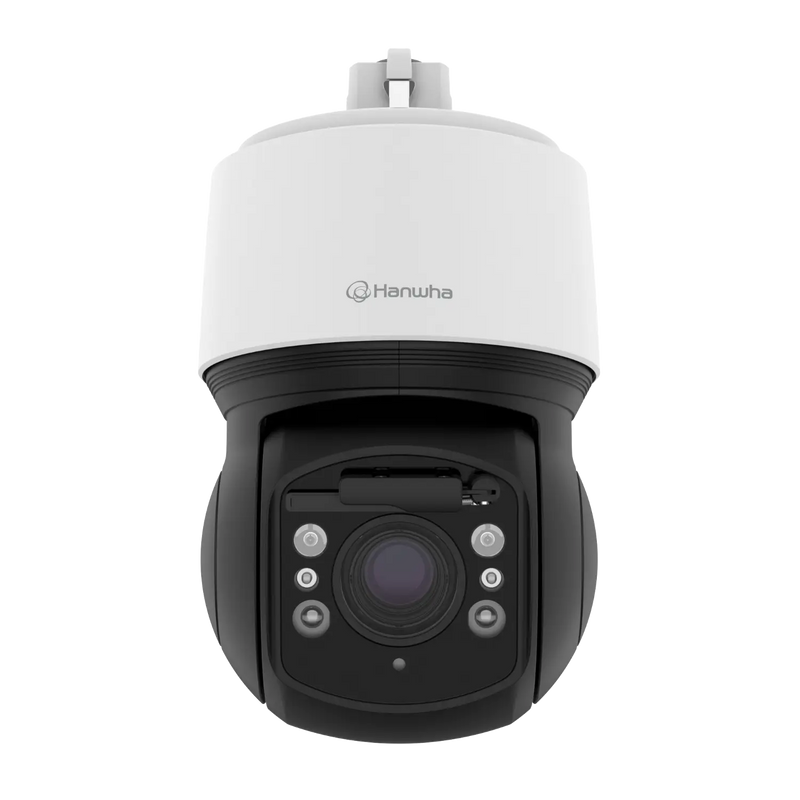

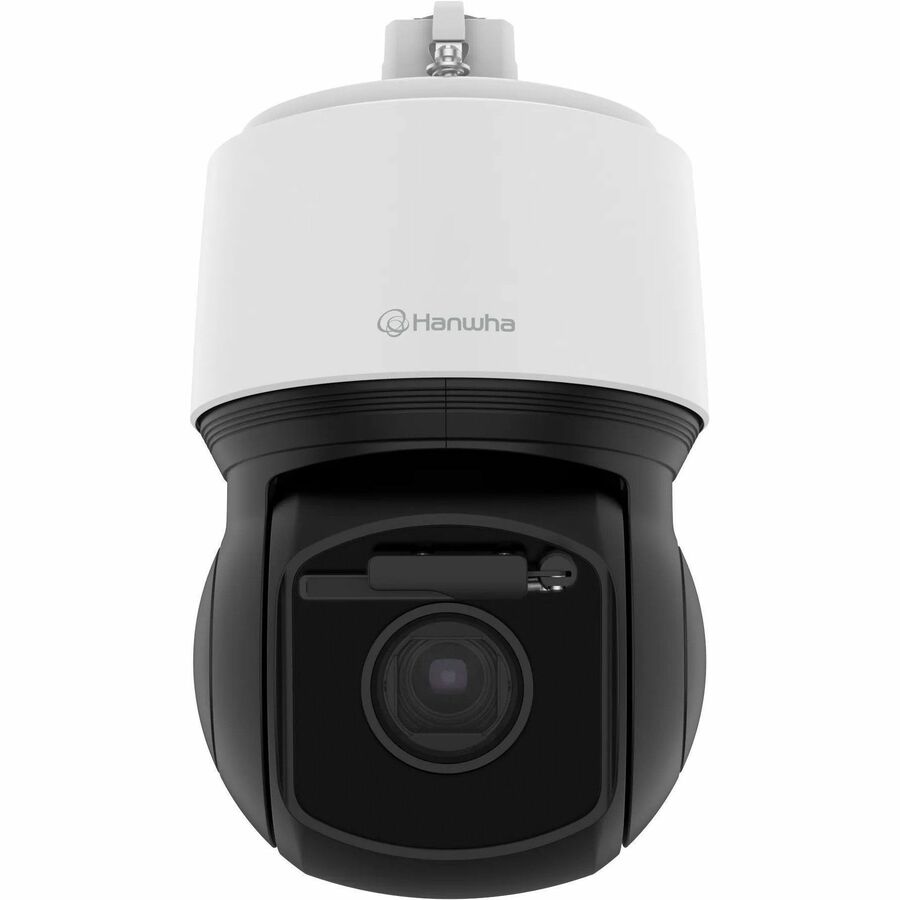

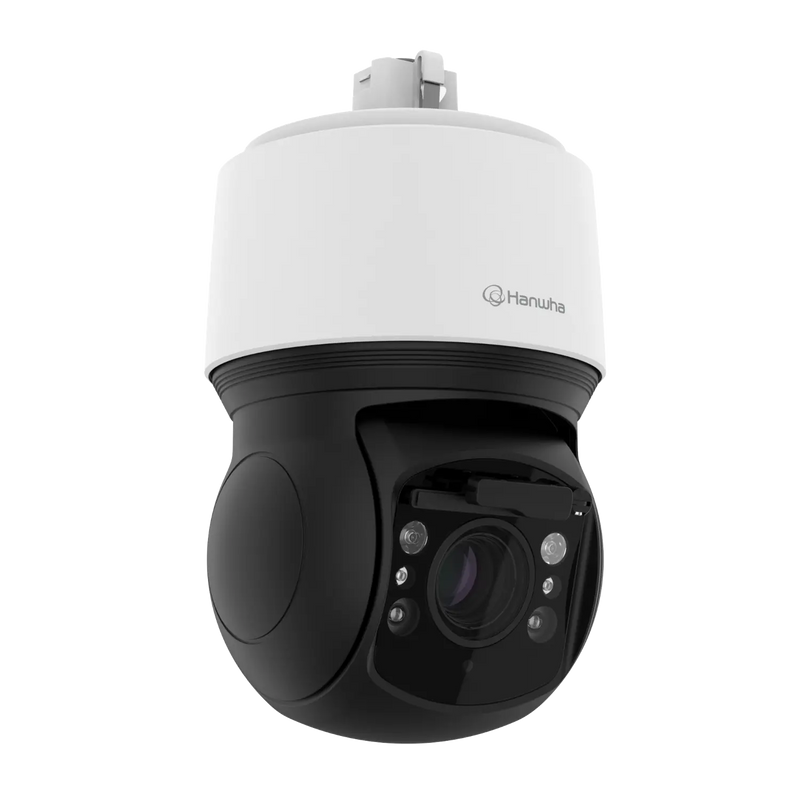

The Wisenet XNP-C6403RW is a high-performance 2MP PTZ PLUS camera engineered for demanding outdoor surveillance environments. Featuring a powerful 40x optical zoom lens and advanced AI-based analytics, it delivers exceptional clarity, precise object classification, and reliable auto-tracking for both people and vehicles.

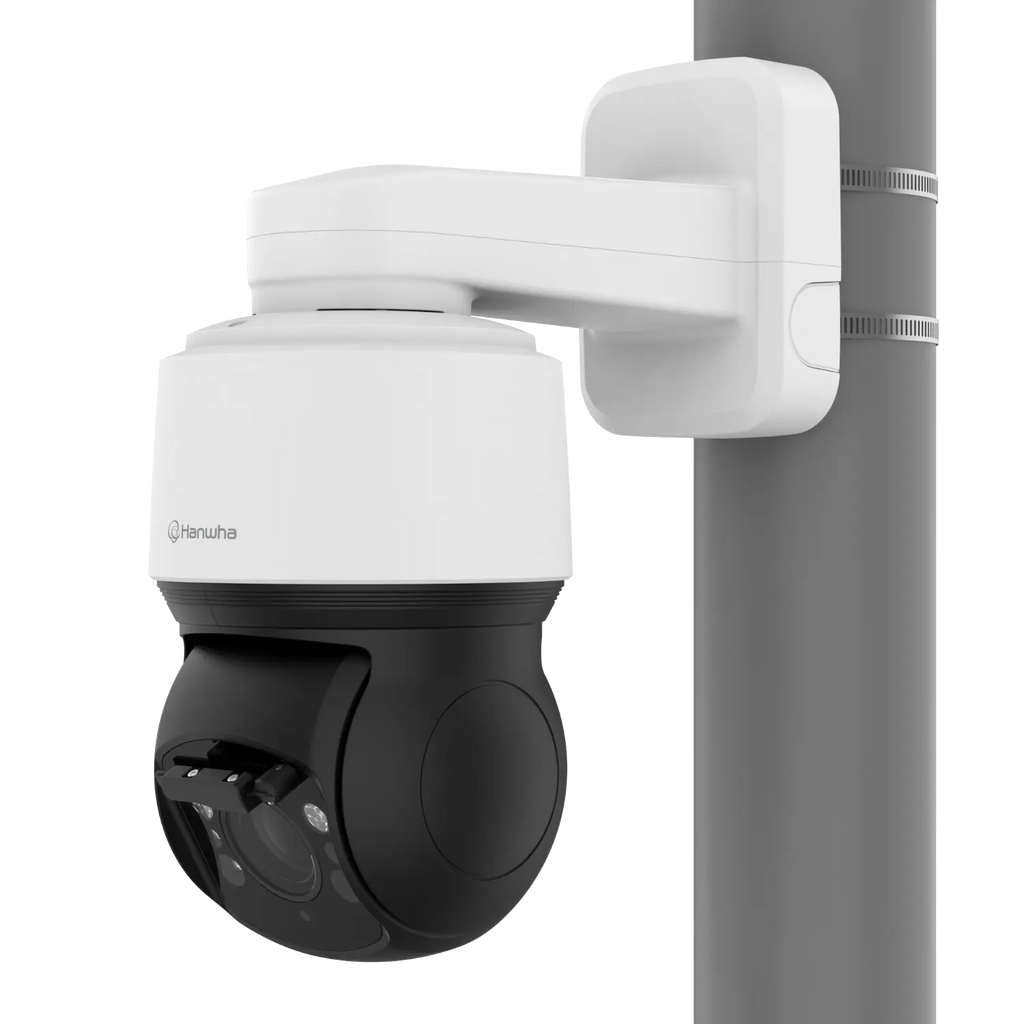

Built for challenging conditions, the camera includes a built-in wiper, IR illumination up to 200 meters, and rugged IP66/IK10/NEMA 4X protection. Its PTZ PLUS design reduces installation time with lighter construction and simplified cabling, while the integrated gyro sensor ensures stable imaging even in high-vibration scenarios.
Ideal for perimeter security, highways, airports, seaports, industrial facilities, and wide-area monitoring, the XNP-C6403RW provides powerful zoom performance, robust durability, and intelligent situational awareness.
| Category | Specification |
|---|---|
| SKU | XNP-C6403RW |
| Resolution | Max. 2MP (1920×1080) |
| Image Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.05 Lux (1/30 sec), B/W: 0.005 Lux |
| Lens | 4.25–170mm (40x optical zoom), F1.6–F4.95 |
| Digital Zoom | 32x (Total 1280x zoom) |
| Field of View | H: 65.66°–1.88° / V: 39.4°–1.09° |
| Max Frame Rate | H.265/H.264: 60fps (60Hz), MJPEG: 30fps |
| Day/Night | ICR (Auto) |
| WDR | 150 dB Extreme WDR |
| Image Stabilization | DIS with built-in gyro sensor |
| IR Illumination | 200m (656 ft), WiseIR |
| PTZ Range | Pan: 360° endless / Tilt: +90° to –20° |
| PTZ Speed | Pan: up to 500°/sec / Tilt: up to 350°/sec |
| Auto-Tracking | Object auto-tracking (Person/Vehicle), Target lock tracking |
| AI Analytics | Person/Face/Vehicle/License Plate detection, virtual line/area, intrusion, loitering |
| Smart Codec | WiseStream III |
| Video Compression | H.265, H.264, MJPEG |
| Network Protocols | IPv4/IPv6, HTTPS, SRTP, ONVIF S/G/T/M, MQTT, NTCIP 1205 |
| Edge Storage | Dual SD/SDHC/SDXC slots, up to 512GB ×2 (1TB total) |
| Audio I/O | Via optional I/O box |
| Alarm I/O | Via optional I/O box |
| Environmental Rating | IP66, IK10, NEMA 4X, NEMA-TS2 compliance |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Power Input | PoE++ (IEEE 802.3bt Type 3, Class 6) |
| Power Consumption | Max 46W / Typical 26W |
| Color Options | White or Black |
| Material | Aluminum, Polycarbonate |
| Dimensions | Ø184.9 × 318.8 mm (7.28 × 12.55 in) |
| Weight | 5.6 kg (12.34 lb) |
