Description

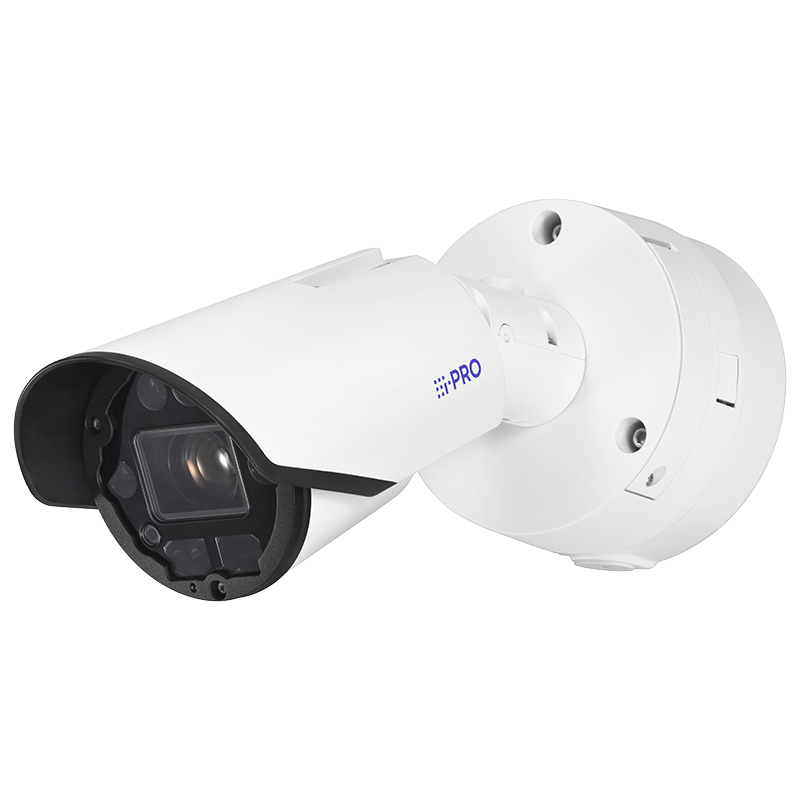

The i-PRO WV-X15301-Z1L is a high-performance 2-megapixel AI outdoor bullet camera designed for advanced surveillance in challenging environments. Equipped with a 1/2.8-type CMOS sensor, 10x optical zoom lens, and built-in IR LEDs with a range up to 250 m (820 ft), it ensures clear image capture even in total darkness.
Powered by the Ambarella CV52 SoC, the camera supports up to nine edge AI analytic applications, including AI-based people, vehicle, and face detection. Its FIPS 140-2 Level 3 certified Secure Element (EdgeLock® SE050F) and NDAA compliance guarantee high-level data protection for mission-critical installations.
Built for durability, the WV-X15301-Z1L is IP66/IP67-rated, IK10 shock-resistant, and withstands temperatures from -40 °C to +60 °C. Ideal for perimeter monitoring, parking areas, transport hubs, and critical infrastructure requiring precise AI analytics and long-range visibility.
| Category | Specification |
|---|---|
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Resolution | 2 MP (1920 × 1080) @ up to 60 fps |
| Minimum Illumination | Color: 0.011 lx (F1.6, 1/30 s, AGC:11); B/W: 0 lx (IR LED On) |
| Dynamic Range | Max. 144 dB (Super Dynamic On, Level 31) |
| Optical Zoom | 10× motorized zoom / motorized focus |
| Digital Zoom | Up to 160× |
| Focal Length | 4.7 – 47 mm (1:1.6 – 1:3.0) |
| Field of View (16:9) | H: 6.6° – 62°, V: 3.7° – 37° |
| IR LED Range | Up to 250 m (820 ft) with PoE++ |
| AI Analytics | AI People Detection, AI Vehicle Detection, AI Face Detection, AI Scene Change Detection, AI Privacy Guard, AI Occupancy Detection, AI Sound Classification, AI On-site Learning, License Plate Recognition |
| Max. AI Apps | 9 Edge AI applications |
| Audio Functions | Audio Input/Output (3.5 mm jack), G.711/AAC-LC support |
| Storage | microSD card support (2 GB – 512 GB) |
| Power Supply | DC 12 V, PoE+ (IEEE 802.3at), PoE++ (IEEE 802.3bt) |
| Power Consumption | 15.6 W (DC 12 V) / 24.8 W (PoE+) / 32.4 W (PoE++) |
| Operating Temperature | –40 °C to +60 °C (PoE++); –30 °C to +60 °C (DC 12 V) |
| Protection Rating | IP66 / IP67, Type 4X, NEMA 4X compliant |
| Impact Resistance | IK10 (IEC 62262) |
| Network Interface | RJ-45 (10BASE-T / 100BASE-TX) |
| Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP, SNMP, FTP/SFTP, MQTT, IEEE 802.1X |
| ONVIF Profiles | G / M / S / T compliant |
| Dimensions | Φ168 mm × 403 mm (D); up to 456 mm with sunshade extended |
| Weight | Approx. 3.6 kg (8.0 lb) |
| Certifications | UL, CE, FCC Part 15 Class A, NDAA Compliant |
| Included / Optional Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A mount brackets; WV-SDB series SD cards; WV-QCA501A I/O cable; WV-PM500 mic; WJ-PU201 PoE injectors |
