Description

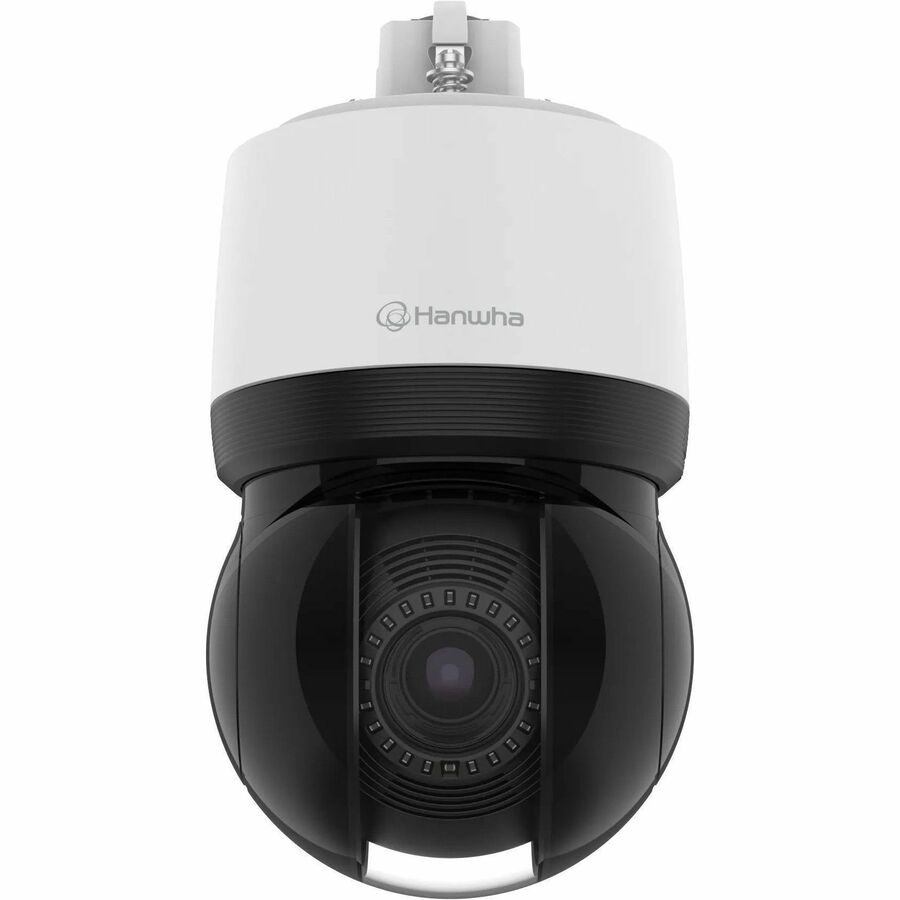

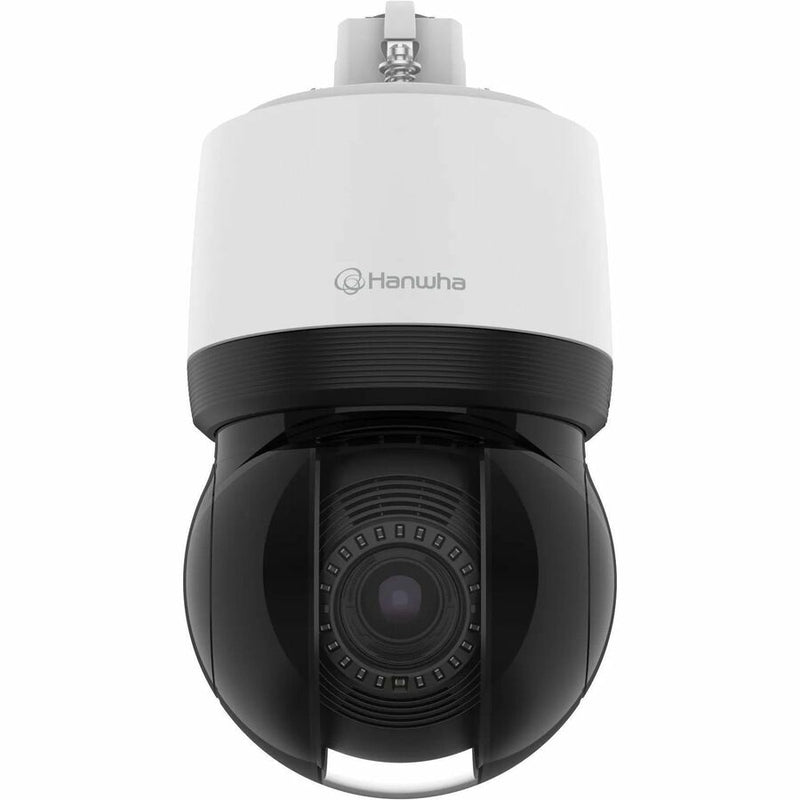

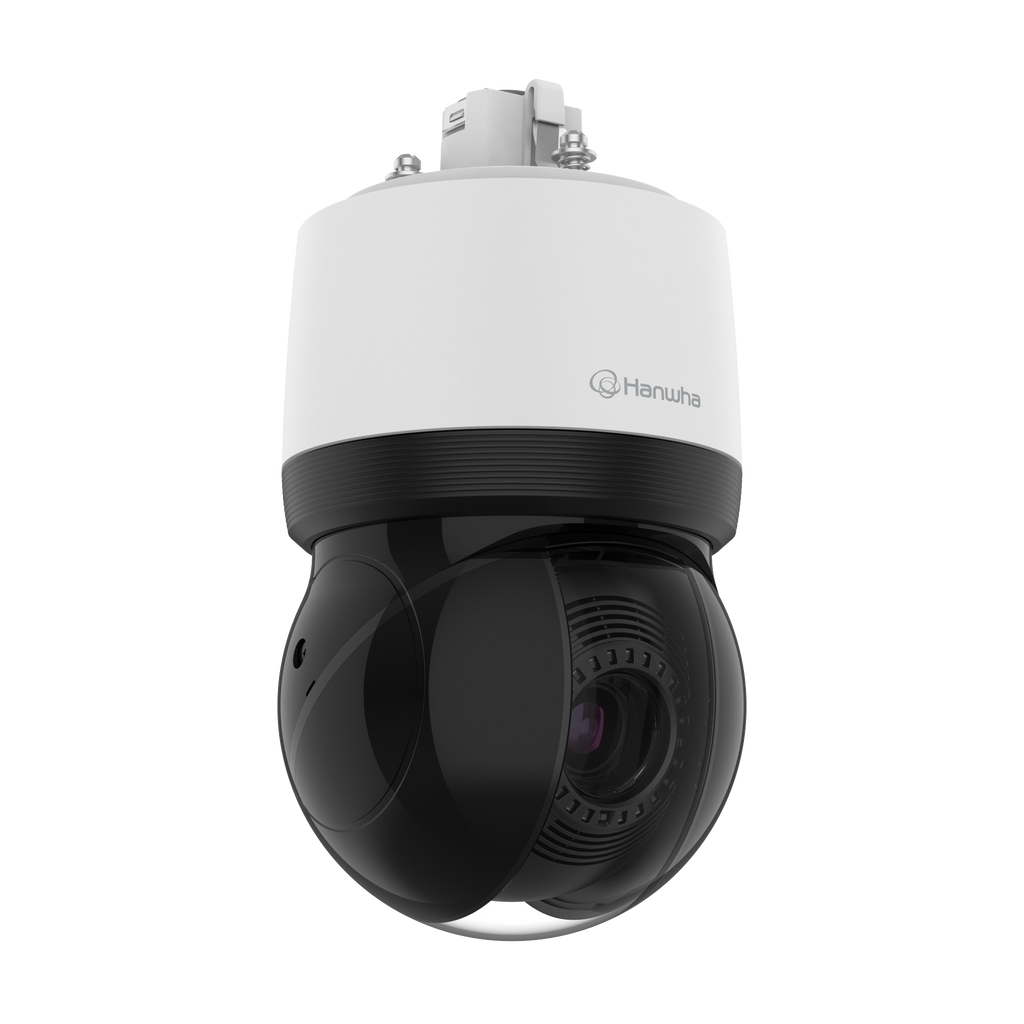

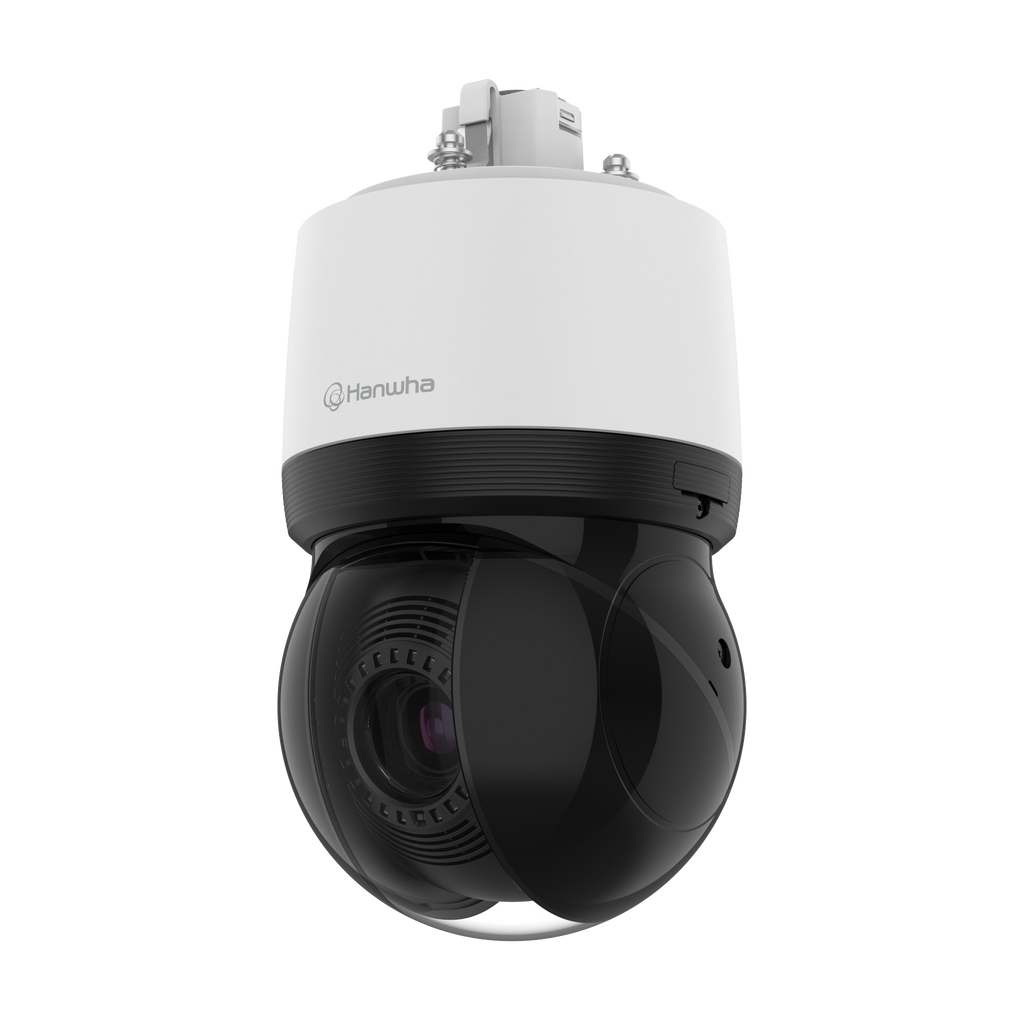

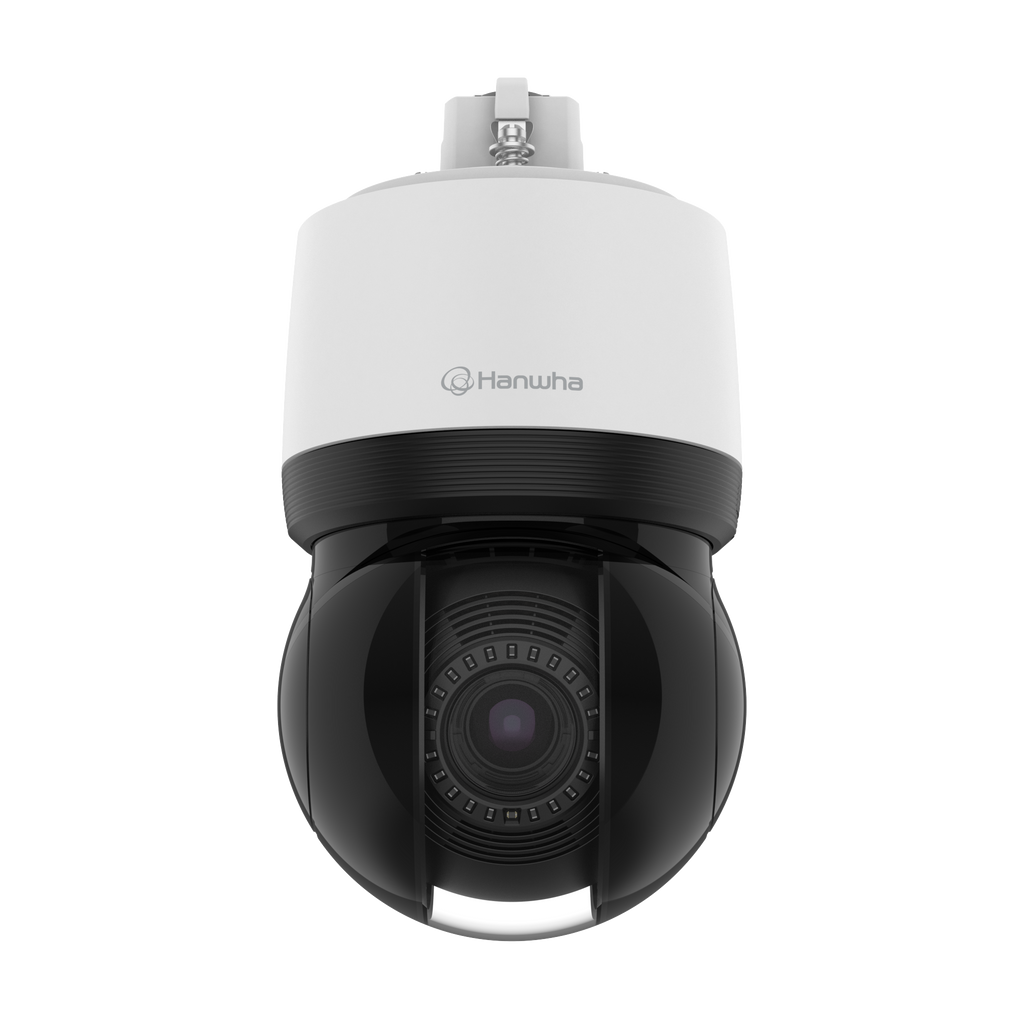

The Hanwha Vision XNP-C6403 is a powerful 2-megapixel AI-enhanced PTZ PLUS camera engineered for long-range, precision monitoring in demanding outdoor environments. Its 40x optical zoom (4.25–170mm) delivers exceptional reach, supported by advanced auto-tracking that intelligently follows people or vehicles with high accuracy. With excellent low-light performance down to 0.05 Lux (color) and 0.005 Lux (B/W), the camera maintains clear visibility day or night.
Equipped with 150 dB WDR, AI-based WiseNR II noise reduction, built-in gyro-based image stabilization, and full analytics (person, face, vehicle, license plate detection), the XNP-C6403 ensures detailed, reliable surveillance. Its durable IK10, IP66, and NEMA 4X-rated housing protects the camera in harsh conditions, while PTZ PLUS design improves installation with lighter build and simpler cabling.
Ideal for airports, seaports, city surveillance, highways, campuses, industrial facilities, and any application requiring wide coverage and long-distance clarity.
| Category | Details |
|---|---|
| Camera & Imaging | 2MP (1920×1080) CMOS, 1/2.8" sensor; Color: 0.05 Lux, B/W: 0.005 Lux |
| Lens & Zoom | 4.25–170mm, 40x optical zoom; 32x digital zoom; F1.6 (wide) / F4.95 (tele) |
| Field of View | 65.66°–1.88° (H), 39.4°–1.09° (V) |
| Frame Rate | Up to 60fps (H.265/H.264), 30fps (MJPEG) |
| Pan/Tilt | 360° endless pan; -20° to +90° tilt; up to 700°/sec pan & 500°/sec tilt presets |
| Analytics (AI Engine) | Person/vehicle/face/license plate detection, attributes, intrusion, line crossing, loitering, motion, tampering, fog, sound classification |
| Auto-Tracking | Object auto-tracking (person/vehicle), target-lock tracking |
| Video Features | 150 dB WDR, WiseNR II (AI-based noise reduction), Defog, DIS (gyro) |
| Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream III |
| Network Protocols | IPv4/6, RTP/RTSP, HTTPS, TLS/SSL, SNMPv1/v2c/v3, QoS, LLDP, MQTT, NTCIP 1205 |
| Interface | RJ-45 10/100; optional I/O box for audio/alarm |
| Edge Storage | Dual microSD/SDHC/SDXC slots, up to 512GB each (1TB total) |
| Environmental | Temp: −40°C to +50°C; Humidity: 0–100% condensing; Wind load: 150 mph |
| Durability Ratings | IP66, IK10, NEMA 4X, NEMA-TS2 (traffic environment) |
| Power | PoE+ (IEEE 802.3at), Max 25.5W |
| Construction | Aluminum & PC body; White or Black options |
| Dimensions / Weight | Ø158 × 293.3 mm; 3.2 kg (7.05 lb) |
