Description

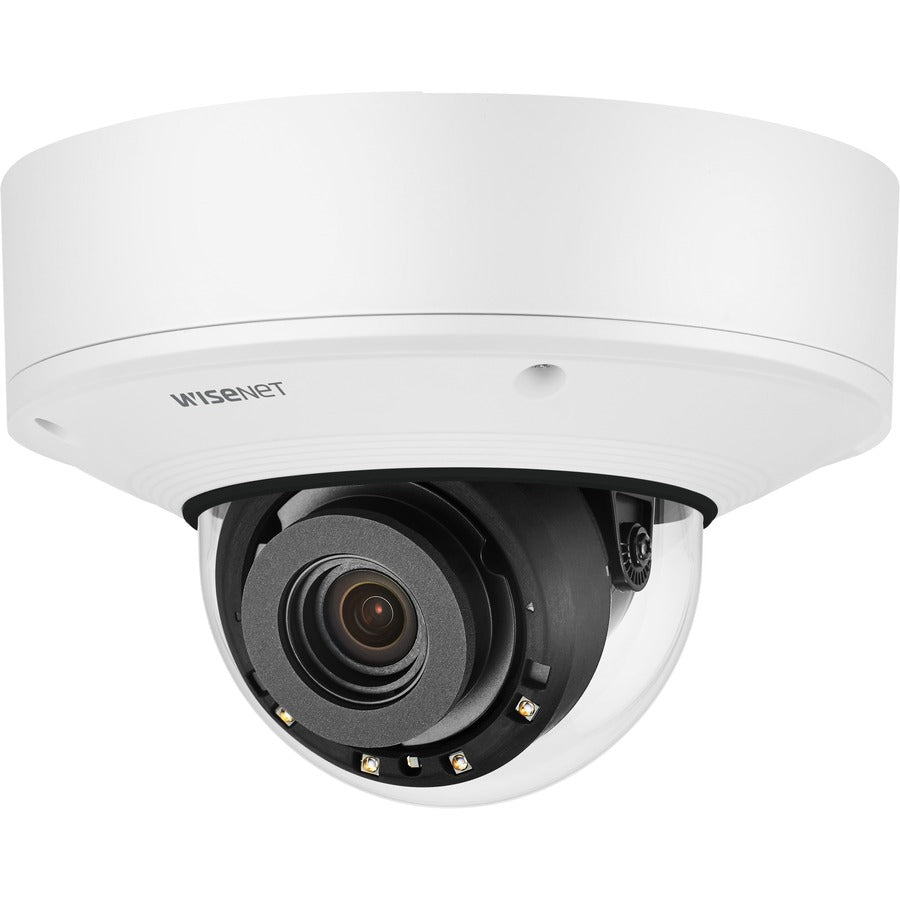

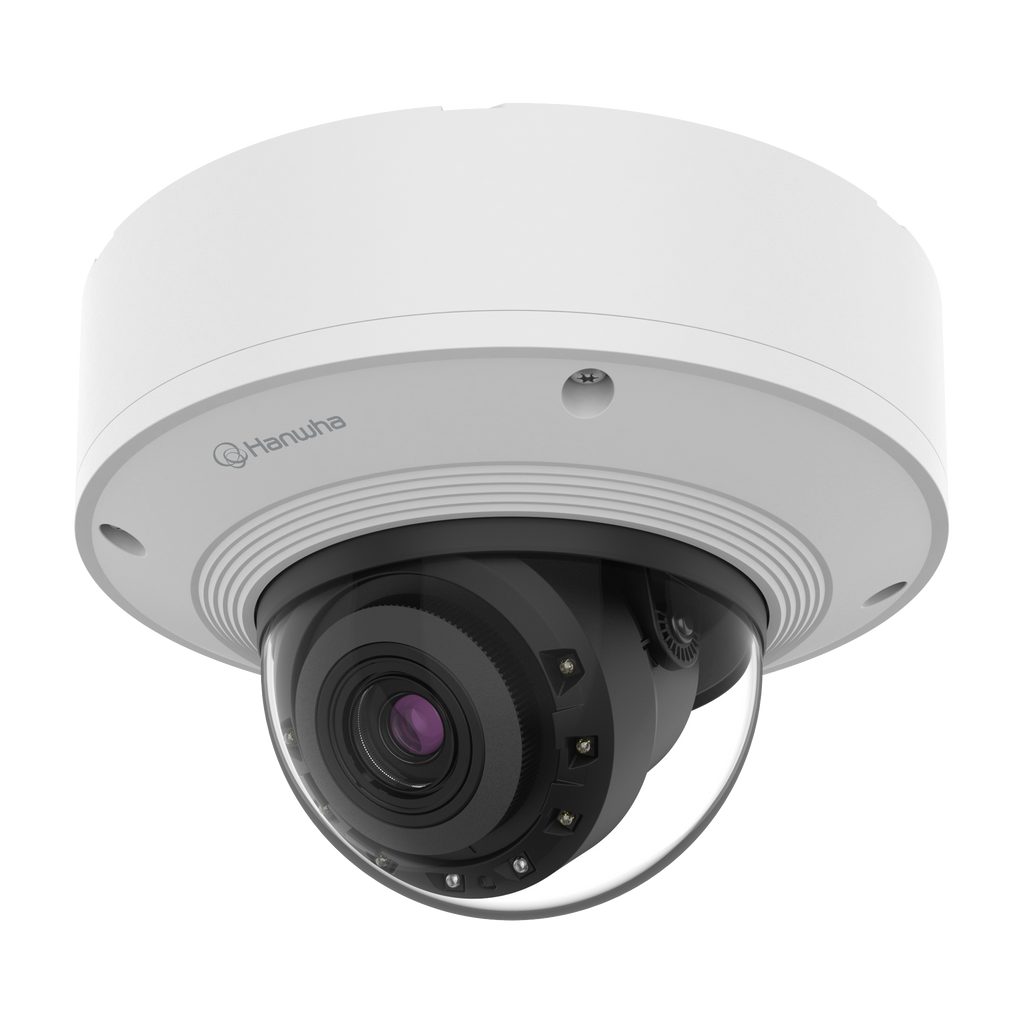

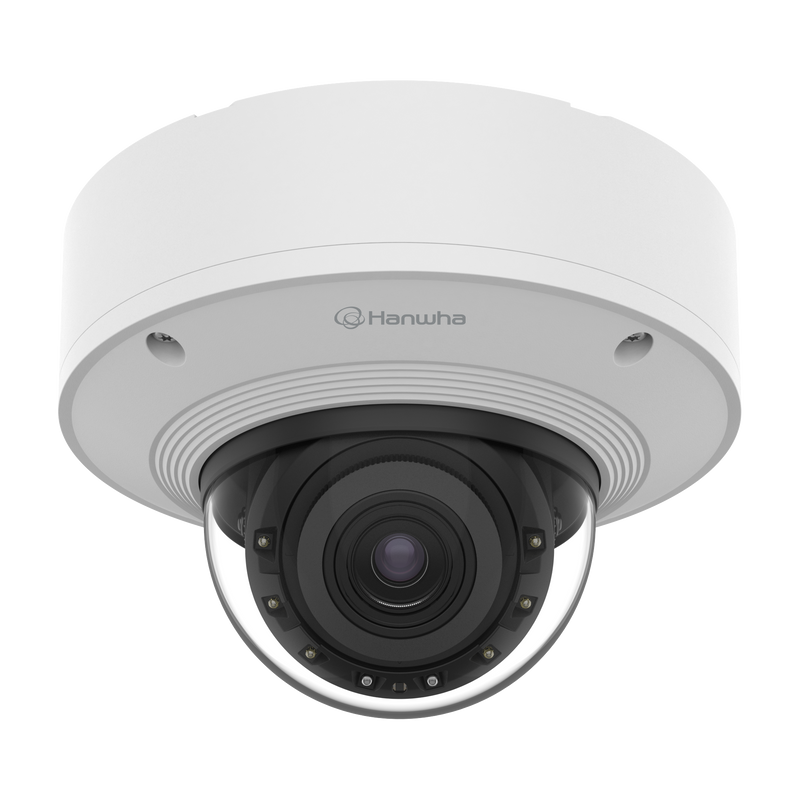

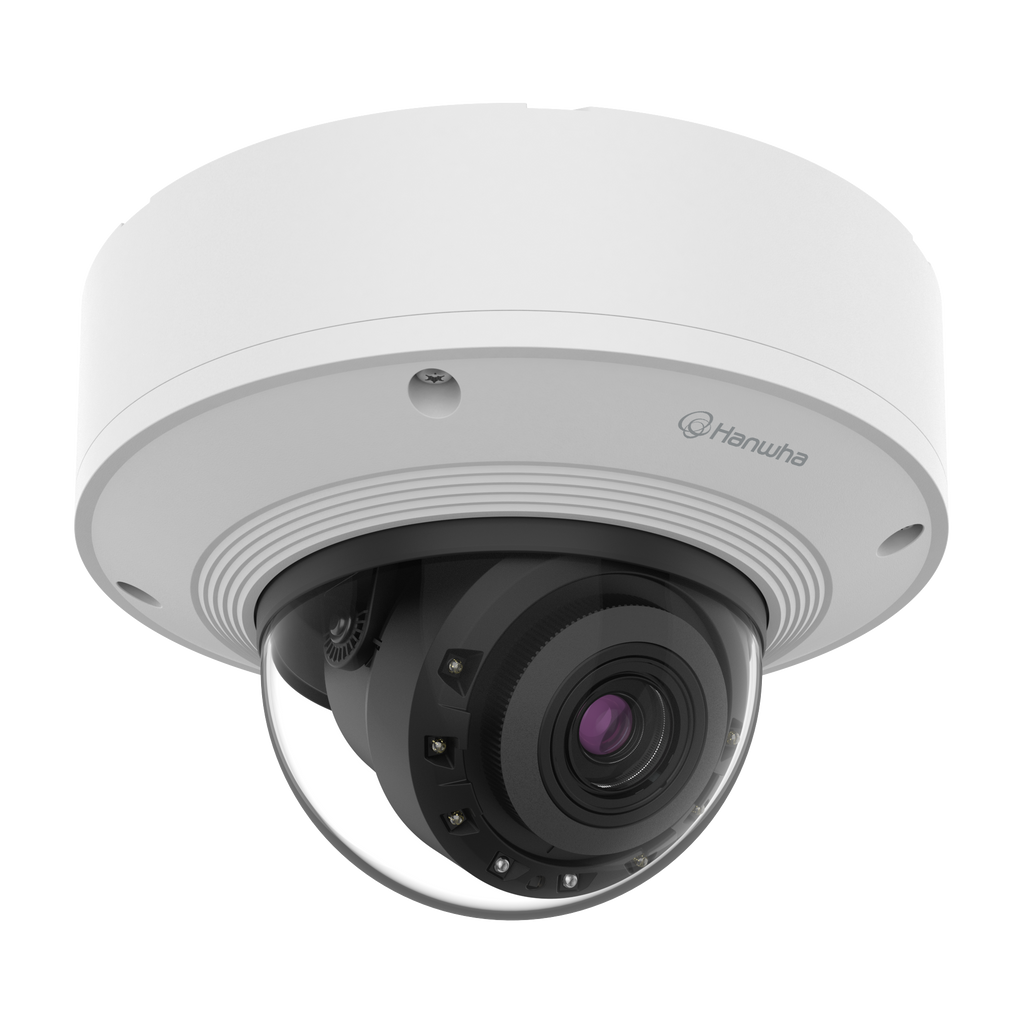

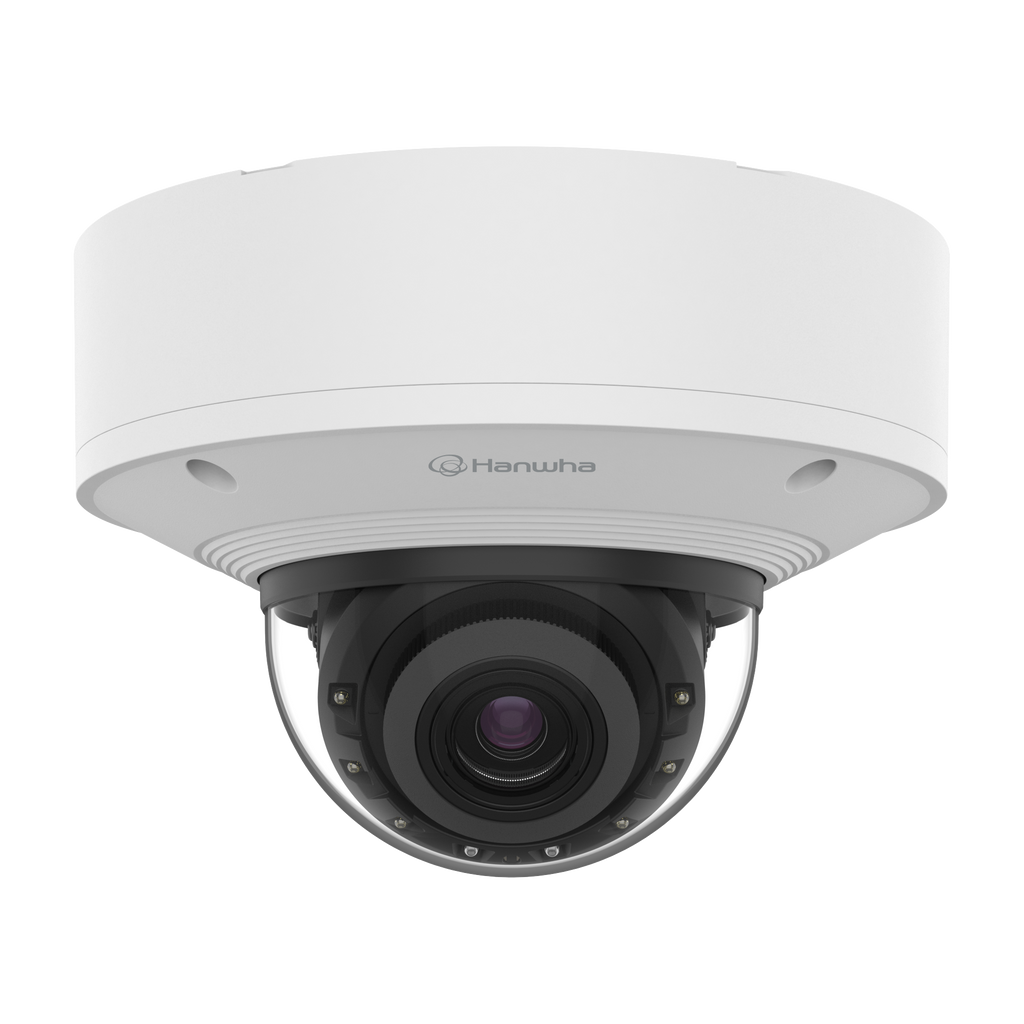

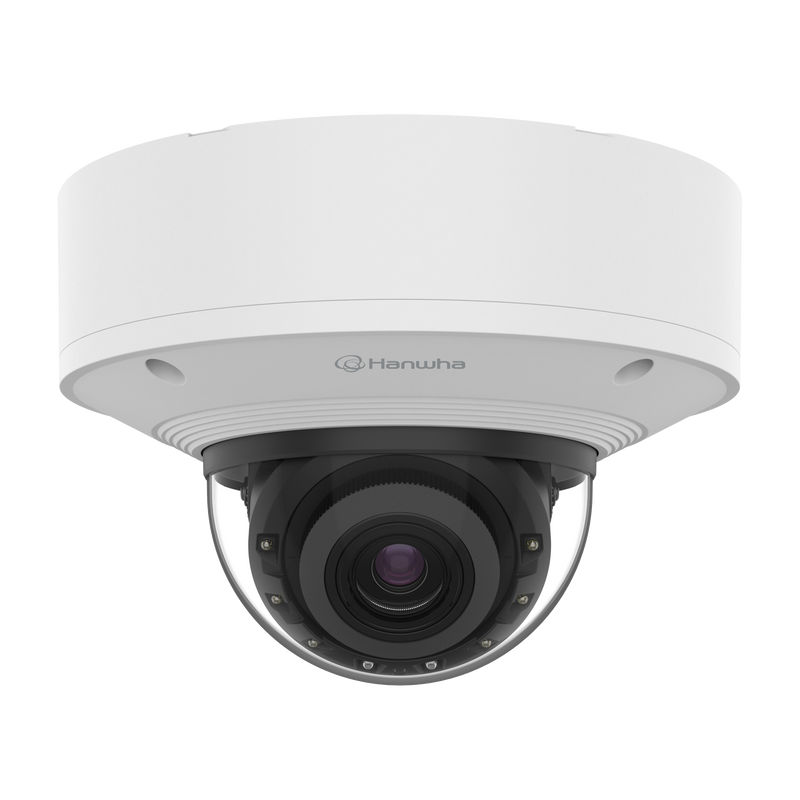

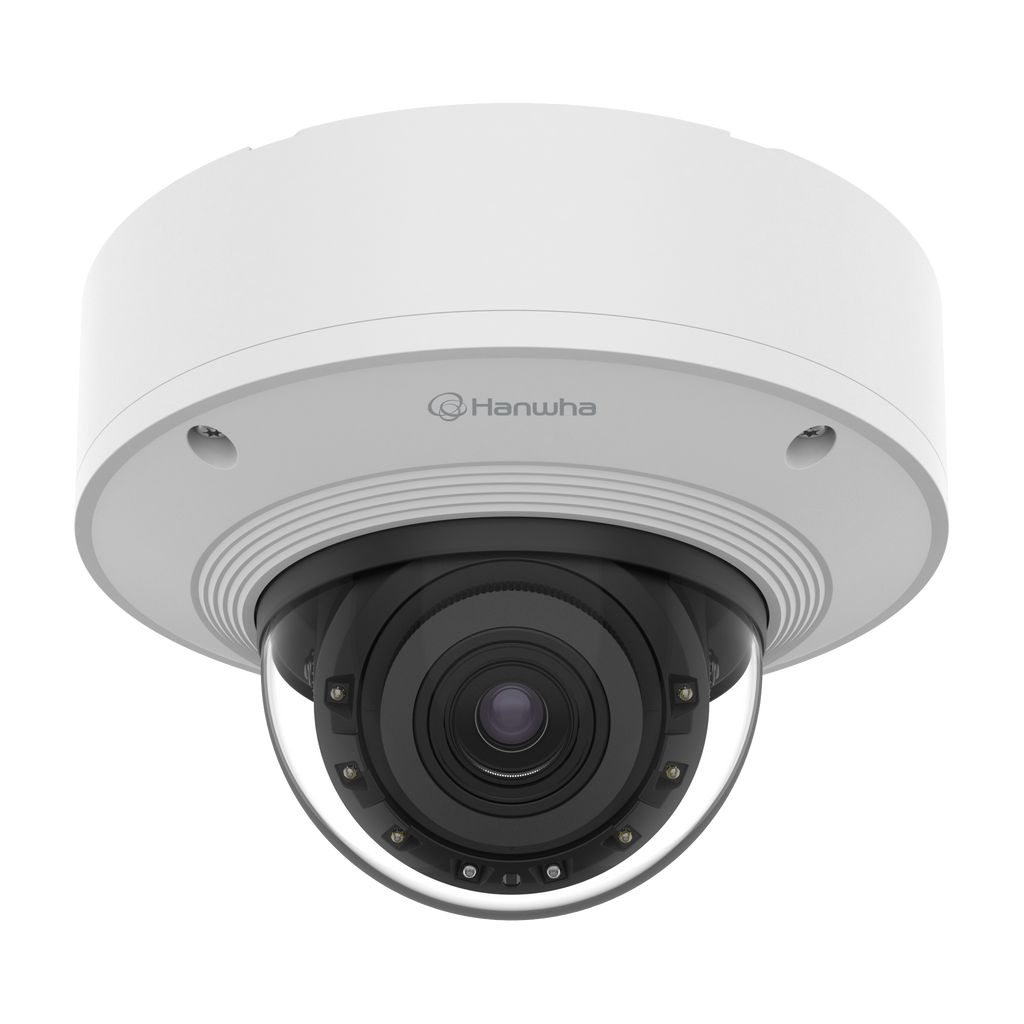

The Hanwha Vision PNV-A6081R is a high-performance 2MP AI-powered IR vandal dome camera engineered for demanding indoor and outdoor surveillance environments. Equipped with advanced deep-learning analytics, this camera delivers precise object detection and classification—including person, face, vehicle, and license plate—along with features such as face mask detection, social distancing monitoring, people counting, queue management, and heatmapping.
Built for tough conditions, the PNV-A6081R offers an ultra-robust housing with IK10+ impact protection, IP66/IP67/IP6K9K weather ratings, and NEMA 4X compliance. Its motorized P-iris lens, IR illumination up to 40 meters, and 120dB WDR ensure clear, detailed images in any lighting scenario. With reinforced cybersecurity including TPM 2.0 (FIPS 140-2 Level 2), secure boot, and encrypted firmware, this camera meets modern security standards for critical deployments.
Ideal for government, enterprise, transportation, retail, and large-scale perimeter installations.
| Category | Specification |
|---|---|
| Imaging | 1/2" CMOS, Max. 2MP (1920×1080), Min. Illumination: 0.007 Lux (Color), 0.0007 Lux (B/W), IR 40m |
| Frame Rate | H.265/H.264: 120fps (60Hz), 100fps (50Hz); MJPEG: 15fps; Max 60/50fps with AI active |
| Lens | 4.38–9.33mm, 2.13× optical zoom, P-iris (IR corrected) |
| Field of View | H: 103.1°–44.5°, V: 54.2°–24.9°, D: 124°–51.1° |
| Pan/Tilt/Rotate | Pan: 0–360°, Tilt: –45°–85°, Rotate: 0–355° |
| Day/Night | Auto ICR |
| WDR | 120dB |
| Noise Reduction | WiseNR II (AI-powered), SSNR V |
| Image Enhancements | BLC, SSDR, Electronic Image Stabilization (gyro sensor), LDC |
| IR Illumination | 40m (131.2 ft), 850nm |
| AI Analytics – Classification | Person, Face, Vehicle, License Plate |
| AI Attributes | Clothing color, gender, bag; Vehicle type & color; Face age, mask, glasses |
| AI Events | Object detection, virtual line/area, intrusion, loitering, slip & fall, social distancing |
| Business Intelligence | People counting, vehicle counting, queue management, heatmap, crowd counting |
| Video Compression | H.265/H.264 (Main/High), MJPEG, WiseStream II/III |
| Audio | Audio in (mic/line selectable), Audio out, G.711/G.726/AAC-LC |
| Networking | RJ-45 (10/100/1000), ONVIF S/G/T/M, SUNAPI, IPv4/IPv6, HTTPS, MQTT |
| Security | TPM 2.0 (FIPS 140-2 L2), Secure boot, Signed firmware, IEEE 802.1X |
| Edge Storage | Dual microSD slots (max 1TB total) |
| Power | PoE+ (IEEE 802.3at) or 12VDC; Max 19.5W (PoE), Max 17W (12VDC) |
| Operating Temperature | –50°C to +55°C (startup above –30°C) |
| Housing/Rating | Aluminum, hard-coated dome; IP66, IP67, IP6K9K, IK10+, NEMA 4X |
| Dimensions / Weight | Ø180 × 125mm (7.09 × 4.92"), 1.9kg (4.19lb) |
