Description

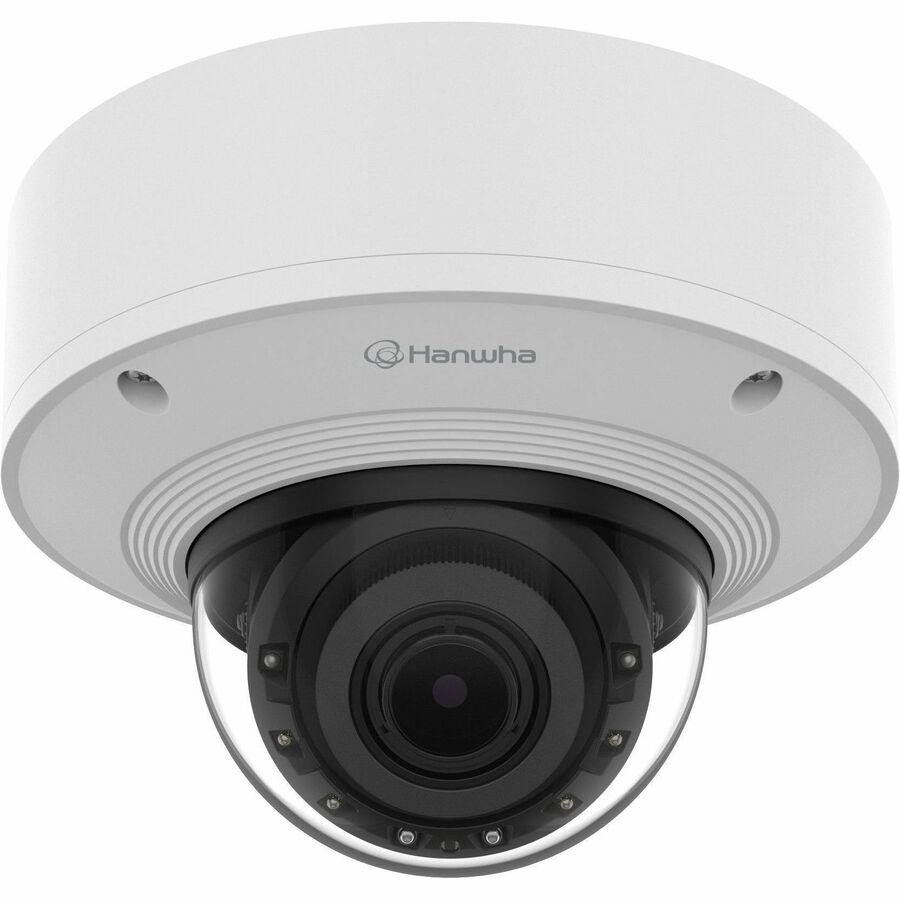

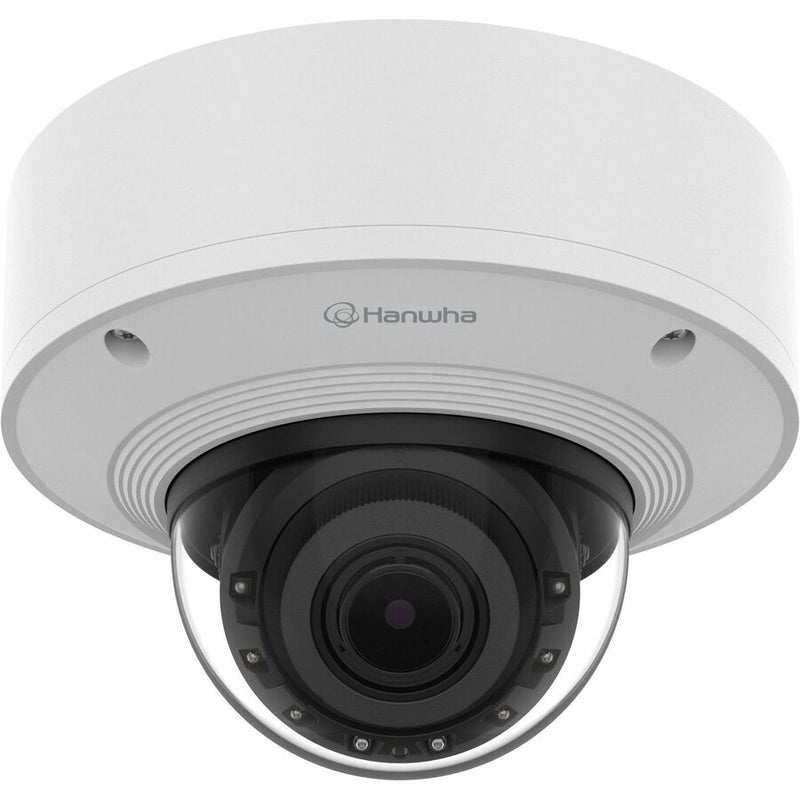

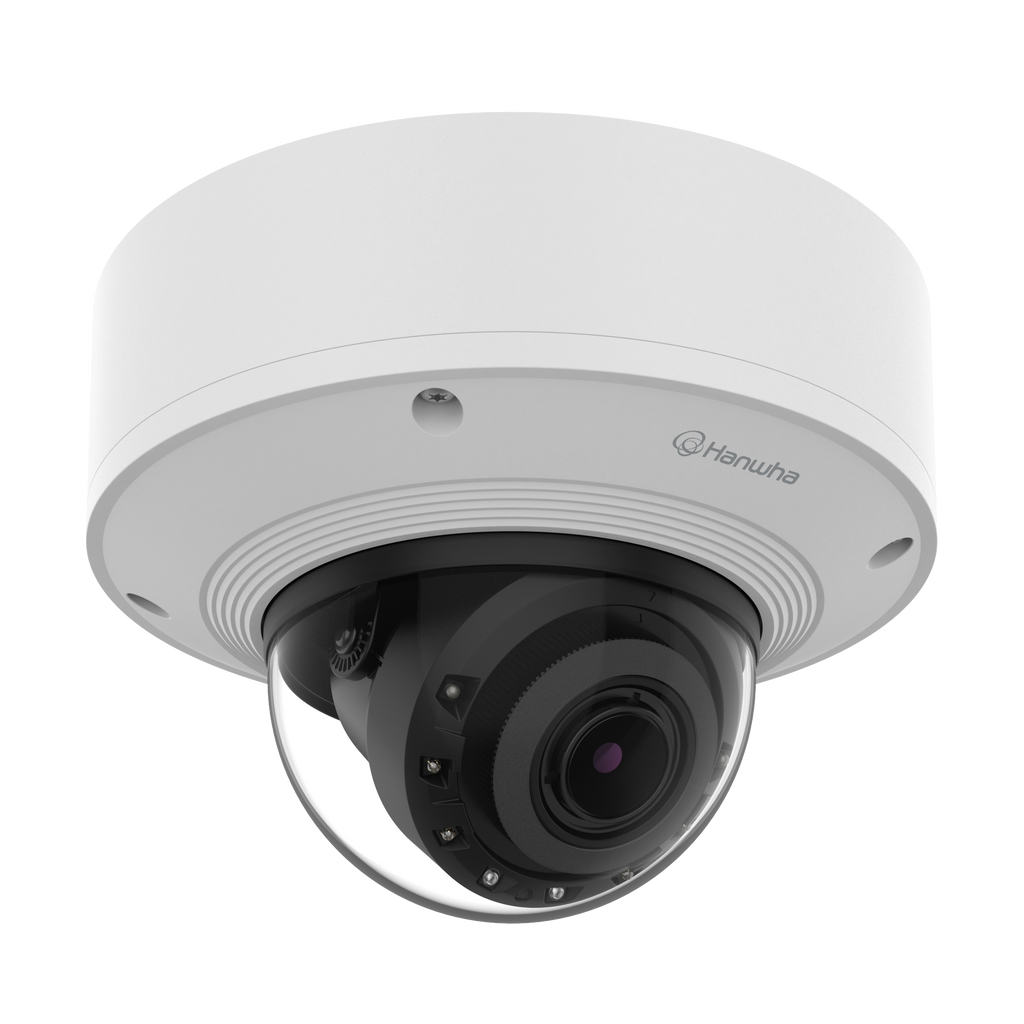

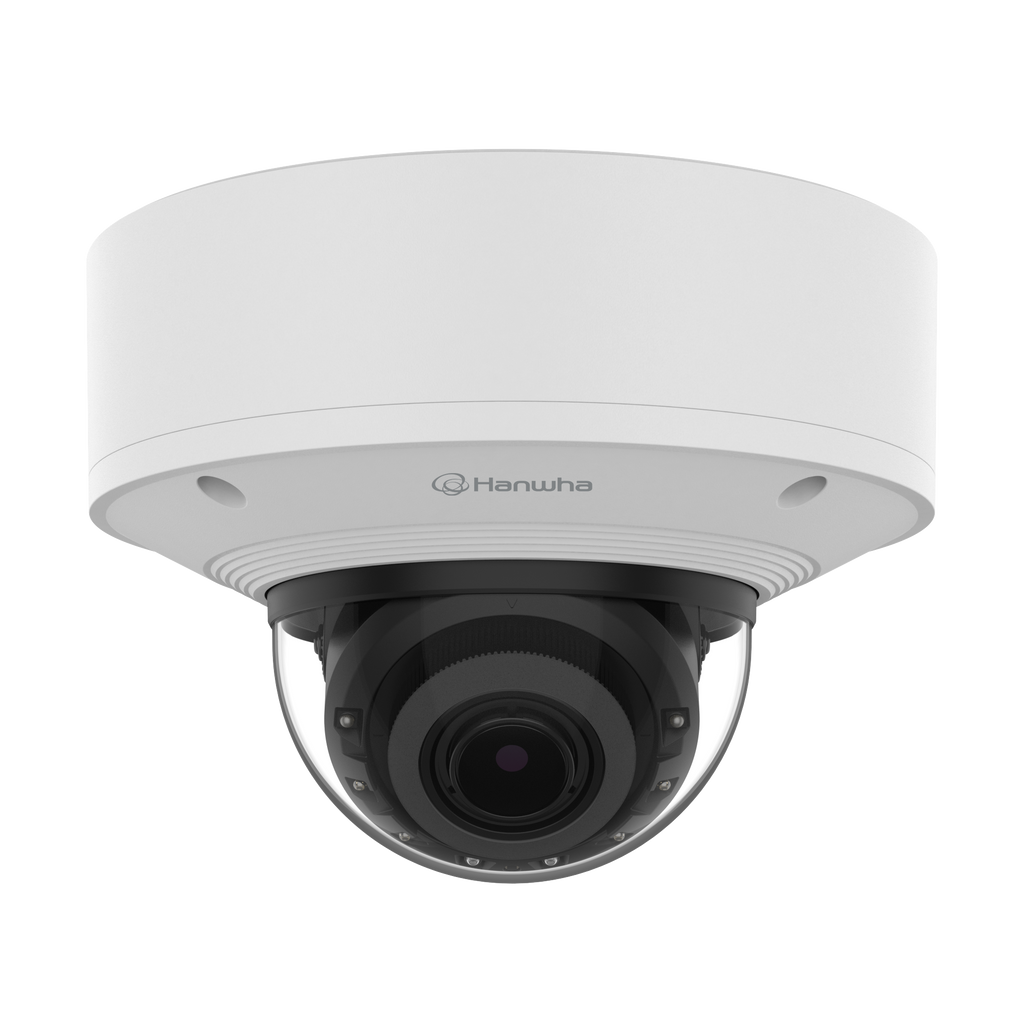

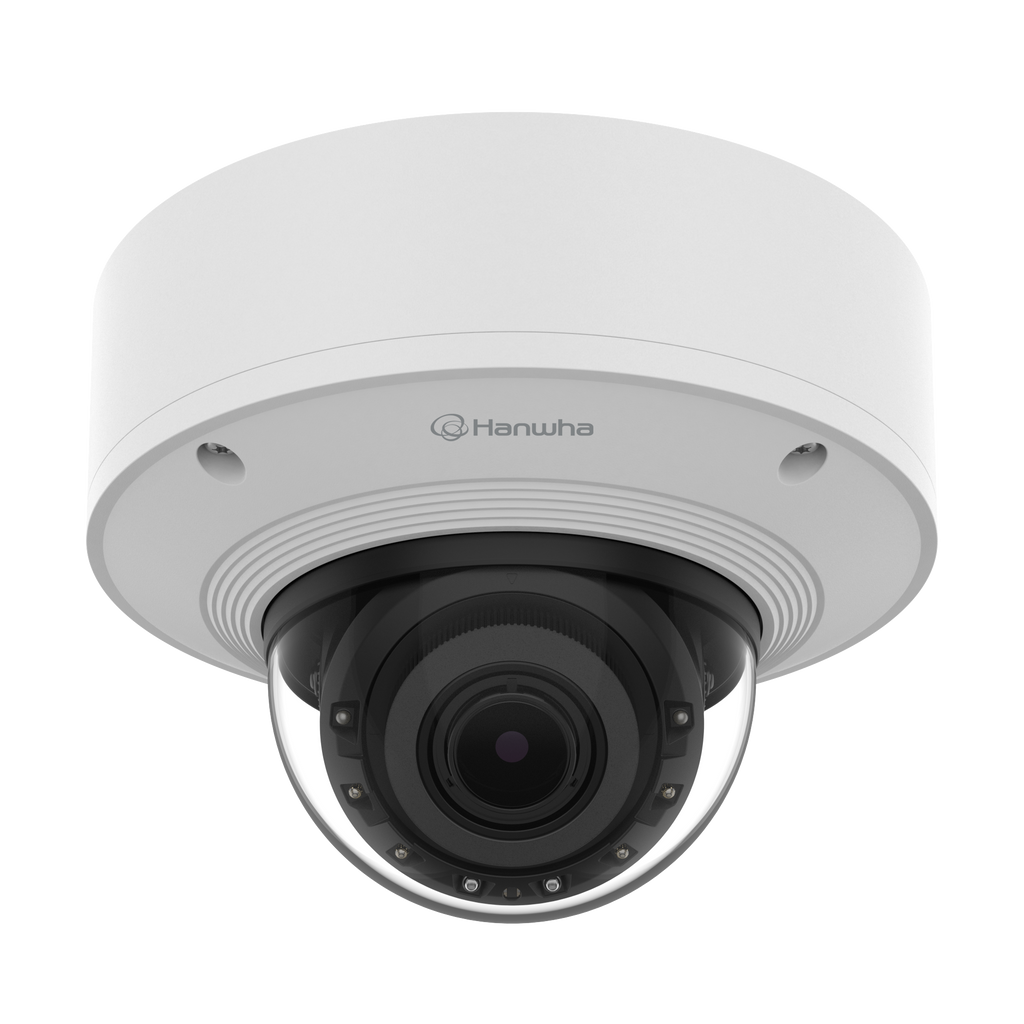

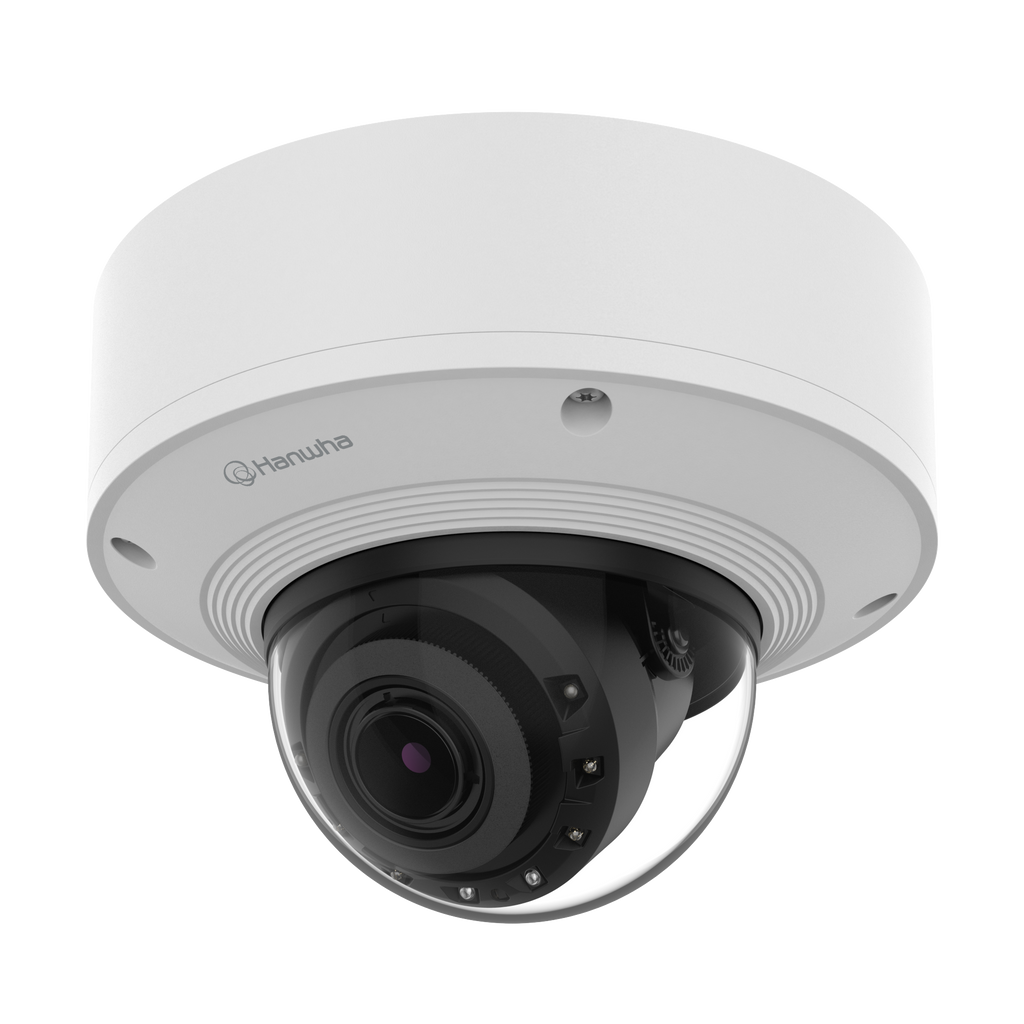

The Wisenet PNV-A6081R-E1T is a rugged 2MP outdoor dome camera engineered for mission-critical surveillance with built-in 1TB rugged SSD storage and advanced AI-powered analytics. Designed for high-performance edge recording, it supports hosting and recording up to five additional cameras, making it a powerful all-in-one camera/NVR solution.
This camera delivers exceptional image quality with up to 120fps performance, 120dB WDR, low-light sensitivity down to 0.007 Lux, and a motorized 4.38–9.33mm P-iris varifocal lens. Equipped with WiseNR II, WiseStream III, AI-based object detection (Person, Face, Vehicle, License Plate), and attribute metadata, it provides reliable intelligence and optimized bandwidth efficiency.
Built for extreme environments, the camera carries IP66/IP67/IP6K9K, IK10, and NEMA 4X certifications, ensuring durability against dust, water, high-pressure washdown, and vandalism. With FIPS 140-2 Level 2 TPM, secure boot, firmware integrity verification, and full HTTPS/TLS support, it meets stringent security and compliance requirements.
| Category | Details |
|---|---|
| SKU | PNV-A6081R-E1T |
| Camera Type | 2MP Outdoor AI Dome Camera with 1TB Rugged SSD |
| Imaging Device | 1/2" CMOS |
| Max Resolution | 1920 × 1080 |
| Framerate | Up to 120fps (AI off), 60fps (AI on) |
| Min. Illumination | Color: 0.007 Lux (F1.3), B/W: 0.0007 Lux, 0 Lux (IR on) |
| Lens | 4.38–9.33mm (2.13x) motorized varifocal, P-iris |
| Field of View | H: 104°–44°, V: 55°–24°, D: 124°–51° |
| IR Range | 40m (131 ft) |
| Day/Night | Auto (ICR) |
| WDR | 120dB |
| Noise Reduction | WiseNR II, SSNR V |
| Video Compression | H.265 / H.264 / MJPEG, WiseStream III |
| Streaming | Up to 5 streaming profiles, Unicast/Multicast |
| AI Analytics | Object detection & classification (Person, Face, Vehicle, License Plate), Face mask detection, Social distancing, Virtual line/area, BestShot |
| Audio | Mic/Line-in, Line-out |
| Alarm I/O | 1 input / 1 output |
| Network | RJ-45 (10/100/1000BASE-T) |
| Security | TPM 2.0 FIPS 140-2 L2, HTTPS, 802.1X, Secure Boot, Signed Firmware |

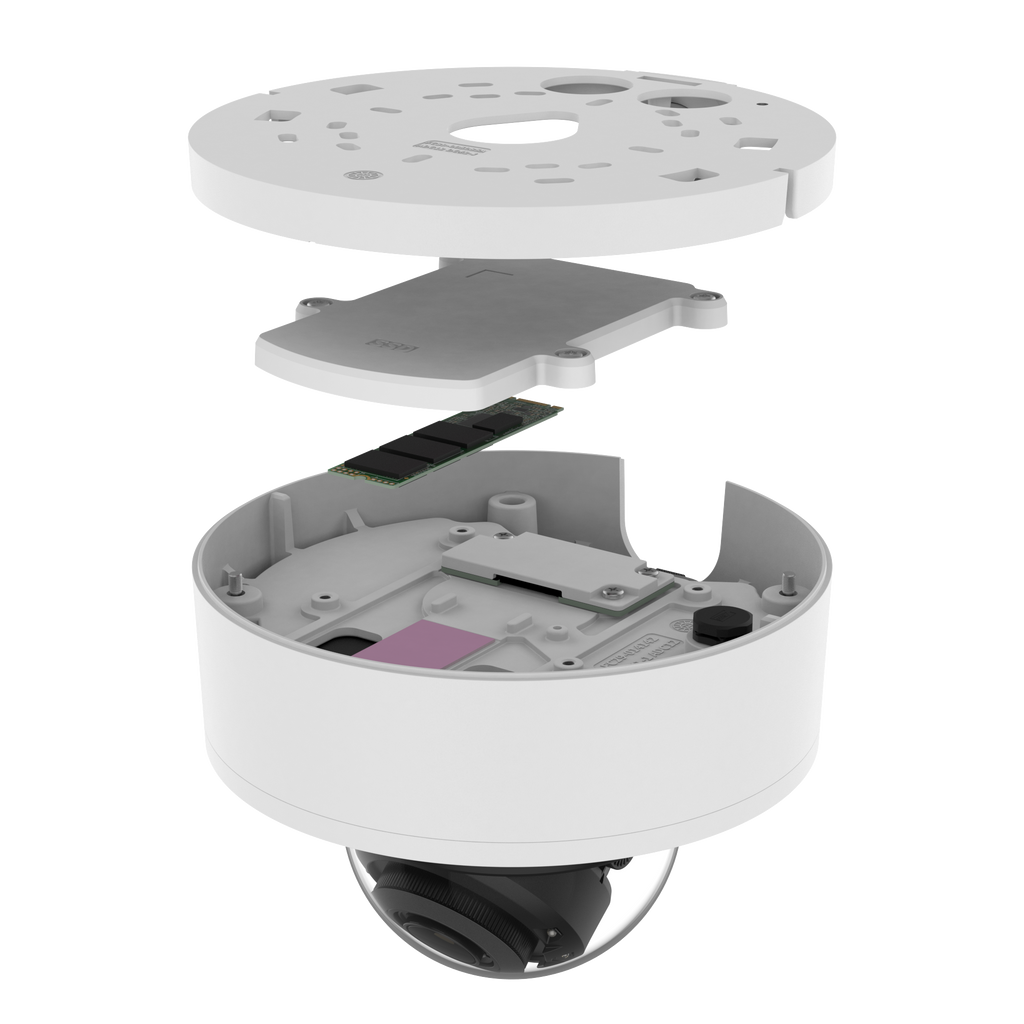

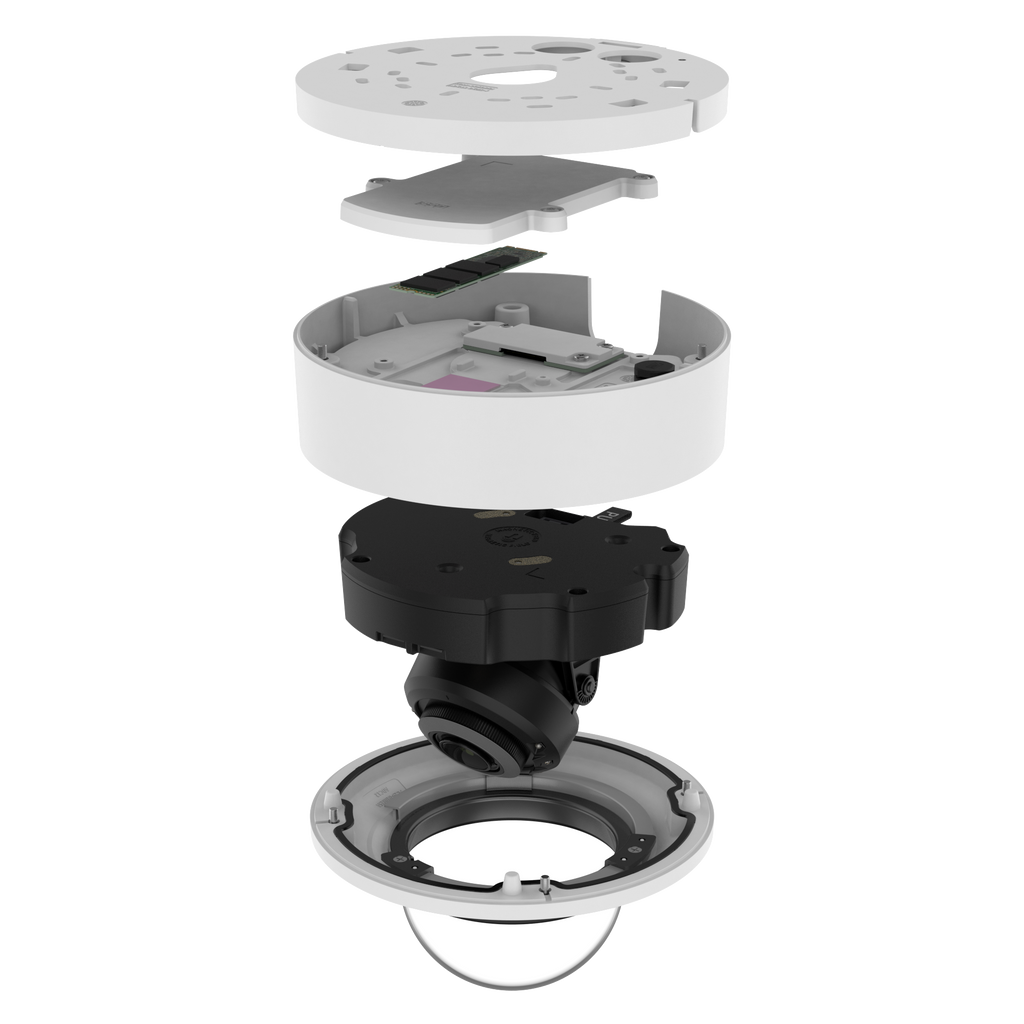

| Edge Storage | Built-in 1TB SSD with Wave pre-installed; supports up to 5 additional cameras (total 6) |
| Operating Temperature | –30°C to +55°C (–22°F to +131°F) |
| Ingress / Impact Rating | IP66, IP67, IP6K9K, IK10, NEMA 4X |
| Power | PoE+ (18–19.2W max), 12VDC (17.5W max) |
| Material / Color | Aluminum, White (RAL9003) |
| Dimensions / Weight | Ø180 × 130 mm; 1.9 kg (4.19 lb) |
| Certifications | FCC, CE, UL 62368-1, IEC/EN 60529, ISO 20653, IK10 |
