Description

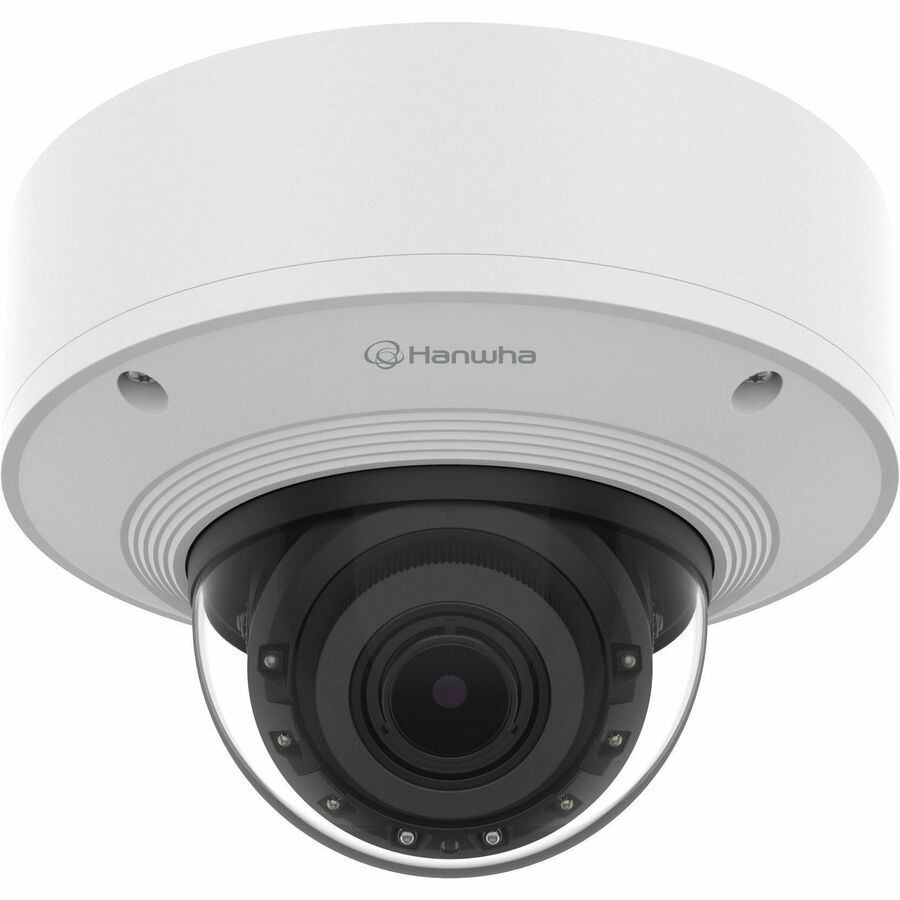

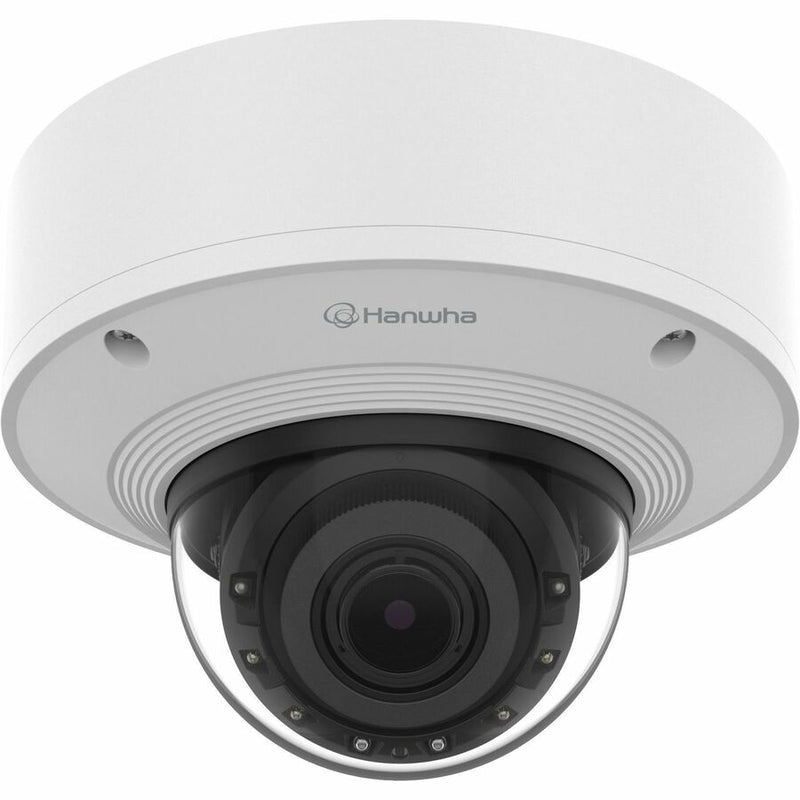

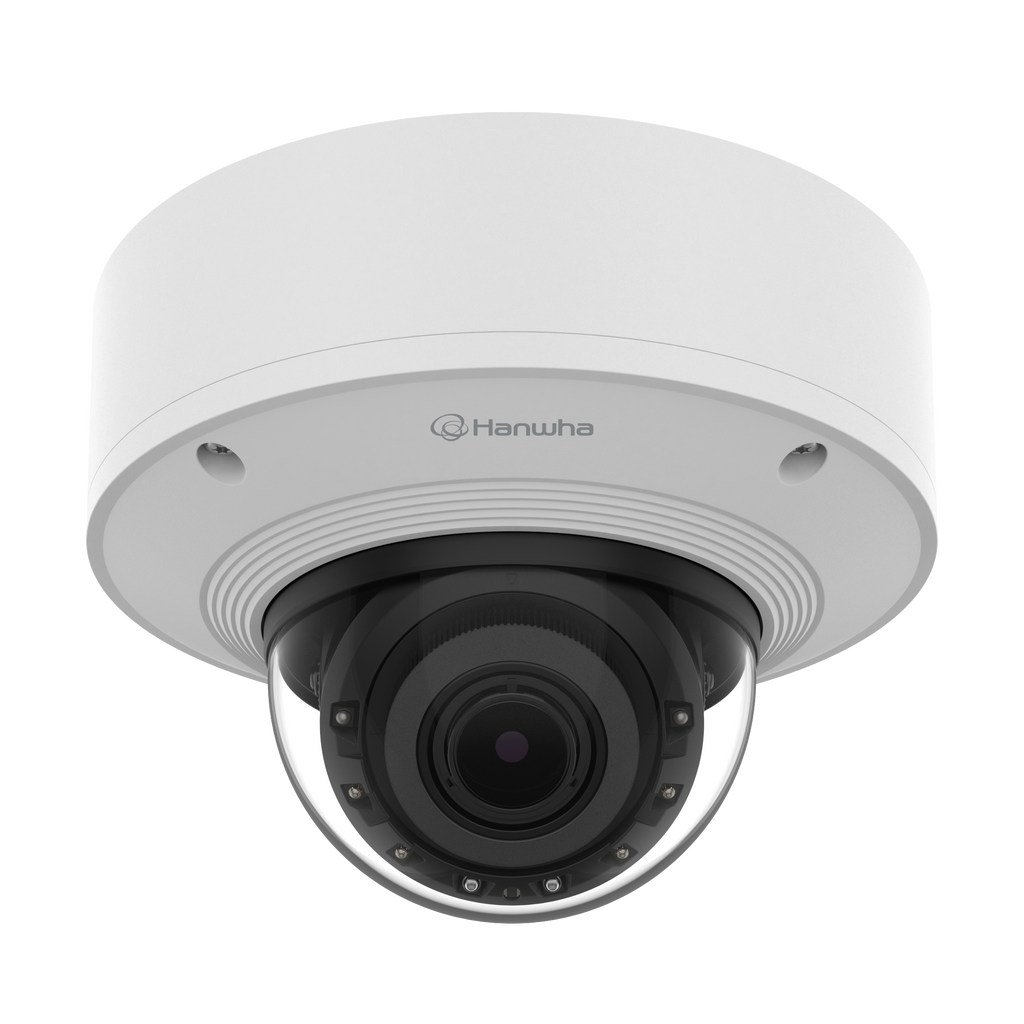

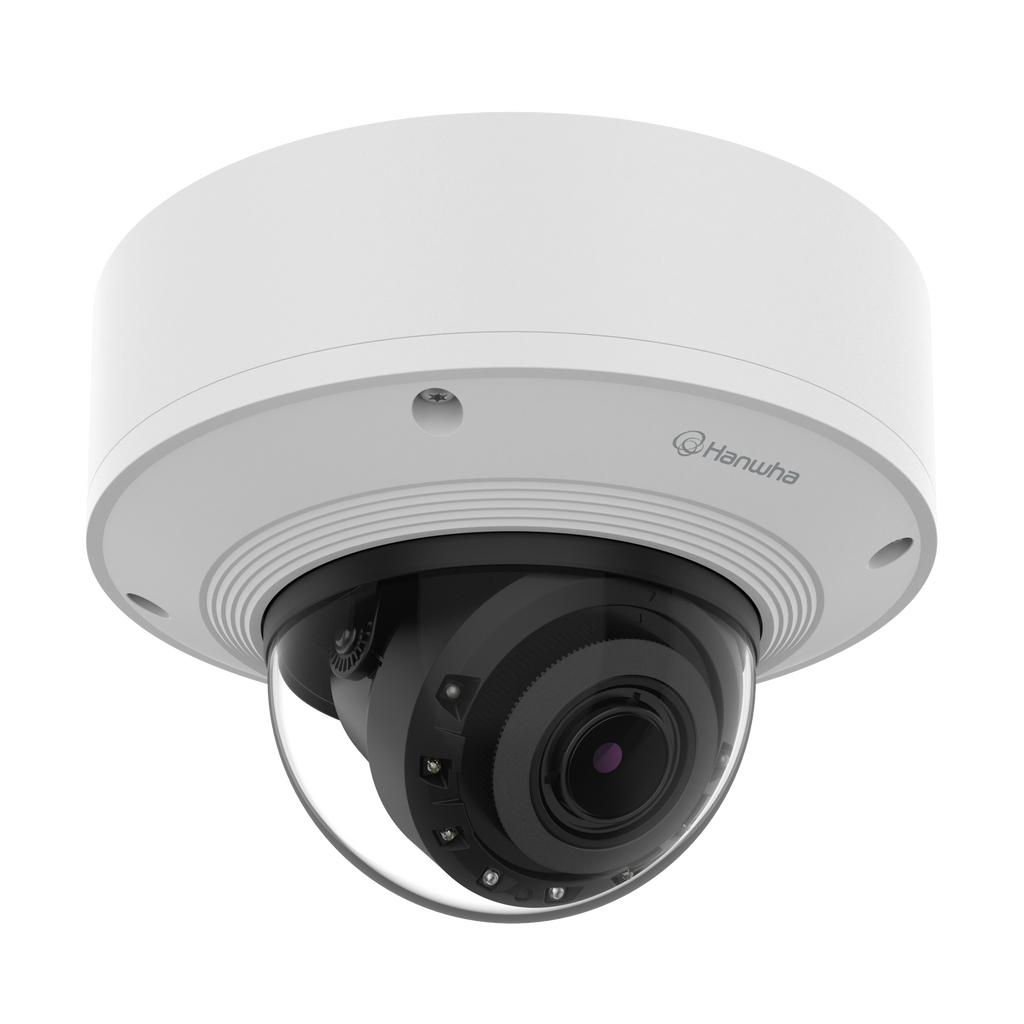

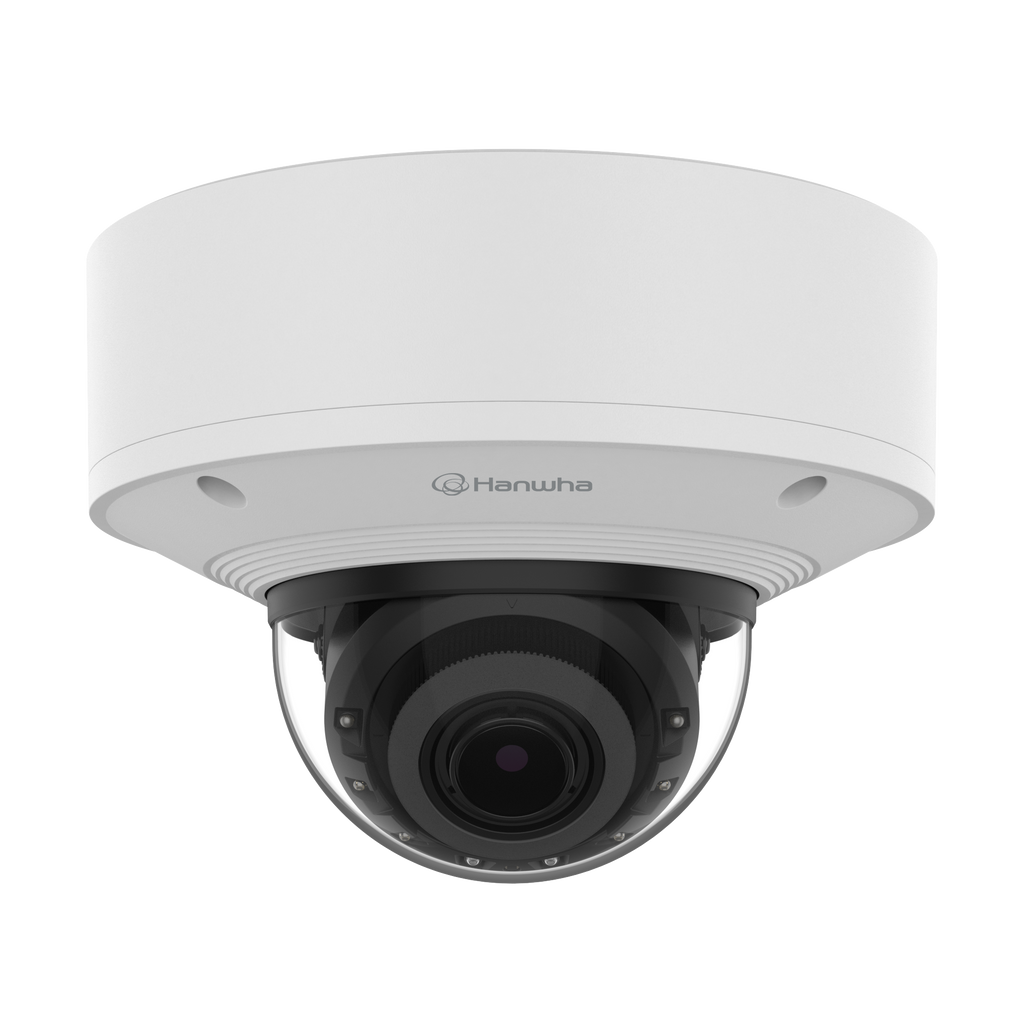

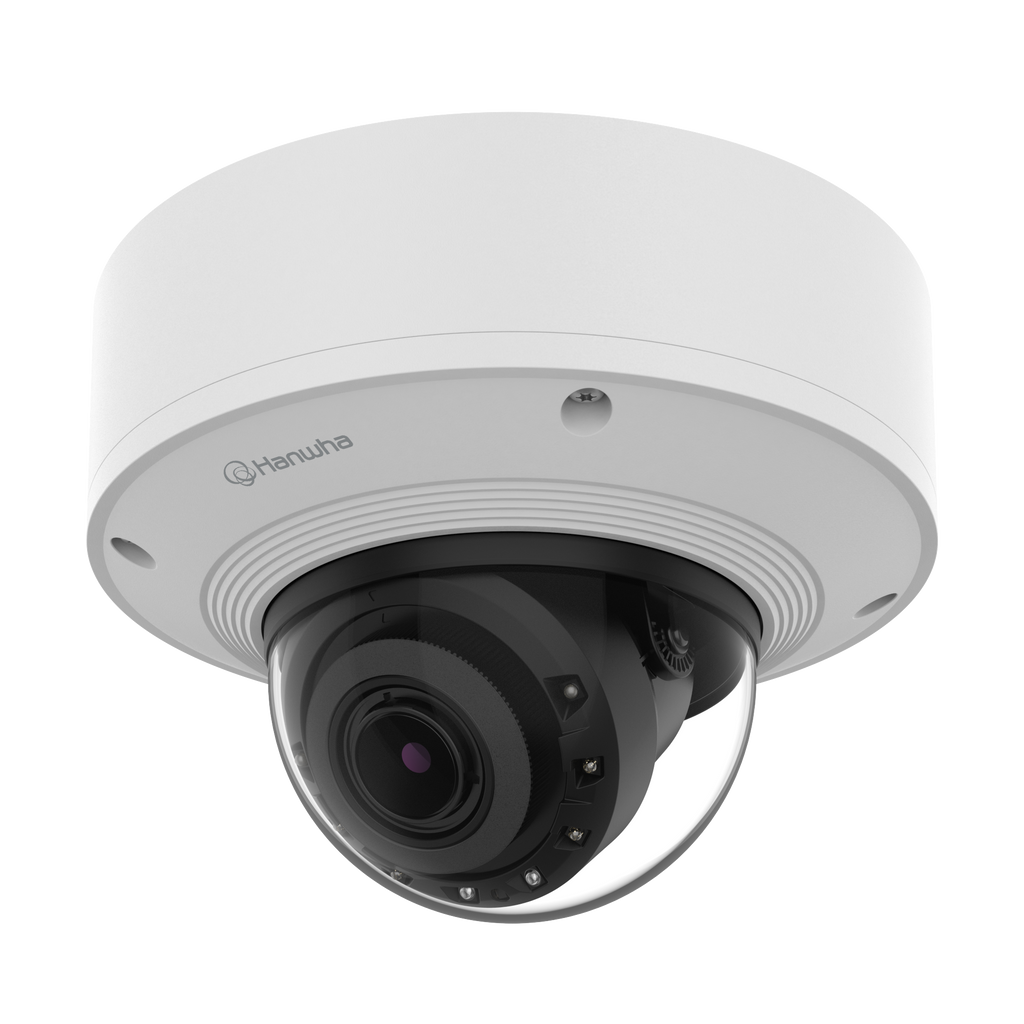

The Hanwha Vision PNV-A6081R-E2T is a rugged, high-performance 2MP outdoor network camera designed with an integrated 2TB ruggedized SSD and a pre-installed WAVE VMS server, enabling on-edge video storage and management without requiring an external NVR. Delivering up to 120fps video, exceptional low-light performance down to 0.008 Lux, and WiseIR illumination up to 40m, this camera is built for demanding security environments.
Engineered for harsh outdoor conditions, the PNV-A6081R-E2T features IP66/IP67/IP6K9K, IK10, and NEMA 4X ratings, plus a hard-coated dome bubble for long-lasting protection. Advanced cybersecurity including TPM 2.0, secure boot, firmware integrity verification, and FIPS 140-2 Level 2 compliance ensures reliable protection of your video data.
With a motorized 4.38–9.33mm P-iris varifocal lens, wide 104°–44° FoV, multiple streaming profiles, and full ONVIF compatibility, the PNV-A6081R-E2T provides a flexible, secure, and scalable solution for enterprise-grade surveillance. Ideal for remote installations, temporary deployments, transportation, perimeter monitoring, and critical infrastructure.
| Category | Specification |
|---|---|
| Imaging | 1/2" CMOS, 2MP (1920×1080 max), up to 120fps (H.265/H.264) |
| Minimum Illumination | Color: 0.008 Lux (F1.3, 1/30 sec, 30IRE); B/W: 0.0008 Lux; 0 Lux with IR |
| Lens | 4.38–9.33mm motorized varifocal, P-iris, IR-corrected |
| Field of View | H: 104°–44° / V: 55°–24° / D: 124°–51° |
| IR Illumination | WiseIR up to 40m (131.23 ft) |
| Video Compression | H.265/H.264 (Main/High), MJPEG; WiseStream |
| Streaming | Up to 5 simultaneous profiles; Unicast/Multicast |
| Audio I/O | Mic/Line in (2.5VDC), Line out (1Vrms max) |
| Analytics | Not supported when used with SolidEDGE WAVE VMS |
| Security | TPM 2.0, Secure Boot, Firmware Integrity Verification, HTTPS, 802.1X |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, HTTP/HTTPS, SNMP, MQTT, QoS, UPnP, ONVIF S/T/M |

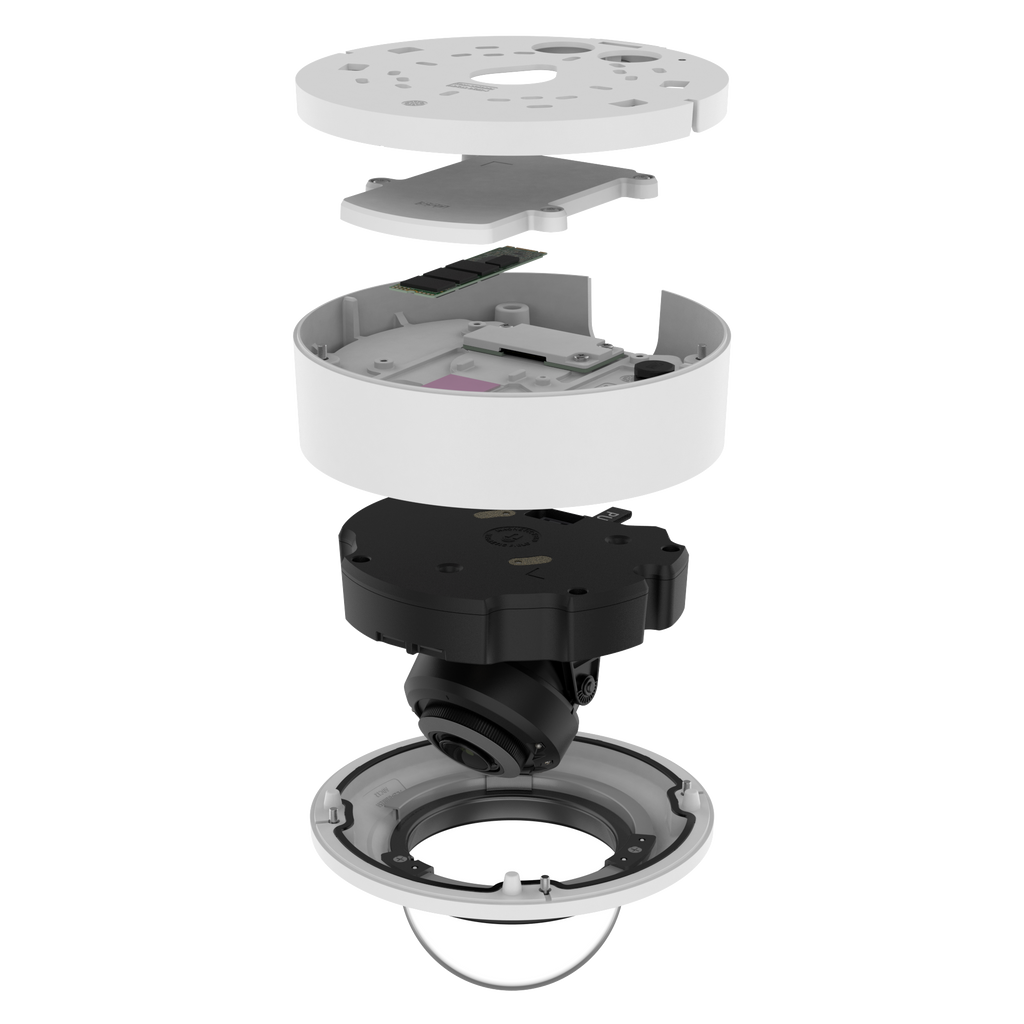

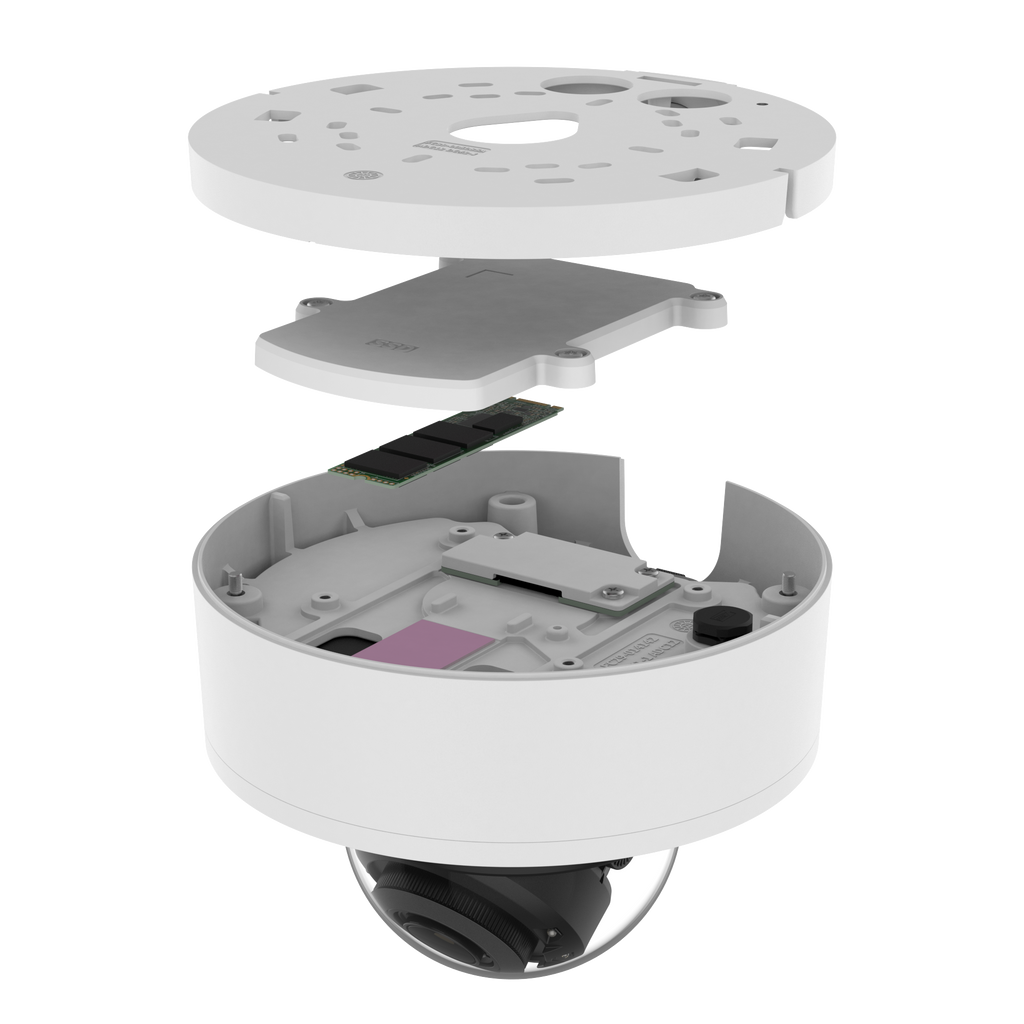

| Edge Storage | 2TB Rugged SSD (WAVE pre-installed); supports up to 6 registered cameras (host + 5) |
| Memory | 4GB RAM, 512MB Flash |
| Pan/Tilt/Rotate | Pan 0°–360° / Tilt –45°–85° / Rotate 0°–355° |
| Environmental | –30°C to +55°C (–22°F to +131°F); 0–95% RH |
| Certifications | IP66, IP67, IP6K9K, NEMA 4X, IK10, UL, CE, FCC |
| Power | PoE+ (IEEE 802.3at) max 19.2W; 12VDC max 17.5W; power redundancy |
| Construction | Aluminum body; hard-coated dome bubble; RAL9003 |
| Dimensions / Weight | Ø180 × 130 mm (7.09" × 5.12"); 1900g (4.19 lb) |
