Description

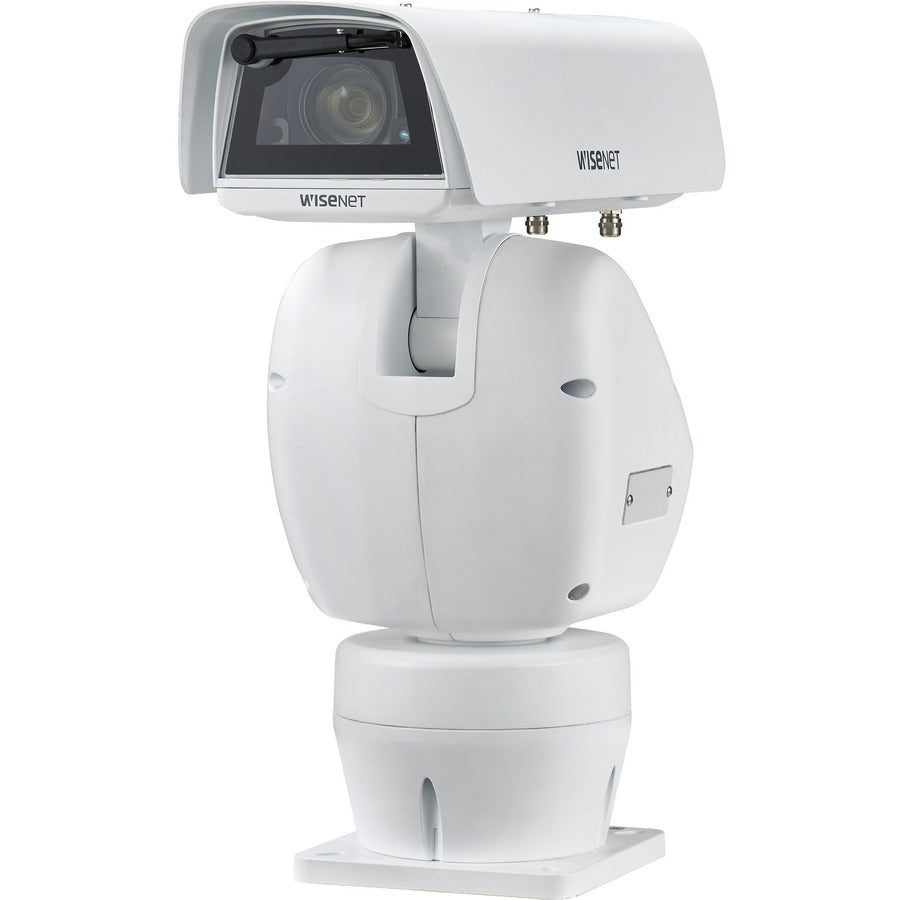

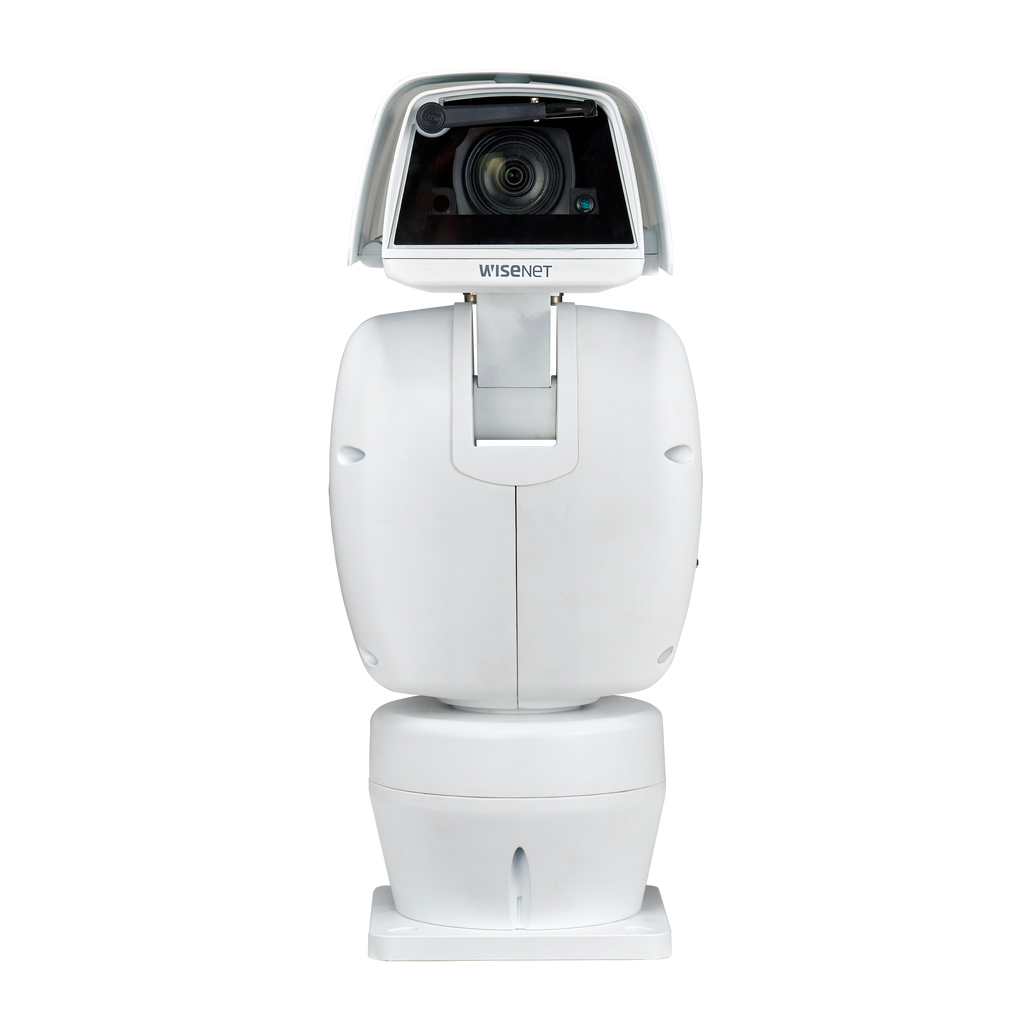

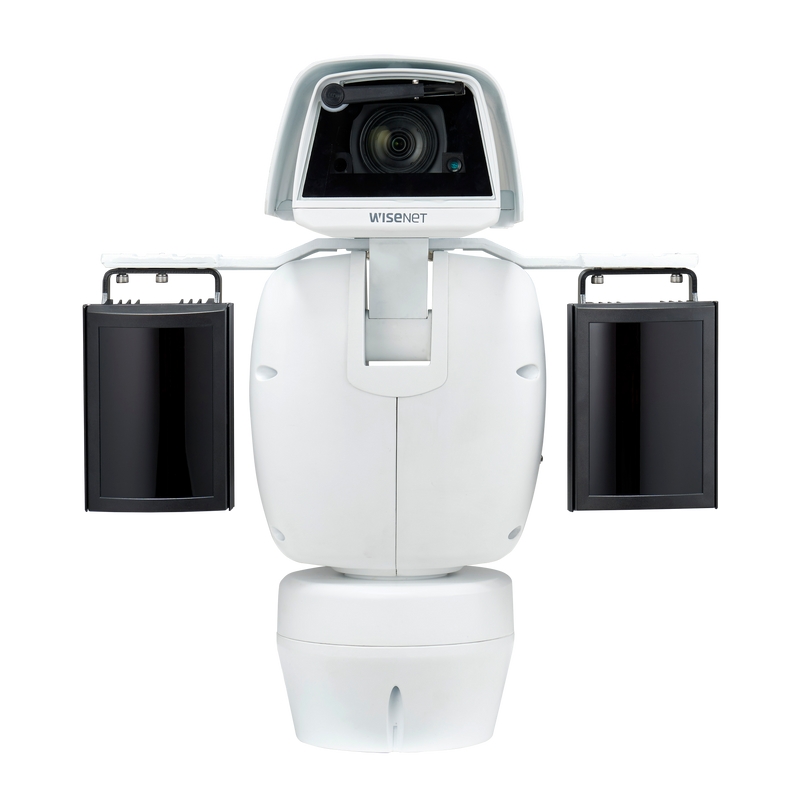

The Hanwha TNU-6321 is a rugged 2MP positioning camera engineered for wide-area monitoring, extreme environments, and high-precision situational awareness. Its powerful 32x optical zoom, 360° endless pan, and -90° to 40° tilt provide full directional control, while 2MP resolution at up to 60fps ensures smooth, detailed video capture.
Designed for harsh outdoor applications, the TNU-6321 features 120dB WDR, Day/Night (ICR), Defog, and advanced stabilization for clear imaging in challenging lighting and weather conditions. Intelligent analytics—including motion, tampering, face detection, intrusion, and audio detection—enhance automation and event response.
With flexible network streaming, ONVIF support, microSDXC edge storage, and durable aluminum construction, the TNU-6321 is ideal for perimeter security, critical infrastructure, industrial facilities, ports, and large-scale surveillance applications.
| Category | Specification |
|---|---|
| Image & Video | |
| Resolution | Up to 1920×1080 (2MP) |
| Max Frame Rate | 60fps (H.265/H.264), 30fps (MJPEG) |
| Min. Illumination | Color: 0.05 Lux / B/W: 0.005 Lux |
| WDR | 120dB |
| Day/Night | Auto (ICR) |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Lens | |
| Focal Length | 4.44–142.6mm |
| Optical Zoom | 32x |
| Max Aperture | F1.6 (Wide) / F4.4 (Tele) |
| Horizontal FOV | 61.8°–2.19° |
| Vertical FOV | 36.2°–1.24° |
| Focus Control | Auto, One-shot AF |
| Pan/Tilt | |
| Pan Range | 360° Endless |
| Tilt Range | -90° to 40° |
| Pan Speed | Up to 120°/sec |
| Tilt Speed | Up to 40°/sec |
| Preset Accuracy | ±0.3° |
| Intelligent Analytics | |
| Analytics Events | Motion, Tampering, Face, Fog, Audio Detection, Virtual Line/Area, Enter/Exit, Appear/Disappear |
| Audio | |
| Audio In/Out | Mic/Line-in selectable, Line-out |
| Audio Compression | G.711, G.726, AAC-LC |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTPS, SMTP, SNMPv1/2/3, QoS, UPnP, Bonjour, LLDP |
| Streaming | Up to 20 users (unicast), up to 10 profiles |
| API | ONVIF S/G/T, SUNAPI, Hanwha Open Platform |
| Storage | |
| Edge Storage | microSD/SDHC/SDXC up to 256GB |
| Construction & Environment | |
| Material | Aluminum |
| Color | White (RAL9003) |
| Operating Temp | -40°C ~ +55°C (-40°F ~ +131°F) |
| Humidity | 0–90% (non-condensing) |
| Ingress/Weather | Integrated heater, wiper, weather-resistant design |
| Electrical | |
| Input Voltage | 24VAC |
| Power Consumption | Up to 100W (heater on), typical 25W |
| Dimensions & Weight | |
| Dimensions | 219(W) × 528.2(H) × 460(D) mm |
| Weight | 14,000g (30.86 lb) |
