Description

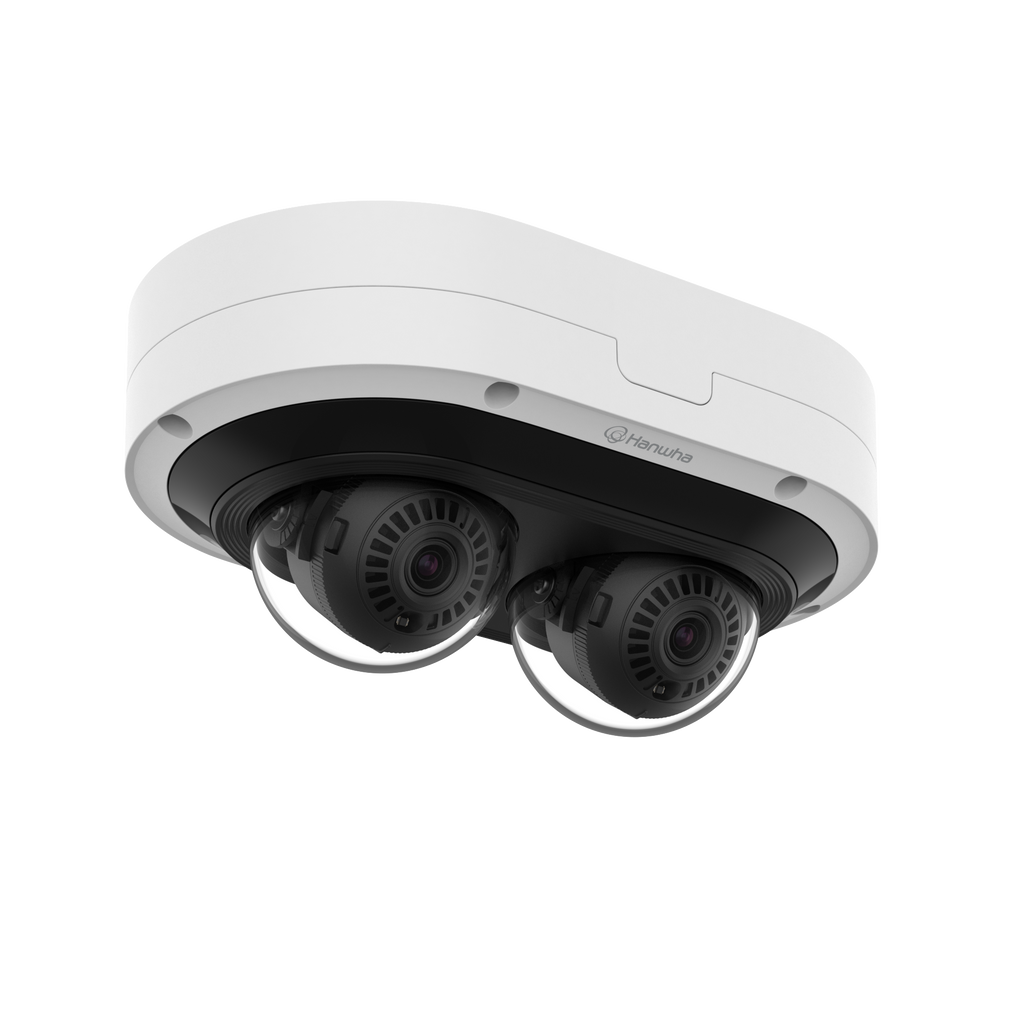

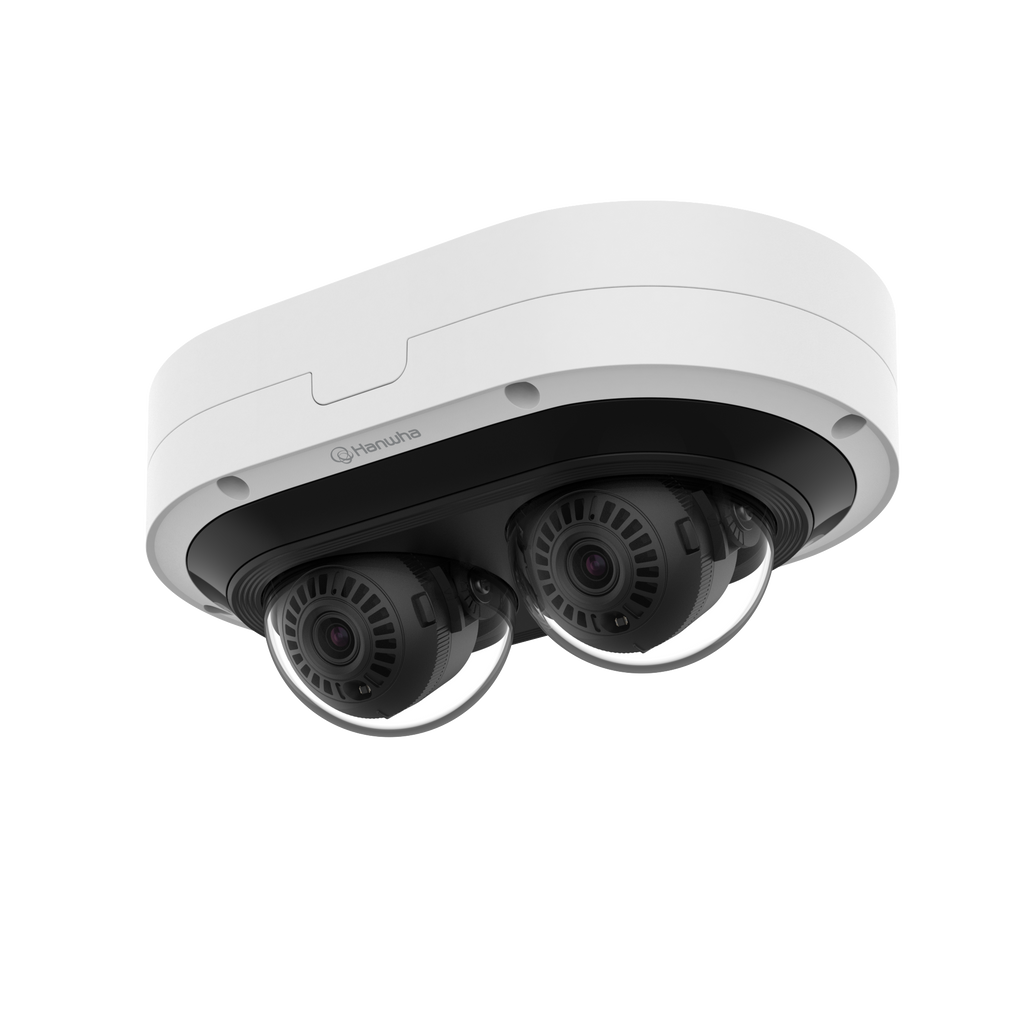

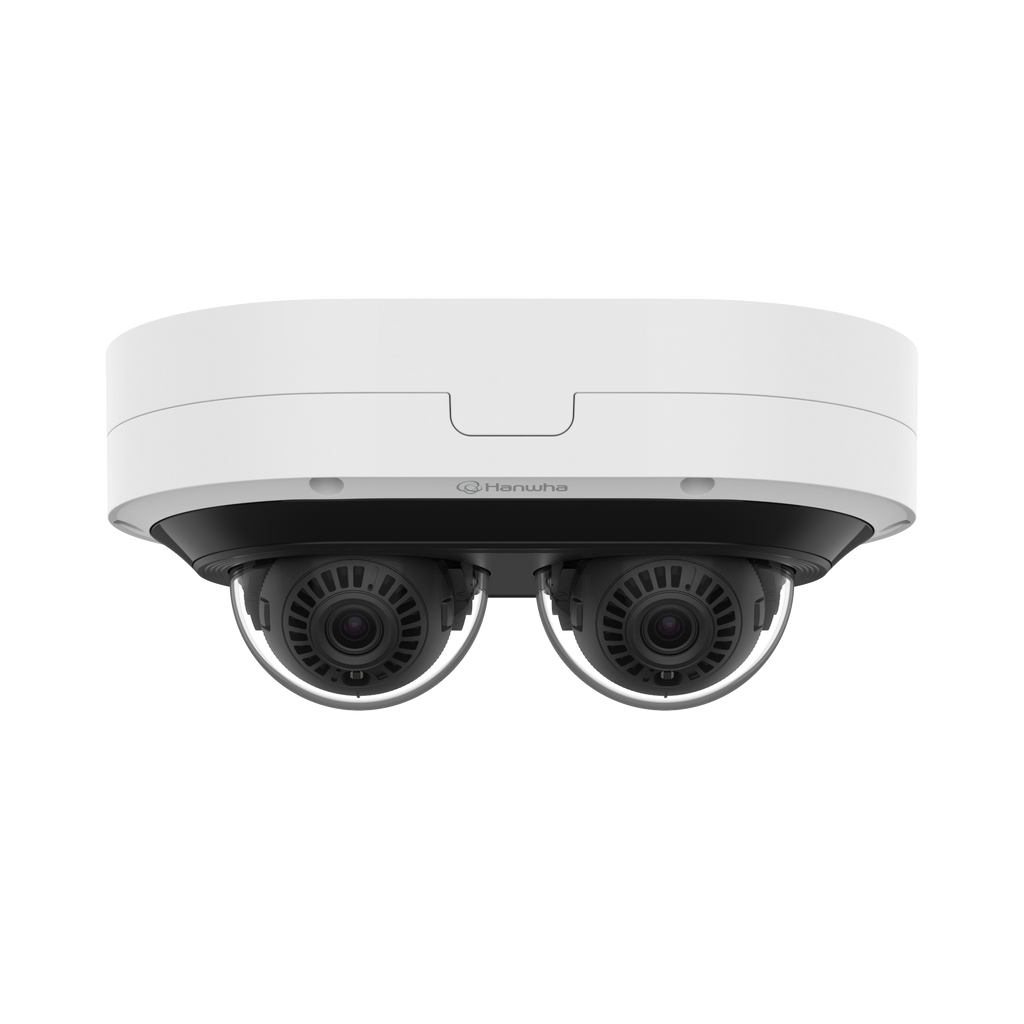

The Hanwha Vision PNM-C7083RVD is a dual-channel, multi-directional AI-powered network camera designed to deliver flexible coverage and exceptional image quality in challenging outdoor environments. Each 2MP sensor features advanced AI analytics for accurate classification of people, faces, vehicles, and license plates, including vehicle type attributes and BestShot thumbnails.
Equipped with motorized 3–6mm varifocal lenses, IR illumination up to 25m, and 120dB extreme WDR, this camera captures clear, detailed video day or night. Its built-in WiseNR II noise reduction, WiseStream III compression, and AI-assisted shutter optimization ensure efficient bandwidth usage while maintaining excellent visual clarity.
Engineered for demanding deployments, the PNM-C7083RVD includes TPM 2.0 (FIPS 140-2), secure boot, encrypted firmware, and comprehensive network security features. Housed in a rugged aluminium body with IP66/IP67, NEMA 4X, and IK10 ratings, it provides reliable performance across harsh weather and high-impact environments.
Ideal for perimeter monitoring, facility security, transportation hubs, and critical infrastructure installations.
| Category | Specification |
|---|---|
| Imaging | 2MP × 2 channels; 1/2.8" CMOS; Max 1920×1080; 30fps (H.265/H.264) |
| Minimum Illumination | Color: 0.035 Lux (F2.2, 1/30sec); B/W: 0.0035 Lux; 0 Lux (IR on) |
| Lens | 3–6mm motorized varifocal; 2× optical zoom; F2.2 (wide) / F3.1 (tele) |
| Field of View | H: 107°–56°; V: 57°–31°; D: 126°–64° |
| IR Illumination | IR LED; 15m or 25m viewable distance depending on scene |
| Pan/Tilt/Rotate | Pan 0°–355°; Tilt 0°–78°; Rotate 0°–180° |
| Image Enhancements | 120dB WDR; WiseNR II (AI-based DNR); BLC; SSDR; LDC |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream III |
| Streaming | Up to 10 users (unicast); up to 5 profiles; multicast supported |
| AI Analytics | Person/Face/Vehicle/License Plate detection; Vehicle attributes (car/bus/truck/motorcycle/bicycle); Virtual line/area events; BestShot |
| Normal Analytics | Defocus, motion detection, tampering, audio detection, sound classification |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTPS, DHCP, SNMP v1/v2c/v3, QoS, UPnP, Bonjour, LLDP, SRTP, NTP, FTP, SMTP |
| Security | Secure boot; encrypted firmware; digest authentication; IEEE 802.1X; HTTPS/SRTP; TPM 2.0 (FIPS 140-2 Level 2) |
| Storage | 1× microSD/SDHC/SDXC up to 512GB (standard) or 1TB (OnCloud) |
| Audio/Alarm I/O | Supported via optional I/O box |
| Operating Conditions | -40°C to +55°C; 0–95% RH |
| Ingress/Impact Ratings | IP66, IP67, IK10, NEMA 4X |
| Power | PoE+ (IEEE 802.3at), Max 20W (typ. 15.5W) |
| Construction | Aluminum body; White (RAL9003) |
| Dimensions / Weight | 215 × 135 × 93.2 mm; 1.33 kg |
