Description

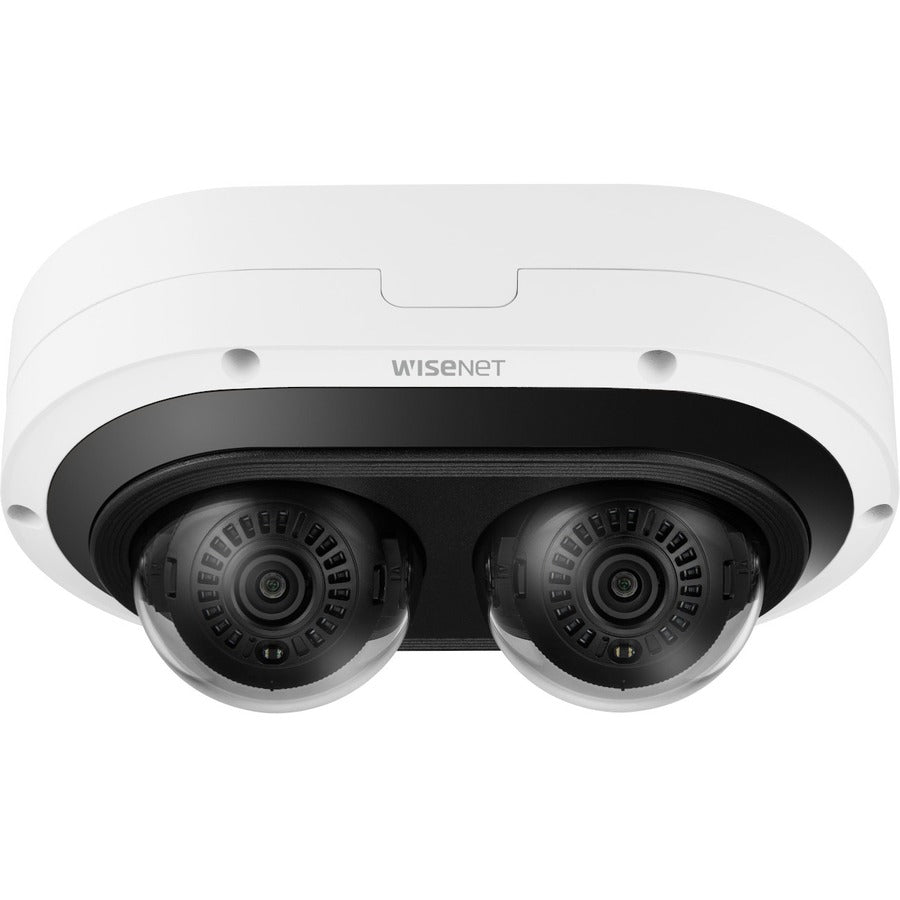

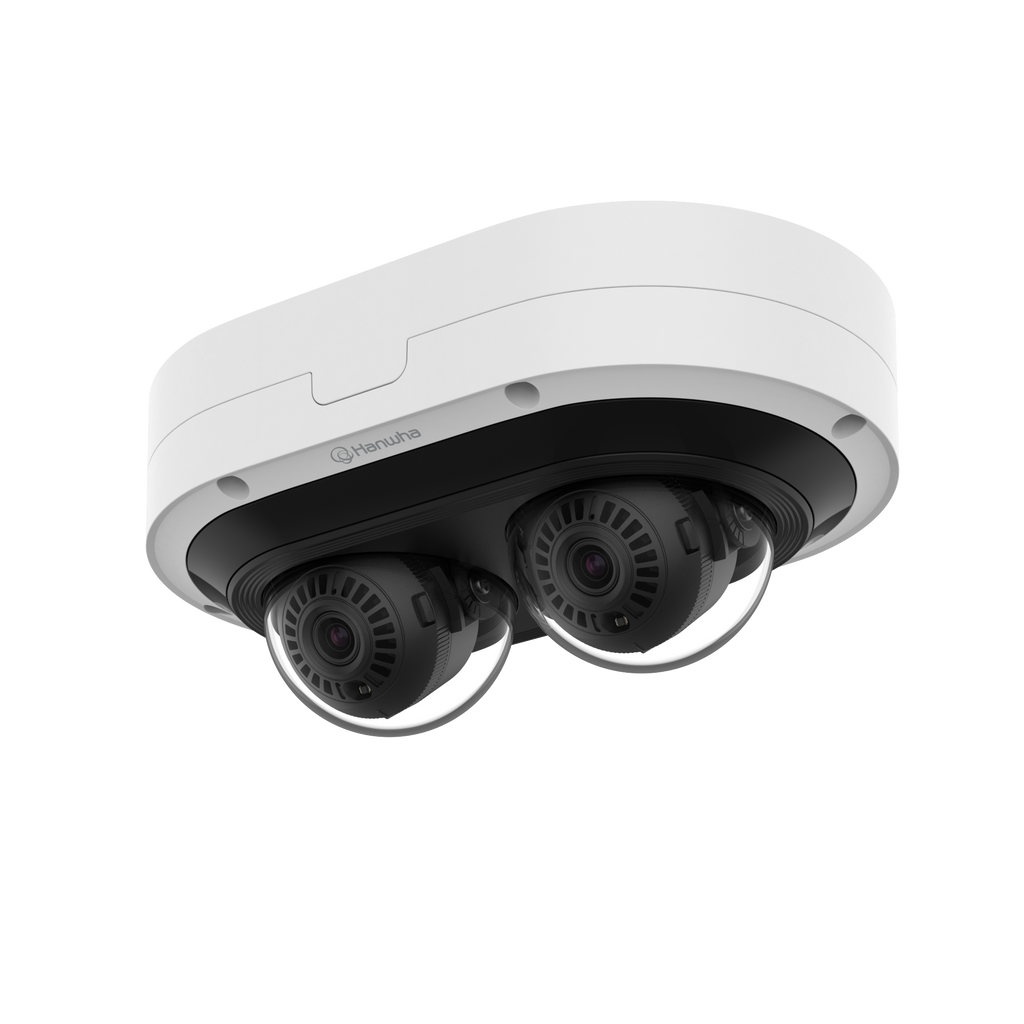

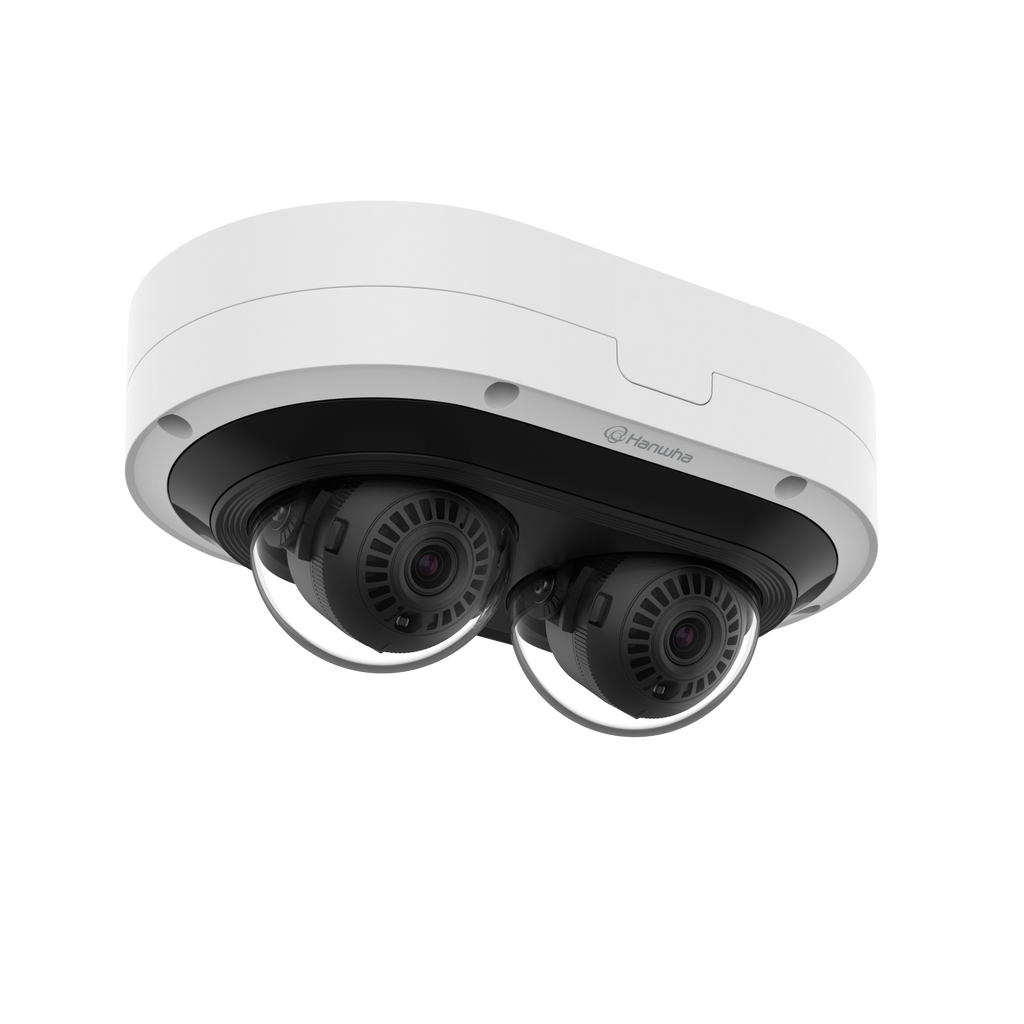

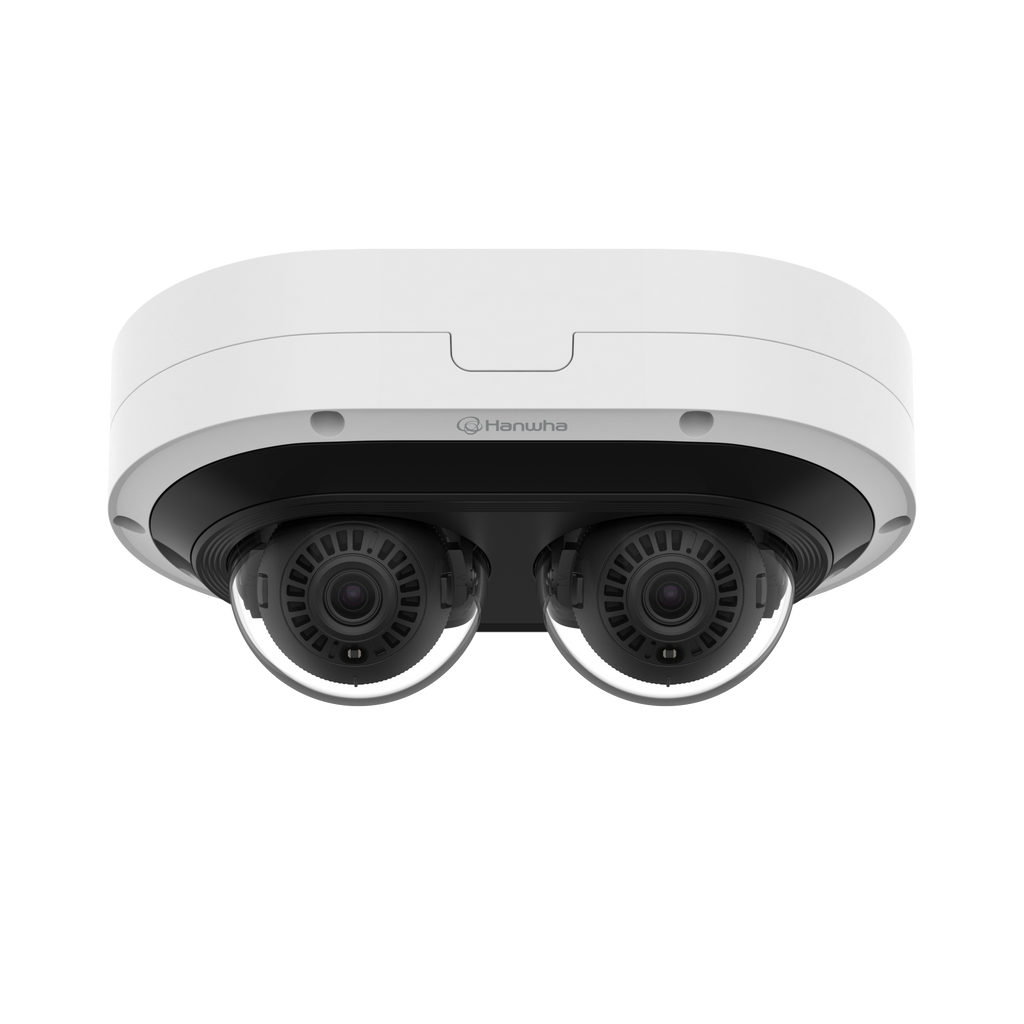

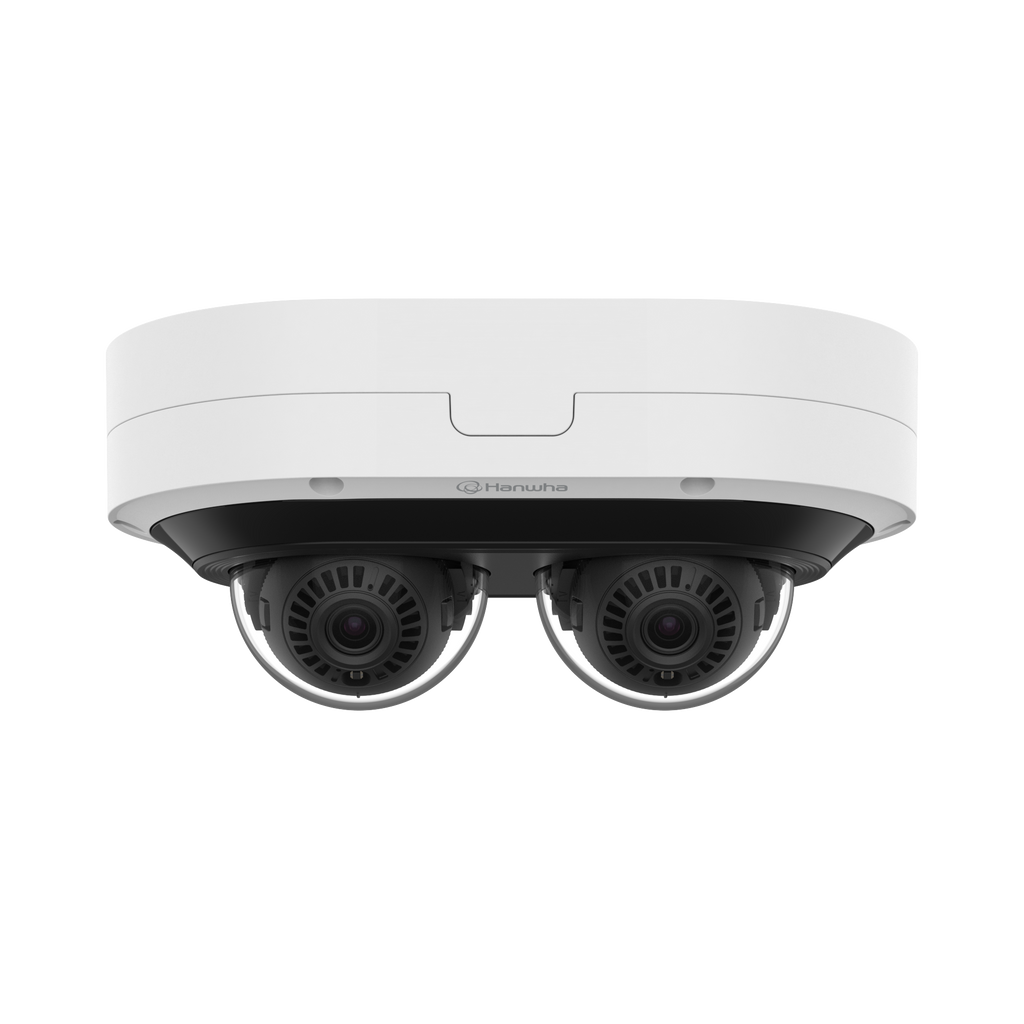

The Hanwha Vision PNM-C7083RVD is a dual-channel 2MP AI multi-directional network camera designed to deliver wide, flexible coverage while enhancing detection accuracy through deep-learning analytics. Each channel provides full HD resolution with motorized 3–6mm varifocal lenses, allowing operators to capture two independent scenes in a single housing.
Powered by an advanced AI engine, the camera classifies objects such as persons, faces, vehicles, and license plates while providing detailed vehicle attributes. Integrated BestShot thumbnails help streamline monitoring and event review. With extreme WDR (120dB), WiseNRⅡ noise reduction, auto shutter optimization, and IR illumination up to 25m, the PNM-C7083RVD ensures clear imaging in challenging lighting conditions.
Built for demanding environments, the camera features IP66/67 weather resistance, IK10 vandal protection, TPM 2.0 secure hardware, encrypted firmware, and a wide operating temperature range. Its compact aluminum housing supports multiple mounting options, making it a versatile choice for airports, campuses, retail centers, and outdoor perimeter surveillance.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS, 2MP × 2 channels |
| Max Resolution | 1920×1080 |
| Framerate | 30fps (H.265/H.264/MJPEG) |
| Minimum Illumination | Color: 0.035 lux (F2.2); B/W: 0.0035 lux; 0 lux with IR |
| Lens | Motorized varifocal 3–6mm, optical zoom 2×, F2.2–F3.1 |
| Field of View | H: 107°–56°, V: 57°–31°, D: 126°–64° |
| IR Illumination | Up to 25m (850nm) |
| AI Analytics | Person/Face/Vehicle/License Plate classification, vehicle attributes, BestShot, object detection, virtual line, intrusion/loitering, motion, tampering, audio detection, etc. |
| WDR | 120dB extreme WDR |
| Noise Reduction | WiseNRⅡ (AI-based), SSNRⅤ |
| Video Compression | H.265, H.264 (Main/High/Baseline), MJPEG |
| Smart Codec | WiseStream III |
| Network | RJ45 (10/100/1000BASE-T), IPv4/IPv6, HTTPS, SRTP, ONVIF S/T, SUNAPI |
| Streaming | Up to 10 users unicast; up to 5 profiles |
| Edge Storage | MicroSD/SDHC/SDXC up to 512GB (1TB OnCloud) |
| Audio Support | Via optional I/O box |
| Alarm I/O | Via optional I/O box |
| Operating Temperature | −40°C to +55°C |
| Ingress/Vandal Rating | IP66, IP67, IK10, NEMA4X |
| Power | PoE+ (IEEE 802.3at), Max 20W |
| Dimensions | 215 × 135 × 93.2 mm |
| Weight | 1.33 kg (2.93 lb) |
| Material | Aluminum, RAL9003 |
