Description

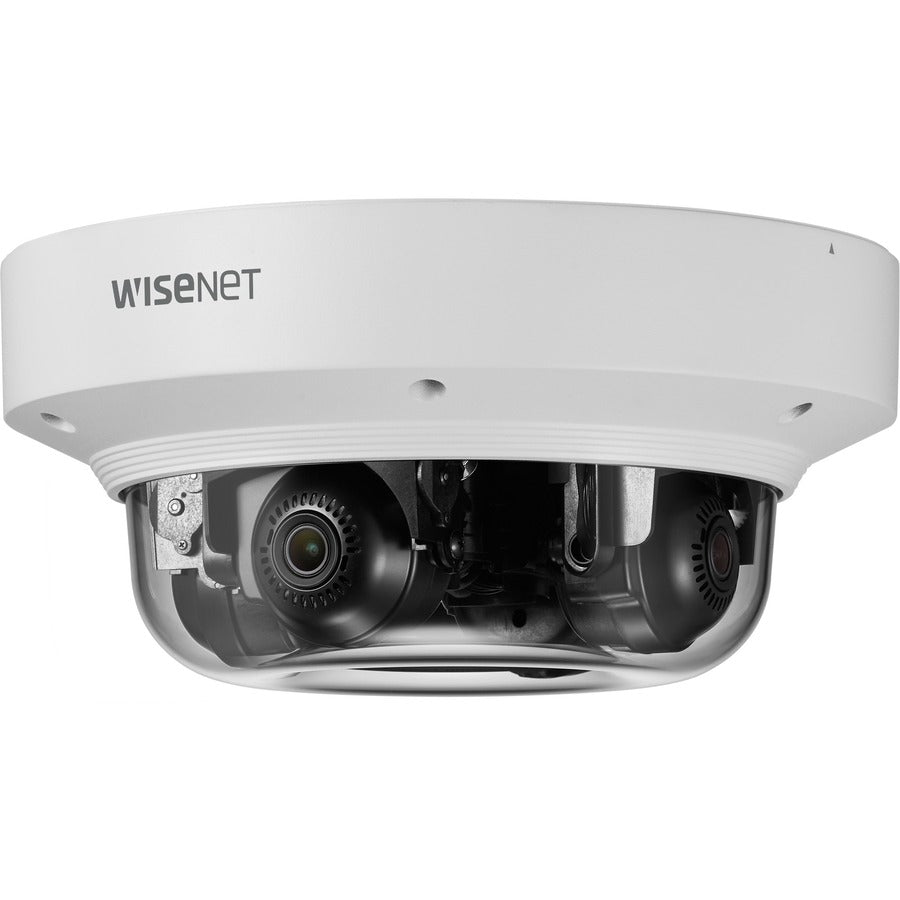

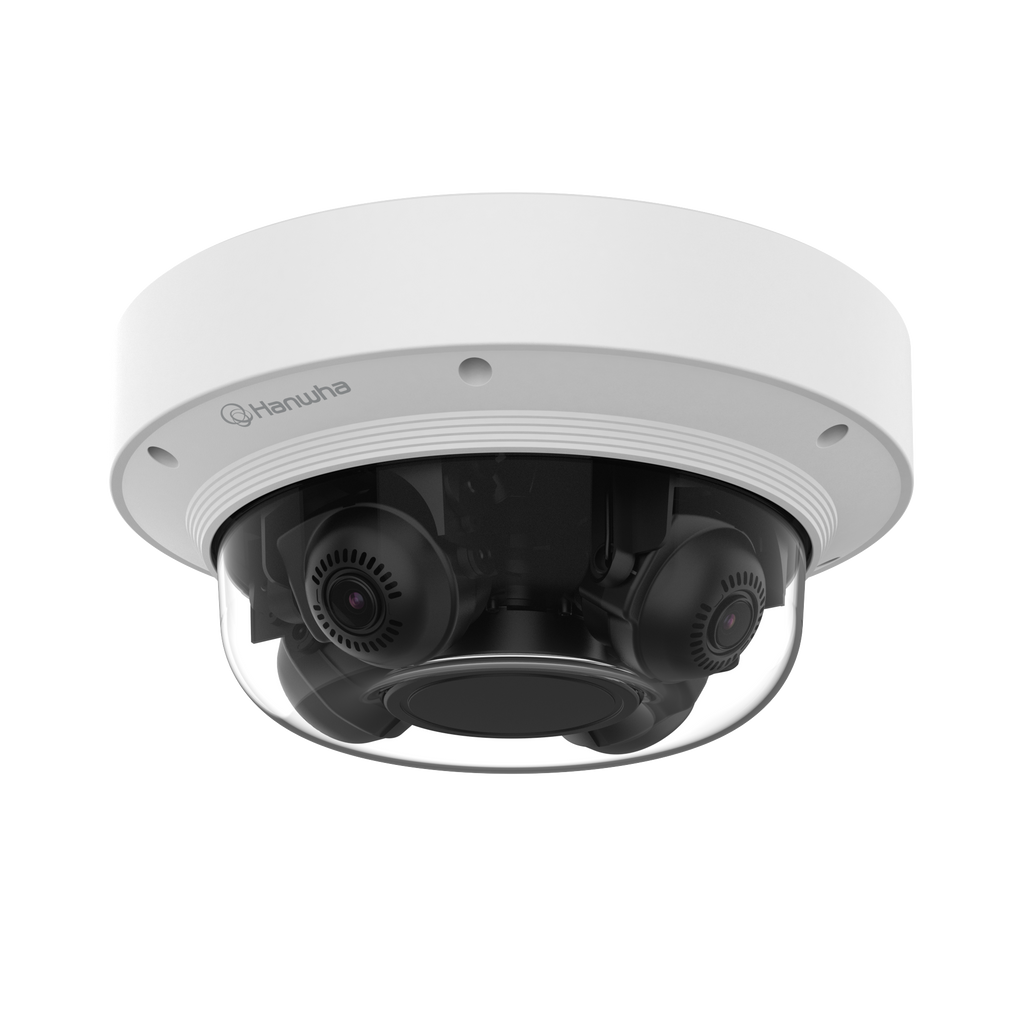

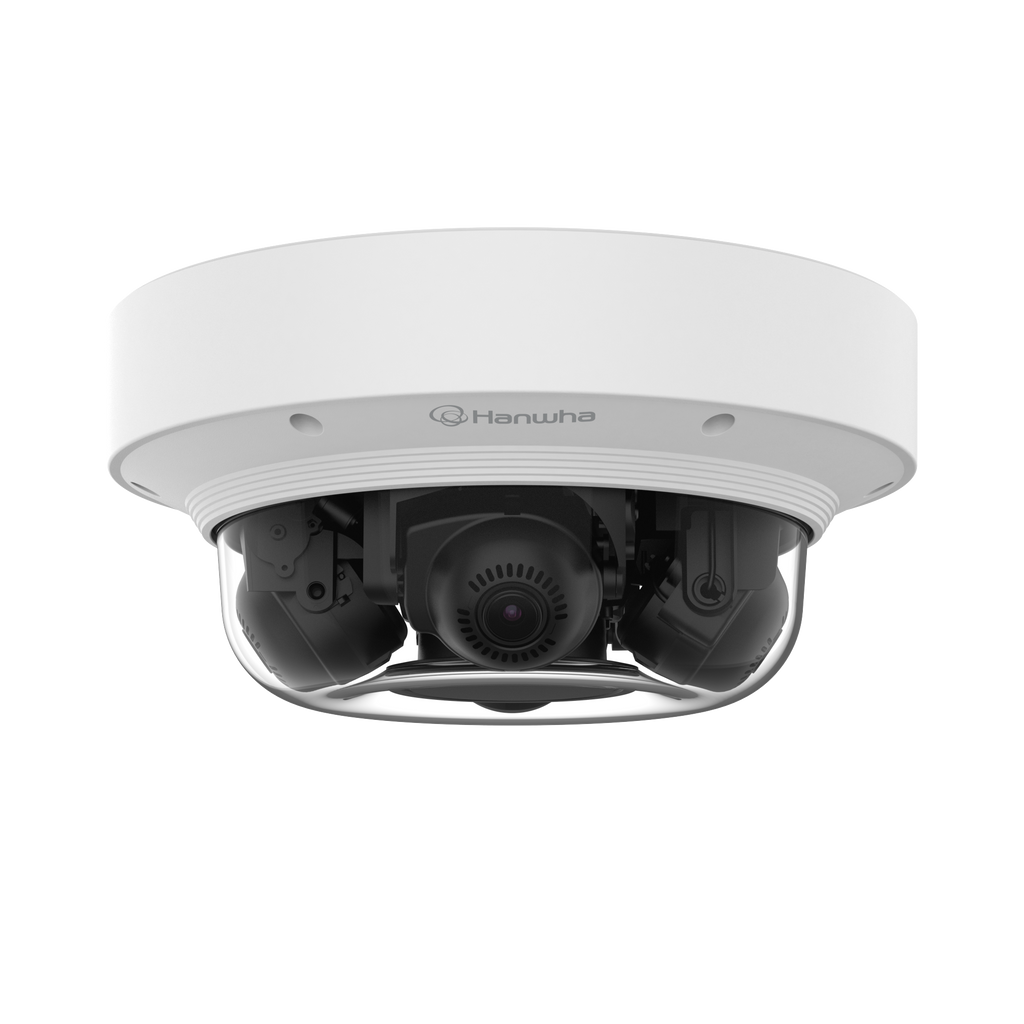

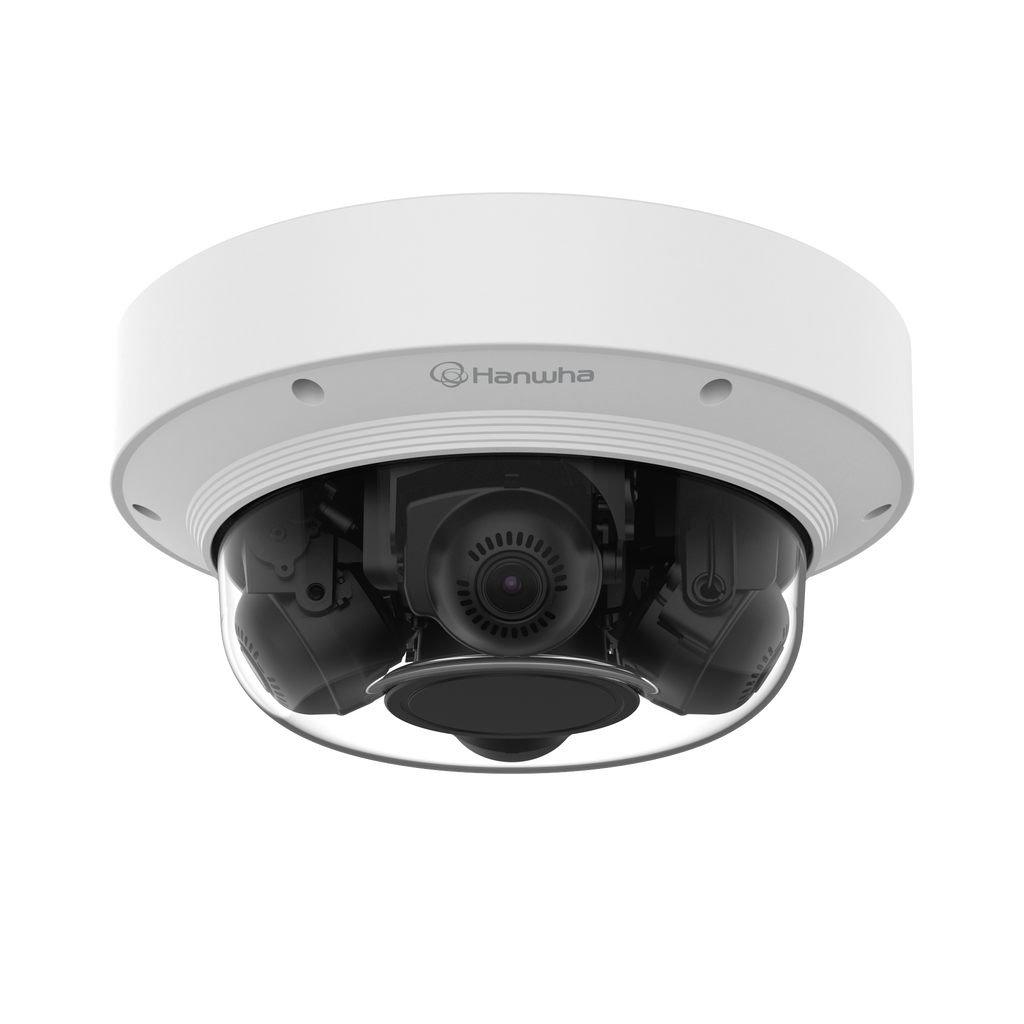

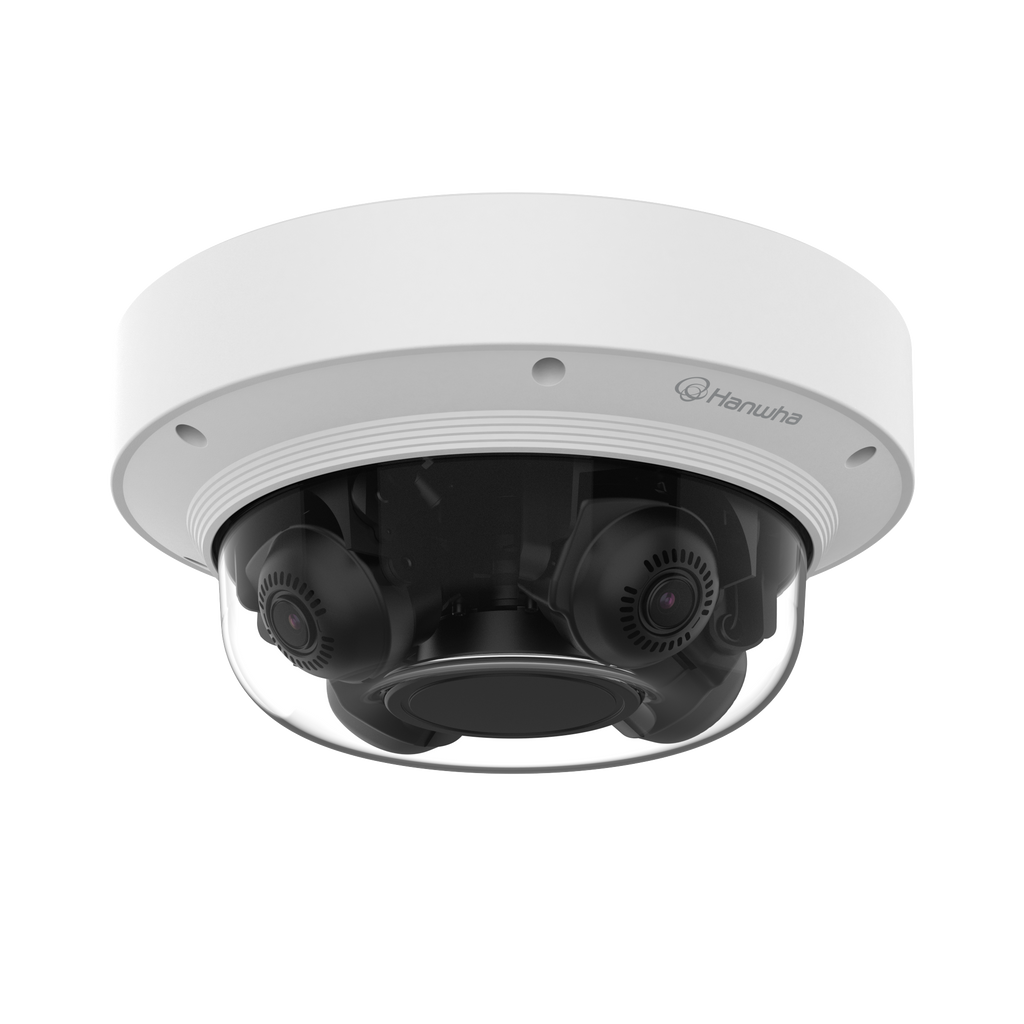

The Hanwha Vision PNM-9084QZ1 is a high-performance 4-channel multidirectional network camera designed for wide-area surveillance with exceptional flexibility and clarity. Each channel delivers crisp 2MP resolution, supported by motorized PTRZ (Pan-Tilt-Rotate-Zoom) for remote lens positioning and streamlined installation.
Equipped with 3–6mm motorized varifocal lenses, 2× optical zoom, and Up to 60fps video capture, this camera provides smooth and detailed imaging in dynamic environments. Advanced features such as 120dB WDR, SSNRV noise reduction, defog, and digital image stabilization ensure consistent clarity in challenging lighting and weather conditions.
Built for demanding applications, the PNM-9084QZ1 offers IP66 / IK10 / NEMA4X protection, making it ideal for outdoor and vandal-prone areas. Intelligent analytics—including motion detection, tampering, defocus detection, virtual lines, intrusion zones, and more—enhance situational awareness and security response.
With H.265/H.264/MJPEG compression, WiseStream II smart codec, and support for up to 10 simultaneous streams, it ensures efficient bandwidth and storage use. The camera also includes edge storage up to 1TB, advanced cybersecurity protections, and a broad operating temperature range of -40°C to +55°C.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS, 2MP per channel, up to 60fps (H.265/H.264) |
| Resolution Options | 1920×1080 to 320×240 (multiple aspect ratios) |
| Min. Illumination | Color: 0.04 lux (1/30s, 30IRE); B/W: 0.004 lux |
| Lens | 3–6mm motorized varifocal, 2× optical zoom |
| Aperture (F-number) | F2.2 (wide), F3.1 (tele) |
| Field of View | H: 107°–56°, V: 57°–31°, D: 126°–64° |
| Focus Control | Simple focus; remote PTRZ (max 200 cycles) |
| Pan / Tilt / Rotate | Pan: 0°–360°, Tilt: 0°–73°, Rotate: 0°–90° |
| Day/Night | Auto (ICR) |
| WDR | 120dB |
| Noise Reduction | SSNRV |
| Image Enhancements | Defog, DIS, Flip/Mirror, LDC |
| Motion Detection | 8 polygonal zones |
| Privacy Masking | 32 quadrangle zones (multiple colors) |
| Smart Analytics | Motion, tampering, defocus, fog, face detection, virtual area/line events, audio detection |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG |
| Audio | In (mic/line selectable), Out (line) |
| Streaming | Up to 10 profiles, up to 20 simultaneous users |
| Network Interface | RJ-45 (10/100/1000BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, FTP, SNMP, DDNS, QoS, UPnP, ONVIF S/T |
| Security | IEEE 802.1X, HTTPS, IP filtering, encrypted credentials |
| Edge Storage | MicroSD/SDHC/SDXC × 4 slots (up to 1TB total) |
| Operating Temp. | -40°C to +55°C |
| Humidity | 0–90% RH (non-condensing) |
| Power | HPoE (IEEE 802.3bt Type 4, Class 8); Max 33W, Typical 20W |
| Durability Ratings | IP66, IK10, NEMA 4X |
| Material / Color | Aluminum, White (RAL9003) |
| Dimensions | Ø251 × 116.5mm (9.88 × 4.59 in) |
| Weight | 3.0kg (6.61 lbs) |
| Compatible Mounting | Single, double, 4" octagon, square gang boxes |
