Description

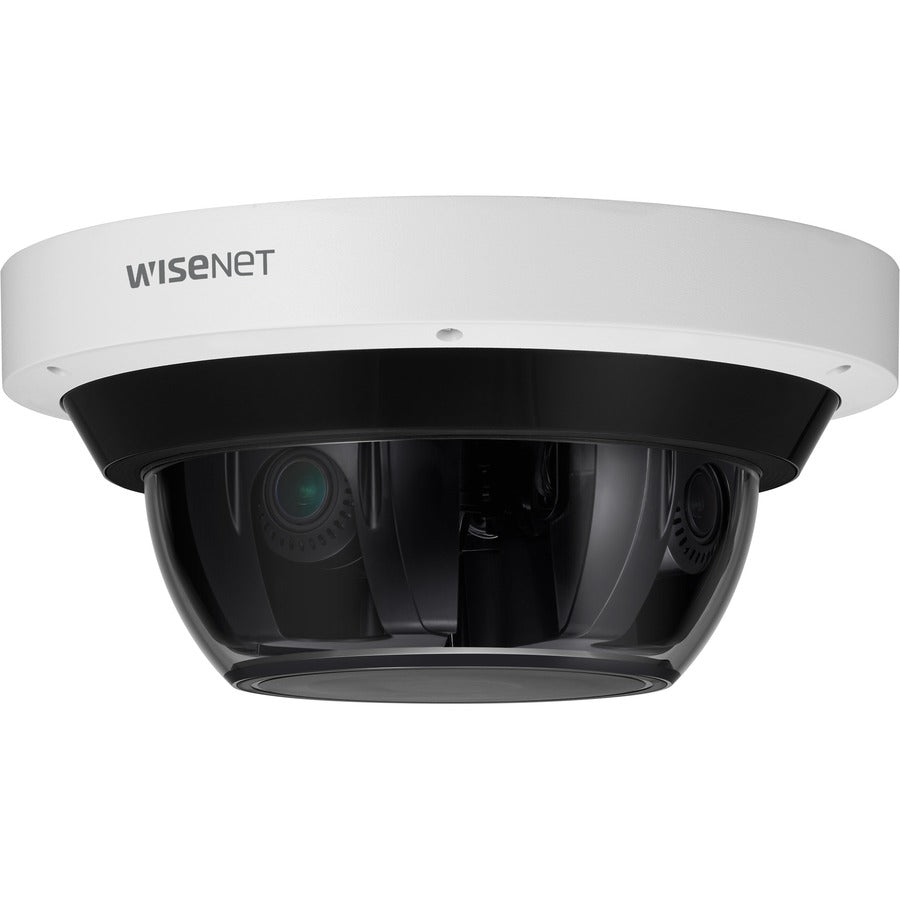

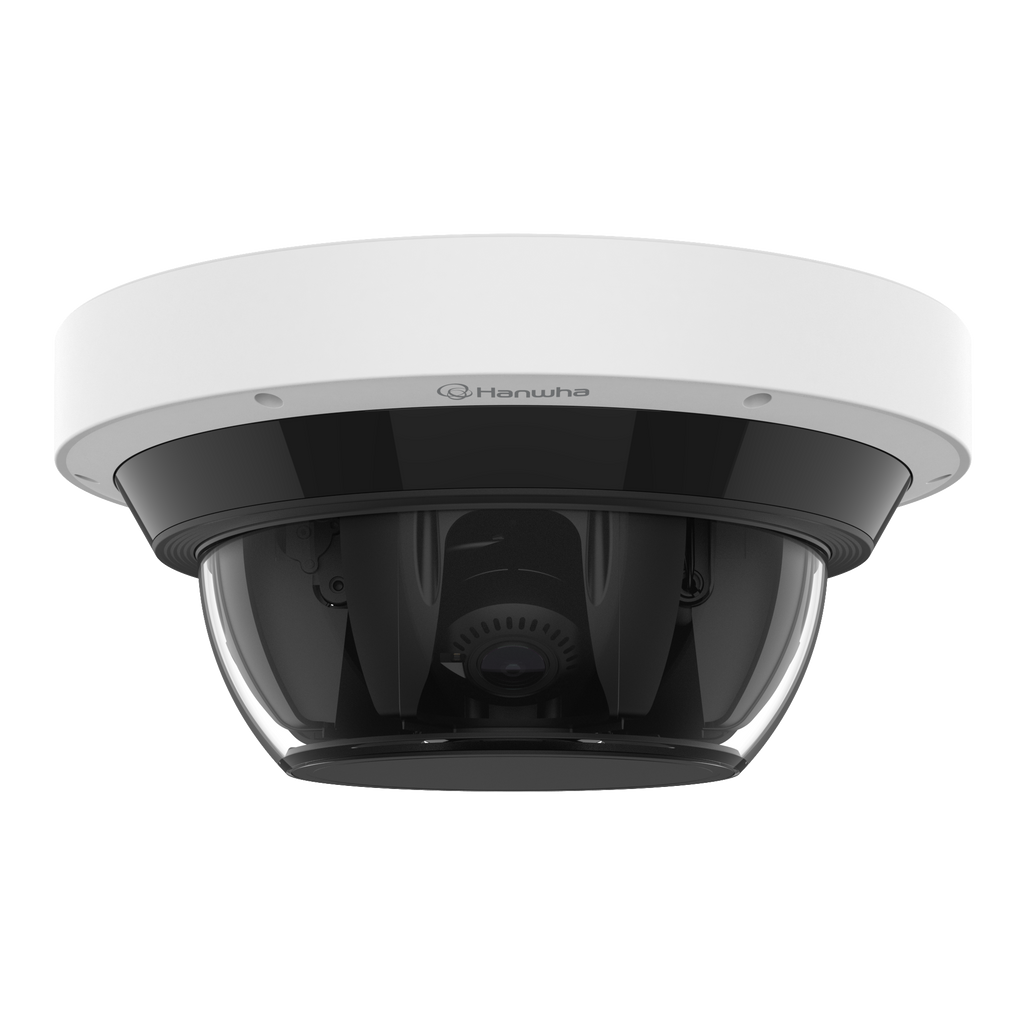

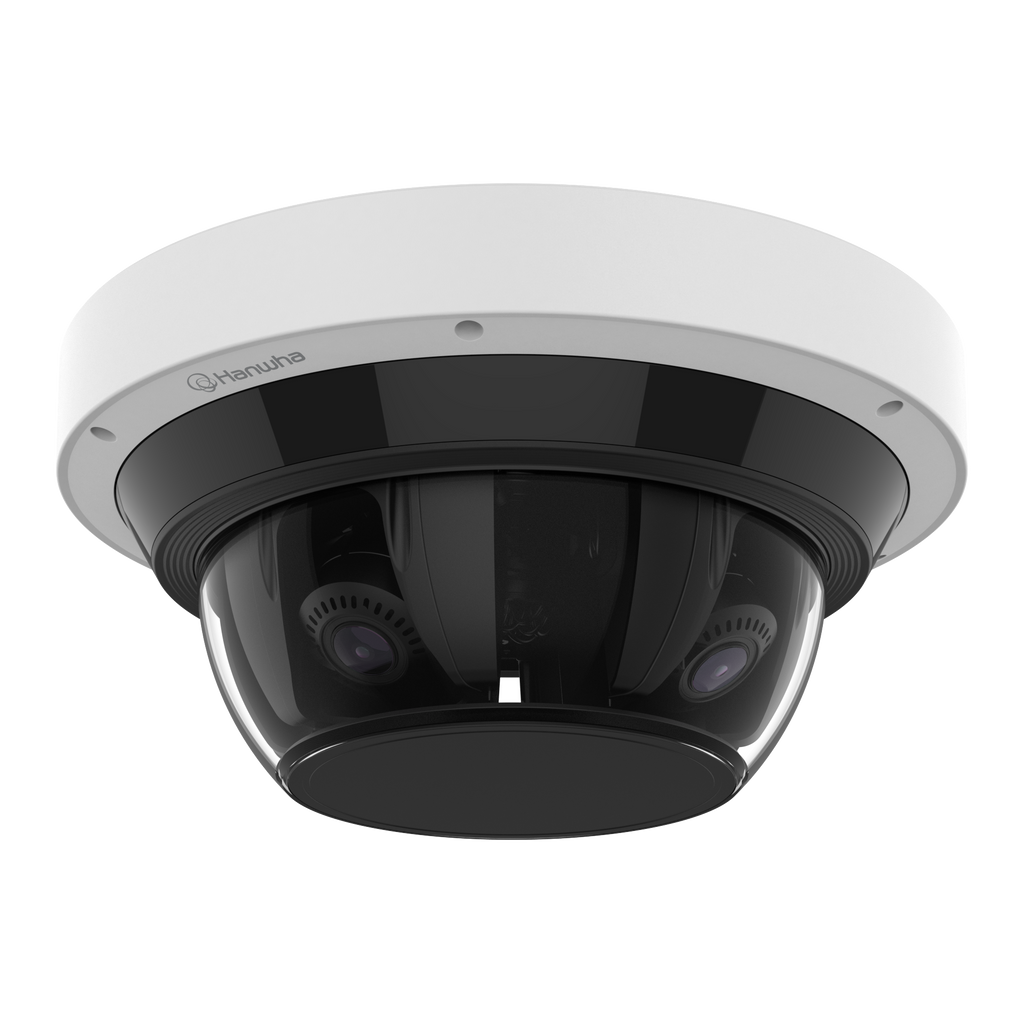

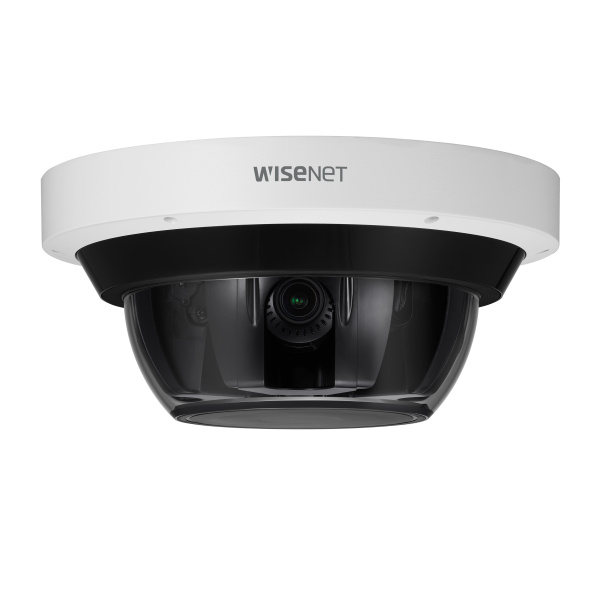

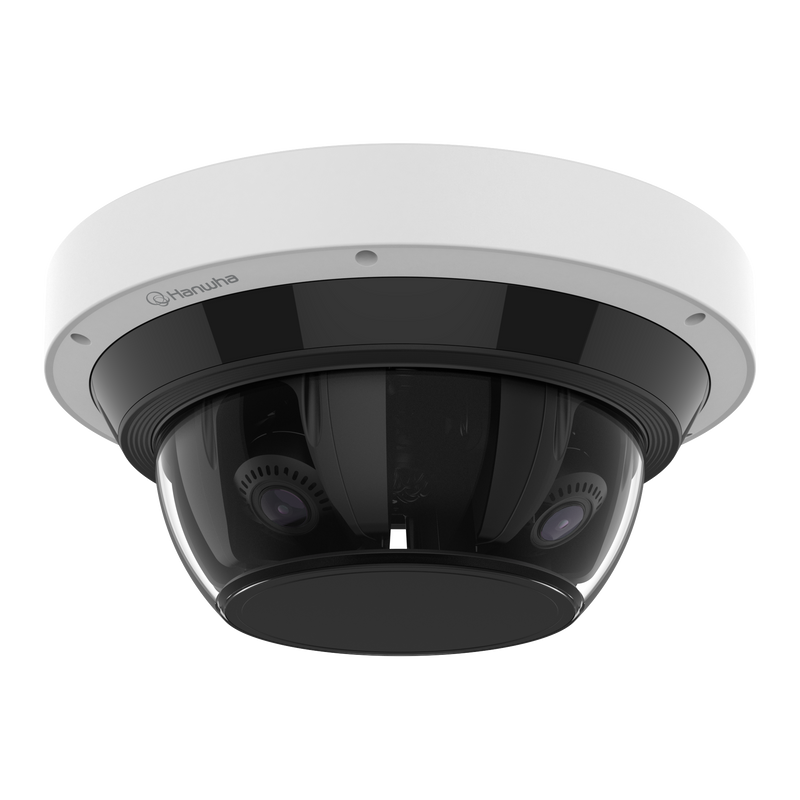

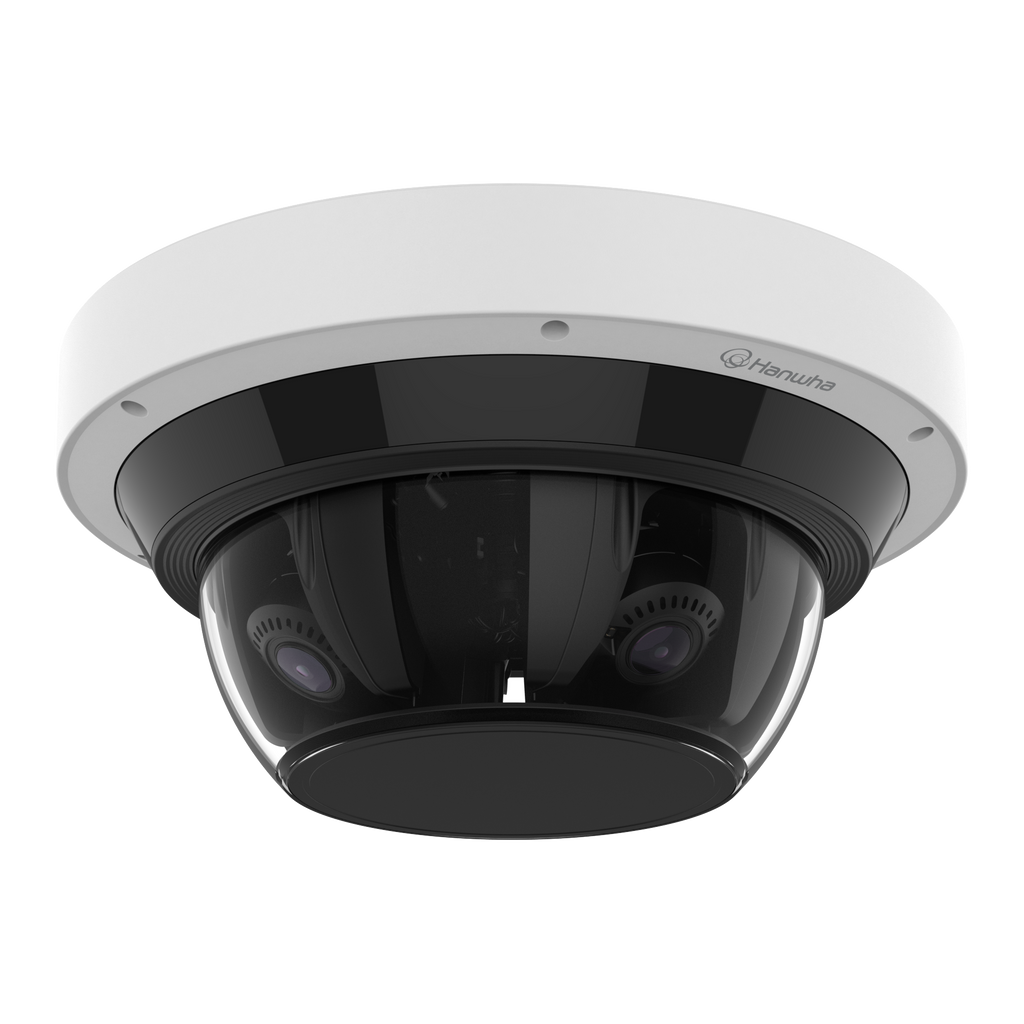

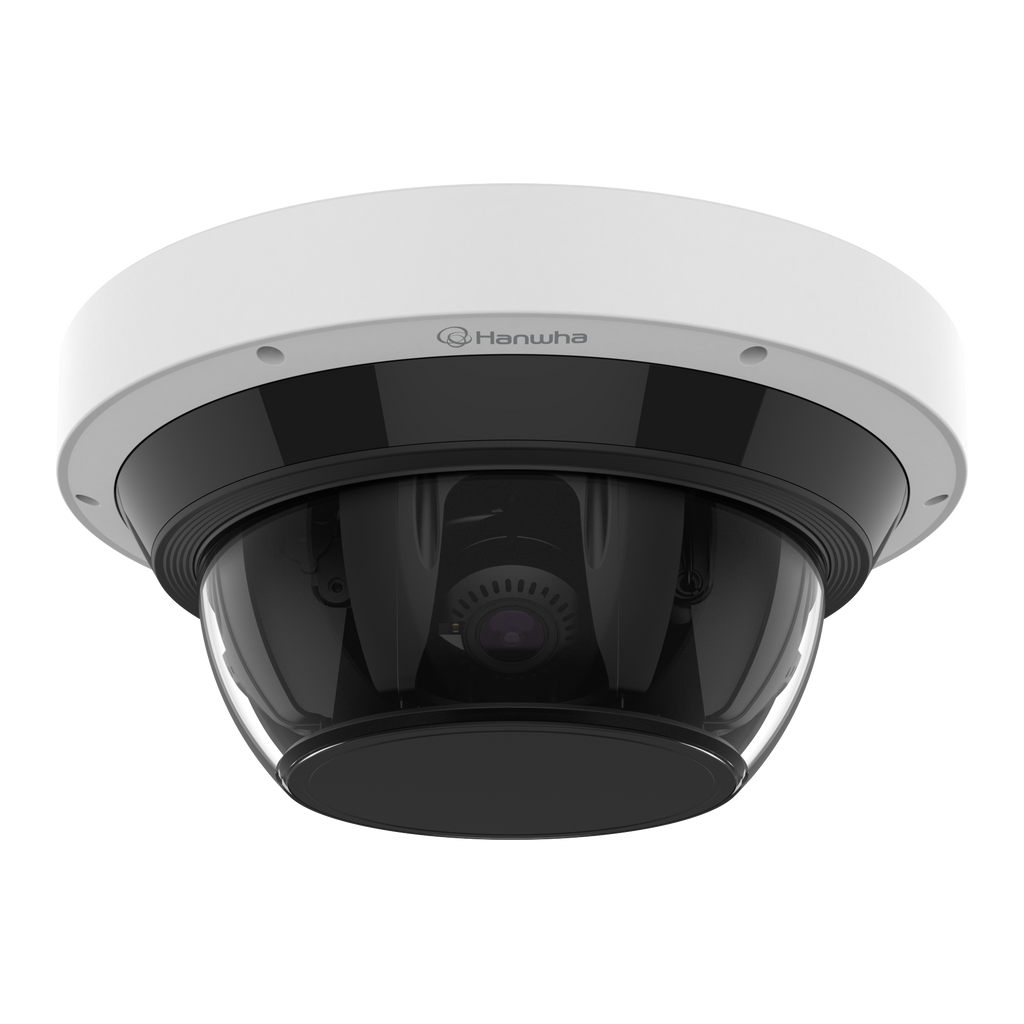

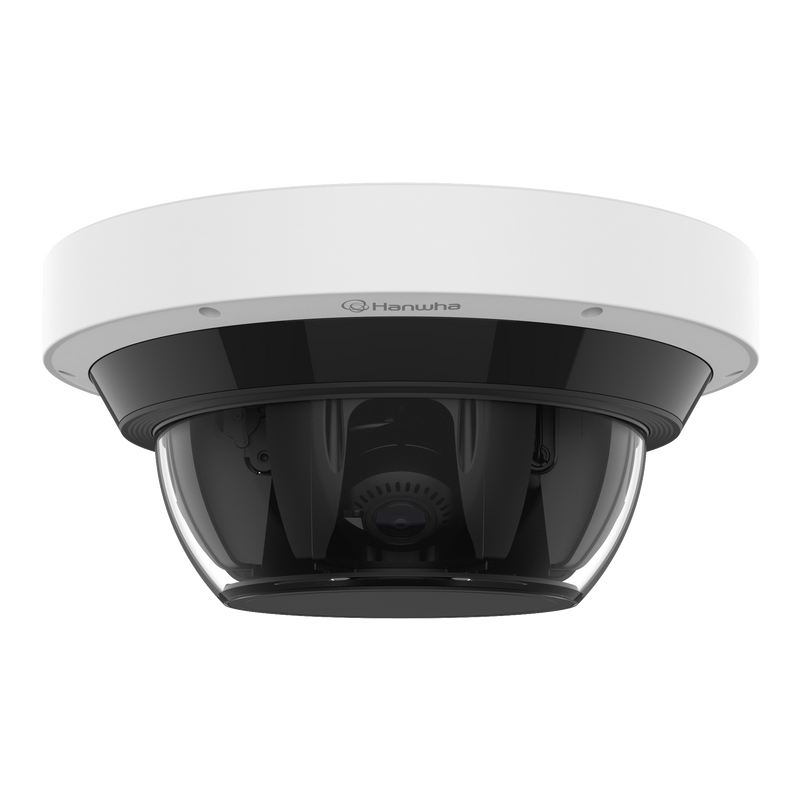

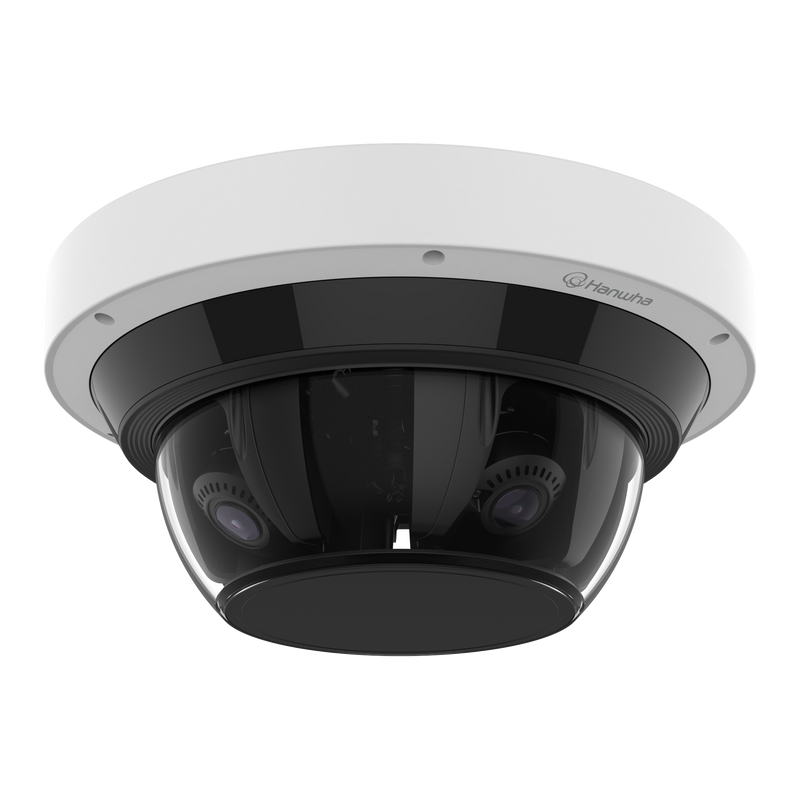

The Hanwha Vision PNM-9084RQZ1 is a high-performance multi-directional PTRZ network camera designed for wide-area surveillance with maximum flexibility. Featuring four independent 2MP sensors, motorized pan/tilt/rotate/zoom adjustment, and a 3.2–10mm motorized varifocal lens per channel, this camera delivers exceptional coverage without the need for multiple single-sensor devices.
Engineered for demanding environments, it provides 60fps streaming at 2MP resolution, advanced video analytics, 120dB WDR, SSNRⅤ noise reduction, and long-range IR illumination up to 30 meters. Its rugged IP66, IK10, and NEMA 4X housing ensures reliable outdoor performance in harsh weather conditions.
With WiseStream II smart codec, edge storage up to 1TB (4× microSD slots), and ONVIF S/T support, the PNM-9084RQZ1 integrates easily with modern VMS platforms, making it an ideal solution for airports, campuses, retail centers, industrial facilities, and urban surveillance deployments.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS, 2MP per channel |
| Resolution | Up to 1920×1080 |
| Framerate | 60fps (H.265/H.264), 30fps (MJPEG) |
| Minimum Illumination | Color: 0.05 Lux; B/W: 0.005 Lux |
| Lens | 3.2–10mm motorized varifocal, 3.1× optical zoom |
| Field of View | H: 109°–33°, V: 58°–18°, D: 132°–38° |
| Pan/Tilt/Rotate | Pan: 0°–360° / Tilt: 30°–80° / Rotate: 0°–90° |
| PTRZ | Remote motorized adjustment (up to 200 cycles) |
| Day/Night | Auto (ICR) |
| Wide Dynamic Range | 120dB WDR |
| Noise Reduction | SSNRⅤ |
| Defog / Stabilization | Supported |
| IR Illumination | 30m range, 850nm |
| Analytics | Motion, tampering, face detection, intrusion, virtual line, fog, audio detection, etc. |
| Compression | H.265/H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream II |
| Streaming Users | Up to 20 users (unicast), multicast supported |
| Network Protocols | IPv4/IPv6, RTP, RTSP, HTTPS, SNMP, QoS, ONVIF S/T, SUNAPI |
| Audio | In: mic/line selectable; Out: line out |
| Storage | 4× microSD/SDHC/SDXC slots (max 256GB each; total 1TB) |
| Power | HPoE (IEEE 802.3bt Type 4, Class 8) or 12VDC |
| Power Consumption | PoE: Max 42W / Typical 30W; 12VDC: Max 38W / Typical 28.2W |
| Environmental | Operating: –40°C to +55°C; Humidity: 0–90% |
| Durability Ratings | IP66, IK10, NEMA 4X |
| Material / Color | Aluminum, White (RAL9003) |
| Dimensions | Ø315 × 145.9 mm (12.40 × 5.74 in) |
| Weight | 5.2 kg (11.5 lb) |
