Description

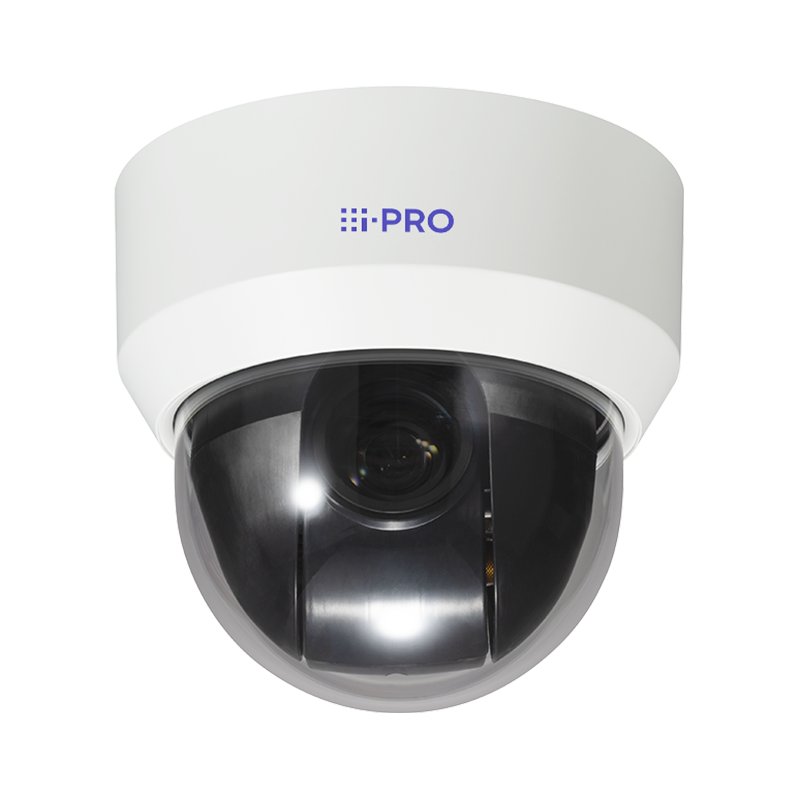

The i-PRO WV-U65302-Z2 is a high-performance 2MP (1080p) outdoor PTZ network camera from the U-Series, designed for reliable, secure, and versatile surveillance in challenging environments. Featuring a 21x optical zoom lens, Super Dynamic 144 dB wide dynamic range, and color night vision down to 0.001 lx, it ensures exceptional clarity in both bright and low-light scenes.
Engineered for durability, the WV-U65302-Z2 includes an IK10 vandal-resistant and IP66 weatherproof housing, as well as an anti-condensation system for consistent outdoor operation. The camera integrates a FIPS 140-2 Level 3 certified secure element (NXP EdgeLock SE050F), ensuring top-tier cybersecurity and NDAA compliance. Powered by Ambarella CV25M SoC, it supports advanced image stabilization, H.265/H.264 streaming, ONVIF G/S/T profiles, and edge recording on microSD cards up to 512 GB.
Ideal for city surveillance, transportation, and perimeter monitoring, this PTZ camera delivers professional-grade performance and security without compromise.
| Category | Specification |
|---|---|
| Imaging | 2MP (1920 × 1080) CMOS sensor, Intelligent Auto, Super Dynamic 144 dB |
| Minimum Illumination | Color: 0.011 lx (30 IRE, F1.6) / 0.001 lx (16/30 s); B/W: 0.006 lx / 0.0004 lx |
| Lens | 21× optical zoom (4.0 – 84.6 mm), f/1.6 – 4.5, 31× HD Extra Optical Zoom |
| Field of View (H/V) | 77° – 3.7° / 44° – 2.2° (16:9 mode) |
| Zoom Range | Digital 21× – 336× |
| Dynamic Range | Up to 144 dB (Super Dynamic On, Level 31) |
| Video Modes | H.265 / H.264 / JPEG (MJPEG); up to 60 fps @ 1080p |
| Smart Coding | Variable GOP control (Off / Low / Mid / Advanced / Frame rate control) |
| Audio | G.726 (16 / 32 kbps), G.711 (64 kbps), AAC-LC (64–128 kbps) |
| Audio I/O | 1 × 3.5 mm stereo input/output (mini-jack, plug-in power mic supported) |
| Network Interface | 10 Base-T / 100 Base-TX (RJ-45) |
| Protocols | IPv4/IPv6, HTTP(S), RTSP, RTP, SNMP, SFTP, MQTT, IEEE 802.1X and more |
| Security | FIPS 140-2 Level 3 (NXP EdgeLock SE050F), GlobalSign cert, HTTPS, SRTP |
| Edge Storage | microSD (2 GB) to microSDXC (512 GB) support, Alarm/Schedule/Backup REC |
| PTZ Control | 360° endless pan, –15° to +195° tilt, manual speed 0.065° – 150°/s, preset up to 500°/s |
| Preset Positions | 256 positions / Auto pan, Patrol, Preset sequence |
| SoC | Ambarella CV25M |
| Operating Temp. | –30 °C to +55 °C (–22 °F to +131 °F) |
| Power Requirements | DC 12 V (15.6 W), PoE (12.95 W), PoE+ (18.4 W) |
| Ingress Protection | IP66 / Type 4X / NEMA 4X / IK10 shock resistance |
| Weight / Material | Approx. 1.7 kg; Aluminum die-cast body with clear polycarbonate dome |
| Compliance | UL, CE, FCC Part 15 Class A, NDAA Compliant |
| Optional Accessories | WV-QWL506-W, WV-QCL100-W, WV-QEM504-W, WV-QSR501-W, PPRM35AW, etc. |
