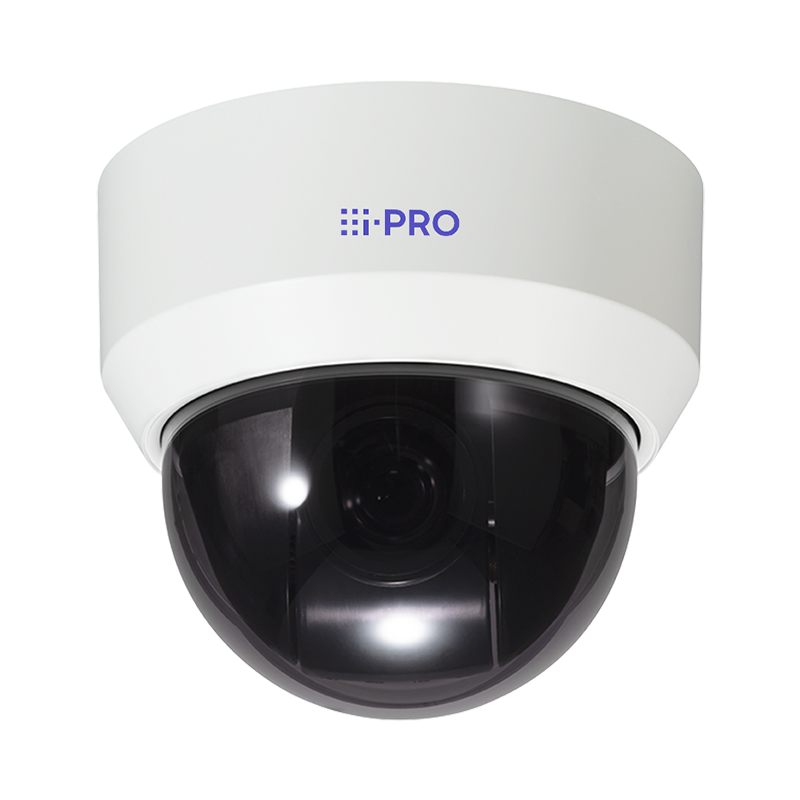

The i-PRO WV-U65302-Z2G is a high-performance 2MP (1080p) outdoor PTZ network camera designed for versatile surveillance in demanding environments. Part of the U Series, this camera combines advanced imaging technology, robust security compliance, and a durable housing to ensure reliable performance and crystal-clear video capture.
Equipped with a 21x optical zoom lens and Super Dynamic 144 dB wide dynamic range, it delivers sharp details even in challenging lighting conditions. The camera’s color night vision captures vivid images down to 0.003 lx, while its built-in image stabilizer ensures clarity during movement or vibration. With FIPS 140-2 Level 3 certification, it provides government-grade data protection through an embedded NXP EdgeLock SE050F secure element.
Engineered for durability, the WV-U65302-Z2G features an IP66 and IK10-rated enclosure, capable of withstanding wind speeds up to 40 m/s and temperatures from –30 °C to +55 °C. Its smoke dome design offers discreet monitoring while maintaining visual coverage. Ideal for airports, parking lots, and perimeter security, this PTZ camera balances affordability, intelligence, and long-term reliability.
| Category | Specification |
|---|---|
| Model | i-PRO WV-U65302-Z2G |
| Camera Type | 2 MP (1080p) Outdoor PTZ Network Camera (Smoke Model) |
| Image Sensor | Approx. 1/2.8-type CMOS sensor |
| Resolution | 1920 × 1080 (Full HD), 1280 × 720, 640 × 360, 320 × 180 |
| Optical Zoom | 21× (optical), 31× with HD Extra Optical Zoom (720p) |
| Digital Zoom | Up to 336× |
| Minimum Illumination | 0.003 lx (color night vision, F1.6, 16/30 s) / 0.0011 lx (B/W) |
| Dynamic Range | Max. 144 dB (Super Dynamic On) |
| Intelligent Auto | On / Off |
| Image Stabilization | Built-in gyro sensor |
| Lens Focal Length | 4.0 – 84.6 mm (f 1.6 – 4.5) |
| Horizontal View Angle | 3.7° – 77° (16:9 mode) |
| Pan/Tilt Range | Pan 0–360°, Tilt –15 to +195° (360° endless panning) |
| Pan/Tilt Speed | Up to 500°/s (Preset) |
| Preset Positions | 256 positions |
| Audio I/O | 1× 3.5 mm stereo input & output (mini jack) |
| Network Interface | 10Base-T / 100Base-TX (RJ-45) |
| Supported Protocols | IPv4/IPv6, TCP/IP, HTTP/HTTPS, RTSP, RTP, SNMP, NTP, DHCP, SFTP, MQTT, LLDP, SRTP |
| Smart Coding | GOP control and Frame Rate control (H.265/H.264) |
| SD Card Recording | microSD / SDHC / SDXC (2 GB to 512 GB supported) |
| Security | FIPS 140-2 Level 3 (NXP EdgeLock SE050F), HTTPS, IEEE 802.1X, Signed Firmware |
| Certifications | UL, CE, FCC Part 15 Class A, NDAA Compliant |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Ingress Protection | IP66 / IK10 / NEMA 4X compliant |
| Power Source | DC 12 V (15.6 W), PoE (12.95 W), PoE+ (18.4 W) |
| Body Material | Aluminum die-cast with polycarbonate smoke dome |
| Dimensions | Ø165 mm × 153 mm (H) |
| Weight | Approx. 1.7 kg (3.75 lbs) |
| Optional Accessories | Wall, ceiling, and parapet mount brackets (WV-QWL506-W, WV-QJB504-W, WV-QEM504-W, etc.) |
