Description

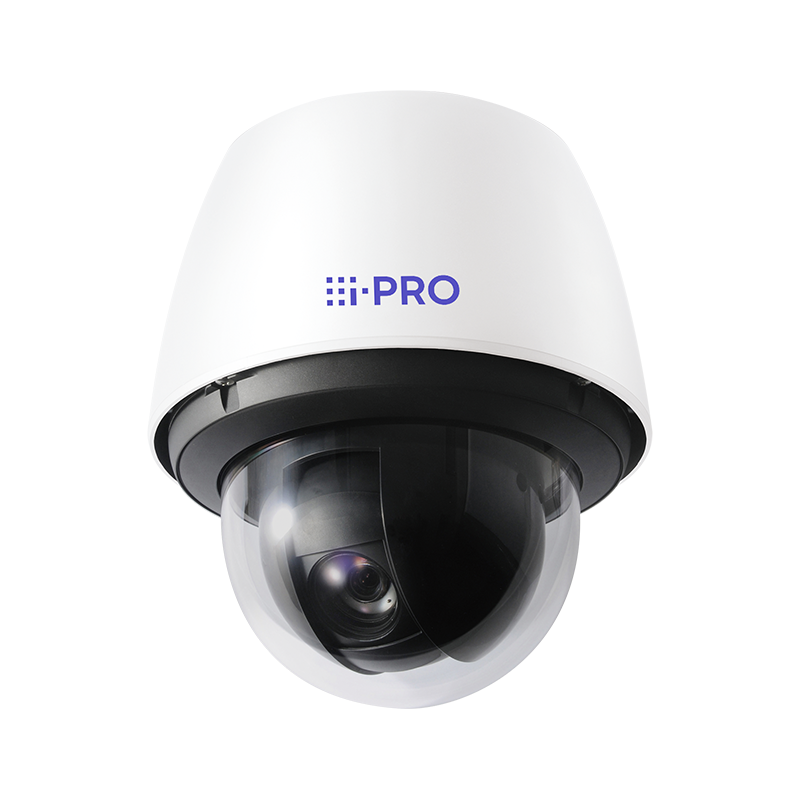

The i-PRO WV-S65340-Z4K is a high-performance 2MP (1080p) outdoor PTZ network camera designed for demanding coastal and industrial environments. Built with AI-driven analytics, a 40× optical zoom, and Super Dynamic 144 dB, it ensures sharp imaging and reliable detection even in complex lighting or weather conditions.
Engineered with heavy salt damage resistance (ISO 14993 compliant) and IP66/IP67/IK10 protection, the WV-S65340-Z4K stands up to extreme environments, while the ClearSight coating keeps visuals clear in rain and dust. The built-in FIPS 140-2 Level 3 certified secure element enhances cybersecurity, making it NDAA compliant for government and enterprise applications.
Ideal for ports, highways, and perimeter surveillance, this camera delivers superior color night vision down to 0.001 lx, ensuring reliable monitoring 24/7.
| Category | Specification |
|---|---|
| Camera | 2 MP (1920 × 1080) 1/2.8-type CMOS image sensor |
| Minimum Illumination | Color: 0.001–0.015 lx (F1.6); B/W: 0.0004 lx (F1.6) |
| Dynamic Range | Max. 144 dB (Super Dynamic On) |
| Intelligent Features | Intelligent Auto (AI Engine), AI People/Vehicle Detection, AI Face Detection, AI Privacy Guard, AI Scene Change Detection |
| Optical Zoom | 40× motorized zoom (4.25 – 170 mm) |
| Extra Zoom / Digital Zoom | Up to 60× (extra) / 640× (digital) |
| Field of View | Horizontal: 2.1° – 65° (WIDE); Vertical: 1.2° – 39° |
| Pan/Tilt Range | Pan 360° endless; Tilt –15° to +195° |
| Pan/Tilt Speed | Manual 0.065 – 150°/s; Preset up to 500°/s |
| Preset Positions | 256 positions |
| Video Compression | H.265 / H.264 / MJPEG |
| Frame Rates & Resolutions | 60 / 50 / 30 / 25 fps at 1920 × 1080, 1280 × 720 and lower |
| Smart Coding | Variable GOP, Smart VIQS, Smart P-picture control |
| Audio | Mic/Line input and output, AAC-LC / G.711 / G.726 compression |
| Network Interface | RJ-45 (10Base-T/100Base-TX), IPv4/IPv6 support |
| Protocols Supported | HTTPS, SNMP, RTSP, SRTP, MQTT, IEEE 802.1X, ONVIF Profiles G/M/S/T |
| Cybersecurity | FIPS 140-2 Level 3 (NXP EdgeLock SE050F), GlobalSign® certified device certificate, Signed firmware |
| Edge Storage | microSD (2 GB – 512 GB, SD/SDHC/SDXC) |
| Operating Temperature | –50 °C to +60 °C (AC 24 V / PoE++), –30 °C to +60 °C (PoE+) |
| Humidity | 10 % – 100 % (non-condensing) |
| Power Input | AC 24 V / PoE+ (IEEE 802.3at) / PoE++ (IEEE 802.3bt) |
| Power Consumption | Approx. 53 W (AC 24 V), 50.8 W (PoE++), 25.4 W (PoE+) |
| Environmental Resistance | IP66 / IP67, Type 4X (NEMA 4X), IK10 shock resistance |
| Wind Resistance | Up to 40 m/s (≈ 89 mph) |
| Construction | Heavy-duty salt-resistant coating, stainless steel fasteners, polycarbonate dome with ClearSight coating |
| Dimensions (H × D) | 278 mm × ø229 mm (10.95 in × 9.0 in) |
| Weight | Approx. 4.3 kg (9.5 lb) |
| Compliance | NDAA Compliant, UL 62368-1, CE, FCC Part 15 Class A |
| Optional Accessories | WV-QWL504S-W, WV-QWL501S-W, WV-QPL500S-W, WV-QSR504S-W, WV-QCN500S-W, WV-QCL501S-W, WV-SDB SD cards, WV-QDC503 dome covers, WV-PM500 microphone, WJ-PU201 PoE injector |
