Description

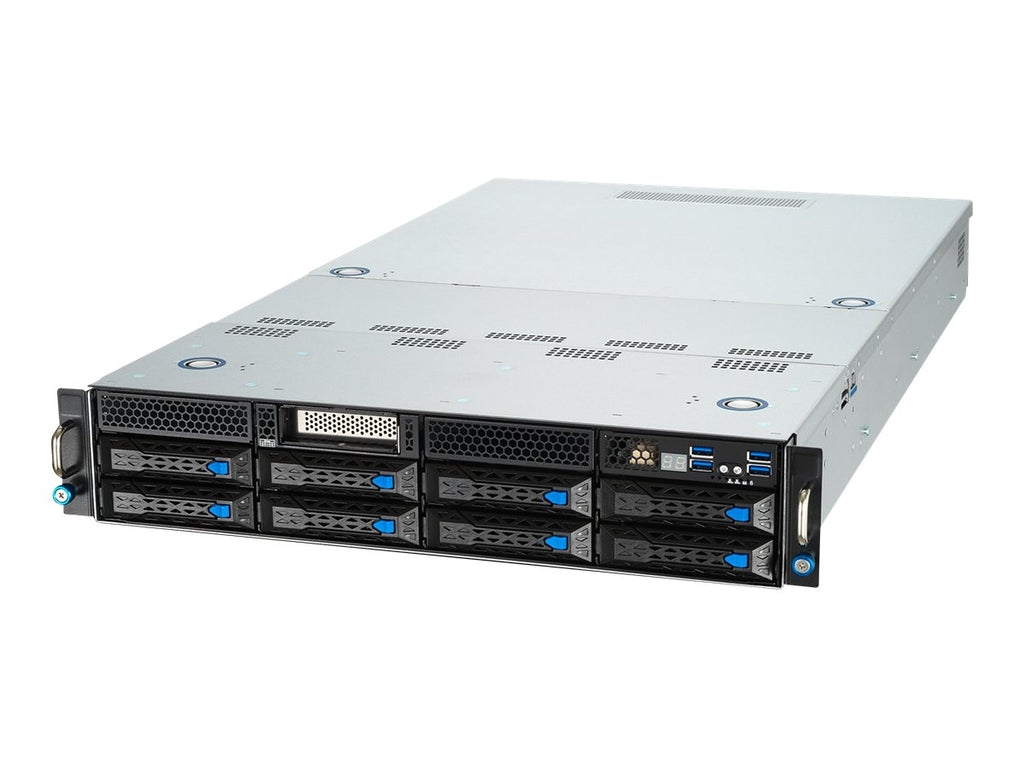

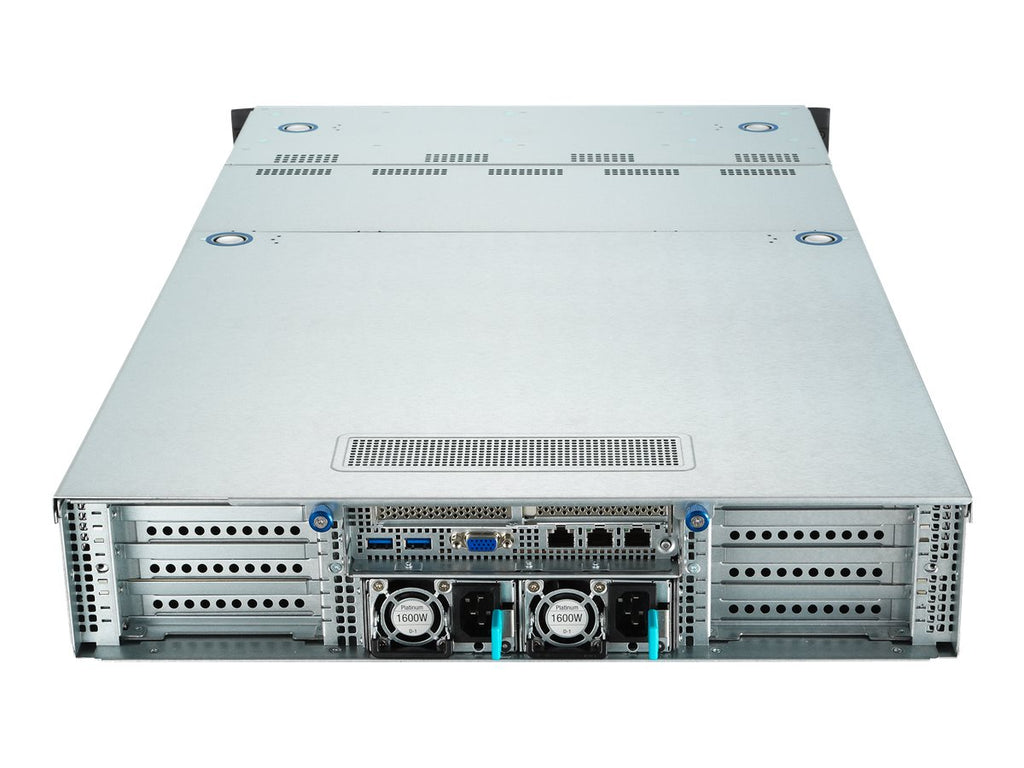

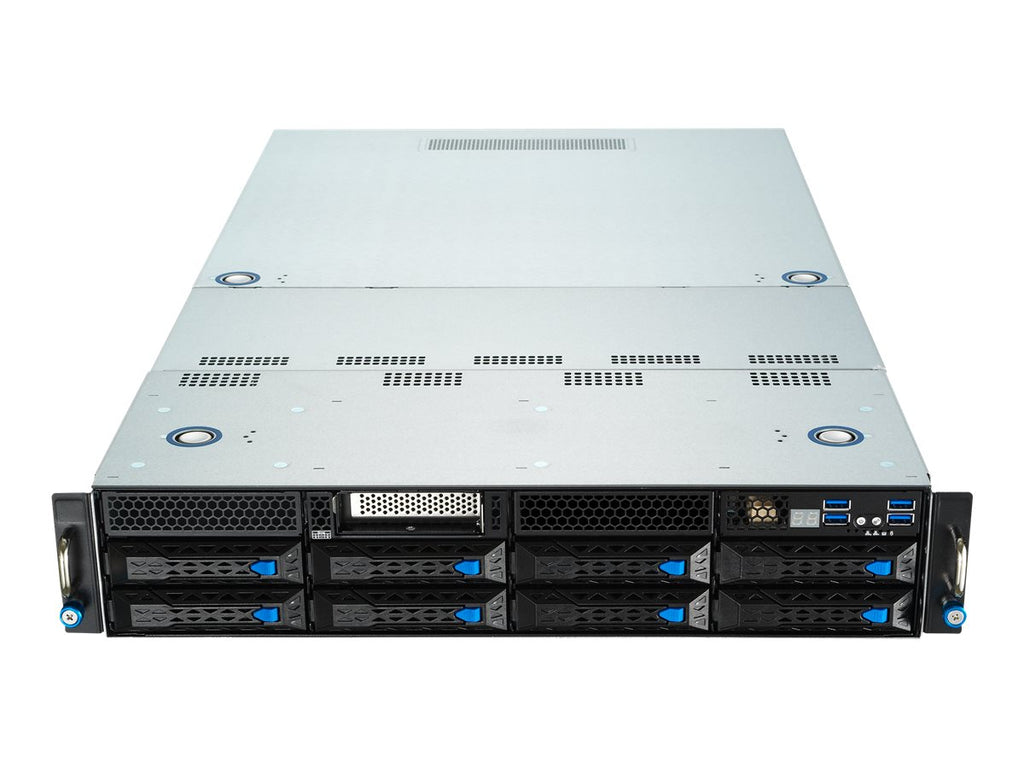

The ASUS ESC4000A-E10-WOCPU044Z is a high-density 2U rackmount GPU server engineered for extreme computing performance and scalability. Powered by AMD EPYC™ 7002 series processors, this system supports up to 64 cores, 8-channel DDR4 memory, and 128 PCIe 4.0 lanes for superior throughput and efficiency. Designed for AI, machine learning, deep learning, and high-performance computing (HPC), the ESC4000A-E10 accommodates up to eight single-slot or four double-slot GPUs, enabling parallel computing at scale.
With eleven PCIe 4.0 expansion slots, OCP 3.0 networking, and NVMe/M.2 storage options, it delivers the flexibility to support complex workloads and evolving data center demands. The system also features ASUS Performance Boost and Thermal Radar 2.0 technologies for intelligent power management and cooling optimization. Combined with ASMB9-iKVM remote management and ASUS Control Center software, the ESC4000A-E10 provides robust IT control and monitoring capabilities ideal for enterprise or research environments.
| Category | Specification |
|---|---|
| Model | ASUS ESC4000A-E10-WOCPU044Z |
| Form Factor | Rack-mountable – 2U |
| Processor Support | 1-way (AMD EPYC™ 7002 Series, Socket SP3, up to 280W TDP) |
| Memory | 0 GB installed / up to 2 TB DDR4 3200 MHz, 8 DIMM slots, ECC Registered / LRDIMM support |
| Storage Bays | 8x hot-swap 2.5"/3.5" SATA/NVMe bays |
| Storage Controller | 1 x SATA controller |
| M.2 Support | 1 x M.2 2242/2260/2280/22110 slot |
| GPU Support | Up to 4 double-slot or 8 single-slot GPUs (NVIDIA® A100, Tesla®, Quadro® supported) |
| Expansion Slots | Up to 11x PCIe 4.0 slots (x16/x8 modes), including OCP 3.0 mezzanine |
| Networking | 2 x Gigabit Ethernet (Intel® I350-AM2) + 1 x Management (RJ-45) |
| Graphics Controller | ASPEED AST2500, 64 MB video memory |
| USB Ports | 6 x USB 3.2 Gen 1 (4 front, 2 rear) |
| Video Interfaces | VGA |
| Power Supply | Redundant 1600 W / 2200 W Platinum PSU |
| Cooling & Thermal Management | ASUS Thermal Radar 2.0, intelligent fan zoning |
| Performance Technologies | ASUS Performance Boost, Engine Boost, Core Optimizer, Power Balancer |
| Management Features | ASMB9-iKVM (out-of-band), ASUS Control Center (in-band) |
| Operating System | No OS preinstalled |
| Compliant Standards | FCC Class A, BSMI, RCM |
| Dimensions (W x D x H) | 44 cm x 80 cm x 8.89 cm |
| Operating Temperature | 10°C – 35°C |
| Color | Black |
| UNSPSC | 43211501 |
| Manufacturer | ASUS |
| Product Type | Server Hardware |
