Description

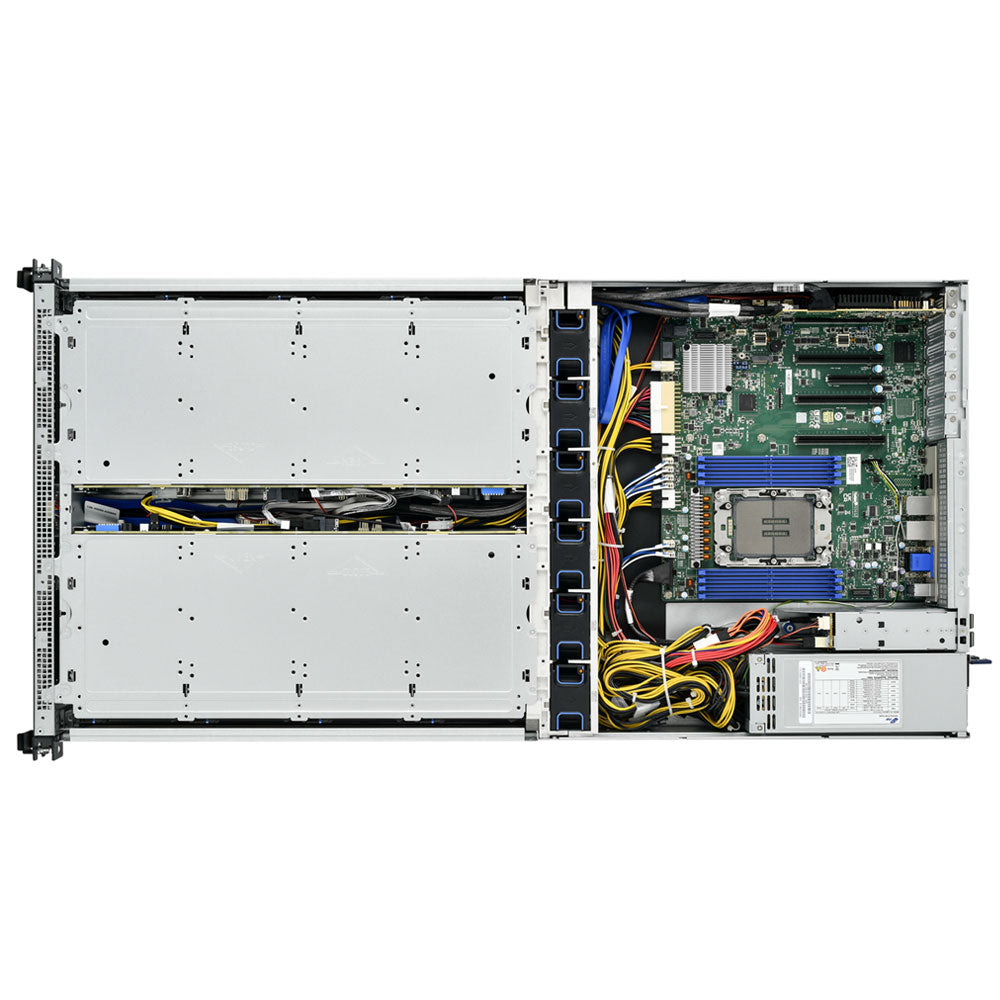

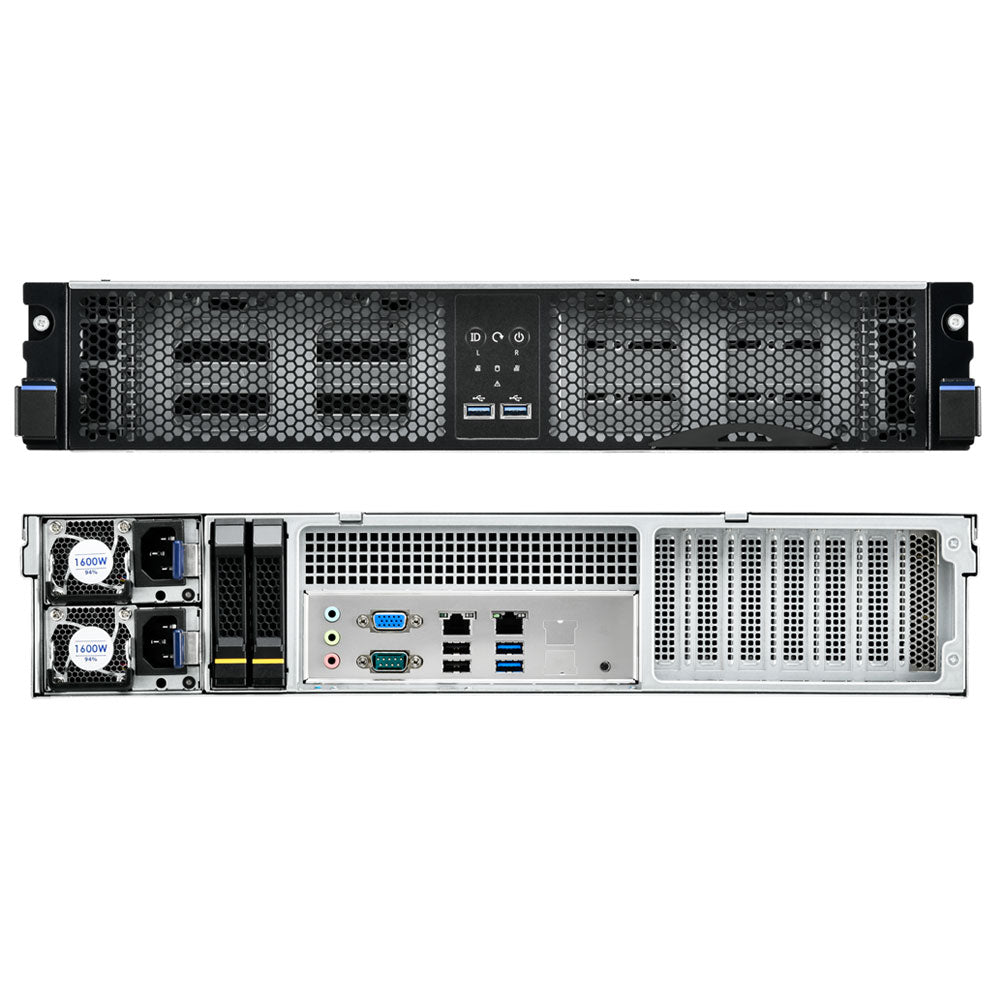

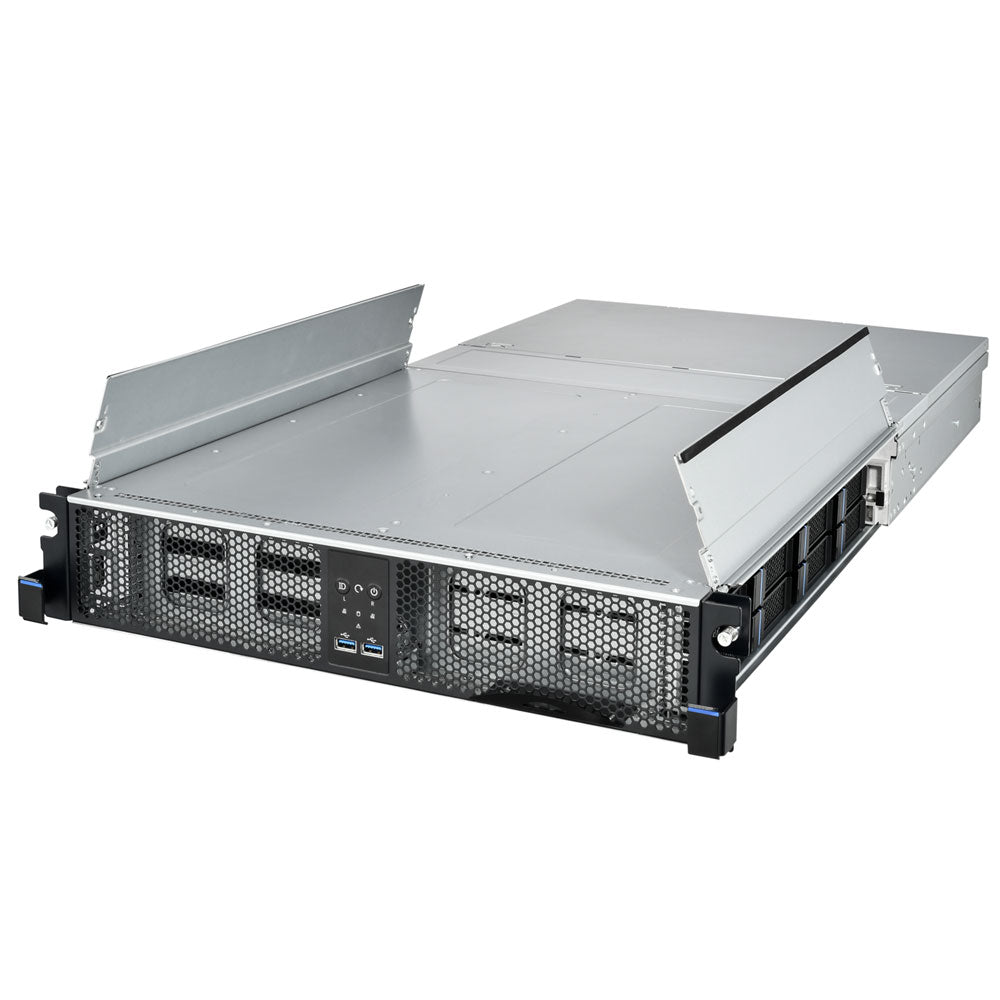

The MiTAC TX88-B5652 DeskSIDE Intel Storage Server is a powerful 2U single-socket storage platform designed for warm data storage and high-capacity enterprise workloads. Built on the S5652AGMNRE motherboard, it supports 4th and 5th Gen Intel® Xeon® Scalable processors and delivers excellent expandability with PCIe Gen5 slots, advanced storage backplane support, and redundant Titanium-rated power efficiency.
With support for up to 24 hot-swap 3.5" drives plus 2 hot-swap 2.5" SSD bays, the TX88-B5652 is an ideal solution for data-intensive environments such as backup, archiving, cloud storage, and scalable enterprise repositories.
| Specification Category | Details |
|---|---|
| Brand | MiTAC Computing |
| Product Series | DeskSIDE Intel Storage Server |
| Model / Platform | TX88-B5652 |
| SKU | B5652T88V24E2HR |
| Form Factor | 2U Rackmount Storage Server |
| Processor Socket | Single LGA4677 |
| Supported CPU | 4th / 5th Gen Intel® Xeon® Scalable Processors |
| Max CPU TDP | Up to 350W |
| Chipset | Intel C741 |
| Memory Slots | 8× DDR5 DIMM Slots |
| Max Memory Capacity | Up to 1TB RDIMM / 2TB 3DS RDIMM |
| Memory Speed Support | DDR5 5600 / 4800 / 4400 MHz |
| Drive Bays (Front) | 24× 3.5" Hot-Swap HDD Bays |
| Additional Bays | 2× 2.5" Hot-Swap SSD/HDD Bays |
| Supported Storage Interfaces | SAS 12Gb/s, SATA 6Gb/s, NVMe |
| SAS Expander | Broadcom SAS 3X28R |
| RAID Support | RAID 0/1/10/5 (Intel RSTe) |
| PCIe Expansion Slots | 1× PCIe Gen5 x8, 3× PCIe Gen5 x16 |
| Networking | 1× GbE LAN + 1× Dedicated IPMI GbE |
| Management | Onboard BMC with IPMI 2.0 + iKVM |
| Cooling | 6× 6cm System Fans |
| Power Supply | 1+1 Redundant 1300W CRPS |
| PSU Efficiency | 80 Plus Titanium |
| Dimensions (D×W×H) | 34.65" × 17.24" × 3.43" (880 × 438 × 87mm) |
| Operating Temperature | 10°C to 35°C |
| Compliance | FCC Class A, CE Class A, RoHS |
