Description

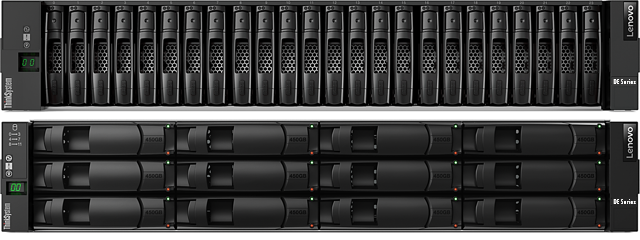

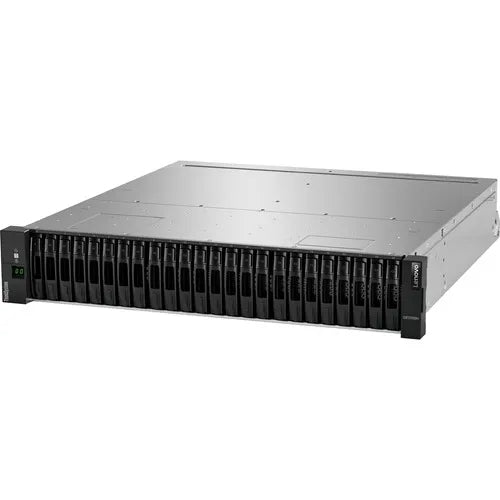

The Lenovo ThinkSystem DE2000H 7Y71A00QWW is a 2U24 SFF hybrid storage array designed to deliver reliable, flexible, and cost-effective enterprise storage for businesses, branch offices, and data-intensive workloads. This preconfigured model features dual active-active Gen2 controllers with 8GB memory per controller, providing high availability, automatic load balancing, and failover protection.
With support for up to 24 hot-swappable 2.5-inch SFF drives in the base enclosure, the DE2000H accommodates SAS HDDs and SSDs to balance storage capacity and application performance. The platform can expand to as many as 96 SFF drives using supported Lenovo DE Series expansion enclosures.
The DE2000H supports multiple host connectivity technologies through host interface cards, including 12Gb SAS, 10/25Gb iSCSI, 8/16/32Gb Fibre Channel, and 1/10Gb iSCSI, allowing it to integrate with a wide range of server and SAN environments.
Built-in storage capabilities include Dynamic Disk Pools, RAID, SSD read cache, snapshots, volume copy, thin provisioning, encryption support, and data assurance. Redundant controllers, power supplies, hot-swappable components, and non-disruptive firmware upgrades help provide continuous availability for business-critical storage environments.
Key Features
- 2U rack-mount hybrid storage array
- 24 x 2.5-inch SFF hot-swap drive bays
- Dual active-active Gen2 controllers
- 8GB controller memory per controller
- Supports SAS HDDs and SAS SSDs
- RAID 0, 1, 3, 5, 6, and 10
- Dynamic Disk Pools support
- Up to 96 SFF drives with expansion enclosures
- Up to 1.47PB maximum supported storage capacity
- Flexible SAS, iSCSI, and Fibre Channel host connectivity
- Dual redundant hot-swap power supplies
- Web-based System Manager administration
- Support for Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware vSphere
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem |
| Series | DE2000H |
| SKU / Part Number | 7Y71A00QWW |
| Product Type | Hybrid Storage Array |
| Market Availability | Worldwide / All Markets |
| Form Factor | 2U Rack Mount |
| Enclosure Type | 2U24 SFF Controller Enclosure |
| Drive Bays | 24 x 2.5-inch SFF Hot-Swap |
| Controllers | 2 x Gen2 Controllers |
| Controller Configuration | Dual Active-Active |
| Controller Memory | 8GB per Controller |
| Total Controller Memory | 16GB |
| Drive Interface | 12Gb SAS |
| Supported Drives | SAS HDD, SAS SSD, Supported FIPS/SED Drives |
| RAID Support | RAID 0, 1, 3, 5, 6, 10 |
| Dynamic Disk Pools | Supported |
| Maximum SFF Drives | Up to 96 with Expansion Enclosures |
| Maximum Storage Capacity | Up to 1.47PB |
| Expansion Support | Up to 3 DE120S / DE240S Expansion Enclosures |
| Host Connectivity | Via Host Interface Cards |
| Supported Host Interfaces | 12Gb SAS, 10/25Gb iSCSI, 8/16/32Gb FC, 1/10Gb iSCSI |
| Expansion Connectivity | 12Gb SAS x4 |
| Management Port | 1GbE RJ-45 per Controller |
| Management Interfaces | System Manager GUI, SAN Manager, SSH CLI, Serial CLI |
| Standard Features | DDP, SSD Read Cache, Snapshots, Volume Copy, Thin Provisioning, Data Assurance |
| Security Features | SSL, SSH, RBAC, LDAP Authentication, Encryption Support |
| Power Supplies | 2 x Redundant Hot-Swap 913W Platinum AC |
| Supported OS | Windows Server, RHEL, SUSE Linux Enterprise Server, VMware vSphere |
| Maximum Random Read Performance | Up to 100,000 IOPS |
| Maximum Random Write Performance | Up to 35,000 IOPS |
| Maximum Sequential Read | Up to 3 GB/s |
| Maximum Sequential Write | Up to 0.9 GB/s |
| Dimensions (H × W × D) | 85 × 449 × 553 mm |
| Weight | 24.59 kg / 54.2 lb |
| Warranty | 3-Year Limited Warranty |
