Description

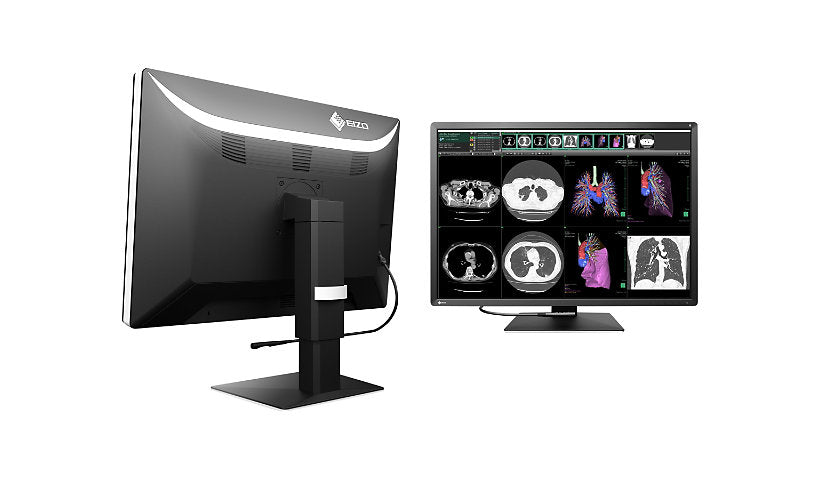

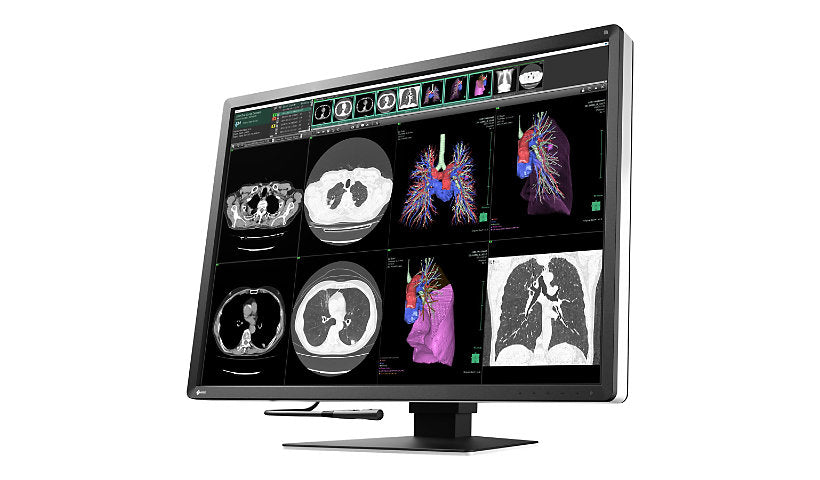

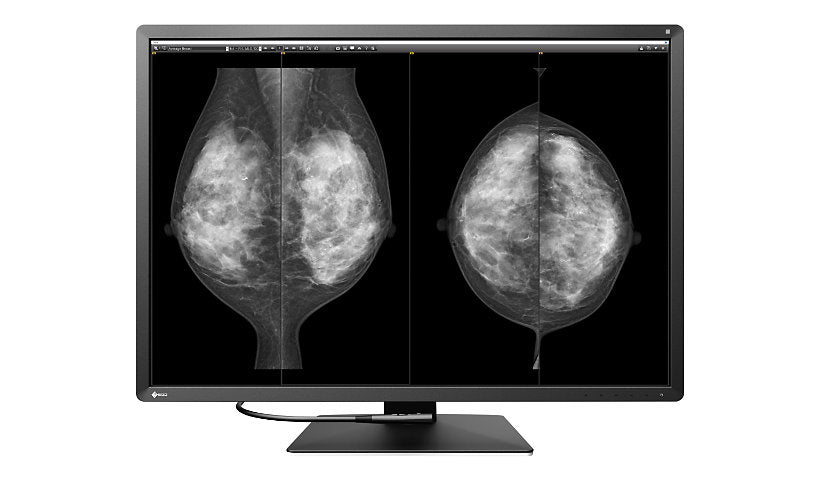

The EIZO RadiForce RX1270-BK is a next-generation diagnostic medical display designed to meet the most demanding radiology and breast imaging workflows. With an impressive 12 megapixel (4200 x 2800) resolution on a compact 30.9-inch IPS panel, the RX1270 enables radiologists to view multiple high-resolution images side by side on a single screen — enhancing diagnostic confidence and streamlining reading efficiency.
Engineered for multi-modality use, the RX1270 supports images from mammography, breast tomosynthesis, CT, MRI, CR, and ultrasound simultaneously, eliminating the need for multiple monitors. Its Hybrid Gamma PXL technology automatically optimizes monochrome and color images for accurate grayscale reproduction and vibrant color rendering, while Sharpness Recovery technology restores pixel-level clarity even at high brightness levels.
Advanced workflow features such as Hide-and-Seek, Switch-and-Go, Point-and-Focus, and the Instant Backlight Booster simplify daily reading tasks and improve productivity. With DICOM Part 14 calibration, Integrated Front Sensor (IFS) for automatic quality control, Digital Uniformity Equalizer (DUE) for consistent luminance, and a brightness stability system, the RX1270 guarantees consistent, precise diagnostic performance throughout its lifespan.
Whether used for breast imaging, general radiography, or multi-modality diagnostics, the RX1270-BK delivers uncompromising image quality, intelligent workflow support, and ergonomic design — empowering radiologists to diagnose with confidence and efficiency.
| Feature | Specification |
|---|---|
| Model | EIZO RadiForce RX1270-BK |
| Display Type | 30.9" Color LCD (IPS) |
| Resolution | 4200 × 2800 (12MP), 3:2 aspect ratio |
| Brightness (Typical) | 1200 cd/m² |
| Recommended Calibration Brightness | 500 cd/m² |
| Contrast Ratio | 1500:1 |
| Response Time | 6 ms (black-white-black, half cycle) |
| Viewing Angles (H/V) | 178° / 178° |
| Pixel Pitch | 0.1554 × 0.1554 mm |
| Display Colors | 10-bit: 1.07 billion (from 543 billion palette) |
| Video Inputs | 2 × DisplayPort, HDMI |
| USB Ports | Upstream: 2 × USB 2.0 Type-BDownstream: 3 × USB 2.0 Type-A |
| Networking | USB LAN Adapter: — |
| Output Terminals | — |
| Calibration & Sensors | Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor |
| Special Features | DICOM Part 14 calibration, Digital Uniformity Equalizer, Hybrid Gamma PXL, Sharpness Recovery, Brightness Stabilization, Work-and-Flow (Hide-and-Seek, Switch-and-Go, Point-and-Focus, Instant Backlight Booster) |
| Preset Modes | DICOM, CAL1, CAL2, Custom, sRGB, Text |
| Certifications | CB, CE/UKCA (Medical Device), ANSI/AAMI ES60601-1, FCC-B, RoHS, China RoHS, WEEE, CCC, FDA 510(k) (Breast Tomosynthesis, Mammography, General Radiography) |
| Power Requirements | AC 100–240 V, 50/60 Hz |
| Typical Power Consumption | 77 W |
| Maximum Power Consumption | 188 W |
| Power Save Mode | ≤ 2 W |
| VESA Mount | 100 × 100 mm |
| Dimensions (W × H × D) | Approx. 689.8 × 476 × 308 mm (with stand) |
| Weight | 15.6 kg (with stand), 11.5 kg (without stand) |
| Included Accessories | DisplayPort (3 m) × 2, HDMI (2 m), AC power cord (3 m), USB Type-A to Type-B cables (3 m) × 2, Cable cover, Utility Disk (RadiCS LE, PDF manual) |
| Warranty | 5 Years |
