Description

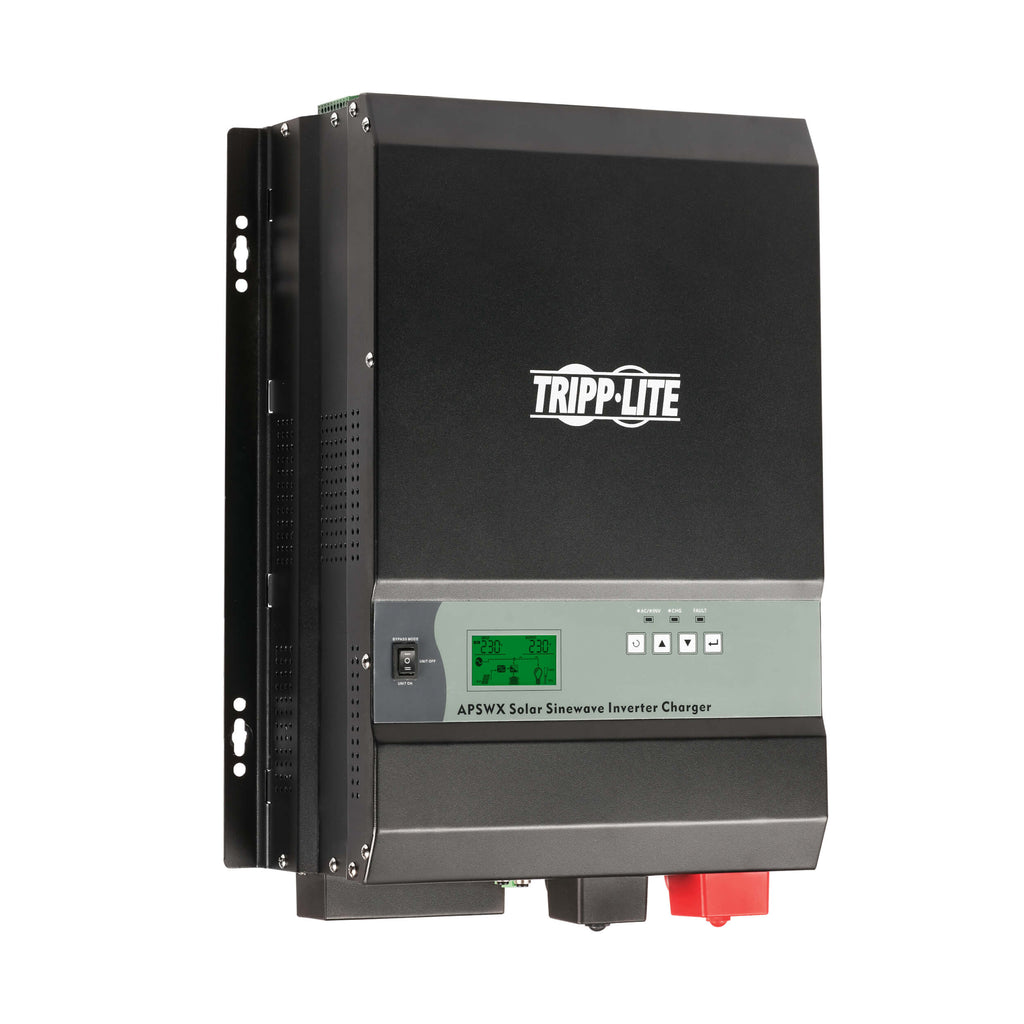

The Eaton Tripp Lite APSWX3K24VMPPT is a high-performance 3000W 24VDC to 230V AC pure sine wave hybrid solar inverter/charger engineered for dependable off-grid and grid-tied applications. It seamlessly manages energy from solar panels, batteries, and the utility grid, providing stable and clean power to sensitive electronics, appliances, and network devices.
Equipped with a 60A MPPT (Maximum Power Point Tracking) solar charge controller, it optimizes solar energy conversion even under low-light conditions. Its priority source selection intelligently alternates between solar and utility input for optimal efficiency, while the automatic line-to-battery transfer switch ensures uninterrupted operation during power outages, making it ideal for use as a standalone inverter, power source, or UPS.
Designed for residential, industrial, and remote environments, this inverter features a rugged steel housing, hardwire AC/DC terminals, LCD control panel with wired remote, and comprehensive protection against overvoltage, overload, overheat, and short circuits. The APSWX3K24VMPPT supports a wide range of battery types, including wet-cell, gel, AGM, and lithium with integrated BMS, and is certified for CE, RoHS, and UKCA compliance.
| Category | Specification |
|---|---|
| Model Number | APSWX3K24VMPPT |
| Type | Pure Sine Wave Solar Inverter/Charger |
| Continuous Power Output | 3000W |
| Peak Power Capacity | 6000W |
| Input Voltage (DC) | 24V DC |
| Output Voltage (AC) | 220V / 230V / 240V AC |
| Output Waveform | Pure Sine Wave |
| Frequency Compatibility | 50 / 60 Hz (47–65Hz) |
| Solar Charge Controller Type | Built-in MPPT (Maximum Power Point Tracking) |
| MPPT Solar Input Voltage Range | 30–115V DC (145V Max Open Circuit) |
| Max Solar Charge Current | 60A |
| AC Charge Current | 45A |
| Total Hybrid Charge Current | Up to 105A (AC + Solar) |
| Recommended Battery System | User-supplied 24V DC deep-cycle batteries (Wet, Gel, AGM, Lithium w/ BMS) |
| Transfer Time (AC to Battery) | 10 ms |
| Voltage Transfer Range | Low: 170–180V AC (user adjustable) / High: 260–270V AC (user adjustable) |
| Protection Features | Overload, Overheat, Overvoltage, Short Circuit, Locked Fan |
| User Interface | LCD Display + 3 LEDs (Operation, Charge, Fault) + Wired Remote Control |
| Cooling System | Thermally Controlled Fan |

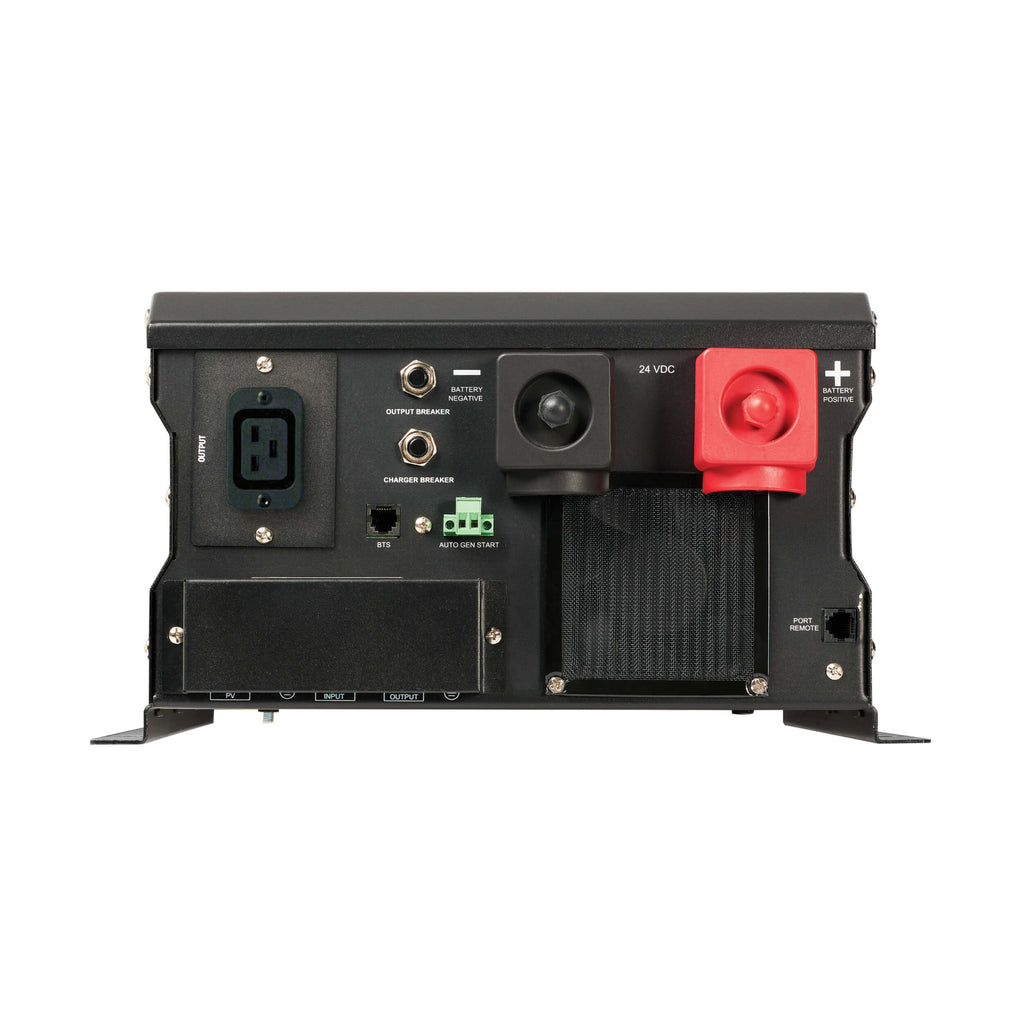

| Output Receptacles | C19 and Hardwire Terminals |
| Construction | Rugged Steel Enclosure with Mounting Brackets |
| Dimensions (H x W x D) | 20.0 x 13.75 x 7.24 in (50.8 x 34.9 x 18.4 cm) |
| Weight | 29.26 kg (64.5 lbs) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Relative Humidity | 0–95% (non-condensing) |
| Certifications | CE, UKCA, RoHS, REACH, EN 61000, IEC 62109-1/-2 |
| Warranty | 2-Year Limited Warranty |

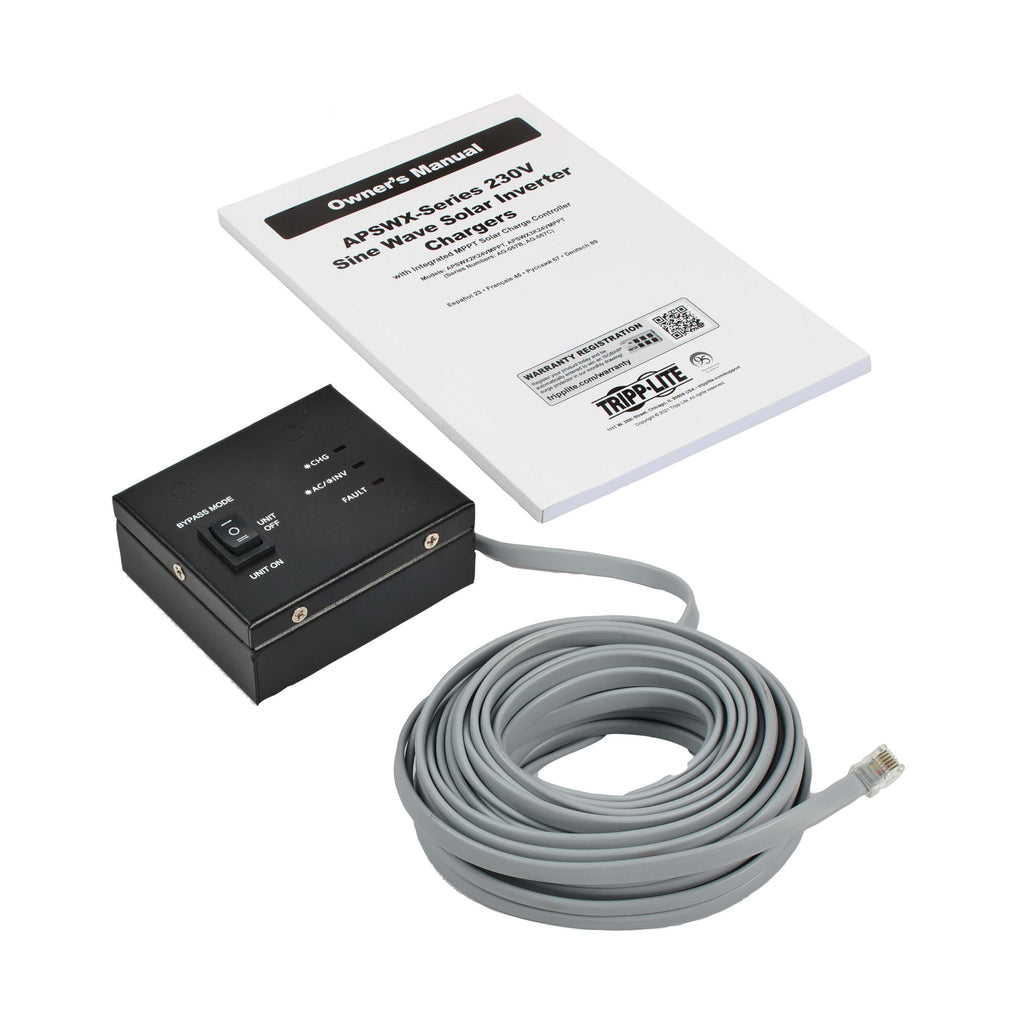

| Included Accessories | Wired Remote Control, Owner’s Manual |
