Description

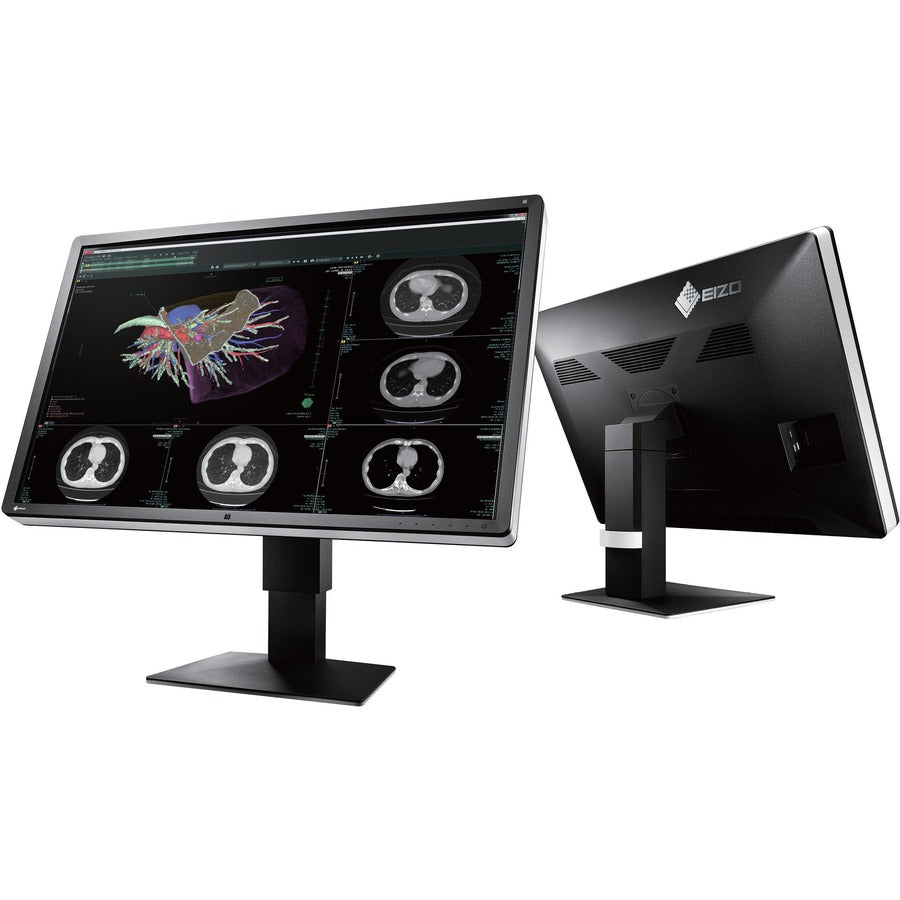

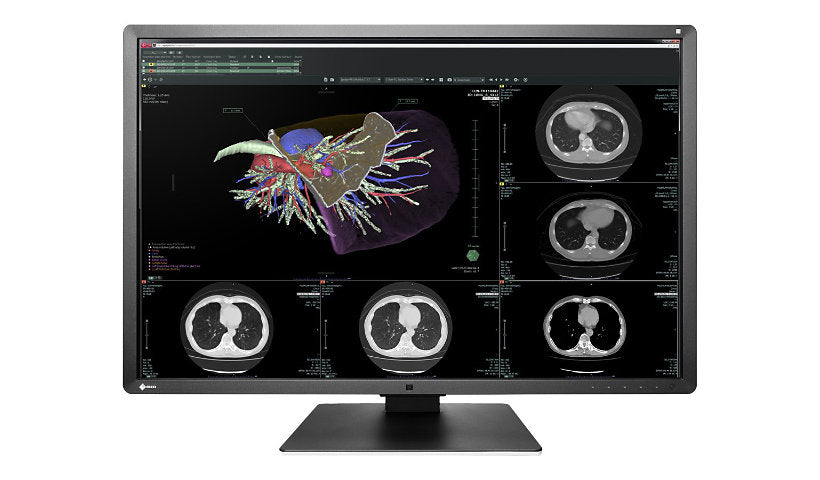

The EIZO RadiForce RX660-BK is a high-performance 30-inch 6MP color medical monitor designed to deliver exceptional image quality, precise detail, and reliable performance for clinical imaging, diagnostics, and PACS applications. Featuring a high-resolution 3280 x 2048 IPS panel, it ensures accurate and consistent image reproduction with wide viewing angles and vivid color fidelity. Its 1000 cd/m² brightness and 1500:1 contrast ratio provide excellent visibility, even in bright ambient environments, while the 25 ms response time ensures smooth image transitions.
Equipped with advanced image enhancement technologies such as Digital Uniformity Equalizer (DUE), Auto Brightness Stabilization, and Sharpness Recovery, the RX660-BK guarantees consistent, high-precision imaging critical for diagnostic accuracy. Its ergonomic design offers height, swivel, and tilt adjustments for optimal viewing comfort, and versatile connectivity options include DVI-D and dual DisplayPort inputs with daisy-chain support.
Built for demanding medical environments, the RadiForce RX660-BK meets stringent medical standards including DICOM Part 14 compliance and offers intelligent features like ambient light and presence sensors, picture-by-picture display, and an integrated front sensor for automated calibration. Backed by a 5-year warranty, it is an ideal solution for radiology departments, healthcare imaging facilities, and diagnostic workstations that require precision, reliability, and seamless workflow integration.
| Specification | Details |
|---|---|
| Brand | EIZO |
| Model | RadiForce RX660-BK |
| Display Type | LED-backlit LCD monitor |
| Screen Size | 30" (76.2 cm) |
| Resolution | 3280 x 2048 (6MP) |
| Panel Technology | IPS (TFT active matrix) |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1500:1 |
| Response Time | 25 ms (On/Off) |
| Color Support | 1.07 billion colors |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.1968 mm |
| Viewing Angle (H/V) | 176° / 176° |
| Refresh Rate (Vertical) | 22 – 61 Hz |
| Refresh Rate (Horizontal) | 31 – 127 kHz |
| Display Coating | Anti-glare |

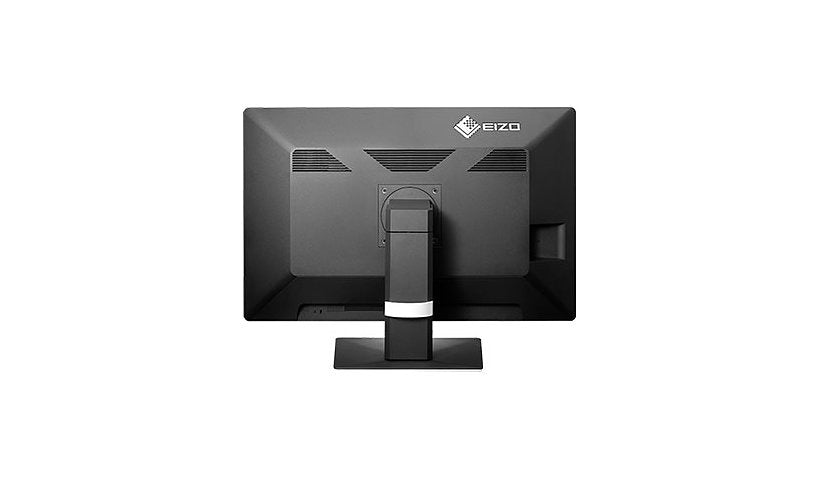

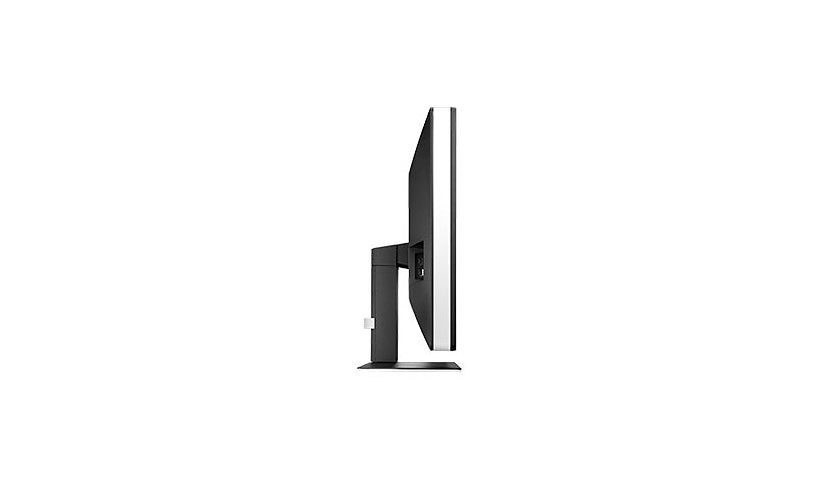

| Display Adjustments | Height, swivel, tilt (-5° to +30°) |
| Special Features | Ambient Light Sensor, Auto Brightness Stabilization, Digital Uniformity Equalizer (DUE), Integrated Front Sensor, Picture-in-Picture, Picture-by-Picture, Presence Sensor, Sharpness Recovery |
| Connectivity | 1 x DVI-D, 2 x DisplayPort (input), 1 x DisplayPort (daisy chain output) |
| USB Hub | Built-in (2 upstream Type-B, 3 downstream Type-A) |
| Built-in Devices | USB 2.0 hub |
| Medical Compliance | DICOM Part 14, ANSI/AAMI ES60601-1, FDA 510(k), IEC 60601-1 |
| Mounting | 100 x 100 mm VESA |
| Power Consumption (Typical) | 190 W |
| Power Frequency | 50 / 60 Hz |
| Color | Black |
| Dimensions (with stand) | 26.9" x 8.9" x 19.3" |
| Weight (with stand) | 31.3 lbs (14.2 kg) |
| Included Accessories | DVI cable, 2 x USB cables, 3 x DisplayPort cables, cable management cover |
| Warranty | 5 years limited warranty |
