Description

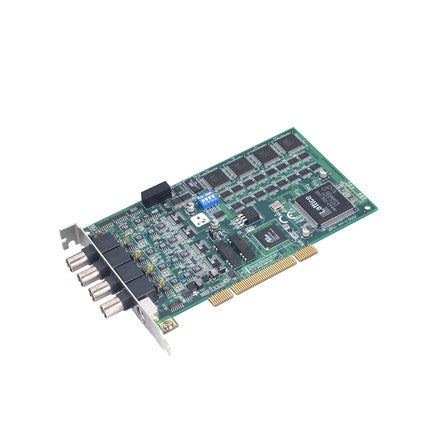

The Advantech PCI-1714U-BE is a high-performance data acquisition PCI card designed for fast, continuous, and reliable analog signal measurement. Featuring 4 simultaneous-sampling single-ended analog input channels, a 12-bit A/D converter, and an impressive 30 MS/s per channel sampling rate, this card is ideal for demanding industrial and laboratory applications.
With onboard FIFO buffering and multiple trigger modes, the PCI-1714U-BE delivers smooth high-speed streaming data capture for real-time monitoring, automation testing, vibration analysis, and advanced measurement systems. Its universal PCI bus support ensures compatibility across both 3.3V and 5V PCI platforms.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | PCI-1714U |
| SKU | PCI-1714U-BE |
| Product Type | Data Acquisition (DAQ) Analog Input PCI Card |
| Analog Input Channels | 4 single-ended |
| Resolution | 12-bit |
| Max Sampling Rate | Up to 30 MS/s per channel |
| Sampling Architecture | 4 A/D converters simultaneously sampling |
| FIFO Buffer Size | 32,768 samples per channel |
| Input Range (Bipolar) | Β±5 V, Β±2.5 V, Β±1 V, Β±0.5 V |
| Absolute Accuracy (% of FSR) | 0.1 β 0.4% depending on range |
| Overvoltage Protection | 30 Vp-p |
| Input Impedance | 50Ξ© / 1MΞ© / Hi-Z selectable |
| Sampling Modes | Software polling, pacer |
| Trigger Modes | Post-trigger, pre-trigger, delay-trigger, about-trigger |
| Bus Type | Universal PCI v2.2 |
| Connectors | 4 Γ BNC (AI), 1 Γ PS/2 (external clock/trigger) |
| Dimensions | 175 Γ 100 mm (6.9" Γ 3.9") |
| Power Consumption (Typical) | 5V @ 850mA, 12V @ 600mA |
| Operating Temperature | 0Β°C to 60Β°C |
| Compliance | RoHS compliant |
