Description

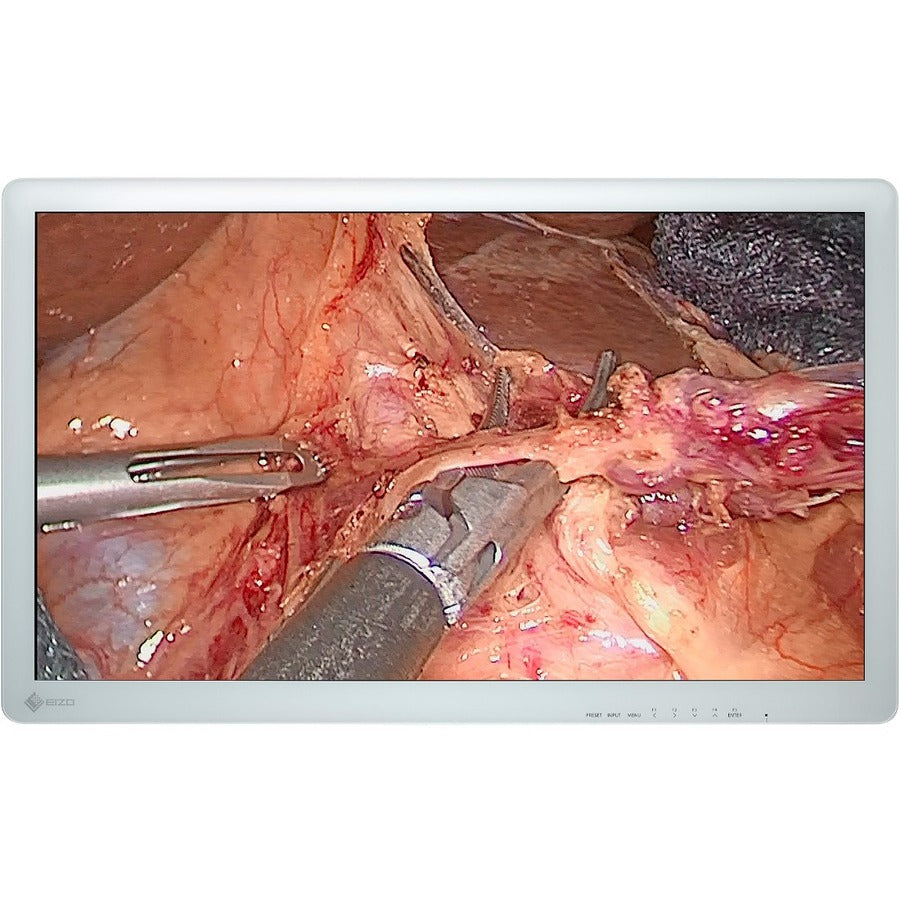

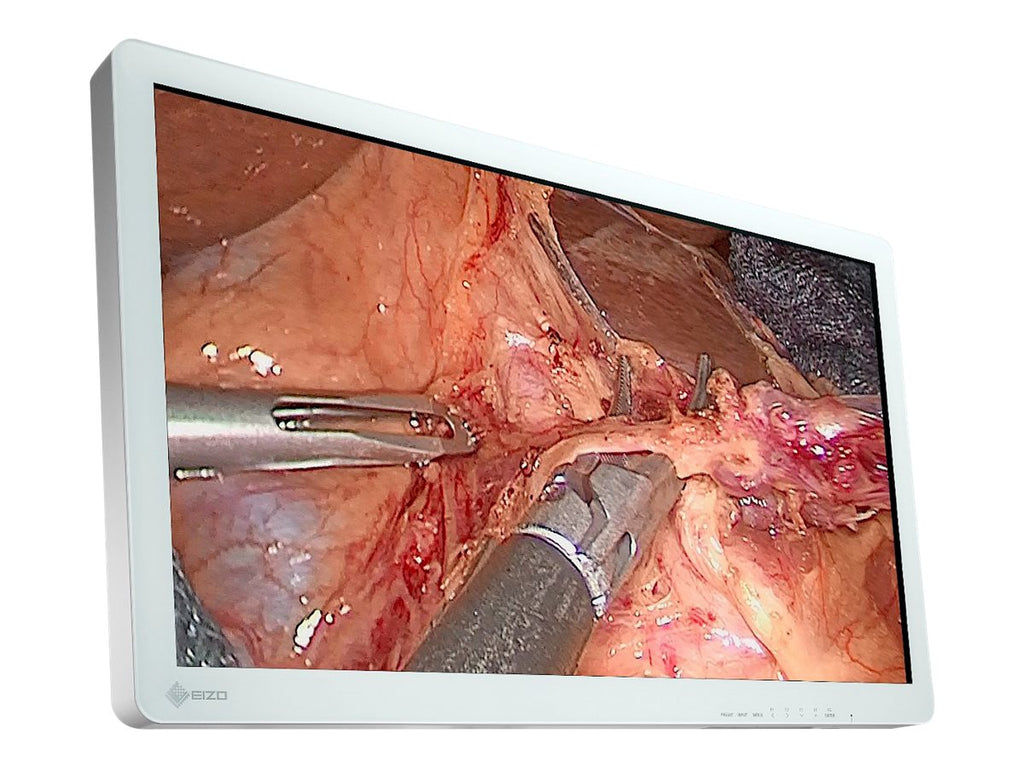

The EIZO CuratOR EX3220 is a professional-grade surgical monitor designed to deliver exceptional clarity, reliability, and safety in modern operating rooms. With a 31.5-inch Full HD (1920 x 1080) IPS display, it ensures accurate color reproduction and sharp visualization of surgical images from endoscopy, operating microscopes, and other medical imaging systems. Its 650 cd/m² brightness, 1400:1 contrast ratio, and wide 178° viewing angles provide precise visibility from any position, allowing surgical teams to work confidently and collaboratively.

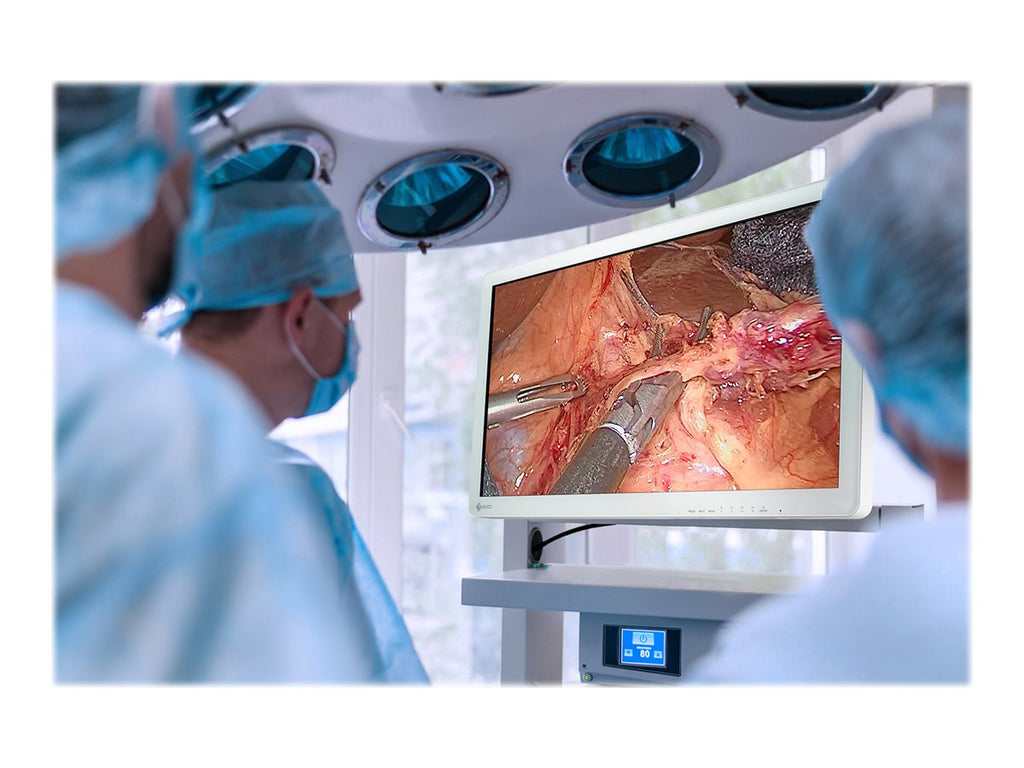

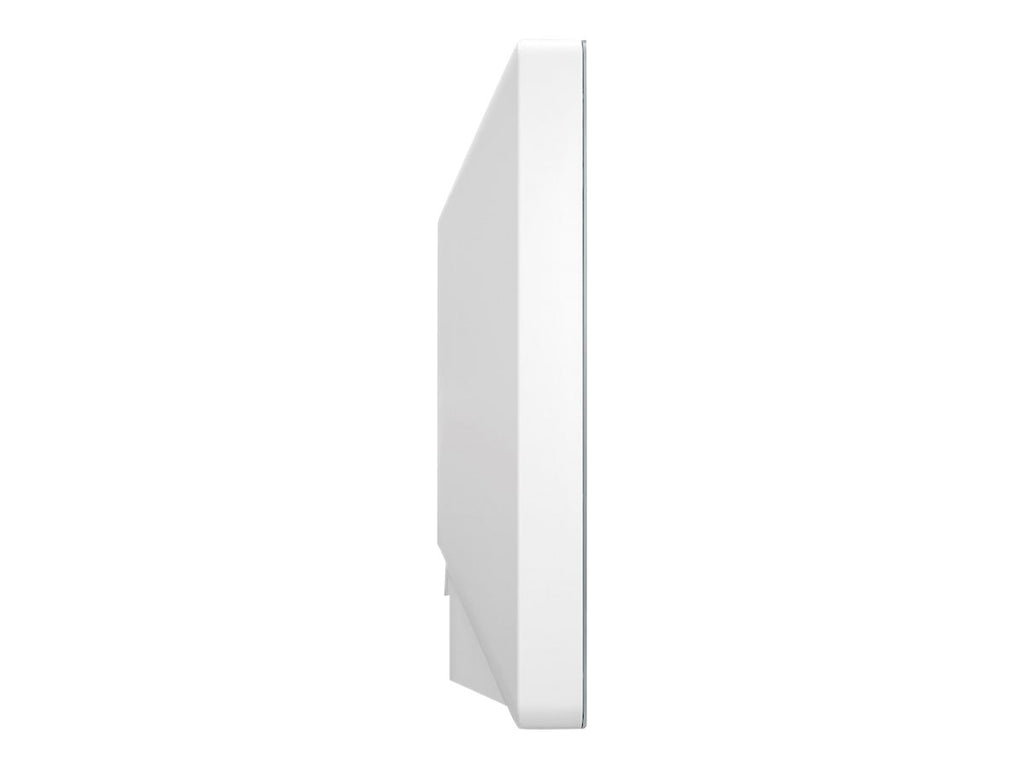

Built for the unique demands of medical environments, the EX3220 features a fully flat front design with IP45 protection for splash resistance and easy disinfection, plus a fanless cooling system for silent operation and minimal airflow disruption. The protective front panel safeguards against shocks, scratches, and contamination. Its advanced imaging capabilities — including PiP/PoP dual signal viewing, independent image rotation and mirroring, and multi-gamma adjustment — support seamless visualization of multiple modalities side by side.

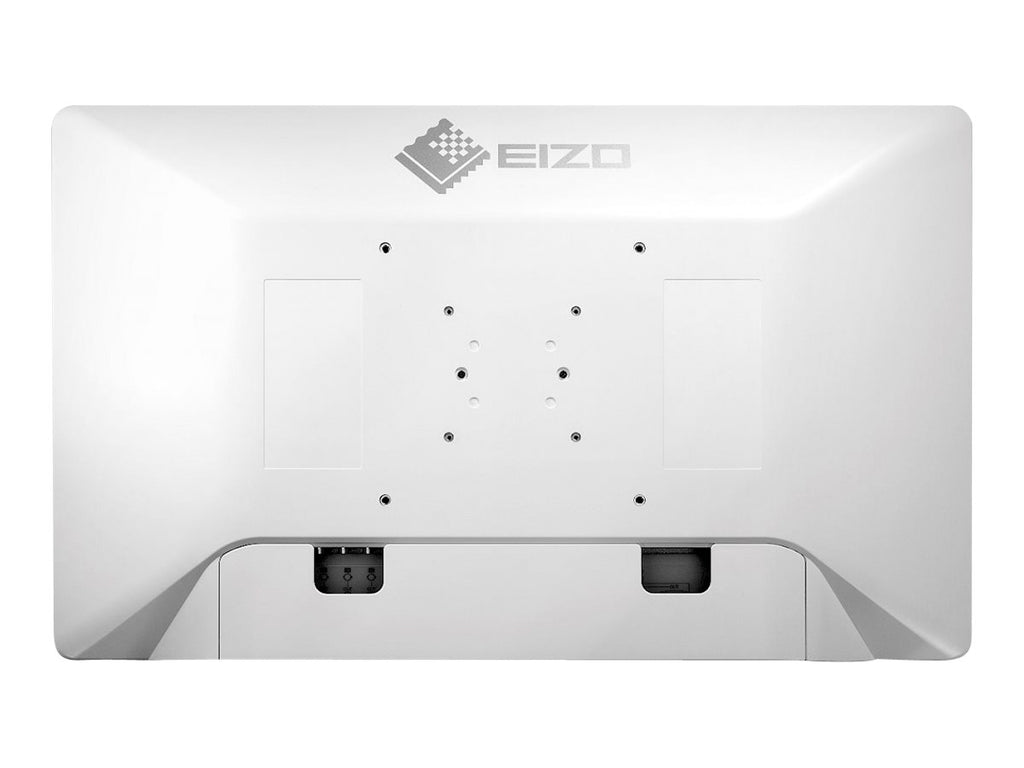

The EX3220 offers versatile connectivity options including DVI-D, VGA, S-Video, BNC (3G-SDI, composite, RGB), and RS-232C/GPI control interfaces for integration with surgical cameras, imaging devices, and external control systems. With VESA mount compatibility, it can be conveniently installed on ceiling arms or wall mounts for optimized workflow. Combining hygiene-focused design, advanced visualization, and flexible signal management, the EX3220 is the reliable choice for surgical environments that demand precision and performance.
| Specification | Details |
|---|---|
| Brand | EIZO |
| Product Line | CuratOR |
| Model | EX3220 |
| Display Type | LED-backlit LCD Monitor |
| Screen Size | 31.5" |
| Resolution | 1920 x 1080 (Full HD 1080p) |
| Panel Technology | IPS |
| Brightness | 650 cd/m² |
| Contrast Ratio | 1400:1 |
| Response Time | 16 ms |
| Viewing Angle | 178° (H/V) |
| Aspect Ratio | 16:9 |
| Color Support | 16.7 million colors |
| Design Features | Fully flat front panel, fanless cooling, protective glass, hygienic design |
| Special Functions | PiP/PoP dual signal display, image rotation & mirroring, independent gamma modes |
| Input Interfaces | 2 x DVI-D, VGA, S-Video, 2 x BNC (3G-SDI), BNC (Composite), BNC (RGB) |
| Control Interfaces | RS-232C, GPI |
| Mounting Options | VESA compatible |
| Protection Rating | IP45 (front) / IP32 (entire monitor) |
| Color | White |
