Description

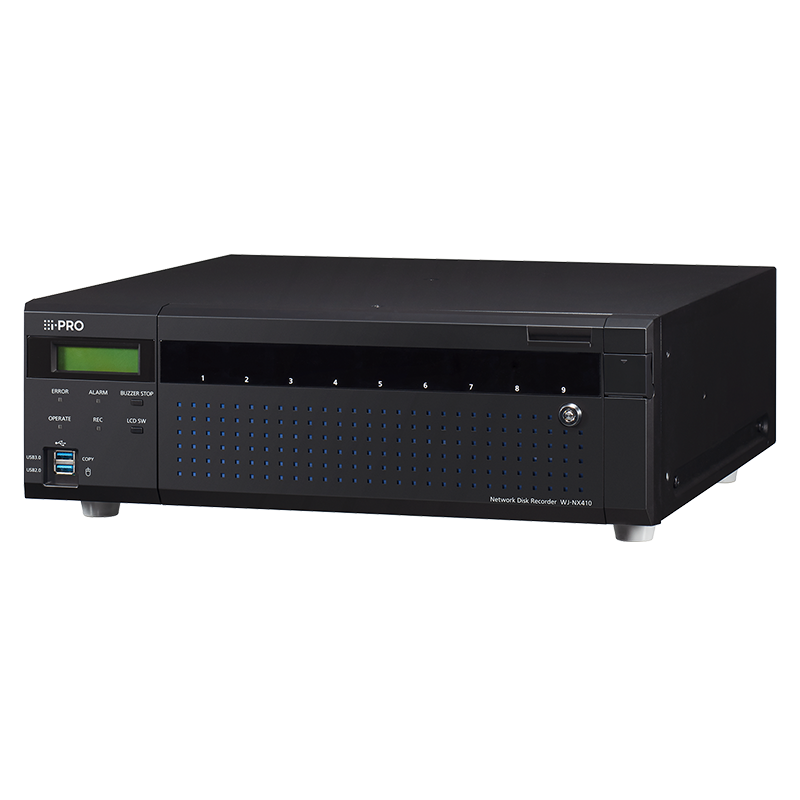

The i-PRO WJ-NX410/18000T18 Embedded Network Video Recorder is a high-performance, all-in-one NVR designed for professional surveillance environments. Equipped with 18TB of pre-installed storage, it offers reliable recording and playback for up to 64 network cameras. Its embedded Linux architecture ensures system stability and security, while an intuitive GUI makes setup, management, and operation simple.
Built with i-PRO’s commitment to reliability and security, the WJ-NX410 series integrates advanced H.265/H.264 compression, RAID storage protection, and edge-to-cloud compatibility. With support for 4K HDMI output, flexible camera configuration, and built-in camera registration tools, it’s ideal for retail, education, healthcare, and government applications requiring continuous, secure video monitoring.
| Specification | Description |
|---|---|
| Model | WJ-NX410/18000T18 |
| Type | Embedded Network Video Recorder |
| Storage Capacity | 18TB (pre-installed HDD) |
| Maximum Camera Channels | Up to 64 network cameras |
| Compatible Camera Resolution | Up to 12MP per channel |
| Video Compression | H.265 / H.264 |
| Recording Modes | Manual, Schedule, Event, Alarm, VMD, Pre/Post Event |
| Playback Modes | Normal, Fast, Slow, Frame-by-Frame, Event Search |
| RAID Support | RAID 1/5/6 for redundancy |
| External Storage | USB 3.0 / eSATA (optional) |
| Display Output | HDMI (4K) ×1, VGA ×1 |
| Network Interface | 2 × Gigabit Ethernet (RJ-45) |
| Audio I/O | 1 input / 1 output (RCA) |
| Alarm I/O | 16 inputs / 4 outputs |
| Operating System | Embedded Linux |
| User Interface | Web-based GUI and local monitor operation |
| Browser Support | Chrome, Edge |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | Approx. 90W (maximum) |
| Operating Temperature | +5°C to +45°C (41°F to 113°F) |
| Dimensions (W × H × D) | Approx. 430 × 88 × 400 mm |
| Weight | Approx. 10 kg (22 lb) |
| Certifications | NDAA Compliant, UL, FCC, CE |
| Included Accessories | Power cord, rack-mount kit, user manual |
| Warranty | 5 years limited warranty |
