Description

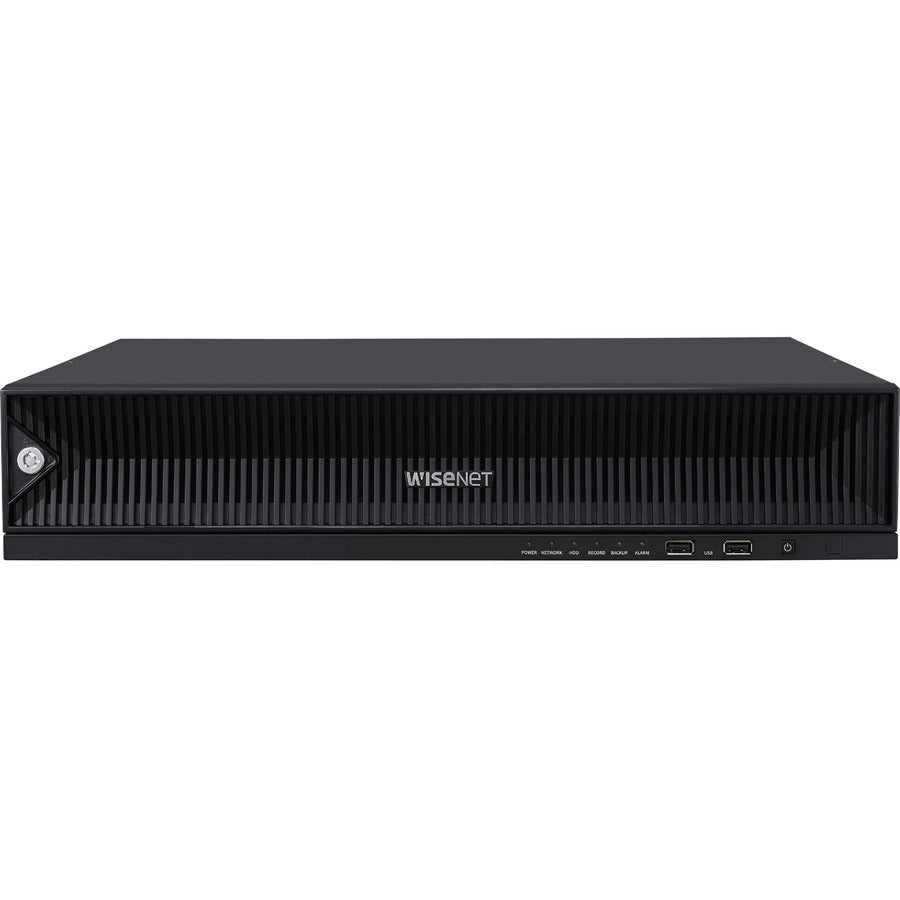

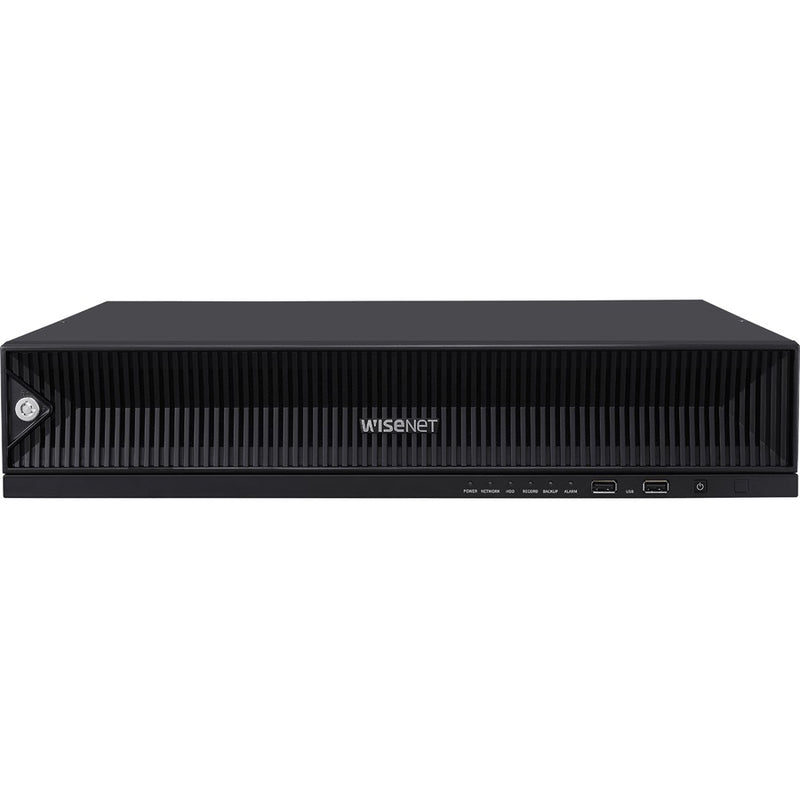

The Wisenet PRN-3200B2-16TB is a high-performance 32-channel 8K AI-powered network video recorder designed for large-scale surveillance environments. It supports up to 8K resolution, advanced AI search, and analytics capabilities including object detection, classification, and license plate recognition when paired with Wisenet AI cameras.
With 400 Mbps recording bandwidth, dual-stream recording, and eight SATA bays supporting up to 80TB total storage, this NVR provides exceptional scalability. The system includes HDMI/VGA dual display output with local 4K resolution, fisheye dewarping, dynamic event management, and an intuitive web UI with no plugins required. ARB (Automatic Recovery Backup), RAID 5/6, and failover support ensure reliable and secure video recording for mission-critical deployments.
| Category | Details |
|---|---|
| Channels | 32CH network camera inputs |
| Max Resolution | Up to 8K (32MP) |
| Recording Bandwidth | Up to 400 Mbps (RAID/Distributed mode) |
| Playback Bandwidth | Up to 64 Mbps (RAID), 32 Mbps (Non-RAID) |
| Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Modes | Normal, Dual Stream, Schedule, Event, Bookmark |
| Video Output | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Display Modes | Dynamic layout, up to 36 divisions |
| AI Features | BestShot, Attribute search, Object detection/classification, License Plate Recognition (with Wisenet AI cameras) |
| Storage (Built-in) | 16TB (included) |
| Storage Capacity | 8 × SATA bays, up to 10TB per drive (80TB max) |
| RAID Support | RAID 5/6 |
| Backup Options | BU/EXE/AVI/JPG/AVI |
| Networking | IPv4/IPv6, TCP/IP, RTSP, HTTP, HTTPS, ONVIF, SUNAPI |
| Network Bandwidth | Max 400 Mbps |
| Audio | 32CH network audio, G.711/G.726/AAC, 2-way audio |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Fisheye Dewarping | Supported (Local 1CH) |
| Smartphone Support | iOS, Android (Live 16CH, Playback 4CH) |
| Failover & Redundancy | N+1 failover, ARB |
| Interface Ports | 2 × HDMI, 3 × RJ-45 (LAN/WAN), 4 × USB, Audio out, Alarm I/O |
| Power Input | 100–240 VAC ±10%, 50/60Hz |
| Max Power Consumption | 205W (with 8 × 10TB HDDs) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (20.1 lb), HDD not included |
