Description

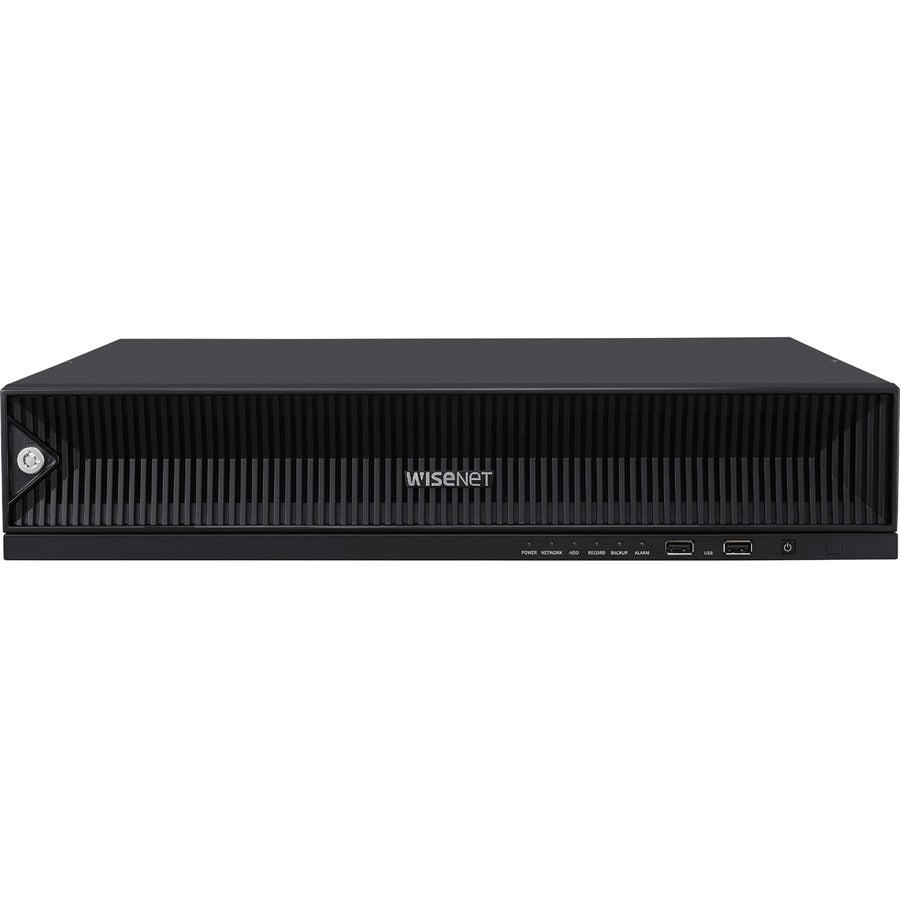

The Wisenet PRN-3200B2 32-Channel 8K AI NVR with a pre-installed 24TB HDD delivers enterprise-grade recording performance, advanced AI analytics, and flexible storage capabilities for large-scale surveillance environments. Supporting up to 32 camera channels and resolutions up to 8K (32MP), this NVR is engineered for demanding security applications requiring high bandwidth, intelligent search, and reliable data protection.
Designed with AI-driven search tools—including Best Shot, Attribute Search, object detection/classification, and license plate recognition (with Wisenet AI cameras)—the PRN-3200B2 significantly accelerates incident review. Its 400 Mbps recording bandwidth, RAID 5/6 array support, ARB (Automatic Recovery Backup), and dynamic event capabilities ensure uninterrupted and secure video recording.
Featuring WiseStream compression technology, fisheye dewarping, dual HDMI/VGA local display up to 4K, and web UI 2.0 (plugin-free), this NVR is ideal for enterprise security, critical infrastructure, retail chains, and government installations.
| Category | Specification |
|---|---|
| SKU | PRN-3200B2-24TB |
| Channels | Up to 32 network camera inputs |
| Max Resolution | Up to 32MP (8K) |
| Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps (distributed mode) |
| Playback Bandwidth | RAID mode: Max 64 Mbps; Non-RAID: Max 32 Mbps |
| Playback Support | Up to 80 channels simultaneously |
| Local Display Outputs | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 36 divisions (expand mode), dynamic layout |
| Storage | 8 × SATA HDD bays (up to 10TB each; max 80TB) |
| Pre-installed Storage | 24TB |
| RAID Support | RAID 5/6 (Single, 1 Array) |
| AI Features | AI Search (Best Shot, Attribute), object detection/classification, license plate recognition (with Wisenet AI cameras) |
| Event Triggers | Alarm input, video loss, camera analytics, sound, defocus, motion detection, dynamic event |
| Event Actions | Email, push, PTZ preset, alarm out, FTP, buzzer, monitor out |
| Network Protocols | IPv4/IPv6, TCP/IP, RTSP, NTP, DHCP, HTTPS, SNMP, ONVIF, SUNAPI |
| Mobile Support | iOS & Android apps; QR code P2P setup |
| Audio | 32CH network audio; G.711, G.726, AAC |
| Interfaces | 3× RJ-45 ports, 4× USB (2× front USB2.0, 2× rear USB3.0), 8× alarm in, 4× alarm out |
| Power | 100–240VAC, 50/60Hz; max 205W |
| Operating Temp | 0°C to +40°C |
| Dimensions | 438 × 86 × 434.9 mm |
| Weight | Approx. 9.1 kg (without HDD) |
