Description

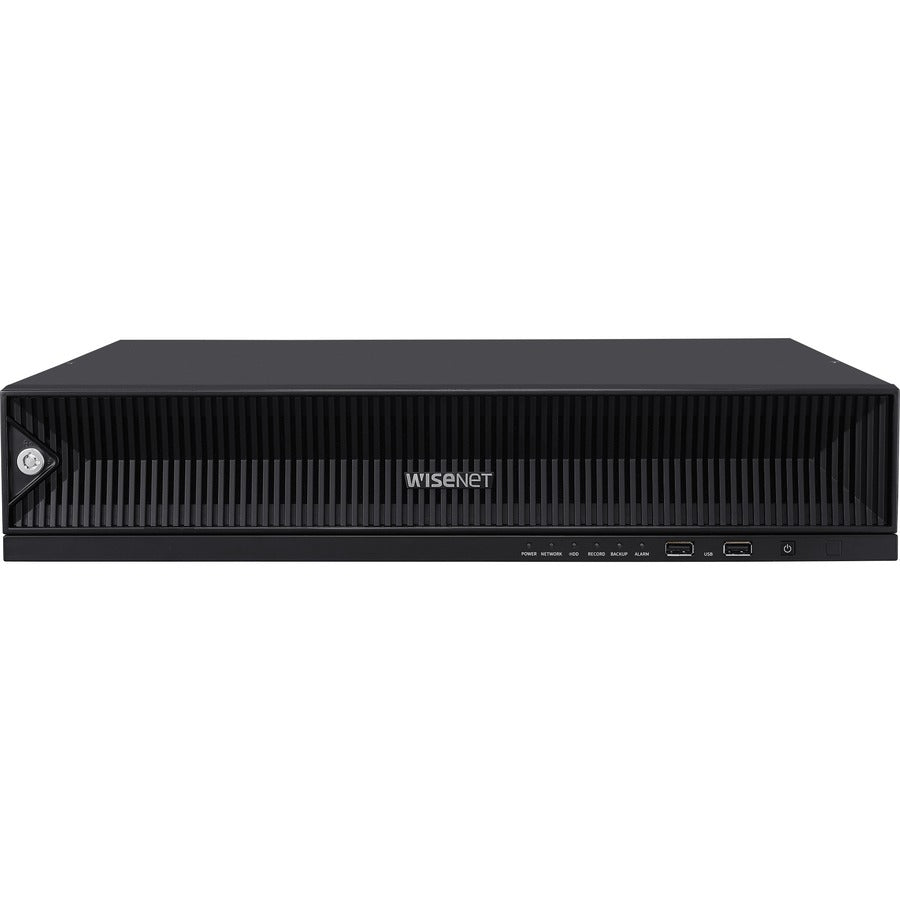

The Wisenet PRN-3200B2-32TB is a high-performance 32-channel 8K AI NVR engineered for large-scale surveillance environments that demand maximum clarity, reliability, and analytics intelligence. Equipped with 32TB of pre-installed storage, support for up to eight SATA drives, and advanced RAID 5/6 options, this NVR delivers enterprise-grade data protection and continuous recording.
With powerful AI search—including BestShot, attribute-based filtering, object detection/classification, and license plate recognition (with Wisenet AI cameras)—operators can rapidly retrieve critical footage. The system supports up to 400 Mbps recording bandwidth, H.265/H.264/MJPEG compression, dual-stream recording, and WiseStream for optimized network efficiency.
The PRN-3200B2-32TB enables local 4K display output across dual HDMI ports, fisheye dewarping, dynamic layouts, event-based search, and seamless connection to mobile devices via QR code. Designed for high-demand deployments, it includes ARB (Automatic Recovery Backup), failover support, secure remote access, and web UI 2.0 with no browser plugins required.
| Category | Details |
|---|---|
| SKU | PRN-3200B2-32TB |
| Channels | Up to 32 network camera channels |
| Max Resolution | Up to 8K (32MP) |
| AI Features | BestShot, attribute search, object detection/classification, license plate detection/search (with Wisenet AI cameras) |
| Video Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps (distributed mode) |
| Playback Bandwidth | RAID: up to 64 Mbps; Non-RAID: up to 32 Mbps |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| Display Output | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 36-division layouts; dynamic layout; virtual channel view |
| Fisheye Dewarping | Supported (local 1CH) |
| Storage | 8 × SATA HDD bays (up to 10TB each, 80TB max) |
| Installed Storage | 32TB |
| RAID Support | RAID 5/6 (single array) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, DHCP, HTTP/HTTPS, DNS/DDNS, SNMP, IGMP, SUNAPI, ONVIF |
| Audio | 32CH network audio; codec: G.711, G.726, AAC; 2-way audio |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Mobile Support | iOS/Android, QR-code P2P setup |
| Failover / Redundancy | N+1 failover, ARB (Automatic Recovery Backup) |
| Interface Ports | 3 × RJ-45 LAN/WAN (1Gbps), 4 × USB (2 front USB2.0, 2 rear USB3.0), 8 Alarm In / 4 Alarm Out, Audio Out |
| OS | Embedded Linux |
| Power Input | 100–240 VAC, 50/60 Hz |
| Power Consumption | Max 205W (with 8 × 10TB HDDs) |
| Operating Temperature | 0°C to +40°C |
| Dimensions (W×H×D) | 438 × 86 × 434.9 mm |
| Weight | Approx. 9.1 kg (HDD not included) |
| Color / Material | Black / Metal |
