Description

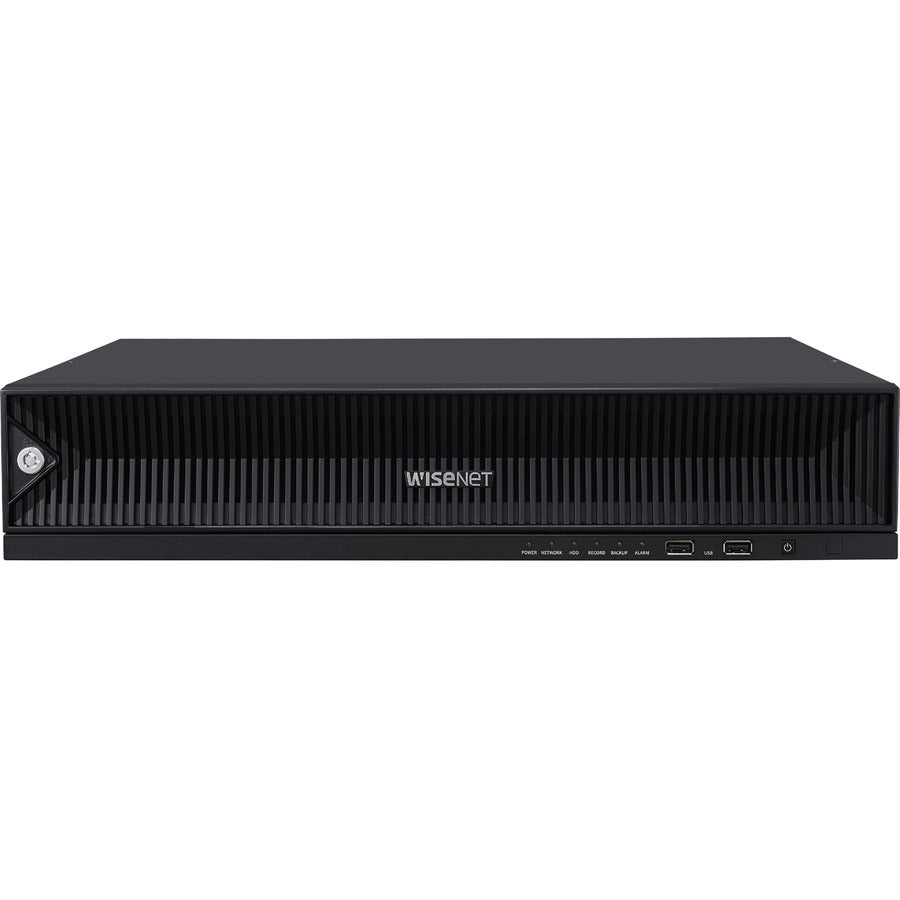

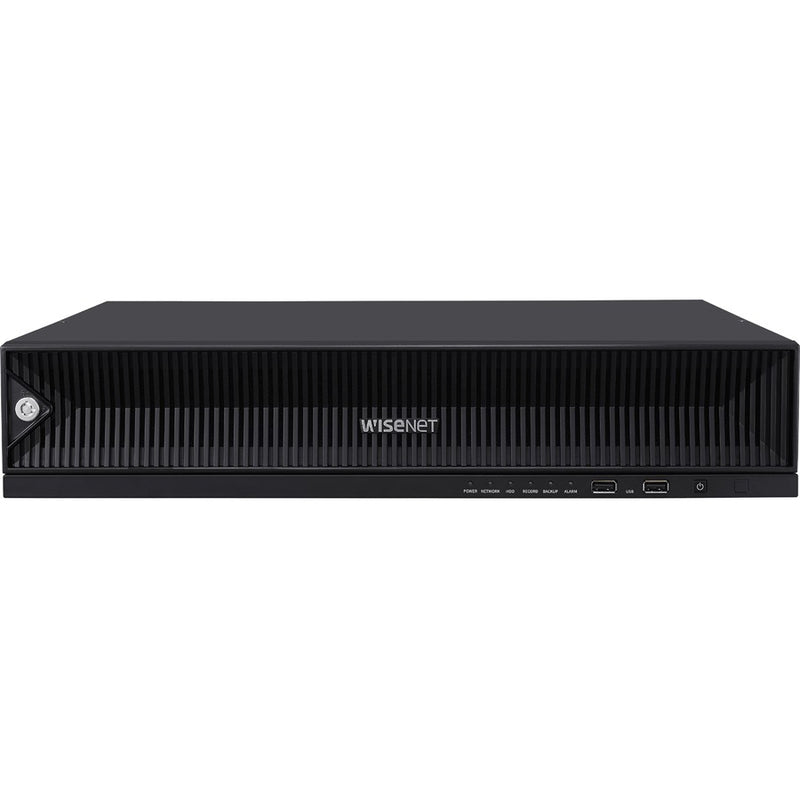

The Wisenet PRN-3200B2 32-Channel 8K AI NVR (48TB) is a high-performance network video recorder designed for large-scale, AI-driven surveillance environments. Delivering up to 8K (32MP) resolution, 400 Mbps recording throughput, and license-free video recording, it supports advanced analytics when paired with Wisenet P, X, and Q-series AI cameras.
This model includes 48TB of pre-installed storage, expandable to 80TB across eight SATA HDD bays (up to 10TB per drive). With support for RAID 5/6, Automatic Recovery Backup (ARB), fisheye dewarping, dual HDMI outputs, and WiseStream video optimization, it ensures exceptional performance and long-term reliability.
The PRN-3200B2 also offers AI-powered search—including Best Shot, object detection and classification, attribute search, and license plate recognition/search (with Wisenet AI cameras)—combined with user-friendly web UI 2.0, mobile support, dynamic event handling, and intuitive configuration options.
| Category | Specification |
|---|---|
| Channels & Video | 32 network camera inputs; up to 8K (32MP) resolution |
| Recording Throughput | Up to 400 Mbps (distributed/RAID mode); 150 Mbps (normal mode) |
| Playback Bandwidth | RAID mode: up to 64 Mbps; Non-RAID: up to 32 Mbps |
| Video Compression | H.265, H.264, MJPEG, WiseStream (H.265/H.264) |
| AI Features | AI search (Best Shot, Attributes), object detection & classification, LPR (with Wisenet AI cameras) |
| Display Outputs | HDMI1: 3840×2160 @30Hz; HDMI2: 1920×1080 @60Hz; dual display support |
| Multi-Screen Layout | Dynamic layout, clone mode up to 36 divisions, expand mode (HDMI1 up to 36 div., HDMI2 up to 16 div.) |
| Search Modes | Calendar, event list, text search, smart search, fisheye dewarping (1CH local) |
| Storage Capacity | 48TB pre-installed; 8× SATA bays, up to 80TB max (10TB per drive) |
| RAID Support | RAID 5/6 (single array) |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (network), multi-channel playback |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, HTTPS, SMTP, SNMP, ONVIF, SUNAPI |
| Network Bandwidth | Max. 400 Mbps |
| Audio | 32CH network audio; G.711, G.726, AAC; 2-way audio |
| Remote Users | Search (3 users), Live Unicast (10), Multicast (20) |
| Control & Integration | WAVE, SSM, Smart Viewer, web viewer, Wisenet Mobile; SUNAPI support |
| Mobile Support | iOS & Android; live 16CH multi-profile, playback 4CH |
| I/O Interfaces | 8 alarm inputs, 4 alarm outputs; 3× RJ-45 ports (1Gbps LAN/WAN); USB (2× USB2.0 front, 2× USB3.0 rear) |
| Indicators & Features | HDD, alarm, power, record, backup, network, RAID; HDD keylock; P2P QR code setup |
| Operating System | Embedded Linux |
| Power Requirements | 100–240VAC ±10%, 50/60Hz; max 205W (with 8×10TB HDDs) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (20.1 lb, without HDD) |
| Color / Material | Black / Metal |
