Description

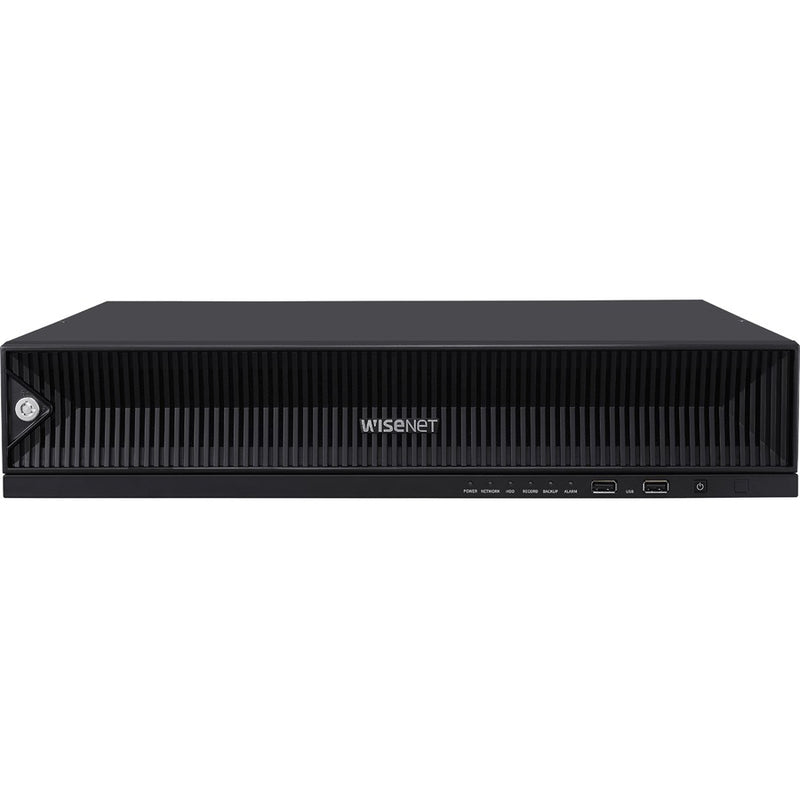

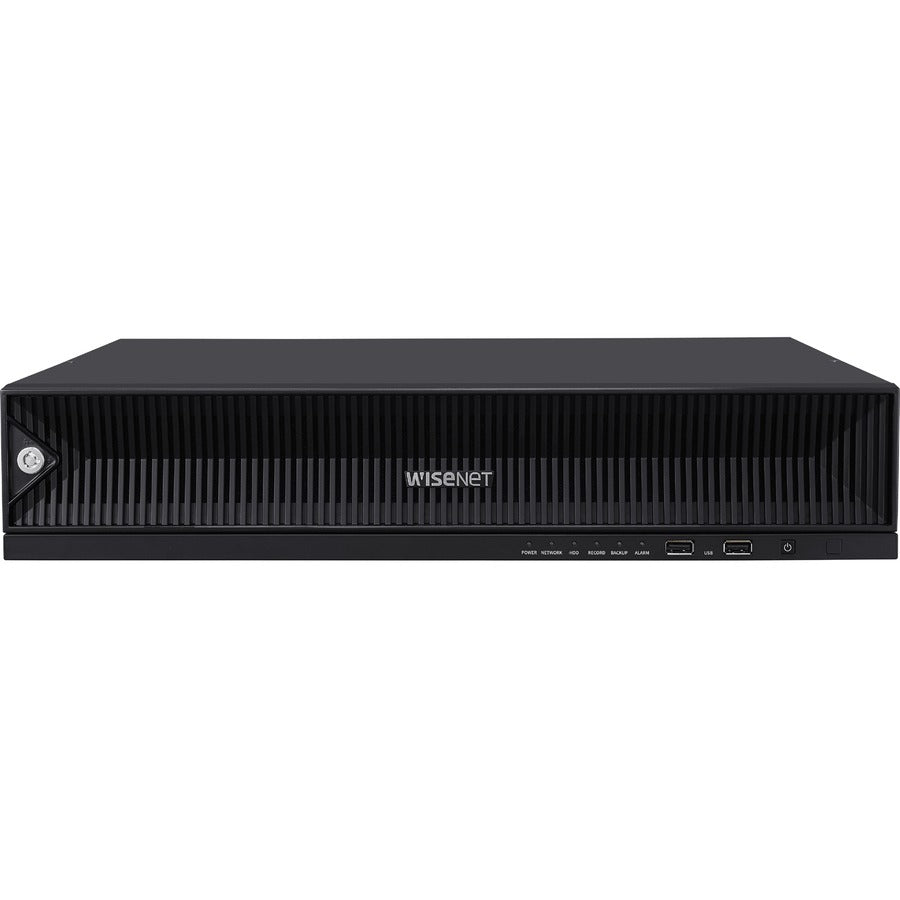

The Wisenet PRN-3200B2-64TB is a high-performance 32-channel 8K AI Network Video Recorder engineered for advanced surveillance environments. Built to support license-free recording and powerful 8K resolution, this NVR delivers exceptional clarity, efficient storage management, and enterprise-grade reliability.
Equipped with 64TB of pre-installed storage, the system supports up to eight internal SATA HDDs (10TB max each) and hardware RAID 5/6 for increased data protection. The PRN-3200B2 features dual HDMI/VGA display outputs, AI-powered search tools, and dynamic event monitoring to streamline forensic review and real-time operations.
With AI analytics—including BestShot, Object Attribute Search, and License Plate Recognition (on supported Wisenet AI cameras)—this NVR provides fast, precise event filtering. WiseStream compression, dual-stream recording, ARB recovery, fisheye dewarping, and a modern Web UI 2.0 interface ensure smooth performance and efficient bandwidth usage.
Ideal for medium to large-scale installations, the PRN-3200B2-64TB combines scalability, security, and intelligent monitoring in a single, robust platform.
| Category | Specification |
|---|---|
| SKU | PRN-3200B2-64TB |
| Channels | 32 network camera inputs |
| Max Resolution | Up to 8K (32MP) |
| Recording Bandwidth | Up to 400 Mbps (Distributed Mode); Up to 150 Mbps (Normal Mode) |
| Playback Bandwidth | RAID: Up to 64 Mbps; Non-RAID: Up to 32 Mbps |
| Video Compression | H.265, H.264, MJPEG, WiseStream |
| Display Output | HDMI1: 3840×2160 @ 30Hz; HDMI2: 1920×1080 @ 60Hz (Dual Display) |
| Multi-Screen Display | Up to 36 divisions (local), dynamic layouts, virtual channel view |
| AI Functions | BestShot, Object Attribute Search, Object Detection & Classification, LPR (supported Wisenet AI cameras) |
| Recording Modes | Normal, Dual Stream, Schedule, Event, Pre/Post Event, Bookmark |
| HDD Bays | 8 × SATA bays (10TB max each) |
| Installed Storage | 64TB HDD included |
| RAID Support | RAID 5/6 (Single, 1 Array) |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (Network) |
| Search Modes | Calendar, Event List, Text Search, Smart Search |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, SMTP, SNMP, ONVIF, SUNAPI, DDNS |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Audio | 32CH network audio (G.711, G.726, AAC) |
| Mobile Support | iOS & Android (Live 16CH, Playback 4CH) |
| Redundancy | N+1 Failover, ARB (Automatic Recovery Backup) |
| Interface Ports | 3 × RJ-45 (1Gbps), 4 × USB (2×USB 2.0, 2×USB 3.0), 8× Alarm In, 4× Alarm Out |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Max. 205W (with 8×10TB HDDs) |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (HDD not included) |
