Description

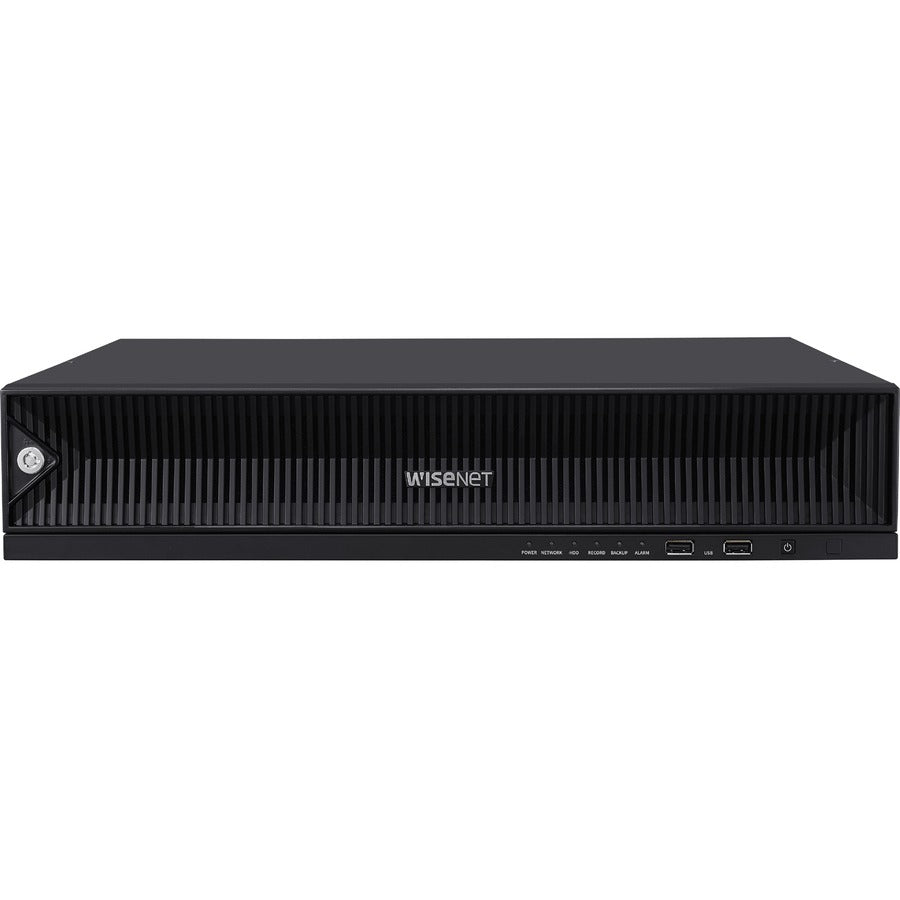

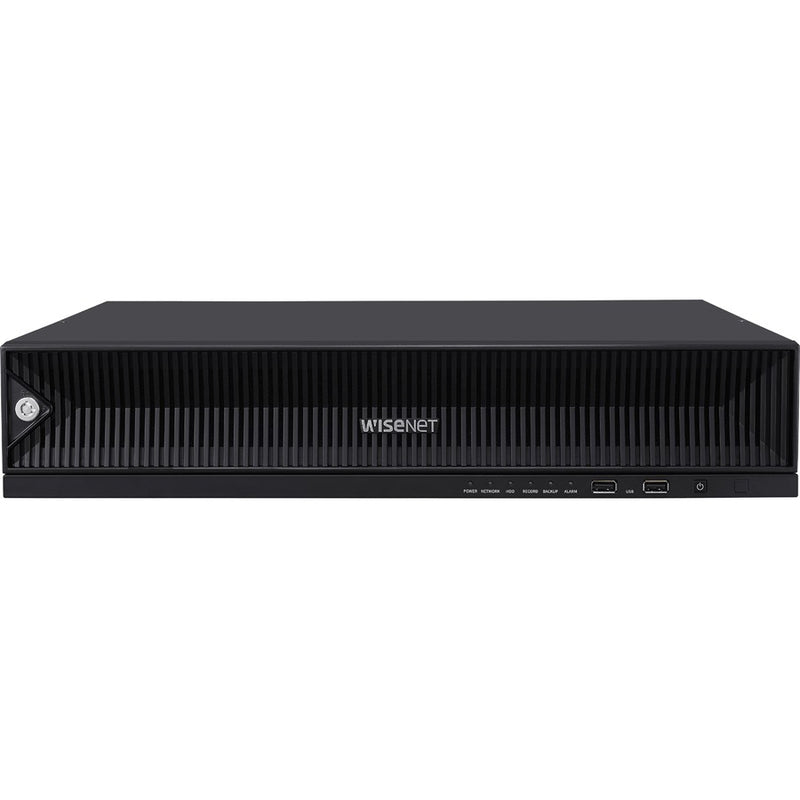

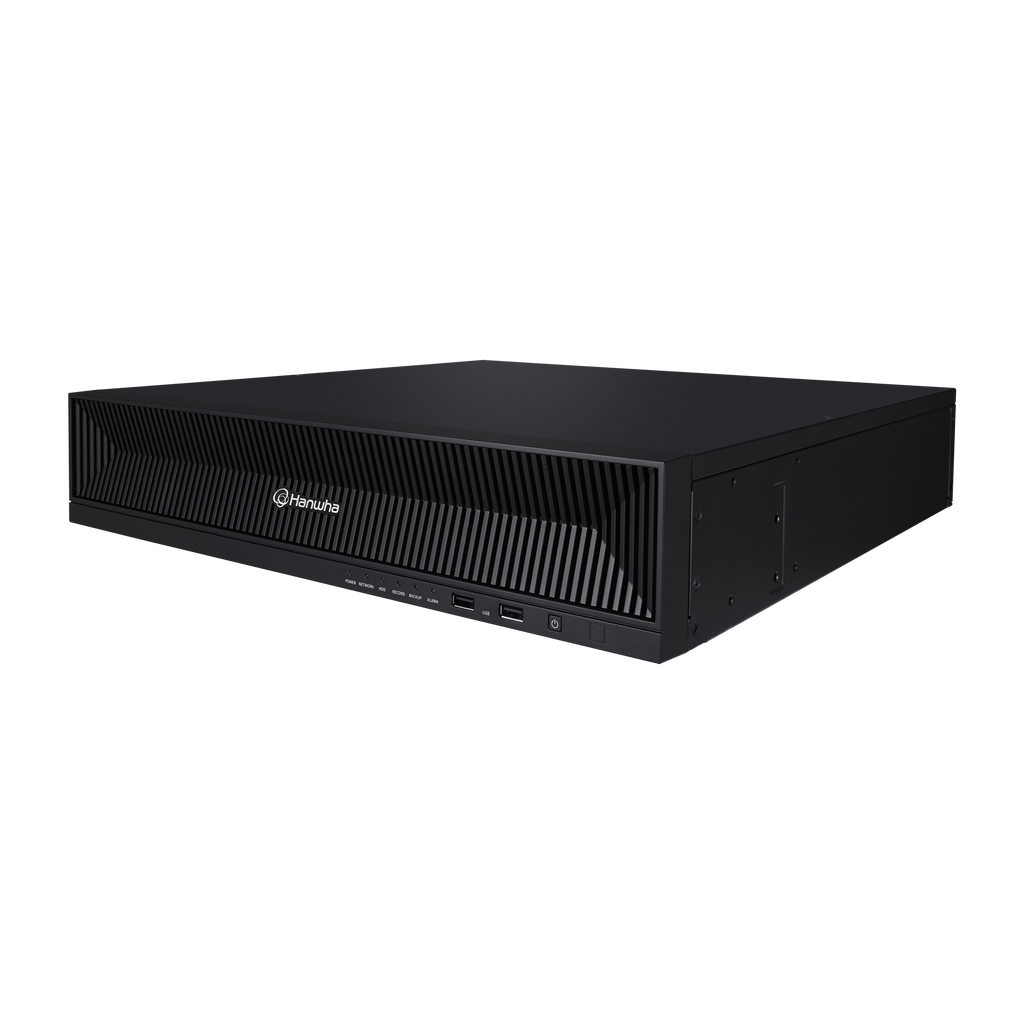

The Wisenet PRN-3200B2-8TB is a high-performance 32-channel 8K AI Network Video Recorder designed for large surveillance deployments that require powerful recording, intelligent search, and reliable storage. Equipped with 8TB HDD pre-installed, this NVR supports up to 32MP/8K resolution, advanced AI analytics, and license-free recording for seamless scalability.
The recorder’s AI search functions—including BestShot, attribute filtering, object classification, and license plate recognition (with compatible Wisenet AI cameras)—significantly accelerate investigations. With up to 400 Mbps recording bandwidth, dual HDMI outputs supporting local 4K display, RAID 5/6 readiness, and enhanced monitoring tools such as fisheye dewarping, dynamic layout, and mobile QR setup, the PRN-3200B2-8TB offers enterprise-grade control.
Ideal for commercial, industrial, retail, and government security environments, this NVR delivers exceptional performance, efficient storage management, and dependable system redundancy.
| Category | Details |
|---|---|
| SKU | PRN-3200B2-8TB |
| Channels | 32 CH network camera inputs |
| Max Resolution | Up to 32MP / 8K |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps (Distributed / RAID Normal) |
| Playback Bandwidth | RAID: max 64 Mbps; Non-RAID: max 32 Mbps |
| AI Features | AI search (BestShot, attribute), object detection/classification, license plate recognition (with supported Wisenet AI cameras) |
| Display Outputs | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz); Dual display |
| Multi-View Options | Dynamic layout, clone mode up to 36 divisions, expand mode up to 36 divisions |
| Recording Modes | Normal, Dual Stream, Schedule (Continuous/Event), Pre/Post Event, Bookmark |
| Storage | 8 SATA bays; supports up to 10TB per drive (80TB max) |
| Pre-Installed Storage | 8TB HDD |
| RAID Support | RAID 5/6 (single array) |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (network), multichannel playback |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, DHCP, SMTP, HTTPS, SNMP, ONVIF, SUNAPI |
| Transmission Bandwidth | Max 400 Mbps |
| Audio Support | 32CH network audio; G.711, G.726, AAC; 2-way audio |
| User Access | Up to 4 simultaneous users (local + remote); remote live/unicast up to 10 |
| Remote Viewing | WAVE, SSM, Webviewer, SmartViewer, Wisenet Mobile |
| Interfaces | 3× RJ45 LAN/WAN ports (1Gbps), 2× HDMI, 4× USB (2× USB2.0, 2× USB3.0), Audio Out, 8 Alarm In / 4 Alarm Out |
| Environmental | Operating Temp: 0°C to +40°C; Humidity 20–85% RH |
| Electrical | 100–240 VAC, 50/60Hz; Max 205W with full HDD load |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (HDD not included) |
| AI Search Targets | Human, face, vehicle, license plate |
| Management Features | QR code setup, ARB (Automatic Recovery Backup), N+1 failover, bookmark management, dynamic event |
