Description

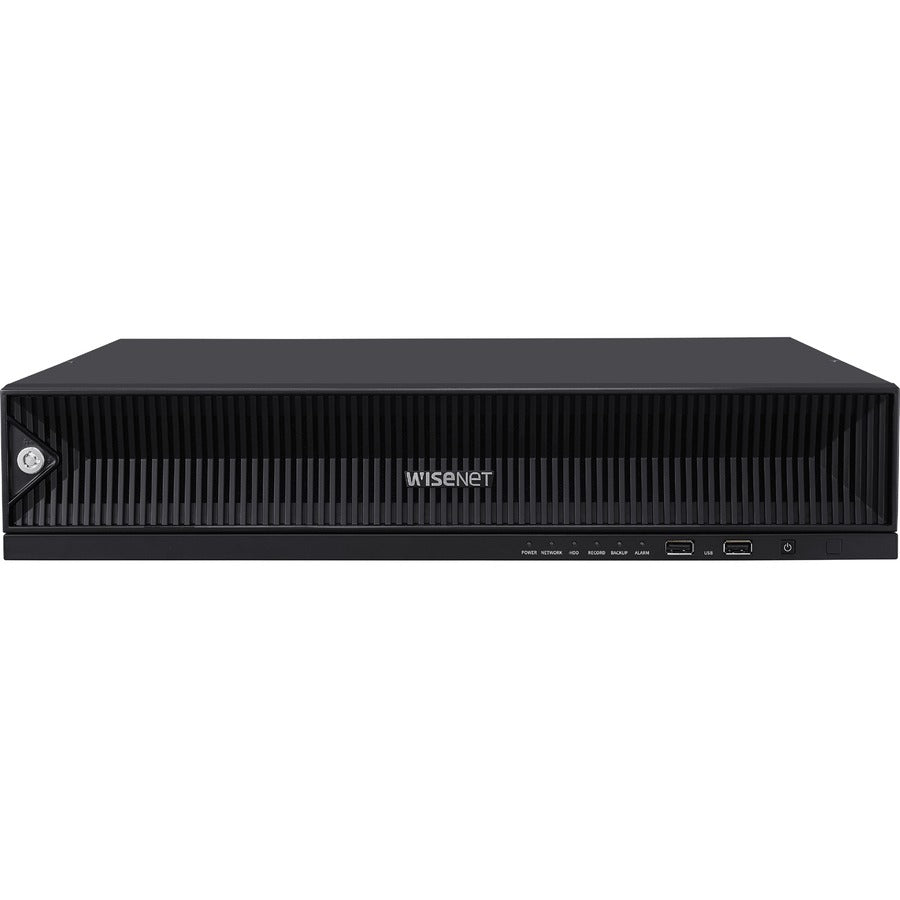

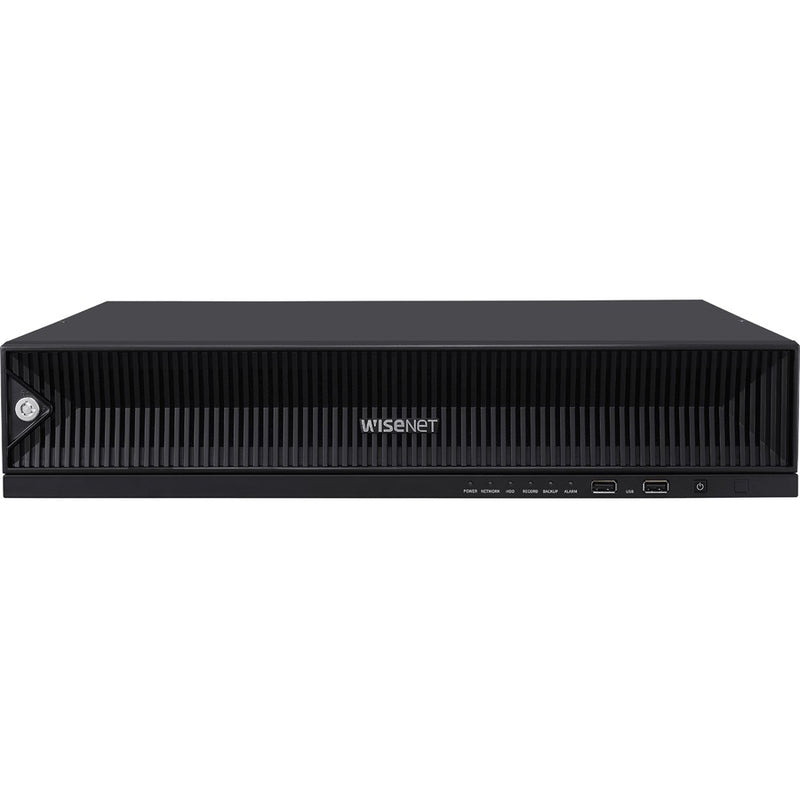

The Hanwha Vision PRN-3200B2 is a powerful 32-channel AI-enabled 8K network video recorder designed for enterprise-grade surveillance deployments. It supports advanced AI search, object classification, license plate recognition, and high-performance 8K recording for large-scale environments that demand accuracy and reliability.
Equipped with eight SATA bays supporting up to 80TB of storage, RAID 5/6 protection, and a distributed recording bandwidth of up to 400 Mbps, the PRN-3200B2 ensures smooth, uninterrupted recording even in dense IP camera networks. Dual HDMI outputs provide local 4K display and flexible monitoring layouts, while mobile access via QR code allows simple remote connectivity.
With intelligent analytics, secure encryption, remote multi-user access, dynamic event handling, and seamless integration with Wisenet cameras and third-party VMS, the PRN-3200B2 is engineered to deliver robust performance in modern video surveillance systems.
| Category | Details |
|---|---|
| Channels | Up to 32 network cameras |
| Max Resolution | Up to 32MP (8K) |
| Display Outputs | HDMI1: 3840×2160 @ 30Hz; HDMI2: 1920×1080 @ 60Hz |
| Multi-Screen Layouts | Up to 36 divisions (HDMI1), up to 16 divisions (HDMI2) |
| Decoding Performance | Up to 32MP H.265; various resolutions including 12MP, 8.3MP, 1080p, 720p, D1 |
| Operating System | Embedded Linux |
| Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Distributed: Up to 400 Mbps; Normal: Up to 150 Mbps; RAID mode up to 400 Mbps |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| Event Triggers | Alarm input, video loss, camera events, dynamic events, user events |
| Event Actions | Email, push, PTZ preset, alarm output, buzzer, monitor output, FTP, SUNAPI, shutdown |
| Playback | Max 80CH simultaneous (Local 32CH, Remote 16CH/user) |
| Playback Bandwidth | RAID: Max 64 Mbps; Non-RAID: Max 32 Mbps |
| Search Modes | Calendar/time, event list, text search, smart search |
| Storage | 8× SATA bays, up to 10TB per HDD (max 80TB) |
| RAID Support | RAID-5/6 (Single array) |
| Backup Formats | BU/EXE/AVI (GUI), JPG/AVI (network) |
| Network Protocols | IPv4/IPv6, TCP/IP, RTP/RTSP, HTTP/HTTPS, DHCP, SMTP, IGMP, DNS, DDNS, SNMP, ONVIF, SUNAPI |
| Transmission Bandwidth | Max 400 Mbps |
| Audio | 32CH network audio; G.711, G.726, AAC |
| Remote Users | Search: 3; Live Unicast: 10; Multicast: 20 |
| Mobile Support | iOS, Android (QR code P2P) |
| Interfaces | 3× RJ-45 LAN; 8× alarm inputs; 4× alarm outputs; 4× USB (2 front USB2.0, 2 rear USB3.0) |
| Power | 100–240VAC, 50/60Hz; Max 205W with 8 HDDs |
| Operating Temp | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 438 × 86 × 434.9 mm (17.47 × 3.39 × 17.12 in) |
| Weight | Approx. 9.1 kg (20.1 lb), HDD not included |
| AI Search Features | Human, face, vehicle, license plate (AI-based) |
| LPR Support | English/number plates using Wisenet AI P/X cameras |
