Description
The Edgecore CSP-7550-8C4FPGA Hyper Cloud Appliance is a high-performance, programmable network server-switch platform designed for next-generation data center, 5G, and edge applications. Powered by dual Intel® Xeon® Silver 4110 (8-core, 2.1 GHz) processors and built on the Intel® Purley platform, it delivers exceptional processing power, memory bandwidth, and flexible deployment capabilities.

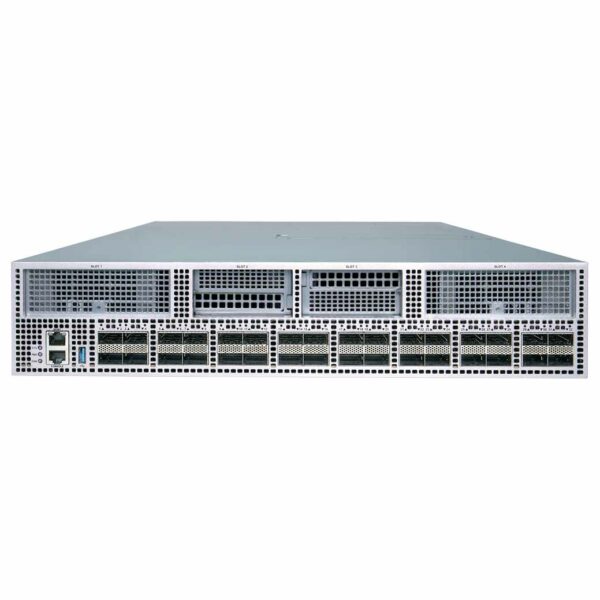

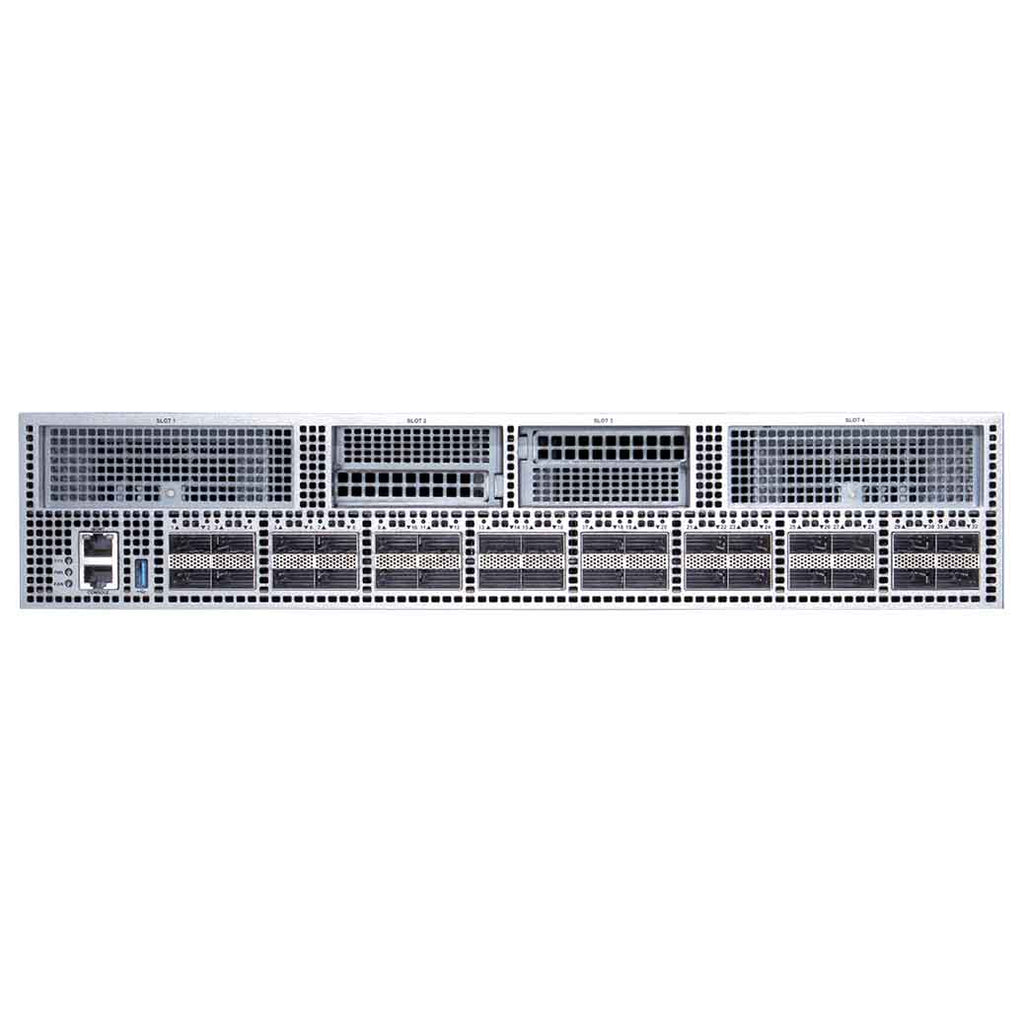

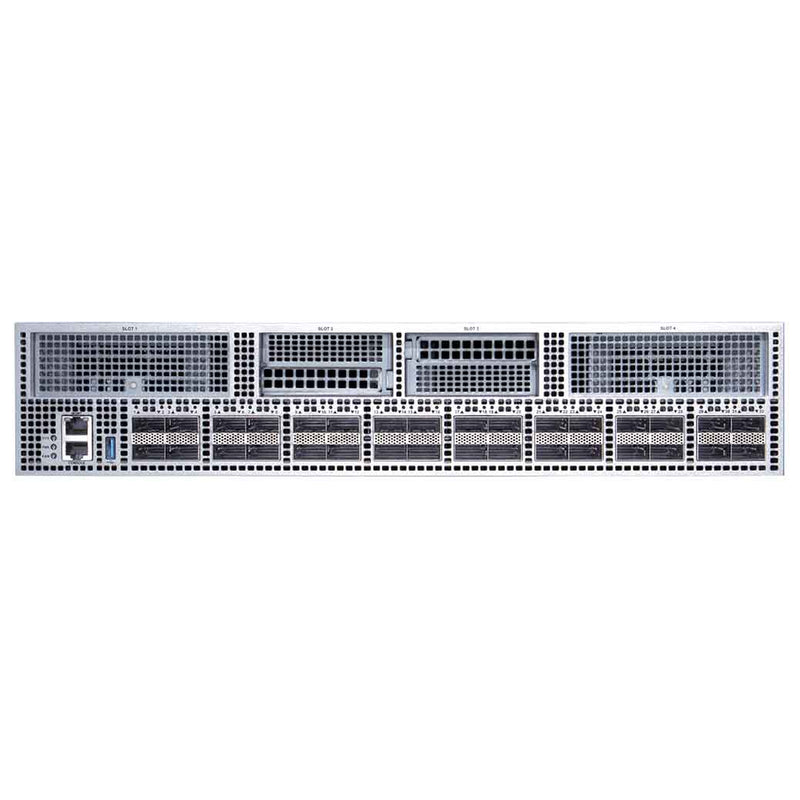

This 2RU appliance integrates 32 QSFP28 (100GbE) ports using the Intel® Barefoot Tofino 64Q chipset, achieving up to 6.4 Tbps switching capacity for data-intensive workloads. It comes equipped with four Intel® Stratix 10MX FPGA cards, each featuring 8GB HBM2 memory, enabling high-speed packet processing, AI/ML acceleration, and millions of HQoS sessions for advanced network visibility and control.
With a flexible open architecture supporting ONIE and multiple NOS options, the CSP-7550-8C4FPGA offers a future-proof foundation for applications such as load balancing, virtualized firewalls, network packet brokering, and 5G User Plane Function (UPF). Dual redundant PSUs, hot-swappable fans, and a robust BMC management interface ensure reliability and ease of operation for demanding enterprise environments.
| Category | Specification |
|---|---|
| Form Factor | 2RU rack-mount server-switch hybrid |
| Processor System | Dual Intel® Xeon® Silver 4110, 8 cores each (2.1 GHz) |
| Architecture | Intel® Purley platform |
| Memory | 128GB DDR4 RDIMM (32GB × 4), 2666 MHz, ECC supported |
| Local Storage | 240GB M.2 SATA SSD |
| FPGA Configuration | 4 × Intel® Stratix 10MX FPGA cards with 8GB HBM2 each |
| Switch Chipset | Intel® Barefoot Tofino 64Q (BFN-T10-064Q-B0) |
| Switching Capacity | Up to 6.4 Tbps |
| Ethernet Ports | 32 × 100GbE QSFP28 ports (supports 1×100G, 1×40G, or breakout to 4×25G/10G) |
| PCIe Expansion | 4 slots (2 × PCIe Gen3 x16 full-height, 2 × PCIe Gen3 x8 half-height) |
| Management Interfaces | 1 × RJ-45 for CPU/BMC, 1 × RJ-45 console, 1 × USB 3.0 |

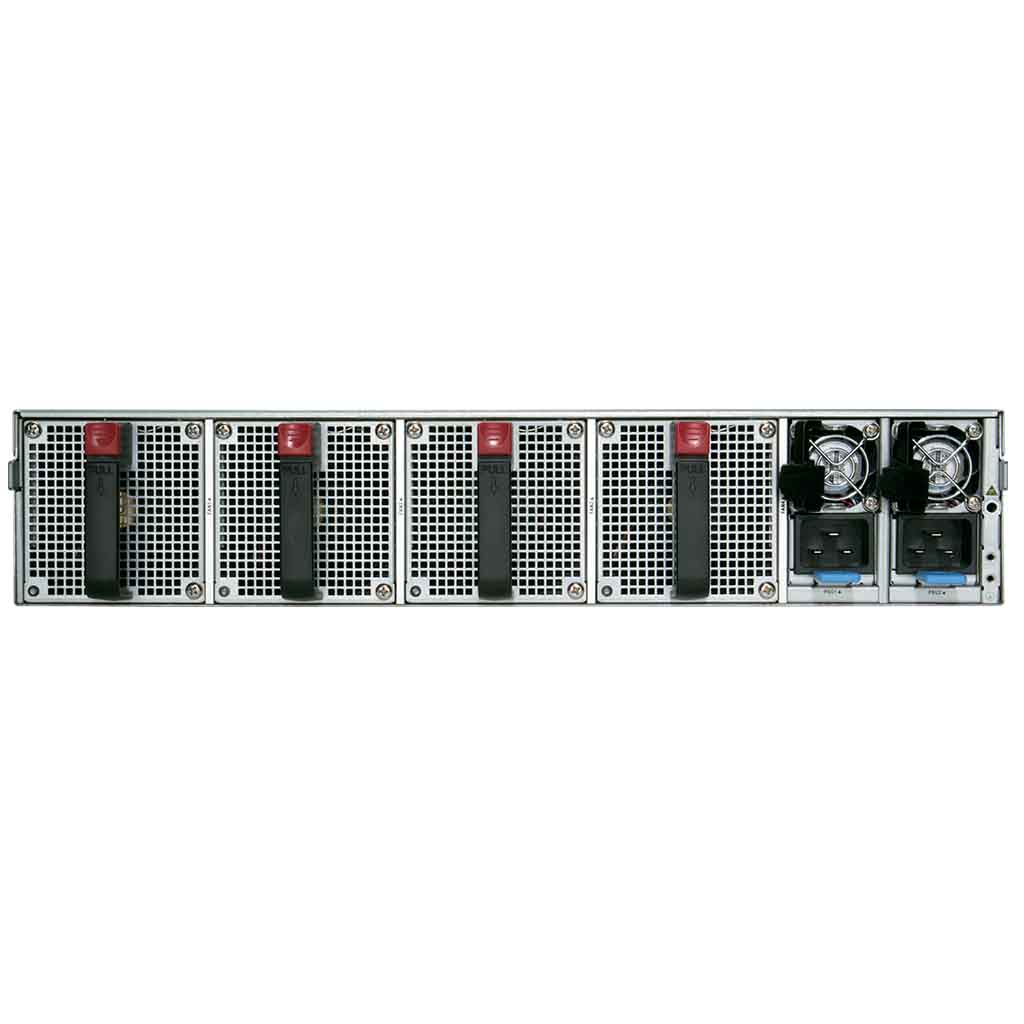

| Power Supply | Dual redundant 2500W AC PSUs (1+1) |
| Cooling System | 3+1 hot-swappable redundant fan modules |
| Power Consumption | Max 2010W |
| Software Environment | ONIE preloaded; supports open-source and commercial NOS |
| Dimensions (W × D × H) | 440 × 800 × 87 mm |
| Weight | 26.725 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20%–90% RH |
| Certifications | CE, FCC, RoHS |
| Warranty | Standard Edgecore warranty (country-specific) |
