Description
The Edgecore Wedge100BF-32X-O-48V-F is a high-performance open network data center switch designed for top-of-rack (TOR) and spine deployments. Built with Intel® Tofino™ programmable switch silicon, it delivers a 6.4 Tbps switching capacity and 4.7 billion packets per second (Bpps) forwarding rate, supporting flexible 25/40/50/100 GbE connectivity across 32 QSFP28 ports.

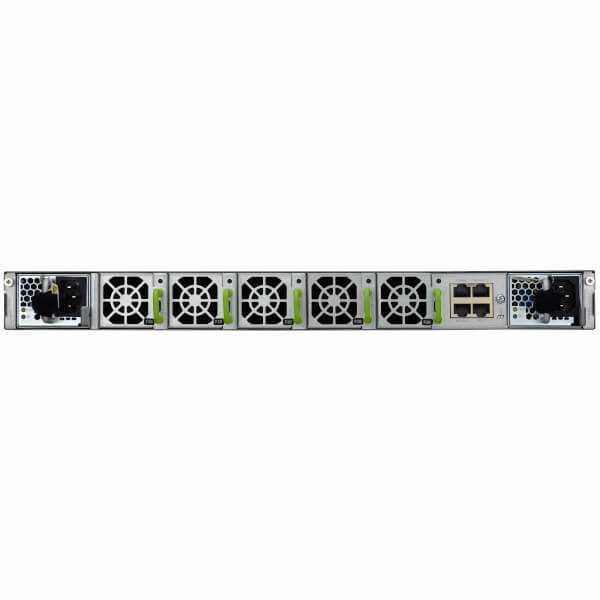

Optimized for open networking, the Wedge100BF-32X comes pre-loaded with the Open Network Install Environment (ONIE), enabling the installation of compatible open-source or commercial Network Operating Systems (NOS). This model features dual 48 V DC hot-swappable power supplies, port-to-power airflow, and 4 + 1 redundant fan modules for high reliability in modern data centers.
Ideal for hyperscale environments, cloud service providers, and enterprises building flexible data center fabrics, the Edgecore Wedge100BF-32X-O-48V-F provides the performance and openness required for next-generation network automation and programmability.
| Category | Specification |
|---|---|
| Model | Edgecore Wedge100BF-32X-O-48V-F |
| Form Factor | 1RU Rack-mountable |
| Switch Silicon | Intel Tofino BFN-T10-032D (Dual Pipeline) |
| CPU | Intel x86 Broadwell-DE Pentium D-1517 |
| Memory | 8 GB DDR4 SO-DIMM |
| Storage | 128 GB M.2 SSD / 16 MB SPI Flash |
| Switching Capacity | 6.4 Tbps (Full Duplex) |
| Forwarding Rate | 4.7 Bpps |
| Packet Buffer | 20 MB Integrated Packet Buffer |

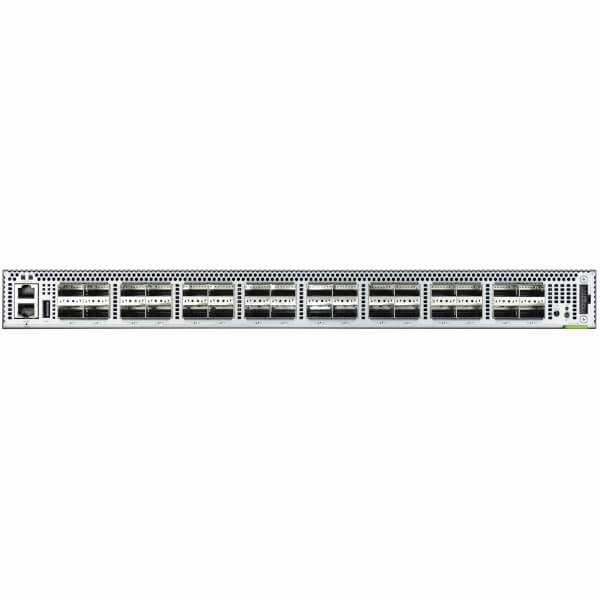

| Ports | 32 × QSFP28 (each supports 1×25/40/50/100 GbE or 4×10/25 GbE via breakout) |
| Management Ports | 1 × RJ-45 Serial Console, 1 × RJ-45 1G BASE-T Mgmt, 1 × USB Type-A Storage |
| LED Indicators | Link Status, Activity, Rate, Diagnostics, Locator, PSU & Fan Status |
| Airflow | Port-to-Power |
| Cooling | 4 + 1 Redundant Hot-Swappable Fan Modules |
| Power Supply | Dual 48 V DC Hot-Swappable Redundant PSUs |
| Input Voltage | 90 – 240 VAC @ 50–60 Hz (AC variant), 48 V DC (for this model) |
| Dimensions (W × D × H) | 440 × 509 × 44 mm (17.32 × 20.03 × 1.73 in) |
| Weight | 10.0 kg (20.05 lb) |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | −40 °C – 70 °C (−40 °F – 158 °F) |
| Humidity | 0 – 95 % non-condensing |
| Altitude | 0 – 10,000 ft |
| Acoustic Level | 62 dB @ 27 °C |
| Software Environment | Pre-loaded with ONIE; compatible with Open Network Linux (ONL) and commercial NOS offerings |
| Compliance & Certifications | CE Mark, FCC Part 15 Class A, CCC, BSMI, VCCI, UL, CSA, RoHS-6 Compliant |
| Warranty | Refer to local Edgecore warranty terms |
