Description

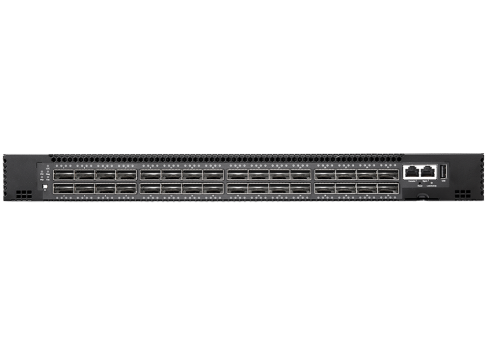

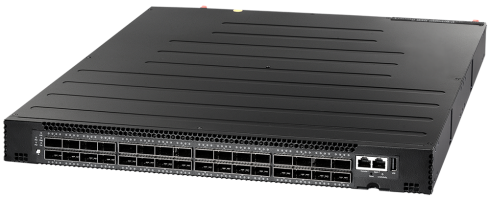

The Edgecore AS7712-32X-O-12V-B (DCS501) is a high-performance Top-of-Rack (TOR) or spine switch designed for modern data centers demanding scalability, flexibility, and energy efficiency.
Featuring 32 QSFP28 ports, it delivers line-rate Layer 2 and Layer 3 switching at 3.2 Tbps, supporting configurations of up to 32×40/100GbE, 64×50GbE, or 128×10/25GbE connections via breakout cables.
Built on the Broadcom BCM56960 Tomahawk switch silicon and powered by an Intel® Atom® C2538 4-core processor, this 1RU platform supports the Open Network Install Environment (ONIE), allowing easy deployment of both open-source and commercial Network Operating Systems (NOS).

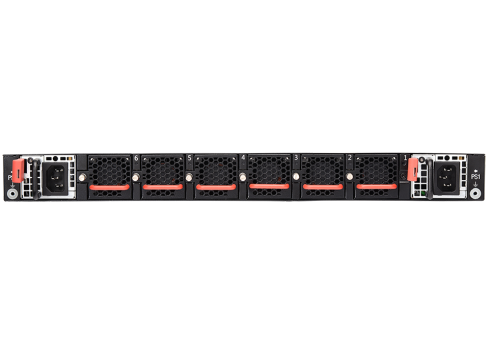

This variant includes 12V DC power input and back-to-front airflow, making it an ideal fit for data center environments requiring DC infrastructure and optimized cooling paths.
| Category | Specification |
|---|---|
| Model | AS7712-32X-O-12V-B |
| Device Type | 100GbE Data Center Switch |
| Form Factor | 1RU rack-mountable |
| Use Case | Top-of-Rack (TOR) or Spine Switch |
| Switch Silicon | Broadcom BCM56960 Tomahawk |
| CPU | Intel® Atom® C2538, 4-Core 2.4GHz |
| Memory | 16GB DDR3 (2×8GB SO-DIMM), 64GB mSATA SSD |
| Switching Capacity | 3.2 Tbps full duplex |
| Forwarding Rate | 1.52 Bpps |
| Packet Buffer | 16 MB integrated |
| Ports | 32×QSFP28 (1×100G, 1×40G, 2×50G, or 4×10/25G per port) |
| Management Ports | 1×RJ45 serial console, 1×RJ45 100/1000BASE-T, 1×USB Type-A |
| Airflow | Back-to-Front (B2F) |
| Power Supply | 12V DC input (load-sharing, hot-swappable) |
| Max Power Consumption | 550W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%–95% non-condensing |
| Weight | 10.87 kg (23.96 lbs) |
| Dimensions (W×D×H) | 43.84 × 51.5 × 4.35 cm (17.3 × 20.3 × 1.7 in) |
| Certifications | CE, FCC Class A, UL/CUL, VCCI, RoHS-6, TAA Compliant |
| Software Support | ONIE pre-loaded; supports open-source and commercial NOS |
| LED Indicators | Link Status, Activity, Rate, PSU/Fan Diagnostics |
| Country of Origin | Taiwan |
