Description

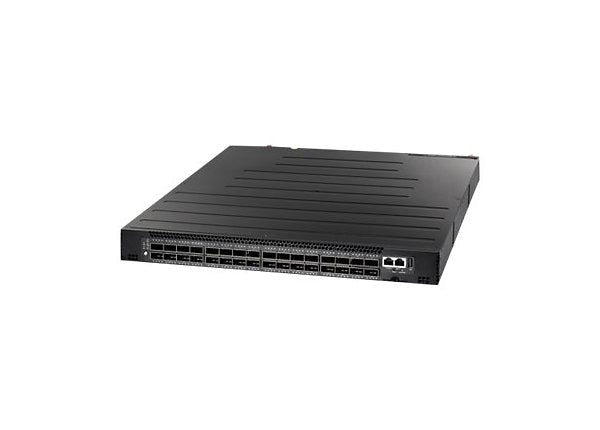

The Edgecore AS7712-32X is a high-performance Top-of-Rack (TOR) or spine switch designed for modern data centers demanding flexibility, scalability, and performance. Powered by the Broadcom Tomahawk switch ASIC and an Intel Atom CPU, this open network switch delivers line-rate Layer 2 and Layer 3 switching across all 32 QSFP28 ports. Each port supports multiple configurations—1×40/100GbE, 2×50GbE, or 4×10/25GbE—offering versatile connectivity for both leaf and spine deployments.
Housed in a compact 1RU enclosure with front-to-back airflow, the AS7712-32X features hot-swappable, load-sharing redundant AC power supplies and fan modules for maximum reliability. It is ONIE pre-loaded, supporting a range of network operating systems for flexible software integration in open networking environments.
Ideal for high-capacity cloud, enterprise, and service provider data centers, the Edgecore AS7712-32X provides the performance and reliability needed for next-generation 100GbE network infrastructure.
| Category | Specification |
|---|---|
| General | |
| Device Type | Switch - 32 Ports - Managed - Rack-Mountable |
| Form Factor | 1RU |
| Product Family | Edgecore AS7712 Series |
| Subtype | 100 Gigabit Ethernet |
| Enclosure Type | Front-to-Back Airflow, Rack-Mountable |
| Performance | |
| Switching Capacity | 3.2 Tbps |
| Forwarding Rate | 2.38 Bpps |
| CPU | Intel Atom C2538 |
| Packet Buffer | 16 MB |
| Latency | < 500 ns |
| Interfaces | |
| Ports | 32 × QSFP28 ports |
| Port Configurations | 1 × 40/100GbE, 2 × 50GbE, or 4 × 10/25GbE per port |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 10/100/1000BASE-T Management, 1 × USB Type-A |
| Power | |
| Power Supplies | Dual AC Hot-Swappable, Load-Sharing |
| Voltage | 90–240 VAC, 50–60 Hz |
| Power Consumption | ~350 W (typical) |
| Environmental | |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Physical Dimensions | |
| Width | 17.3 in (440 mm) |
| Depth | 20.3 in (516 mm) |
| Height | 1.7 in (43.6 mm) |
| Weight | 29.8 lb (13.5 kg) |
| Compliance | |
| TAA Compliance | Inquire |
| Country of Origin | Inquire |
| UNSPSC Code | 43222612 |
| Included Accessories | North America Power Cord |
