Description

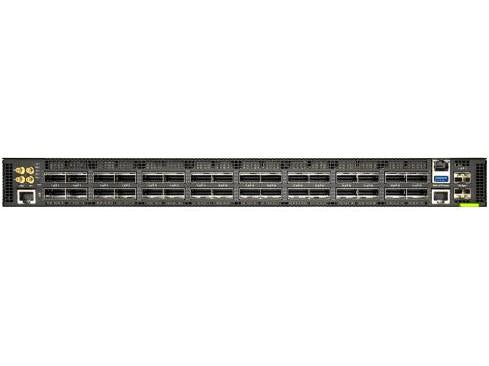

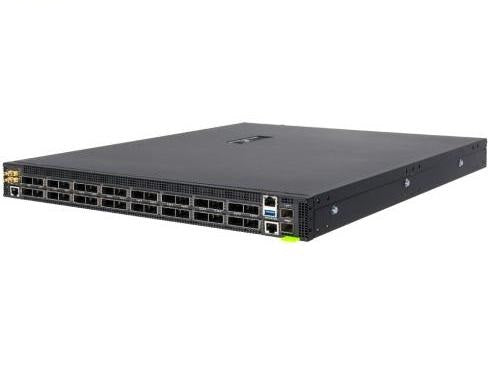

The Edgecore DCS510 AS9716-32D is a high-performance 1RU data center spine switch built for next-generation cloud and enterprise networks. Featuring 32 QSFP56-DD ports, it delivers up to 12.8 Tbps of line-rate Layer 2 and Layer 3 switching using Broadcom’s StrataXGS Tomahawk3 silicon. Each port supports 400GbE or flexible breakout configurations of 4x100GbE or 4x25GbE for scalable connectivity.

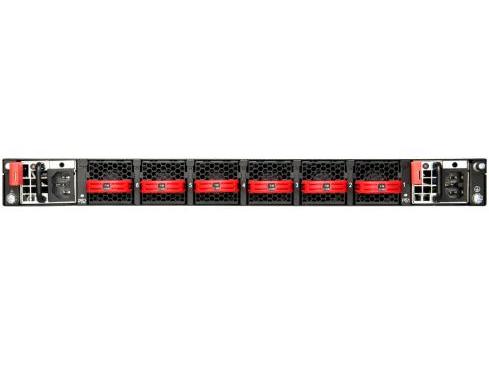

Powered by an Intel Xeon D-1518 processor, the switch provides advanced programmability, telemetry, and management capabilities with ONIE preloaded for open network operating system installation. Its dual hot-swappable AC power supplies and front-to-back (power-to-port) airflow ensure reliability and efficient cooling in dense rack environments.
With a 3-year hardware warranty, redundant power and fans, and comprehensive network management support (IPv4/IPv6, VLAN, SNMP), the AS9716-32D delivers unmatched flexibility and scalability for modern data centers.
| Specification | Details |
|---|---|
| Model | AS9716-32D |
| Product Type | Managed Data Center Switch |
| Switching Capacity | 12.8 Tbps |
| Ports | 32 × QSFP56-DD |
| Port Speed | 400G / 100G / 25G (via breakout) |
| Processor | Intel Xeon D-1518 |
| System Memory | 16 GB DDR4 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | Up to 9 KB |
| Management Interfaces | RJ-45 console, USB storage, 10G SFP+ management, ToD |
| Management Protocols | IPv4, IPv6, VLAN |
| Power Supply | Dual hot-swappable AC (Acbel) |
| Airflow Direction | Power-to-Port |
| Power Input | 100–240 VAC, 50–60 Hz |
| Dimensions (W × D × H) | 17.25 × 21.1 × 1.69 in (1RU) |
| Weight | 11.06 kg (35.5 lbs) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Form Factor | Rack-mountable |
| Compliance | RoHS compliant |
| Warranty | 3-year Hardware Warranty |
