Description

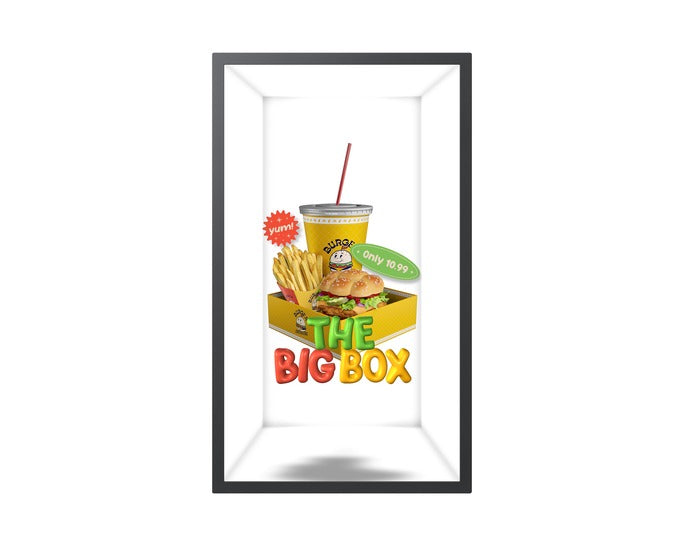

The Samsung SM32HX-P is a 32-inch Full HD smart signage display designed for professional portrait-mode installations where clarity, reliability, and visual impact matter. With a 500 cd/m² brightness rating, VA panel technology, Direct LED backlighting, and a high 4,000:1 contrast ratio, it delivers crisp messaging for retail, corporate, hospitality, wayfinding, and commercial display environments.
Built for continuous 24/7 operation, this smart signage display includes integrated Tizen 7.0, Samsung VXT CMS compatibility, MagicINFO Player support, Wi-Fi, Bluetooth, Ethernet, and multiple HDMI inputs for flexible content management. Its anti-glare haze treatment, IP5x dust protection, built-in speakers, and virtual 3D room-effect design make it a durable, space-efficient solution for modern digital signage applications.
| Specification | Details |
|---|---|
| Brand | Samsung |
| Product Series | SMHX |
| Product Type | Smart Signage Display |
| Screen Size | 31.5 inches |
| Display Orientation | Designed exclusively for portrait-mode installation |
| Resolution | Full HD 1920 x 1080 |
| Panel Technology | VA panel |
| Backlight Technology | Direct LED |
| Brightness | 500 cd/m² typical brightness |
| Contrast Ratio | 4,000:1 typical contrast ratio |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms gray-to-gray |
| Viewing Angle | 178° horizontal and 178° vertical |
| Haze Level | 25% anti-glare haze treatment |
| Operating Hours | Rated for 24/7 continuous operation |
| Touch Capability | Display is not designed with touch functionality |
| Color Support | 16.7 million colors |
| Color Gamut | 72% NTSC coverage |
| Video Inputs | 3 HDMI inputs and 1 DisplayPort 1.2 input |
| USB Ports | 2 USB 2.0 ports |
| Audio Output | 3.5 mm stereo audio jack |
| External Control | Ethernet and RS-232C In/Out |
| Network Connectivity | RJ-45 Ethernet, Wi-Fi 802.11ac, and Bluetooth 5.0 |
| Screen Mirroring | Miracast supported |
| Media Player Platform | 11th-generation SoC with Tizen 7.0 |
| Processor | Cortex A72 1.7 GHz quad-core processor |
| Memory | 2.5 GB LPDDR4 RAM |
| Internal Storage | 16 GB eMMC storage, with approximately 10 GB available |
| CMS Compatibility | Samsung VXT CMS compatible |
| Content Software Support | MagicINFO Player S10 supported |
| Built-In Speakers | 10 W x 2 channel speaker system |
| Special Features | Virtual 3D room effect, Center IR, temperature sensor, ambient sensor, automatic source switching with recovery, HDR support, upgradable web engine, and Tizen Enterprise Platform |
| Dust Protection | IP5x certified dust protection |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| Dimensions Without Stand | 436.7 x 742.3 x 49.4 mm |
| Packaged Dimensions | 826.0 x 521.0 x 130.0 mm |
| Weight Without Stand | 8.5 kg |
| Packaged Weight | 10.5 kg |
| Bezel Width | 19.4 mm even bezel |
| VESA Mount Compatibility | 100 x 100 mm |
| Display Color | Black |
| Included Accessories | Quick Setup Guide, warranty card, power cable, RS-232C In adapter, remote control, and batteries |
| Warranty | 3-year device warranty, with extension options available depending on service terms |
