Description

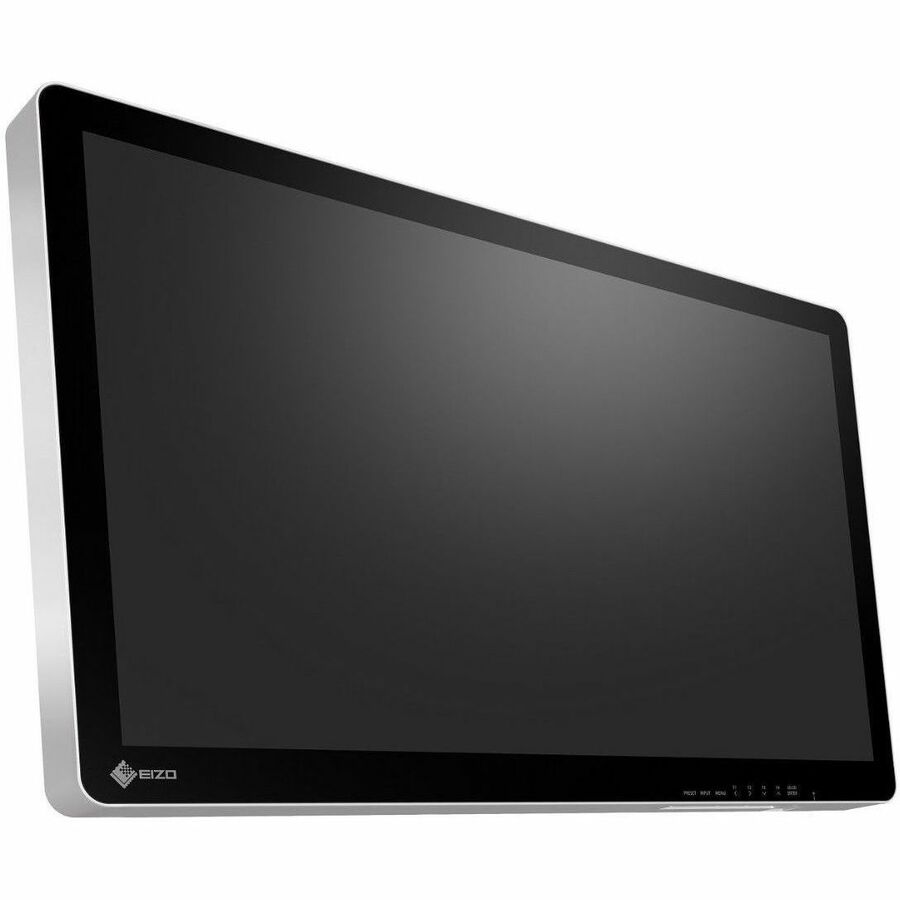

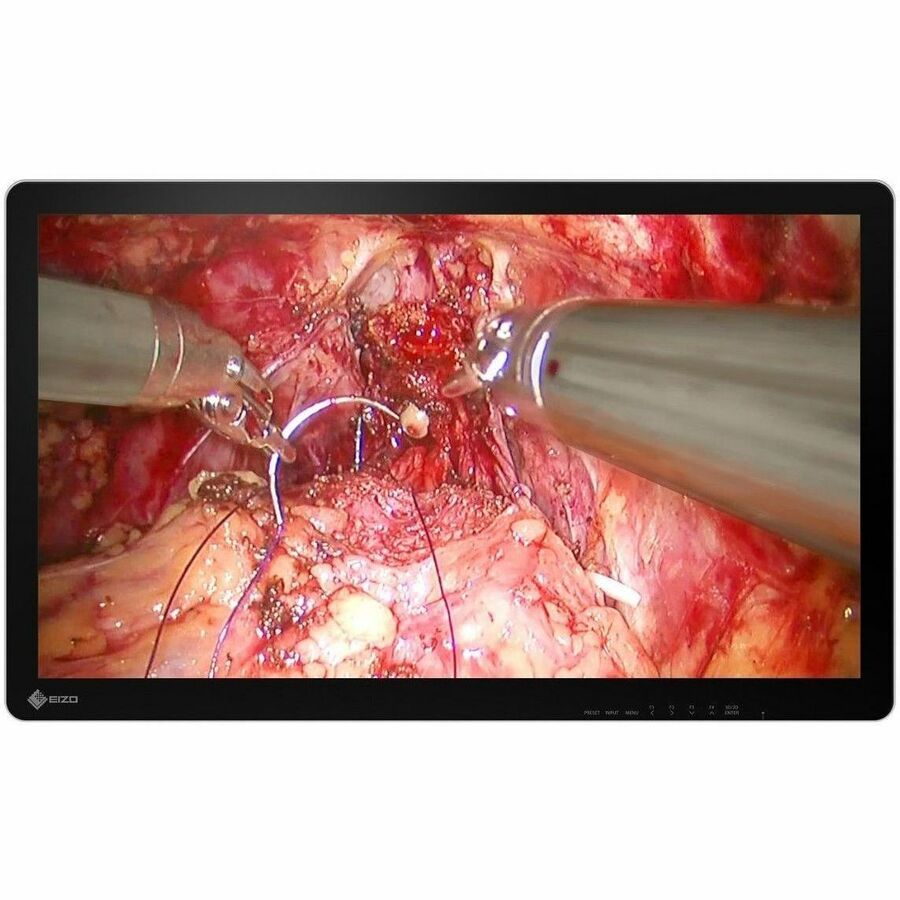

The EIZO CuratOR EX3242-3D is a state-of-the-art 32-inch 4K UHD surgical monitor designed for high-precision medical environments such as endoscopy, microsurgery, and operating rooms where depth perception, clarity, and accurate color reproduction are paramount. Delivering a stunning 3840 x 2160 resolution and supporting stereoscopic 3D imaging, this advanced display ensures surgeons can view intricate anatomical details with exceptional depth and precision.
Engineered with BT.2020 wide color gamut and HDR compatibility (PQ/HLG), the EX3242-3D reproduces subtle variations in color tones for enhanced tissue differentiation. Its optical bonding technology minimizes reflections, prevents condensation, and improves contrast for a clearer view in challenging surgical environments. The fully flat, IP45-protected front glass design supports easy disinfection and a sterile operating environment, while 9H hardness glass enhances durability and impact resistance.
With Picture-in-Picture (PiP) and Picture-by-Picture (PbP) capabilities, various 3D signal format support, and multiple input interfaces including HDMI, DisplayPort, and DVI, this monitor integrates seamlessly into any modern surgical suite. From complex microsurgical procedures to advanced endoscopy, the EX3242-3D offers superior visibility, reliability, and operational safety.
| Feature | Details |
|---|---|
| Brand | EIZO |
| Product Line | CuratOR |
| Model | EX3242-3D |
| Display Type | LED Surgical Monitor |
| Screen Size | 32" Class (32" viewable) |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Panel Technology | In-Plane Switching (IPS) |
| 3D Support | Yes |
| Brightness | 850 nit |
| Color Support | 1.07 Billion Colors |
| Contrast Ratio | 1500:1 |
| Response Time | 20 ms (BWB) |
| Refresh Rate | 75 Hz |
| Viewing Angles | 178° (H) / 178° (V) |
| Color Gamut | BT.2020 Wide Color Gamut |
| HDR Support | PQ, HLG |
| Special Features | Optical Bonding, Anti-Reflective, PiP/PbP, HDR, Wide Color Gamut, Auto Input Detection, Remote Control, On-Screen Display (OSD) |
| Glass Hardness | 9H |
| Ingress Protection | Front: IP45 / Overall: IP32 |
| 3D Signal Formats | Side-by-Side, Line-by-Line, Top-and-Bottom, SIMUL |

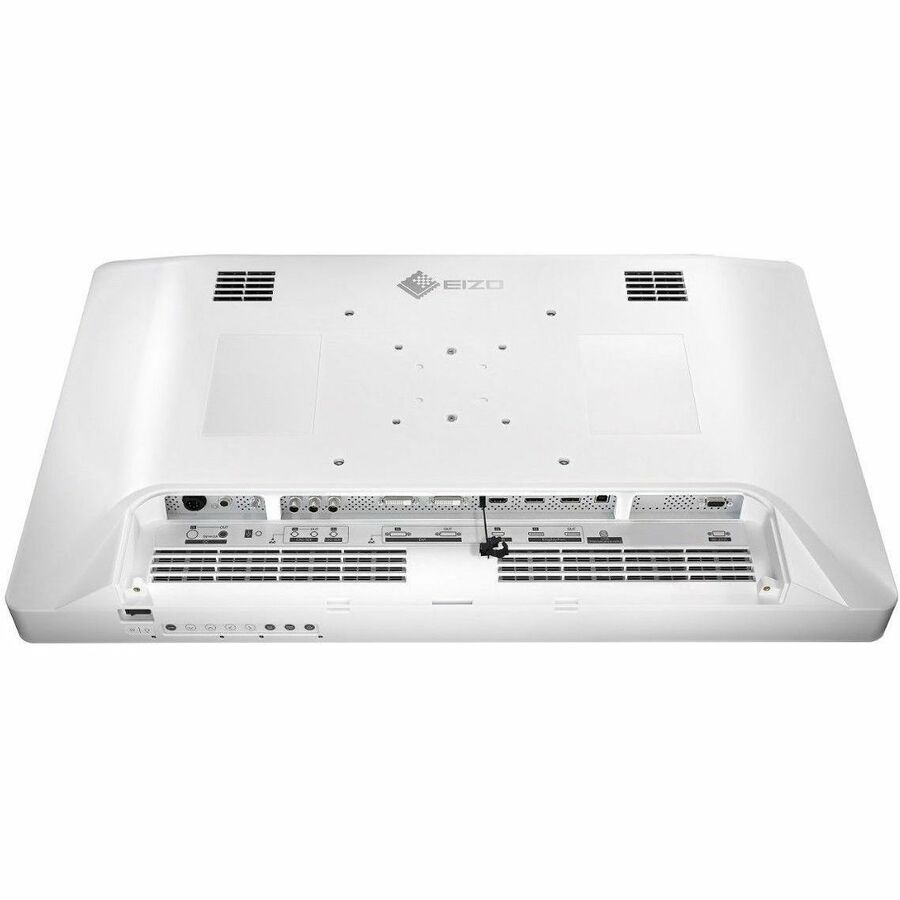

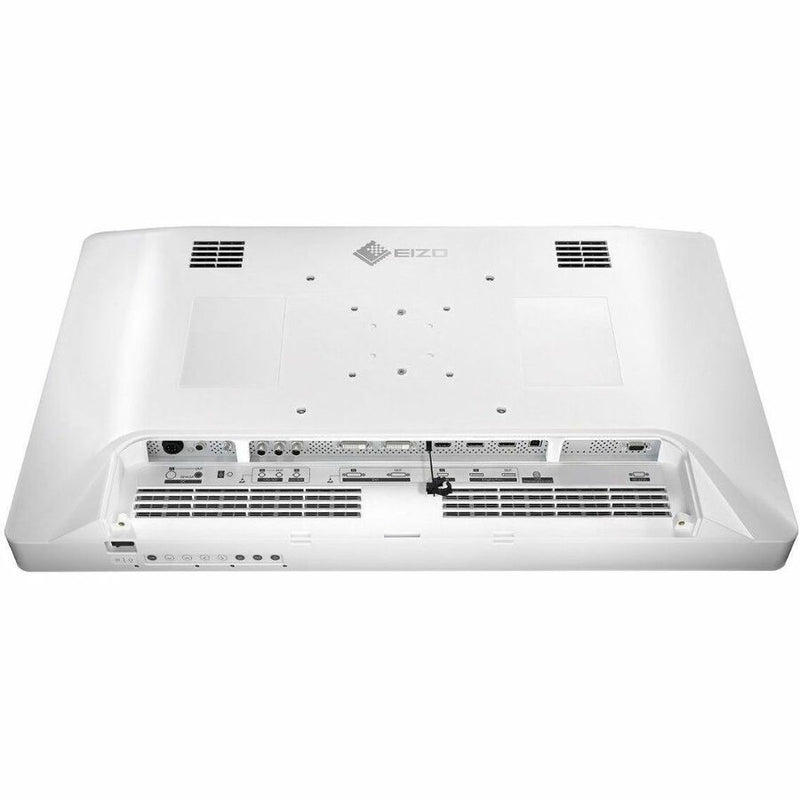

| Inputs / Ports | 2 x DVI, 1 x HDMI, 2 x DisplayPort |
| HDCP Support | Yes |
| Power Consumption | 205 W |
| Operating Frequency | 50 / 60 Hz |

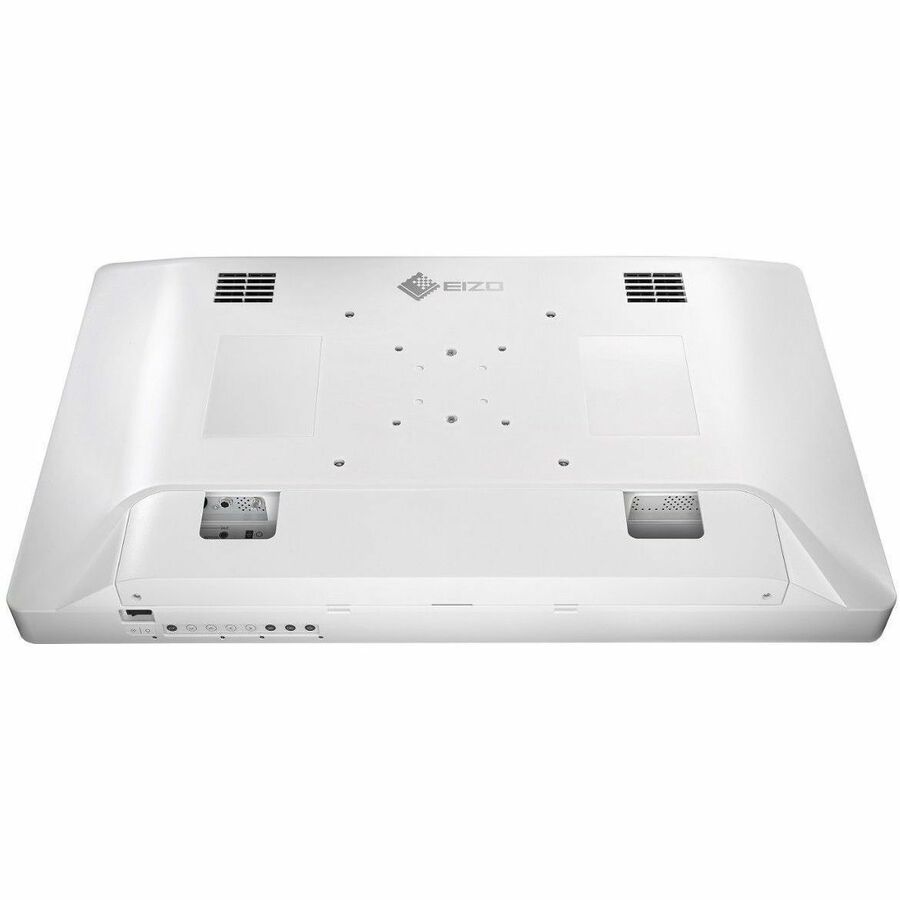

| VESA Mount | Yes (200 x 200 mm) |
| Dimensions (H x W x D) | 18.3" x 30" x 3.6" |
| Weight | 29.98 lbs |
| Color | White |
| Included Accessories | AC Power Cord, AC Adapter, 3x 3D Fogless Polarized Glasses, VESA Screws, Cable Cover, Utility Disk, User Manual |
| Environmental Compliance | RoHS, China RoHS, WEEE |
| Warranty | 3-Year Limited Warranty |
