Description

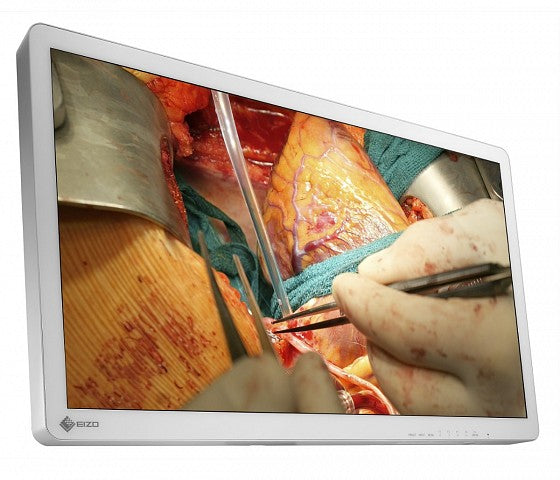

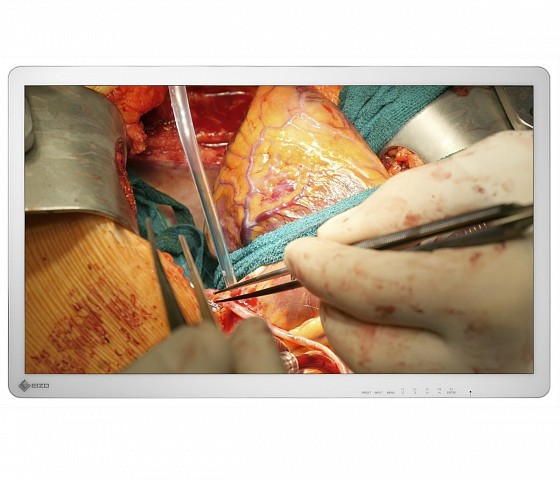

The EIZO CuratOR EX3242 is a premium-grade 32-inch 4K UHD surgical monitor engineered to meet the exacting demands of modern operating rooms. Designed with precision and reliability in mind, it delivers 3840 x 2160 resolution — four times the detail of Full HD — ensuring ultra-sharp visualization of endoscopic and microscopic procedures.
Equipped with HDR support (PQ and HLG), the EX3242 reproduces colors and brightness closer to human perception, while its BT.2020 color gamut enables surgeons to distinguish subtle tone differences critical for accurate decision-making. Optical bonding technology reduces reflections, improves contrast, and prevents condensation, maintaining crystal-clear visibility in challenging surgical environments.
Connectivity is streamlined with DisplayPort, HDMI, BNC (12G-SDI/3G-SDI), and DVI inputs, delivering 4K video at 60 fps over a single cable — even over long distances. Advanced features such as Picture-by-Picture (PbyP) and Picture-in-Picture (PinP) allow simultaneous viewing of multiple signal sources, while image rotation and mirroring enhance viewing flexibility for the entire surgical team.
With a durable IP45-rated front panel, versatile mounting options, and pass-through outputs for multi-monitor setups, the EIZO CuratOR EX3242 is the ultimate visualization solution for endoscopy, microsurgery, and other precision-driven medical applications.
| Feature | Specification |
|---|---|
| Model | CuratOR EX3242 |
| Panel Type | Color IPS LCD |
| Backlight | LED |
| Screen Size | 32.0" (81.3 cm) |
| Native Resolution | 3840 x 2160 (4K UHD), 16:9 |
| Viewable Area (H x V) | 708 x 399 mm |
| Pixel Pitch | 0.185 x 0.185 mm |
| Display Colors | 10-bit: 1.07 billion / 8-bit: 16.77 million |
| Viewing Angles (H/V) | 178° / 178° |
| Brightness (typical) | 850 cd/m² |
| Contrast Ratio (typical) | 1800:1 |
| Response Time (typical) | 20 ms (black-white-black) |
| Color Gamut | BT.2020 emulation |
| HDR Support | PQ and HLG |

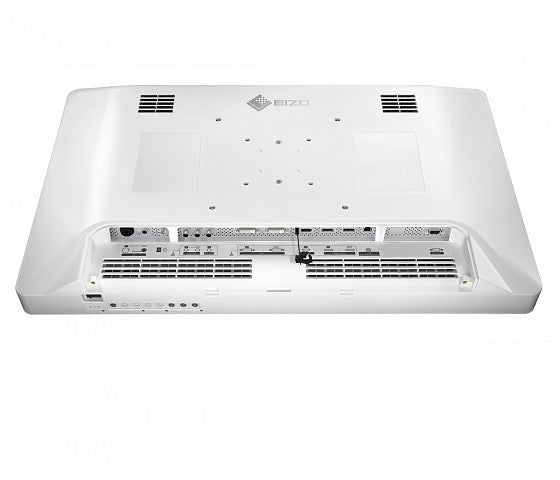

| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 2.2/1.4), BNC (12G-SDI, 3G-SDI), DVI-D (HDCP 1.4) |
| Output Terminals | DisplayPort, BNC (12G-SDI), DVI-D |
| Digital Scanning Frequency (H/V) | 18–136 kHz / 23–71 Hz |
| Power Requirements | AC 100 – 240 V, 50/60 Hz |
| Max Power Consumption | 199 W |
| Features & Functions | PbyP, PinP, Optical Bonding, 180° Rotation, Mirroring, RS-232C Remote Control |
| Net Weight (without stand) | 13.2 kg |
| Mounting (VESA) | 200 x 200 mm (M6) / 100 x 100 mm (M4) |
| Protection Rating | IP45 (Front) / IP32 (Rear) |
| Certifications | CE, UKCA, ANSI/AAMI ES60601-1, CSA, IEC/EN60601-1, FCC-A, RoHS, WEEE, CCC, EAC, BIS |
| Warranty | 3 Years |
| Supplied Accessories | Power cord, AC adapter, VESA screws, cable cover, utility disk, documentation |
