Description

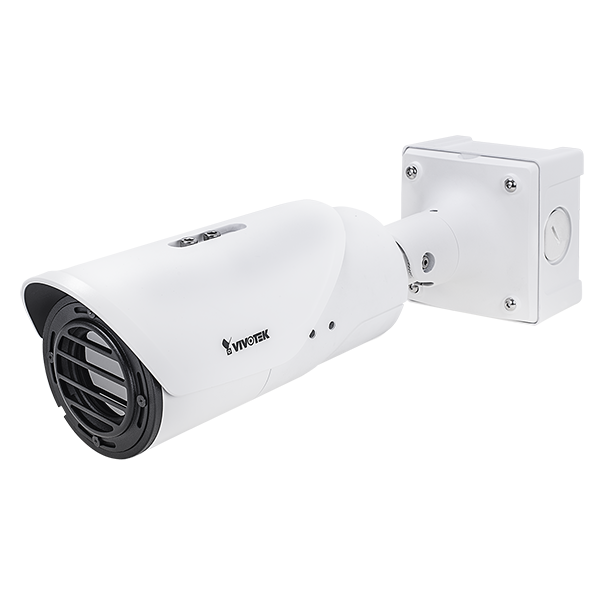

The Vivotek TB9330-E-19MM is a rugged outdoor thermal bullet network camera engineered for high-performance perimeter protection and long-range detection in the most challenging environments. Equipped with a 19 mm fixed-focal thermal lens and an uncooled VOx infrared detector with 384 × 256 resolution, this camera excels in detecting people and vehicles through fog, smoke, rain, dust, and complete darkness.
With NETD < 50 mK sensitivity, H.265 video compression, and advanced VIVOTEK Video Content Analysis (VCA) capabilities—including line crossing, field detection, and loitering detection—the TB9330-E-19MM delivers precise thermal imagery and intelligent security automation. Built to withstand extreme conditions with its IP66/IP67, IK10, and NEMA 4X-rated housing, it operates reliably in temperatures from –50 °C to 60 °C.
The camera also integrates Trend Micro IoT Security for enhanced cybersecurity and offers two-way audio, multiple streaming options, and seamless ONVIF integration. Ideal for critical infrastructure, border security, and industrial perimeter protection, the TB9330-E-19MM ensures superior situational awareness and round-the-clock surveillance performance.
| Category | Details |
|---|---|
| Model | TB9330-E-19MM |
| Image Sensor | Uncooled VOx infrared detector |
| Maximum Resolution | 384 × 256 (effective); up to 960 × 640 (scaled) |
| Pixel Size | 17 µm |
| Spectral Range | 8 – 14 µm |
| Sensitivity (NETD) | < 50 mK @ F1.0 |
| Lens Type / Focal Length | Fixed-focal thermal lens, f = 19 mm |
| Aperture / Auto-iris | F1.0 / Fixed iris |
| Field of View (19 mm) | 18.3° (H), 12.3° (V), 21.9° (D) |
| Digital Zoom | ePTZ, up to 20× |
| Video Compression | H.265, H.264, MJPEG |
| Max Frame Rate | 30 fps @ 384 × 256 |
| Video Streams | Up to 4 simultaneous streams |
| Audio | Two-way audio (full duplex), G.726 / G.711 compression |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP/RTP/RTCP, SNMP, TLS, 802.1X, and more |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1X, password protection |
| VCA Features | Line crossing, field detection, loitering detection |
| Event Triggers | Audio detection, tampering, cybersecurity events, motion, digital input |
| Event Actions | Audio clip, digital output, email, FTP, HTTP, NAS, SD card upload |
| Storage | MicroSD/SDHC/SDXC card, NAS support |
| Interfaces | RJ-45 Ethernet, audio in/out, DC 12 V, AC 24 V, digital I/O, BNC, RS485 |
| Power Input | AC 24 V, DC 12 V, IEEE 802.3at PoE Class 4 (redundancy supported) |
| Power Consumption | Max. 12.5 W (PoE), 10 W (DC 12 V), 11 W (AC 24 V) |
| Operating Temperature | Start: –40 °C ~ 60 °C; Working: –50 °C ~ 60 °C |
| Ingress Protection | IP66 / IP67, IK10, NEMA 4X |
| Certifications | CE, FCC, RCM, VCCI, UL, CB, BIS |
| Dimensions (with junction box) | 121 × 121 × 452.2 mm |
| Weight | 2,000 g |
| Detection Range – Human (1.8 × 0.5 m) | Detection: 566 m; Recognition: 142 m; Identification: 71 m |
| Detection Range – Vehicle (4 × 1.5 m) | Detection: 1,729 m; Recognition: 432 m; Identification: 216 m |
