Description

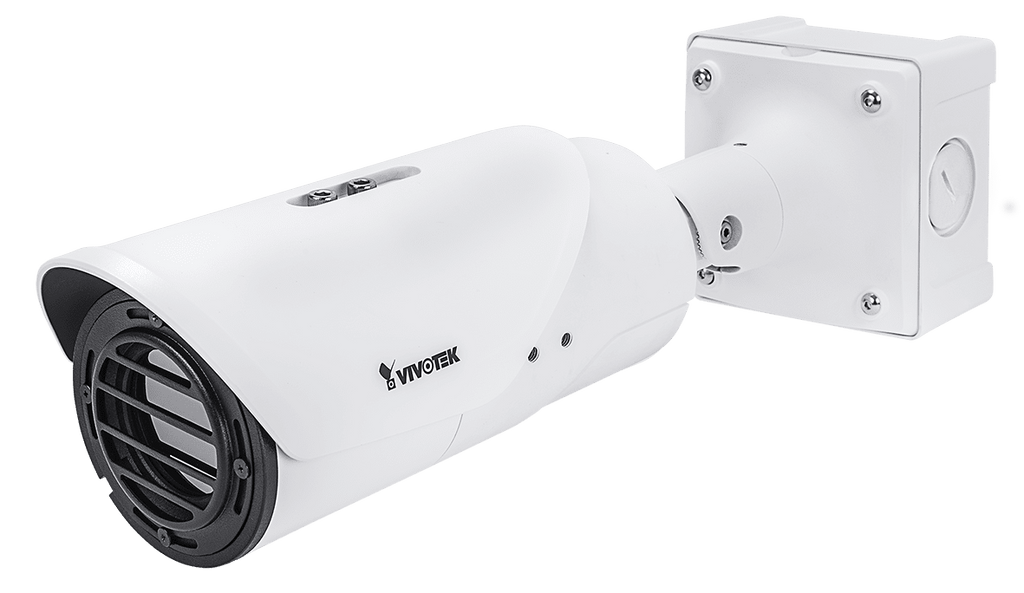

The Vivotek TB9330-E-50MM is a high-performance outdoor thermal bullet network camera engineered for long-range detection and reliable perimeter protection in the most demanding environments. Featuring a 50mm fixed-focal thermal lens, this model delivers detection of vehicles up to 4,549 m and humans up to 1,490 m — even in complete darkness, dense fog, rain, smoke, or dust.
Equipped with an uncooled VOx infrared detector and 384 × 256 thermal resolution, the TB9330-E-50MM provides precise heat-based imaging unaffected by lighting conditions. H.265 compression ensures efficient bandwidth usage, while Trend Micro IoT Security offers robust network protection against cyber threats.
Built for mission-critical surveillance, the TB9330-E-50MM is IP66/IP67 weather-proof, IK10 vandal-resistant, and NEMA 4X-rated for maximum durability. Integrated VIVOTEK VCA (Video Content Analysis) enables advanced analytics such as line-crossing, field detection, and loitering detection. With two-way audio, ONVIF compliance, and UL certification, this thermal camera seamlessly integrates into modern security systems, delivering exceptional reliability and performance in extreme conditions.
| Specification | Details |
|---|---|
| Model | TB9330-E-50MM |
| Image Sensor | Uncooled VOx infrared detector |
| Resolution | 384 × 256 (effective pixels), up to 960 × 640 (scaled) |
| Pixel Size | 17 µm |
| Spectral Range | 8 ~ 14 µm |
| Thermal Sensitivity (NETD) | < 50 mK @ F1.0 |
| Lens Type | Fixed-focal thermal lens |
| Focal Length | 50 mm |
| Aperture | F1.0 |
| Field of View (FOV) | H: 7°, V: 4.7°, D: 8.4° |
| Detection Range (Vehicle) | Up to 4,549 m |
| Detection Range (Human) | Up to 1,490 m |
| Recognition Range (Vehicle) | 1,137 m |
| Recognition Range (Human) | 373 m |
| Identification Range (Vehicle) | 569 m |
| Identification Range (Human) | 186 m |
| Compression Formats | H.265, H.264, MJPEG |
| Max Frame Rate | 30 fps @ 384 × 256 |
| Video Streams | Up to 4 simultaneous streams |
| Intelligent Video | Motion detection, human detection, line crossing, field detection, loitering detection |
| Audio | Two-way audio (G.726, G.711) |
| Network Protocols | IPv4, IPv6, HTTPS, SSL, TCP/IP, RTSP/RTP, SMTP, SNMP, TLS, UDP, UPnP, ONVIF Profile G/S |
| Security | HTTPS, IEEE 802.1x, access list, password protection, Trend Micro IoT Security |
| Storage | MicroSD/SDHC/SDXC card, NAS |
| Power Input | AC 24 V, DC 12 V, IEEE 802.3at PoE Class 4 (redundant supported) |
| Power Consumption | Max. 12.5 W (PoE) |
| Ingress Protection | IP66/IP67 weather-proof, IK10 vandal-resistant, NEMA 4X |
| Certifications | UL, CE, FCC, RCM, VCCI, BIS |
| Operating Temperature | Start: –40 °C ~ 60 °C; Working: –50 °C ~ 60 °C |
| Humidity | Up to 90% |
| Dimensions (W×H×L) | 121 × 121 × 455.6 mm (with junction box) |
| Weight | 2,080 g |
| Included Accessories | Quick installation guide, junction box, sunshield, waterproof kit, screws, alignment sticker |
