Description

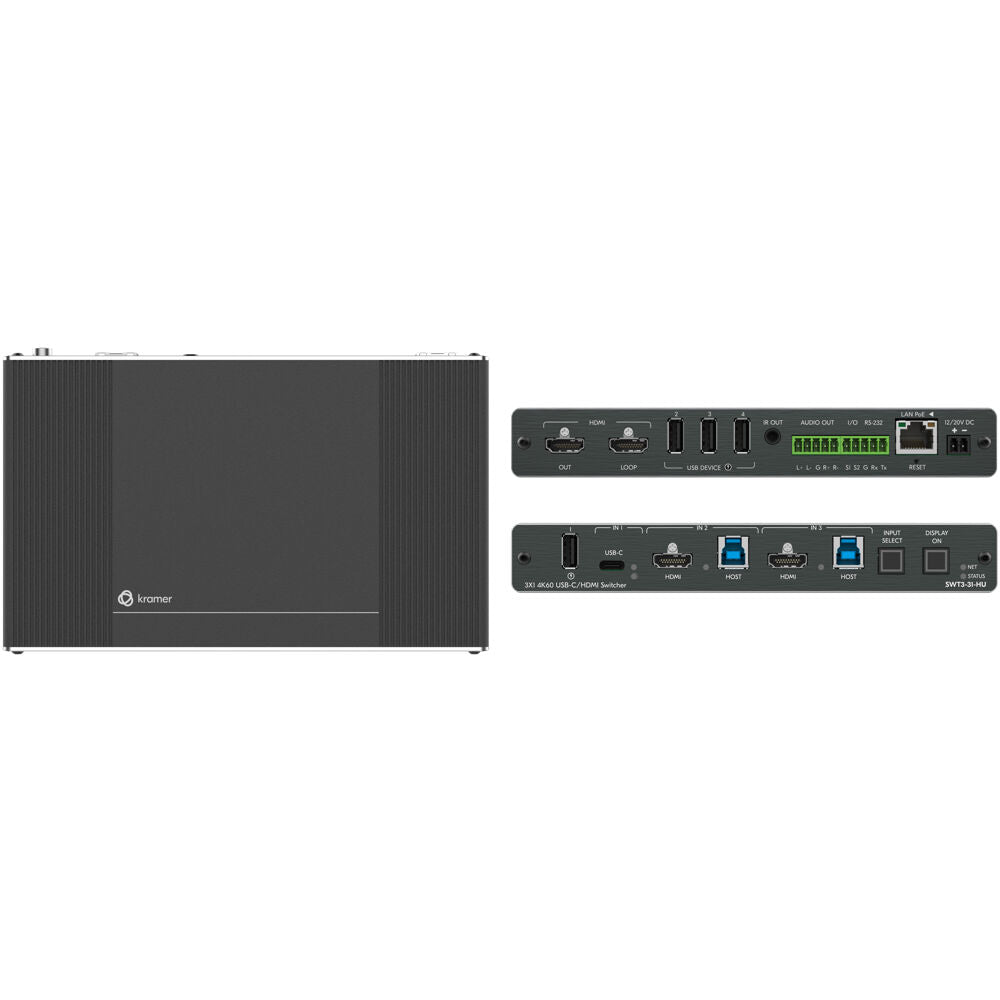

The Kramer SWT3-31-HU is a high-performance 3x1 4K60 switcher built for modern hybrid meeting spaces, combining USB-C, HDMI, and USB switching into one compact, easy-to-deploy solution. Designed for seamless BYOD workflows, it supports DP-Alt-Mode USB-C devices, provides up to 60W USB-C charging, and intelligently routes AV and USB data to ensure effortless collaboration for both in-room and remote participants.
With mirrored HDMI output, advanced EDID handling, audio de-embedding, and a built-in intelligent control gateway, the SWT3-31-HU enables smart automation, simplified system design, and reliable performance. It supports HDCP 2.3, 4K@60Hz (4:4:4), USB 3.2 high-speed peripherals, PoE powering, CEC display control, and flexible remote/browser management—making it a premium choice for conference rooms, classrooms, and multi-purpose hybrid environments.
| Category | Details |
|---|---|
| Inputs | 1 USB-C (DP Alt Mode & PD 3.0), 2 HDMI |
| Outputs | 1 HDMI, 1 HDMI Loop, 1 Balanced Stereo Audio (5-pin), 1 IR |
| Ports | 1 USB-C Host, 2 USB-B Host, 4 USB-A Device, 1 Ethernet (RJ-45), 1 RS-232, 2 GPIO |
| Video Performance | Max 18Gbps; 4K@60Hz (4:4:4); HDCP 2.3; HDR, Deep Color, 3D (HDMI 2.0b) |
| USB Features | USB 3.2 up to 10Gbps; supports USB 3.2 Gen2/2.0/1.1; integrated USB hub |
| Analog Audio | Max 14.5dBu; 500Ω; 20Hz–20kHz; Crosstalk −114dB; THD+N: 0.005%; S/N 85dB |
| Power (Main Adapter) | 20V DC 6A (included for HW Rev 02+); Max 84W consumption |
| Secondary Power Option | 12V DC 2A (optional); Max 22W consumption |
| PoE Power | 144mA; Max 7.8W |
| USB-C Charging | Up to 60W (PD 3.0) when powered by 20V adapter |
| USB Device Charging | Max total current 2A |
| Environmental | Operating: 0°C to +40°C; Storage: −40°C to +70°C; Humidity: 10%–90% non-condensing |
| Regulatory Compliance | Safety: CE, UL; Environmental: RoHS, WEEE |
| Enclosure | MegaTOOLS aluminum housing; convection cooling |
| Dimensions (W x D x H) | 19.00 × 11.60 × 2.70 cm (7.48" × 4.57" × 1.06") |
| Product Weight | 0.6 kg (1.2 lbs) |
| Shipping Dimensions / Weight | 34.50 × 16.50 × 5.20 cm; 1.2 kg (2.6 lbs) |
