Description

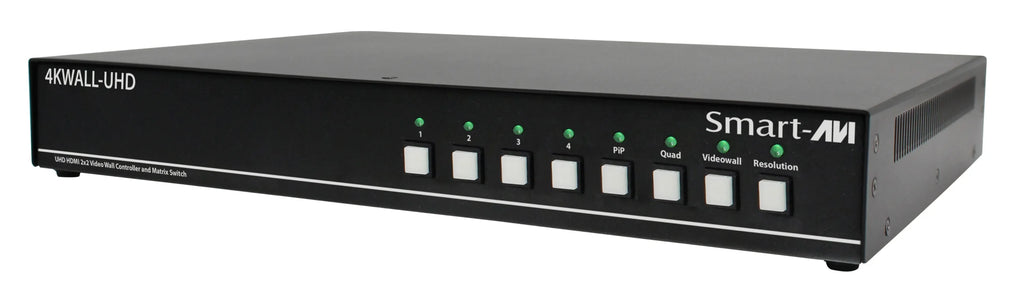

The SmartAVI 4KWALL-UHD is a powerful all-in-one 4K HDMI matrix switch, video wall controller, and multiviewer designed for high-performance AV environments. Delivering stunning 4K@60Hz 4:4:4 resolution, this hardware-based solution eliminates the need for external PCs or software, enabling seamless deployment and reliable operation.

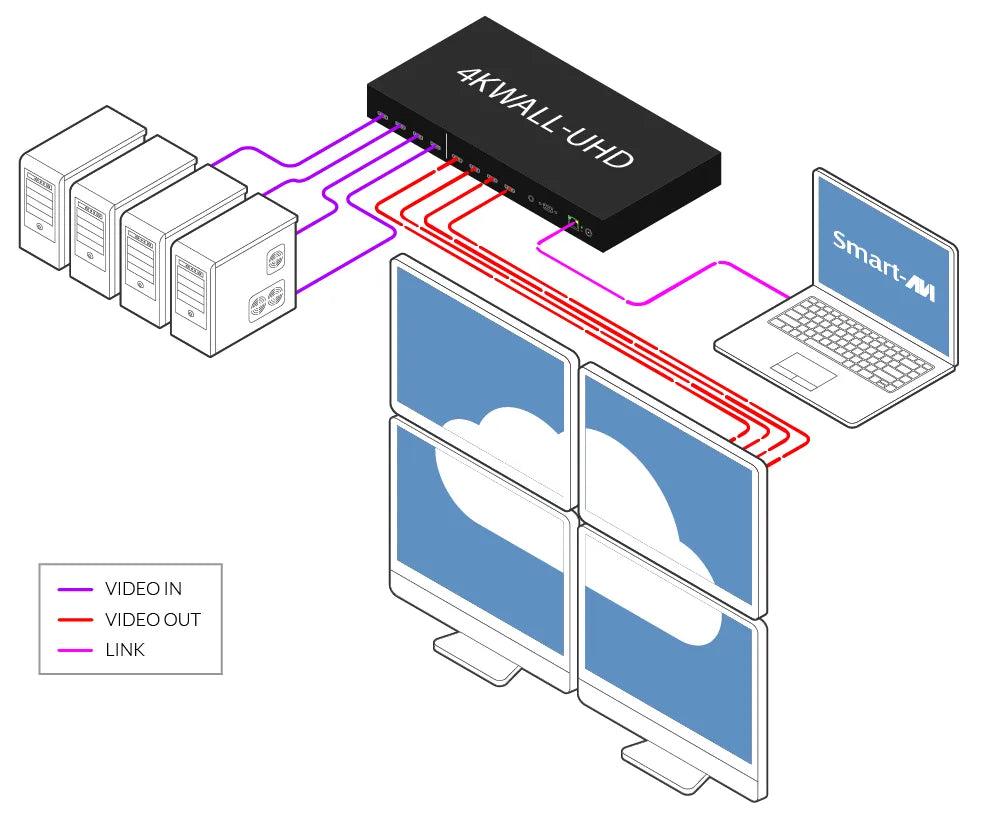

With four HDMI inputs and four HDMI outputs, users can create dynamic video wall layouts, route signals independently, or display multiple sources simultaneously using multiview modes. The system supports flexible configurations including full-screen video wall mode, quad-view, picture-in-picture, and individual routing, making it ideal for command centers, corporate lobbies, retail displays, and broadcast environments.

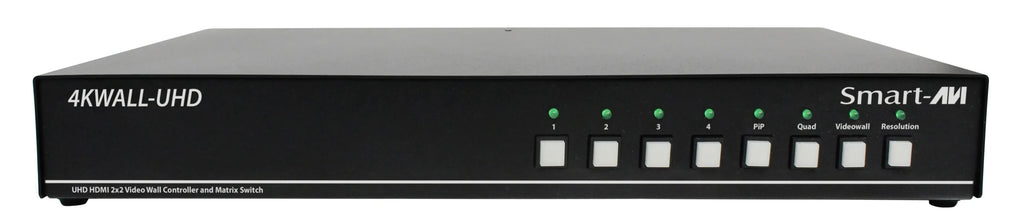

Engineered for simplicity and control, the 4KWALL-UHD features intuitive front panel controls, IR remote functionality, RS-232 integration, and TCP/IP web-based management. Its plug-and-play design ensures fast setup, while seamless switching and advanced scaling capabilities deliver smooth, professional-grade visual experiences.
| Specification Category | Details |
|---|---|
| Video Format | HDMI 2.0 |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz (4:4:4) |

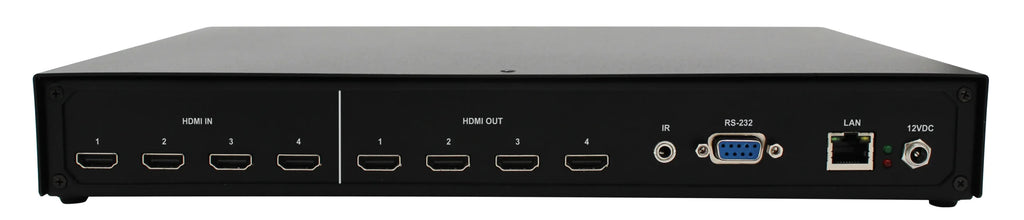

| HDMI Inputs | 4 x HDMI Type-A (19-pin, female) |
| HDMI Outputs | 4 x HDMI Type-A (19-pin, female) |
| Video Wall Modes | 2x2 video wall, quad-view, picture-in-picture, individual routing |
| Switching | Seamless transitions between sources |
| Audio Support | HDMI digital audio output |
| Control Methods | Front panel buttons, IR remote, RS-232, TCP/IP (web interface) |
| Network Control | RJ-45 Ethernet port with integrated web server |
| RS-232 Interface | DB9 (female) |

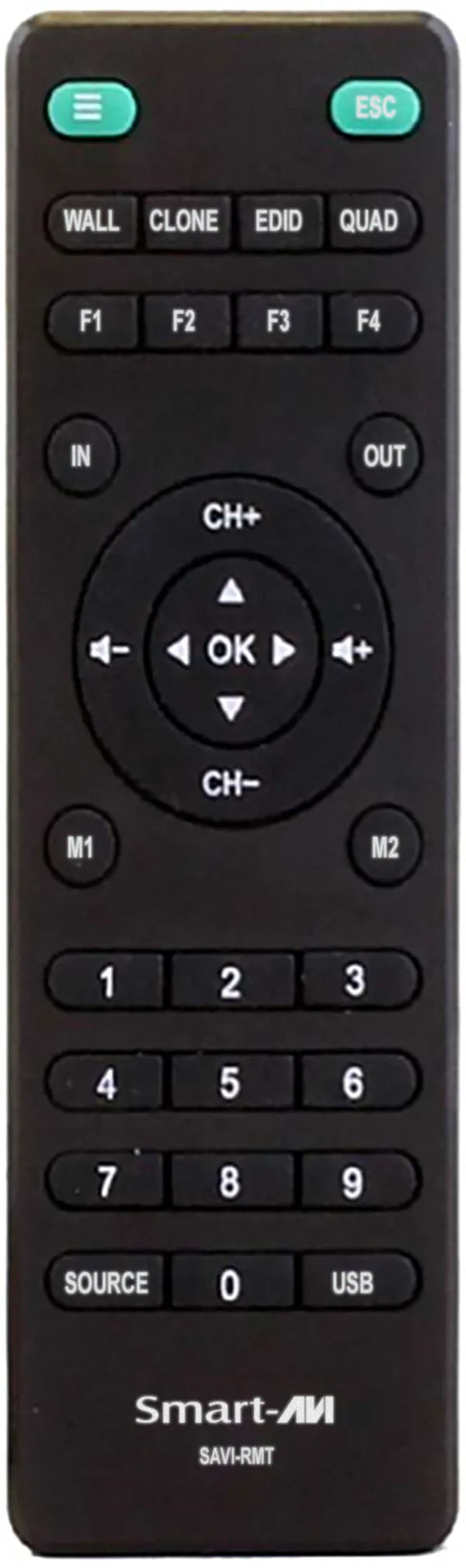

| IR Control | RC5 compatible |
| Power Supply | 12VDC power adapter |
| Dimensions | 13” W x 9” D x 1.9” H |
| Weight | 4.8 lbs |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Up to 80% non-condensing |
| Compliance | UL, CE, RoHS |
| Installation | Plug-and-play, no software required |
