Description

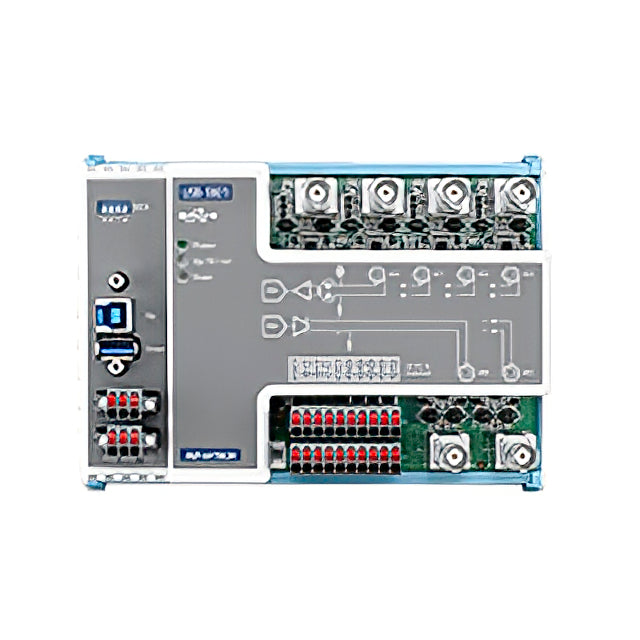

The Advantech USB-5801-AE is a high-accuracy dynamic signal acquisition USB 3.0 module engineered for demanding vibration, acoustic, and condition monitoring applications. Designed with four simultaneous 24-bit analog input channels, the module supports sampling rates up to 192 kS/s, delivering exceptional resolution and low-noise performance for precise measurement.
The USB-5801-AE also includes two high-resolution 24-bit analog outputs, integrated IEPE sensor excitation, and dual tachometer inputs for correlating rotational speed data with sensor signals. With built-in isolation, anti-aliasing filters, and USB 3.0 SuperSpeed connectivity, it is an ideal solution for industrial test, measurement, and edge data acquisition environments.
| Specification Category | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | USB-5801-AE |
| Product Type | Dynamic Signal Acquisition USB I/O Module |
| Interface | USB 3.0 SuperSpeed |
| Analog Input Channels | 4 (simultaneous sampling) |
| Analog Input Resolution | 24-bit Delta-Sigma ADC |
| Max Sampling Rate | Up to 192 kS/s |
| Input Coupling | AC/DC selectable per channel |
| Input Voltage Ranges | ±1 V, ±2 V, ±5 V, ±10 V |
| IEPE Excitation | 2 mA integrated |
| Analog Output Channels | 2 |
| Analog Output Resolution | 24-bit Delta-Sigma DAC |
| Output Update Rate | Up to 192 kS/s |
| Output Voltage Range | ±1 V, ±10 V |
| Tachometer Inputs | 2 channels |
| Digital Input Channels | 4 isolated |
| Digital Output Channels | 4 isolated (350 mA/ch sink) |
| Isolation Protection | 2,500 VDC |
| Built-in Features | Anti-aliasing filter, Auto calibration, USB hub daisy-chain support |
| Connectors | BNC + Terminal Blocks + USB Type-A/B |
| Power Supply | External 10–30 VDC or USB Bus Power |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 168 × 120 × 40 mm |
