Description

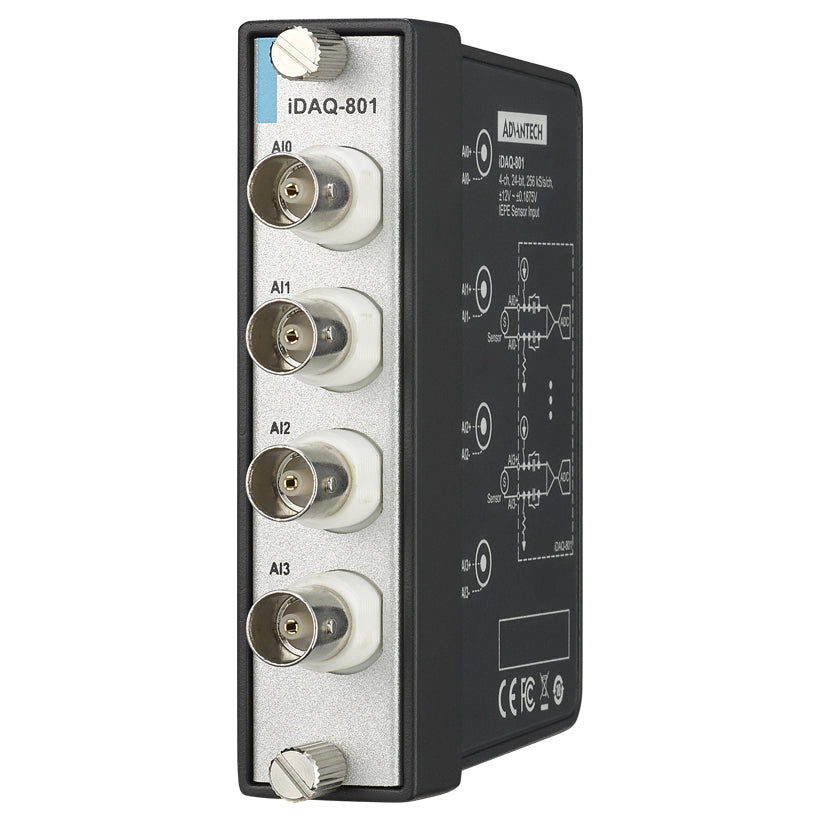

The Advantech IDAQ-801-AE is a high-performance dynamic signal acquisition (DSA) module designed for precision vibration, acoustic, and sensor measurement applications. Featuring 4 simultaneous sampling analog input channels with 24-bit resolution and sampling rates up to 256 kS/s per channel, it delivers exceptional accuracy and signal fidelity.
Equipped with direct IEPE excitation support, integrated anti-aliasing filters, and selectable high-gain input ranges, the IDAQ-801-AE is ideal for industrial condition monitoring, structural testing, and advanced data acquisition environments. Compact and rugged, it integrates seamlessly into Advantech iDAQ systems for reliable measurement in demanding applications.
| Specification Category | Details |
|---|---|
| Model / SKU | IDAQ-801-AE |
| Product Type | Dynamic Signal Acquisition (DSA) Module |
| Analog Input Channels | 4 channels, differential or pseudo-differential |
| Resolution | 24-bit |
| Maximum Sampling Rate | 256 kS/s per channel (simultaneous sampling) |
| Input Voltage Ranges | ±12 V, ±6 V, ±3 V, ±1.5 V, ±0.75 V, ±0.375 V, ±0.1875 V |
| Input Coupling | AC or DC (software configurable) |
| Over-Voltage Protection | ±25 V |
| IEPE Excitation Support | 0 mA or 2 mA per channel (software configurable) |
| Anti-Aliasing Filter | Integrated 4th-order linear phase low-pass filter |
| Internal Buffer | 512-sample FIFO |
| AC Performance (SNR) | 110.61 dB |
| THD+N | -109.4 dB |
| Spurious-Free Dynamic Range (SFDR) | 117.49 dB |
| Power Input | 5 VDC through iDAQ chassis |
| Power Consumption | 2 W typ., 2.6 W max |
| Dimensions | 100 × 80 × 25 mm |
| Weight | 200 g |
| Operating Temperature | -20°C to 60°C |
| Certifications | CE, FCC, CB, UL |
