Description

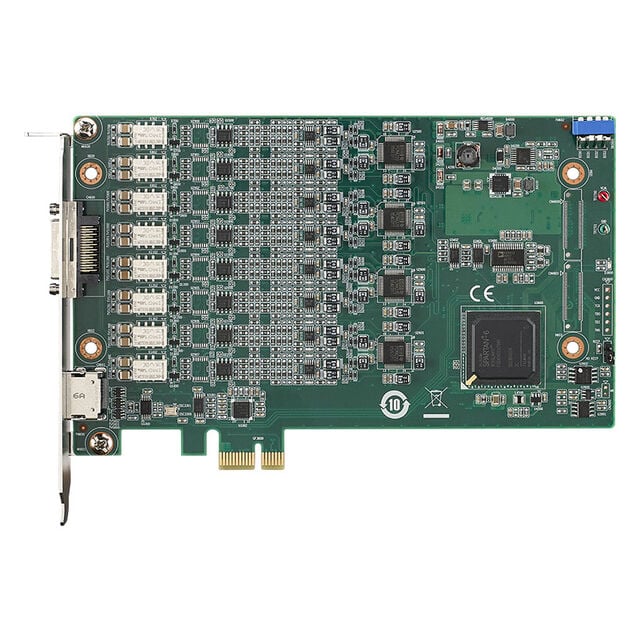

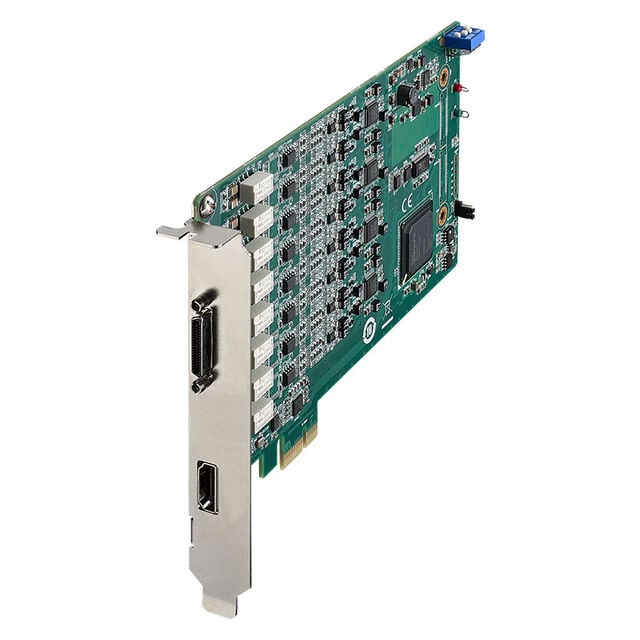

The Advantech PCIE-1802L-AE is a high-accuracy, 24-bit PCI Express data acquisition module designed for demanding sound and vibration measurement applications. With 4 simultaneously sampled analog input channels, this dynamic signal acquisition card supports sampling rates up to 216 kS/s, making it ideal for capturing fast, high-resolution signals in industrial monitoring, test labs, and research environments.
The PCIE-1802L-AE includes integrated IEPE excitation currents (4/10 mA) for direct connection to piezoelectric sensors such as accelerometers and microphones. Additional features such as built-in anti-aliasing filtering, software-selectable AC/DC coupling, and automatic calibration ensure clean and accurate measurement performance.
With PCIe x1 connectivity and multi-card synchronization support, the PCIE-1802L-AE is a reliable solution for scalable dynamic signal acquisition systems.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | PCIE-1802L-AE |
| Product Type | Dynamic Signal Acquisition PCI Express Card |
| Analog Input Channels | 4 (simultaneous sampling) |
| Resolution | 24-bit Delta Sigma ADC |
| Maximum Sampling Rate | Up to 216 kS/s |
| Dynamic Range | 115 dB |
| Input Voltage Range | ±0.2 V to ±10 V |
| Input Coupling | AC/DC selectable per channel |
| Anti-Aliasing Filter | Built-in |
| IEPE Excitation Current | 0 / 4 mA / 10 mA selectable |
| Trigger Modes | Start, Delayed Start, Stop, Delayed Stop |
| Digital Input Channels | 1 (interrupt) |
| Digital Output Channels | 2 |
| Bus Interface | PCI Express x1 |
| Connector Type | 36-pin Mini SCSI (Analog Input), HDMI (Clock/Trigger/DI/O) |
| Dimensions | 168 × 100 mm |
| Operating Temperature | 0°C to 60°C |
| Multi-Card Synchronization | Supported |
