Description

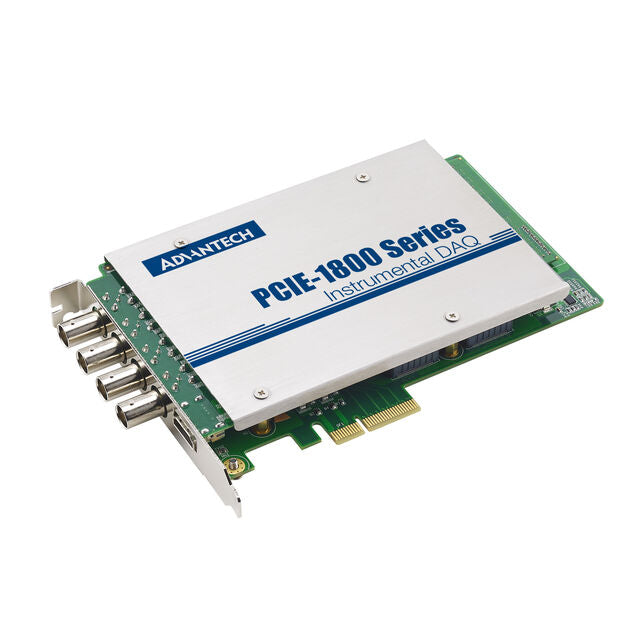

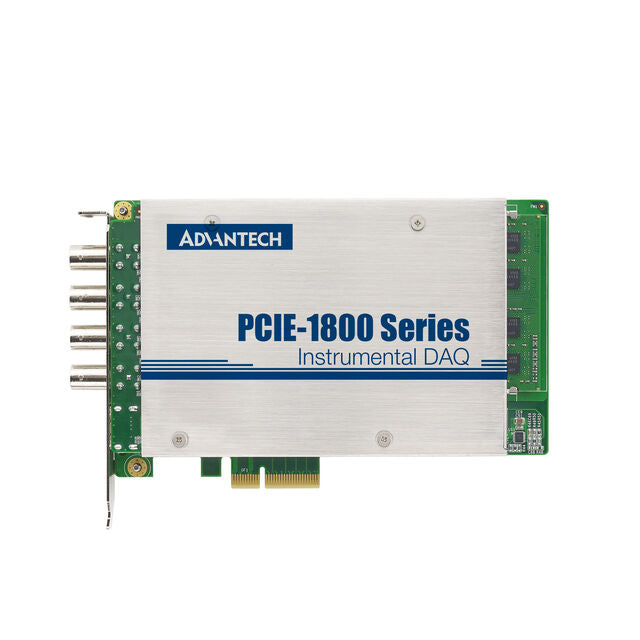

The Advantech PCIE-1840L-AE is a high-performance PCI Express digitizer designed for precision data acquisition in industrial testing, signal analysis, and high-speed measurement applications. Featuring 4 simultaneous analog input channels with 16-bit resolution, it supports sampling rates up to 80 MS/s and includes 2 GB of onboard memory for non-stop streaming and large capture workloads.
With selectable input impedance (50Ω or 1MΩ), built-in tunable anti-aliasing filtering, and AC/DC coupling support, the PCIE-1840L-AE delivers flexible and reliable performance for demanding instrumentation environments.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | PCIE-1840L-AE |
| Product Type | PCIe Digitizer / Data Acquisition Card |
| Analog Input Channels | 4 (single-ended, simultaneous) |
| Resolution | 16-bit |
| Maximum Sampling Rate | 80 MS/s |
| Time-Interleaved Sampling | Up to 320 MHz |
| Onboard Memory | 2 GB |
| Input Impedance | Selectable 50Ω / 1MΩ |
| Input Coupling | AC/DC (1MΩ mode) |
| Input Voltage Range | 0.2 to 20 Vpp (1MΩ mode) |
| Overvoltage Protection | 30 Vp-p |
| Trigger Modes | Start, Delayed Start, Stop, Delayed Stop |
| Sampling Modes | Software and External Clock |
| Bus Interface | PCI Express Gen2 x4 |
| Connectors | 4× BNC (Analog Input), 1× HDMI (Clock/Trigger) |
| Dimensions | 175 × 100 mm |
| Operating Temperature | 0 to 50°C |
