Description

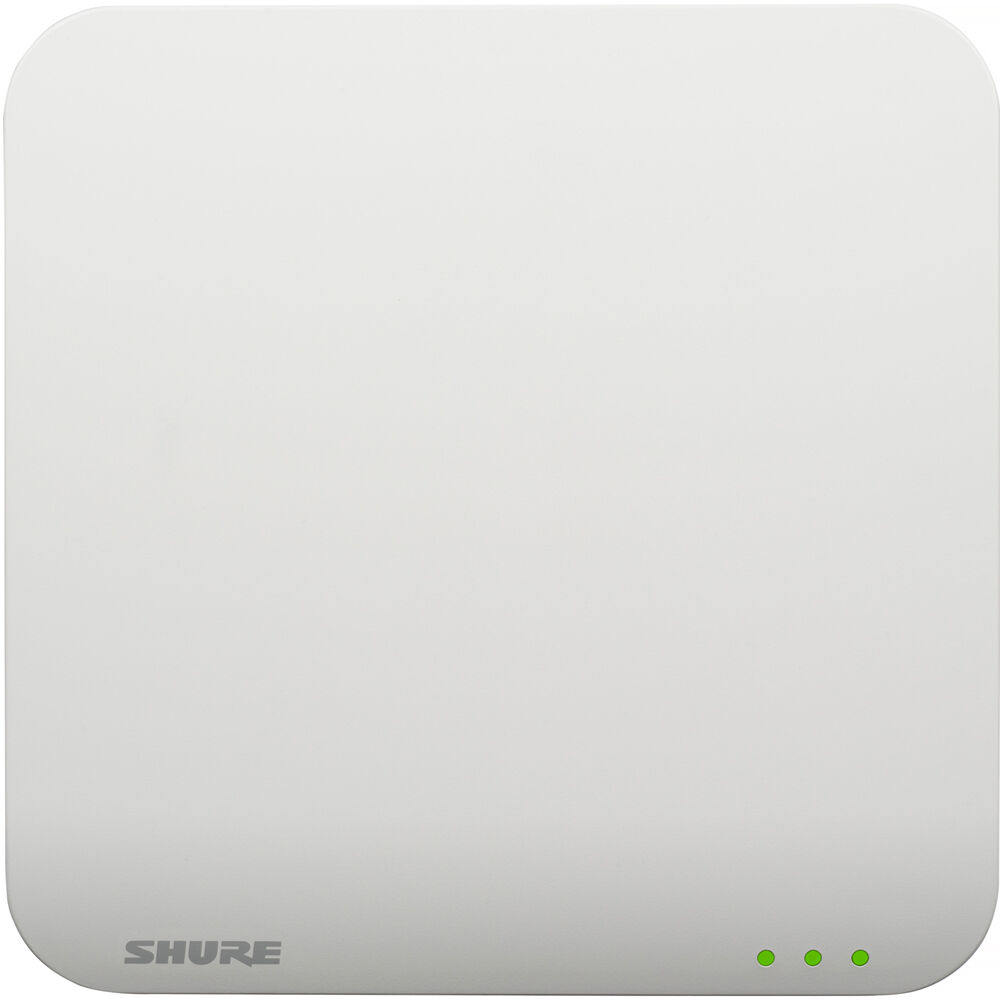

The Shure MXWAPT4 4-Channel Access Point Transceiver is a high-performance, bi-directional wireless solution engineered for seamless integration within Shure Microflex wireless systems. Designed for modern AV environments, it enables reliable transmission and reception of up to four channels of AES 256-bit encrypted audio, ensuring secure and interference-resistant communication.
With automated frequency coordination, the MXWAPT4 intelligently scans and assigns clean frequencies while dynamically avoiding interference, making it ideal for mission-critical conferencing, corporate, and education installations. Its Dante-enabled Gigabit Ethernet connectivity supports low-latency digital audio over standard Cat5e cabling, while Power over Ethernet simplifies installation with a single cable.
The unit features a sleek, low-profile design with a paintable cover, allowing it to blend seamlessly into any ceiling or wall environment. Built for scalability, multiple MXWAPT4 units can be deployed together to support systems with up to 32 channels, making it a flexible and future-ready solution for expanding AV infrastructures.
| Specification | Details |
|---|---|
| Wireless Technology | Digital bi-directional wireless |
| Channel Capacity | Supports up to 4 simultaneous channels |
| System Compatibility | Designed for Shure Microflex Wireless Systems |
| Encryption | AES 256-bit secure wireless transmission |
| Frequency Coordination | Automated spectrum scanning and assignment |
| Network Interface | RJ45 Gigabit Ethernet with Dante digital audio |
| Power Requirements | Power over Ethernet (PoE), Class 0, 6.5 W |
| Audio Networking | Dante low-latency digital audio over Cat5e |
| Scalability | Expandable up to 32 channels with multiple units |
| Mounting Options | Wall and ceiling mountable with included bracket |
| Antenna Type | Internal spatial diversity with circular polarization |
| Output Power | Selectable wireless output power for optimized range |
| Diagnostics | LED indicators for power, network, and wireless status |
| Construction | Molded plastic with cast zinc components |
| Finish | Paintable cover for discreet installation |
| Safety Rating | UL 2043 plenum-rated for above-ceiling installation |
| Dimensions | 1.35 x 6.70 x 6.70 inches |
| Weight | 1.88 lb (unit), additional accessories included |
| Included Accessories | Paintable cover and mounting bracket |
| Warranty | 2-year limited manufacturer warranty |
